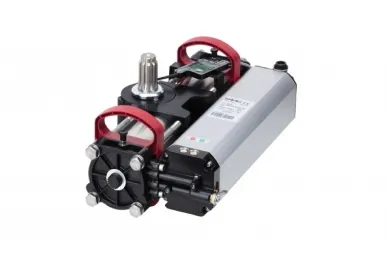

Faac 108803 Underground hydraulic drive S800 ENC SBW 180° 230V

1655,86 EUR including 23.00% VAT
Product code: #26806
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. wing width: 4 m
  • Max. gate leaf weight: 800 kg
  • Gate opening angle: 180°
  • Usage frequency: 30 cycles/hour
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 71209101-10 lock to unlock the drive with key Faac 720118 Model L housing for control unit Faac 490187 Swing gate rail connector kit Faac 490113 Stainless Steel Foundation Box Faac 490112 Drive housing dedicated to S700H / S800H drives Faac 390972 Splined connector kit for swing gates Faac 390035 Hydraulic release for swing gates Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB

Faac 108803 Underground hydraulic drive S800 ENC SBW 180° 230V


S800 ENC SBW 180° - Underground hydraulic drive 230V for home and estate swing gates with a maximum leaf length of 4 m and a maximum weight of 800 kg.

FEATURES:

  • Drive designed for continuous operation
  • Built-in absolute magnetic encoder with ą2Easy” rail (two-wire connection without polarity)
  • Thanks to built-in mechanical limiters, it does not require the installation of leaf movement limiters for the open or closed position on the driveway surface (FAAC PATENT)
Included: S800 ENC hydraulic drive with hydraulic locking for opening and closing (CBAC version) or without locks (SBW version), absolute magnetic encoder, key to unlock the drive, adjustment key and 8 μF/400 V starting capacitor.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Asynchronous, single-phase
  • Max. power consumption: 220 W
  • Max. angular speed: 7.8°/sec.
  • Max. gate leaf weight: 800 kg
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Protection class: IP67
  • Device weight: 16.5 kg
  • Frequency of use: 30 cycles/hour
  • Max. leaf width: 4 m
  • Oil type: FAAC HP
  • Device dimensions (WxHxD): Drive 450 x 220 x 160 mm - with housing 507 x 283 x 200 mm
  • Control unit: None
