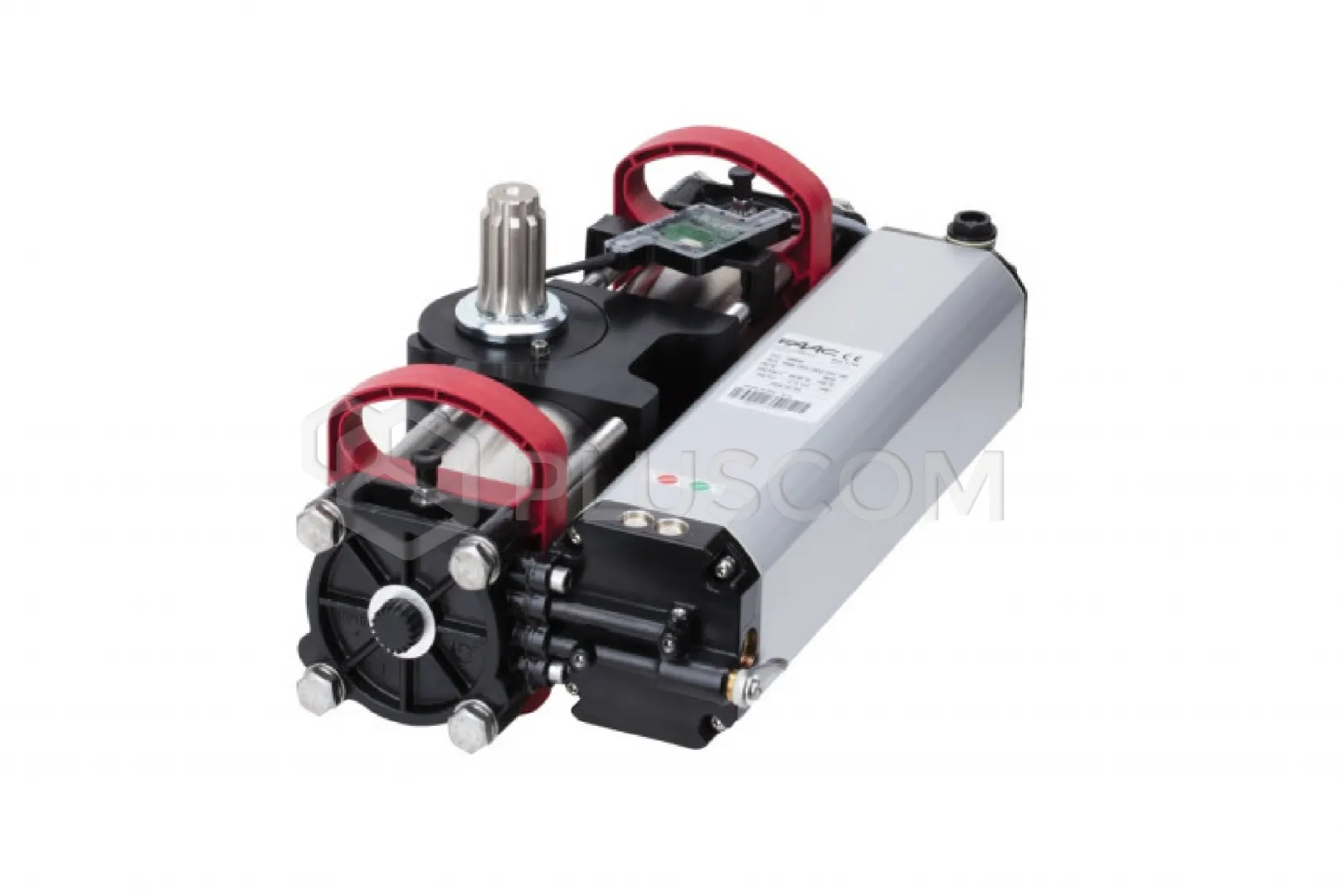

Faac 108801 Underground hydraulic drive S800 ENC CBAC 180° 230V

1655,86 EUR including 23.00% VAT
Product code: #26804
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. wing width: 2 m
  • Max. gate leaf weight: 800 kg
  • Gate opening angle: 180°
  • Usage frequency: 30 cycles/hour
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 71209101-10 lock to unlock the drive with key Faac 720118 Model L housing for control unit Faac 490187 Swing gate rail connector kit Faac 490113 Stainless Steel Foundation Box Faac 490112 Drive housing dedicated to S700H / S800H drives

Faac 108801 Underground hydraulic drive S800 ENC CBAC 180° 230V


S800 ENC CBAC 180° - Underground hydraulic drive 230V for home and housing estate swing gates with a maximum leaf length of 2 m and a maximum weight of 800 kg.

FEATURES:

  • Drive designed for continuous operation
  • Built-in absolute magnetic encoder with ą2Easy” rail (two-wire connection without polarity)
  • Thanks to built-in mechanical limiters, it does not require the installation of leaf movement limiters for the open or closed position on the driveway surface (FAAC PATENT)
Included: S800 ENC hydraulic drive with hydraulic locking for opening and closing (CBAC version) or without locks (SBW version), absolute magnetic encoder, key to unlock the drive, adjustment key and 8 μF/400 V starting capacitor.

Technical data:

  • Supply voltage: 220-240 V AC 50/60 Hz
  • Type of motor: Asynchronous, single-phase
  • Max. power consumption: 220 W
  • Max. angular speed: 7.8°/sec.
  • Max. gate leaf weight: 800 kg
  • Gate opening angle: 180°
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Protection class: IP67
  • Weight of the device: 16.5 kg
  • Use frequency: 30 cycles/hour
  • Max. wing width: 2 m
  • Oil type: FAAC HP
  • Device dimensions (WxHxD): Drive 450x220x160 - with housing 507x283x200 mm
  • Control unit: None
