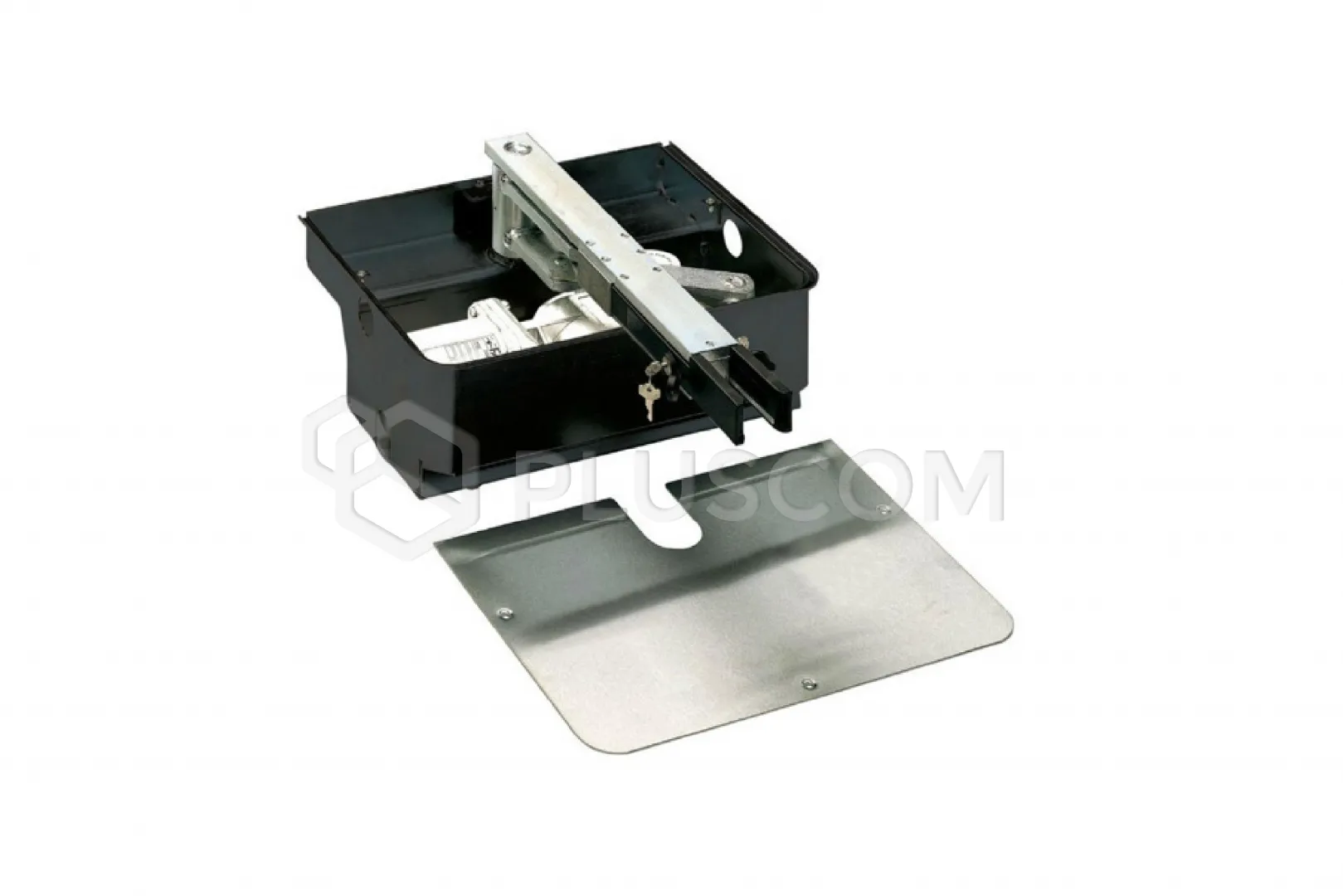

Faac 10675201 Underground actuator 770N 230V

878,69 EUR including 23.00% VAT
Product code: #26783
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. gate wing weight 500 kg
  • Max. leaf width 2 m (3.5 with opening set)
  • Max. sash opening angle 110° (140° and 180° with optional kit)
  • Degree of protection : IP 67
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
FAAC 722121 Mechanical opening limiter Faac Model E housing for the control unit Faac 712104001-10 Drive release lock with key Faac 720118 Model L housing for control unit Faac 490111 Optional kit for opening the door to 180 degrees Faac 490110 Stainless steel foundation box with unlocking Faac 490065 Foundation box with unlocking Faac 404035 Optional encoder for 770N drive Faac 390612 770 kit for opening shutter 140 degrees Faac E045S control unit

Faac 10675201 Underground actuator 770N 230 V


Underground electromechanical drive 770N 230V for residential swing gates with a maximum leaf length of 3.5 m and a weight of 500 kg.

FEATURES:

  • Drive hidden under the ground surface - does not spoil the aesthetics of the gate
  • Access to the drive without removing the leaf
  • Manual release of the drive with a double lever accessible from both the inside and outside of the property (patented)
Included: drive, mounting accessories, 12.5 μF/400 V starting capacitor, two keys to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 380 W
  • Max. torque - 330 Nm (*)
  • Max. angular speed - 6°/sec. (*)
  • Max. gate leaf weight - 500 kg (see figure A)
  • Max. leaf opening angle - 110° (140° and 180° with optional kit)
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection class - IP67
  • Device weight - 12 kg (with housing 14 kg)
  • Use frequency - S3 30%
  • Max. leaf width - 2 m (3.5 with opening set)
  • Device dimensions (WxHxD) - 362x153x127 (with housing 430x307.5x214) mm
  • Control unit - none
