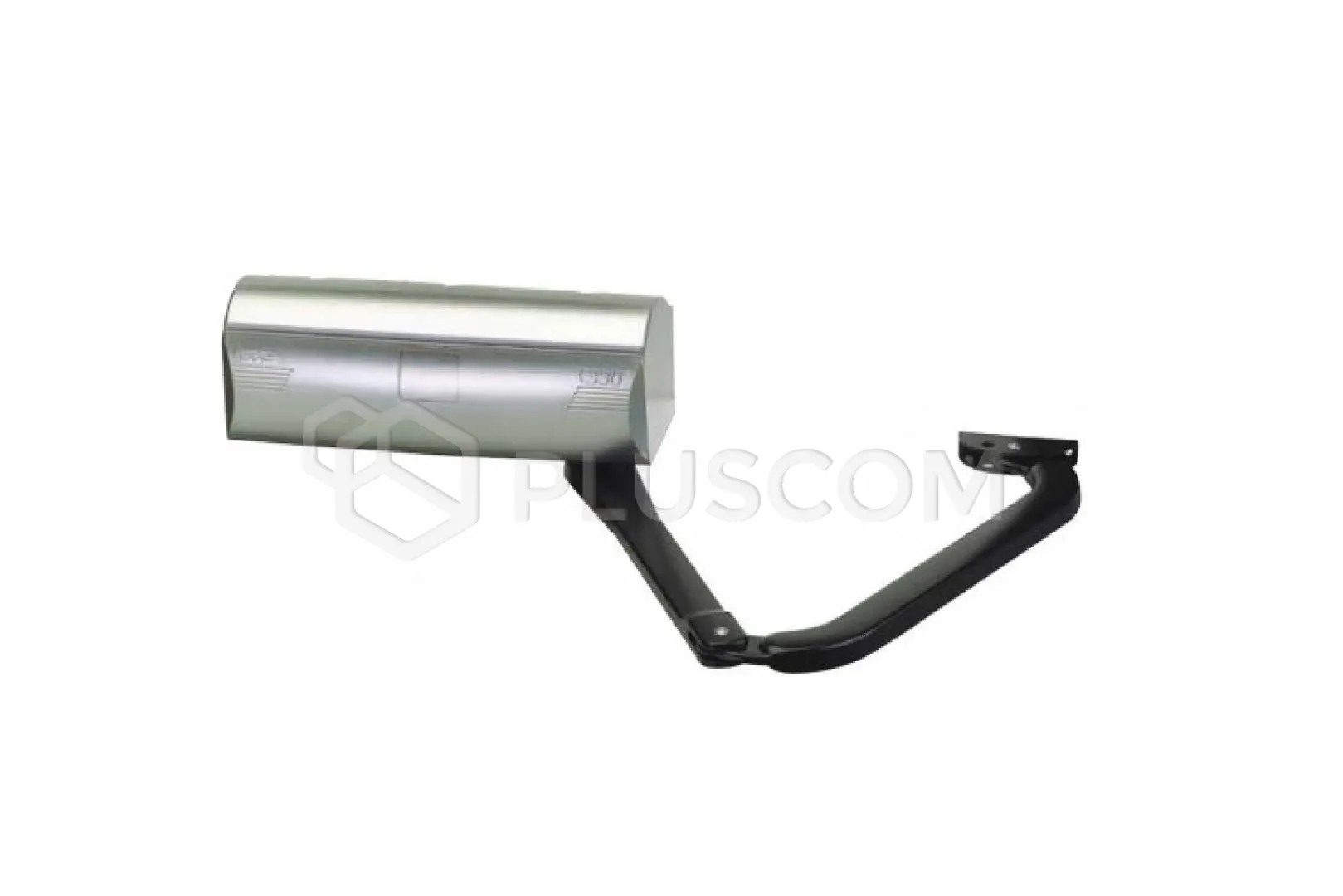

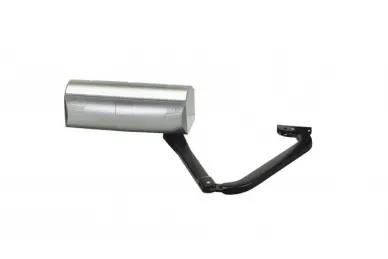

Faac 104570 390 Folding door operator 230V

609,35 EUR including 23.00% VAT
Product code: #26742
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf width: 1.8 m (3 m with electric lock)
  • Max. sash opening angle: 120°
  • Max. angular velocity: 8°/sec
  • For mounting on wide posts
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 738706 Telescopic arm for folding doors Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac 401057 Kit for unlocking the drive from the outside Faac 390682 Limit Switch

Faac 104570 390 Folding door operator 230V


Electromechanical operator with a 230 V motor.

FEATURES:

  • Opening using a telescopic arm
  • Installation of the operator directly on the folding door leaf
  • Manual release of the operator, operated from inside the property or from outside (option), allows the gate to be opened in the event of a power failure
Included: electromechanical operator 390 230 V, assembly accessories, starting capacitor 8 μF/400 V, key to release the operator.

Technical data:

  • Supply voltage 220-240 V AC 50/60 Hz
  • Motor type Asynchronous, single-phase
  • Max. power consumption 280 W
  • Max. torque 250 Nm (*)
  • Max. angular speed 8°/sec (*)
  • Max. wing opening angle 120°
  • Ambient temperature during operation -20°C ÷ +55°C
  • Thermal protection 140°C
  • Protection class IP44
  • Weight of the device 11.5 kg
  • Use frequency S3 - 30%
  • Max. wing width 1.8 m (3 m with electric lock)
  • Device dimensions (LxDxH) 412x133x134 mm
  • Control unit None
