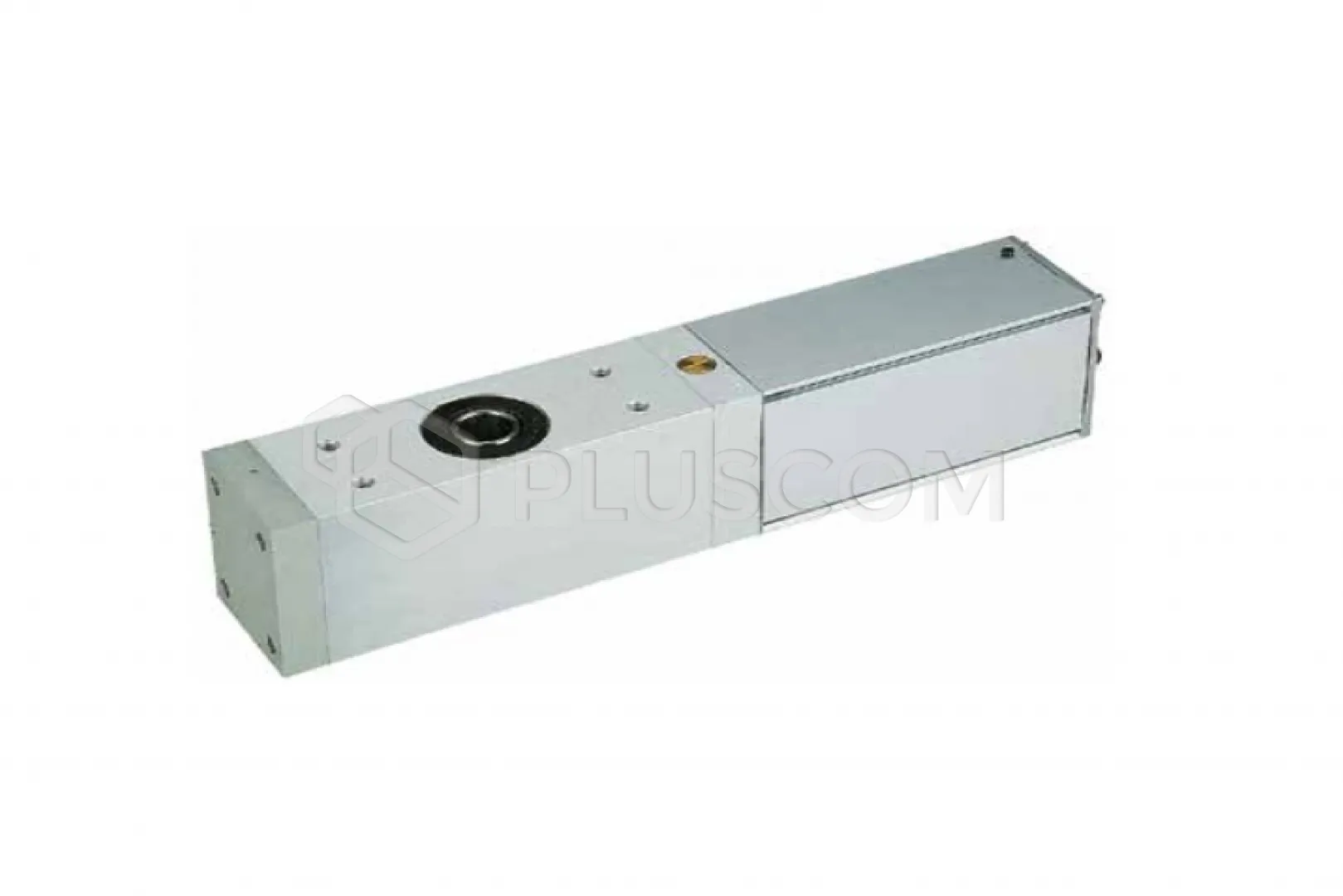

Faac 104561 560 CBAC Hydraulic actuator for folding doors 230V

1719,80 EUR including 19.00% VAT
Product code: #26865
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. door width: 1.50 m (one panel)
  • Usage frequency: 80 cycles/h
  • Max angular velocity 12.4°/sec.
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac 738703 Standard telescopic arm with installation accessories Faac 738700 Articulated telescopic arm with installation accessories Faac 424590001-10 External release mechanism with key for doors up to 15 mm thick Faac 424591001-10 External unlocking mechanism Faac E045S control unit Faac E145S control unit

Faac 104561 560 CBAC Hydraulic actuator for folding doors 230V


Faac 104561 560 CBAC Hydraulic actuator for folding doors 230V.

FEATURES:

  • Perfect for double-leaf folding doors. Opening and closing with a telescopic arm
  • In the event of a power outage, manual unlocking of the drive allows manual opening and closing of the door
  • Anti-crush protection thanks to a pair of bypass valves, precisely regulating the drive force
Included: in the case of the 560 CBAC drive - hydraulic drive with hydraulic opening and closing lock, starting capacitor 8 μF/400 V.

Technical data:

  • Supply voltage 220-240 V AC 50/60 Hz
  • Motor type Asynchronous, single-phase
  • Max. power consumption 220 W
  • Max. thrust -
  • Max. torque 320 Nm
  • Max. angular speed 12.4°/sec.
  • Pump capacity 1 l/min
  • Ambient temperature during
  • operation -20°C ÷ +55°C
  • Thermal protection 120°C
  • Protection class IP55
  • Oil type FAAC HP
  • Weight of the device 12 kg
  • Dimensions of the device (LxDxH) 480x85x110 mm
  • Control unit None
  • Max. wing width 1.50 m (one panel)
  • Use frequency 80 cycles/hour
