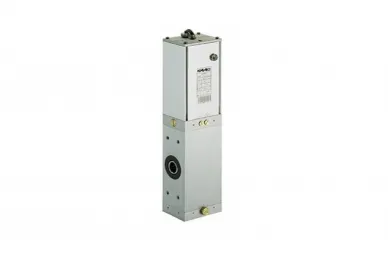

Faac 104501 580 CBAC Hydraulic drive for overhead garage doors 230V

1074,54 EUR including 23.00% VAT
Product code: #26863
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. door size (WxH): 3.50 x 3.00
  • Frequency of use: 60 cycles/hour
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac E045S control unit Faac E145S control unit

Faac 104501 580 CBAC Hydraulic drive for garage swing doors 230V


Hydraulic drive with 230 V motor.

FEATURES:

  • Anti-crush protection thanks to the hydraulic system
  • Safe, durable, efficient and silent actuator
  • Guaranteed hold during opening, even in strong wind conditions
Included: one hydraulic actuator with hydraulic lock during opening and closing (580 CBAC), starting capacitor 8 μF/400 V.

Technical data:

  • Supply voltage 220-240 V AC 50/60 Hz
  • Type of engine Asynchronous, single-phase
  • Max. power consumption 220 W
  • Max. torque 450 Nm (*)
  • Pump capacity 0.75 l/min (*)
  • Max. angular speed 9°15Ą/sec. (*)
  • Open time 20 sec.
  • Ambient temperature during operation -20°C ÷ + 55°C
  • Thermal protection 120°C
  • Protection class IP55
  • Oil type FAAC HP
  • Weight of the device 12 kg
  • Dimensions of the device (LxWxH) 480x96x110 mm
  • Max. door size (WxH) 3.50x3.00 (**)
  • Max. door weight 15 kg/m2
  • Control unit None
  • Use frequency 60 cycles/hour
(**) For doors over 3.50 m wide, two actuators should be installed. The electric lock should be installed for actuators without a hydraulic lock.
