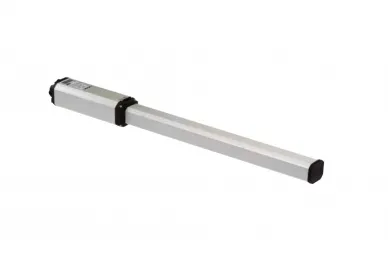

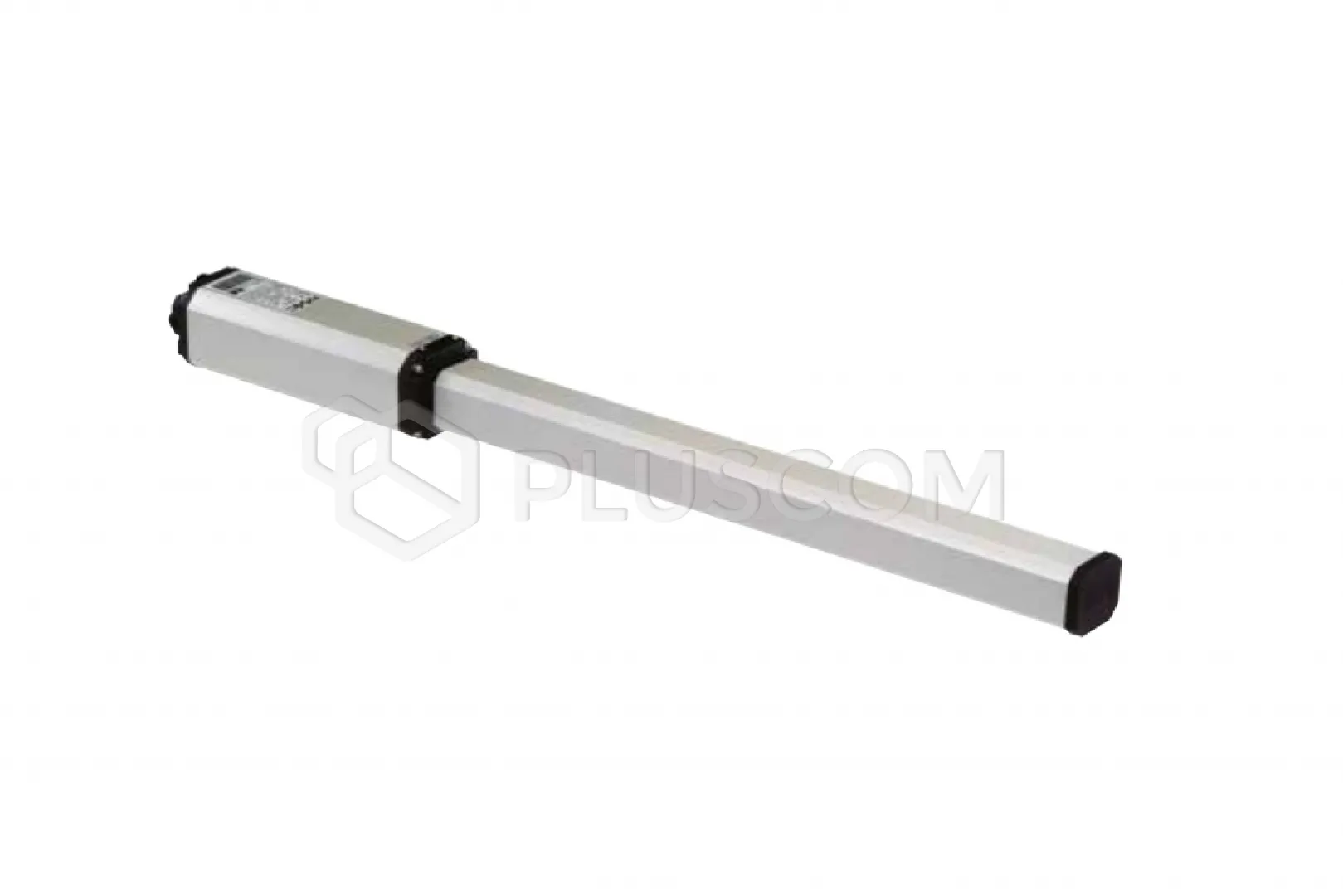

Faac 104474 Hydraulic drive 402 SBS 230V

798,34 EUR including 22.00% VAT
Product code: #26762
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. wing width: 3 m
  • Max. sash opening angle: 110°
  • Maximum thrust force: 6900 N
  • Usage frequency: 55 cycles/h
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac 713002 Release key 402 Faac 710010 RTA connector Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit

Faac 104474 Hydraulic drive 402 SBS 230V


Hydraulic drive 230V for residential swing gates for a leaf length of up to 3 m.

FEATURES:

  • Extremely compact, ideal for installations that require saving space
  • Anti-corrosion coating resistant to weather conditions
  • CBC version (with closing lock) and SBS (without lock)

Included: hydraulic drive in free version, without hydraulic locks, mounting accessories, starting capacitor 8 μF/400 V, key to unlock the drive.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Asynchronous, single-phase
  • Maximum power consumption: 220 W
  • Maximum thrust: 6900 N (*)
  • Maximum linear speed (piston): 10 mm/sec. (*)
  • Pump capacity: 0.75 l/min (*)
  • Useful working stroke: 250 mm
  • Max. leaf opening angle: 110°
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Thermal protection: 120°C
  • Degree of protection: 55 IP
  • Device weight: 6.5 kg
  • Frequency of use: 55 cycles/hour
  • Max. leaf width: 3 m (with electromagnetic lock)
  • Oil type: FAAC HP

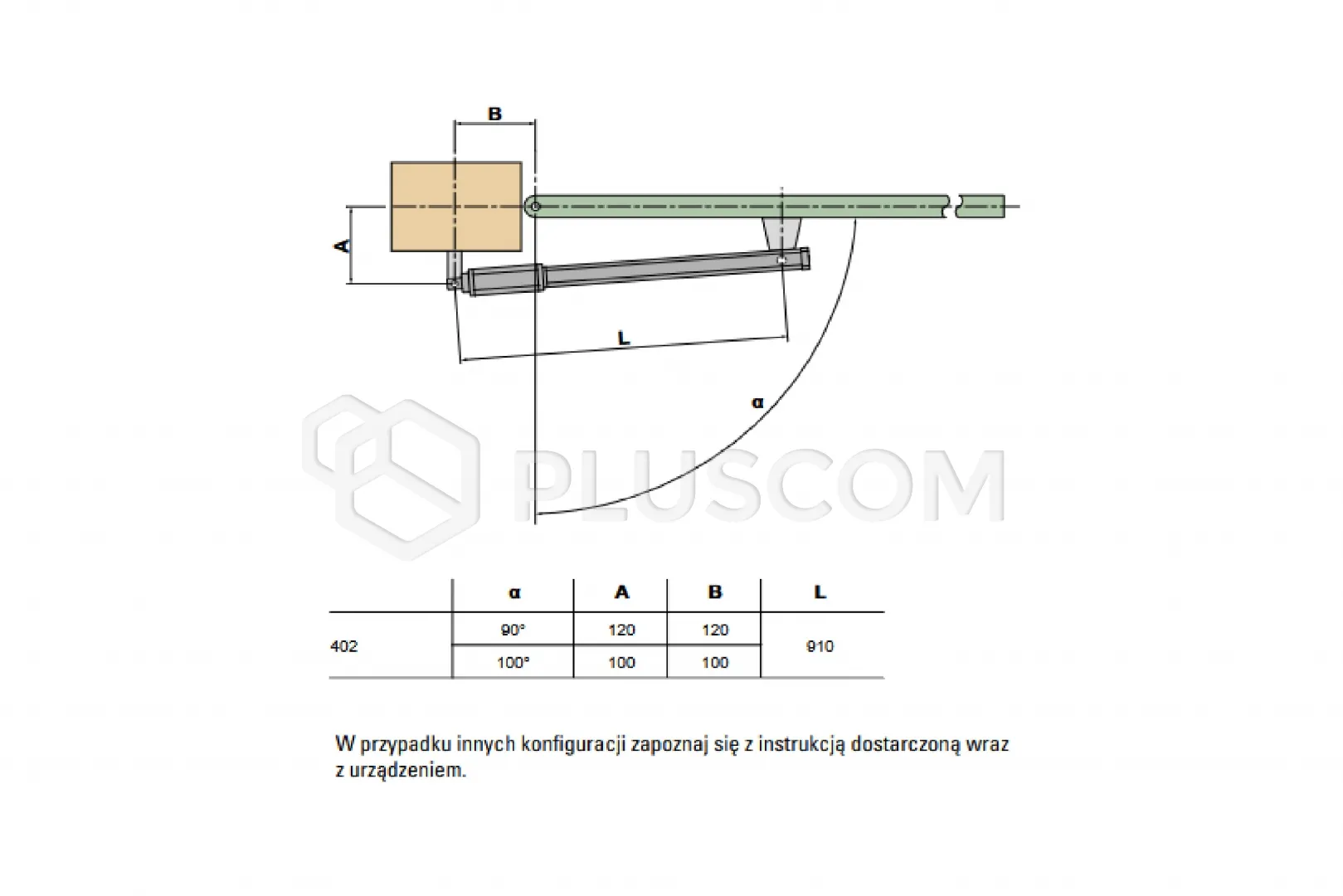

  • Mounting brackets: Rear bracket (to the post) to be welded/screwed - front bracket (to the leaf) to be welded
  • Device dimensions (LxDxH): 959 x 85 x 85 mm
  • Control unit: None
