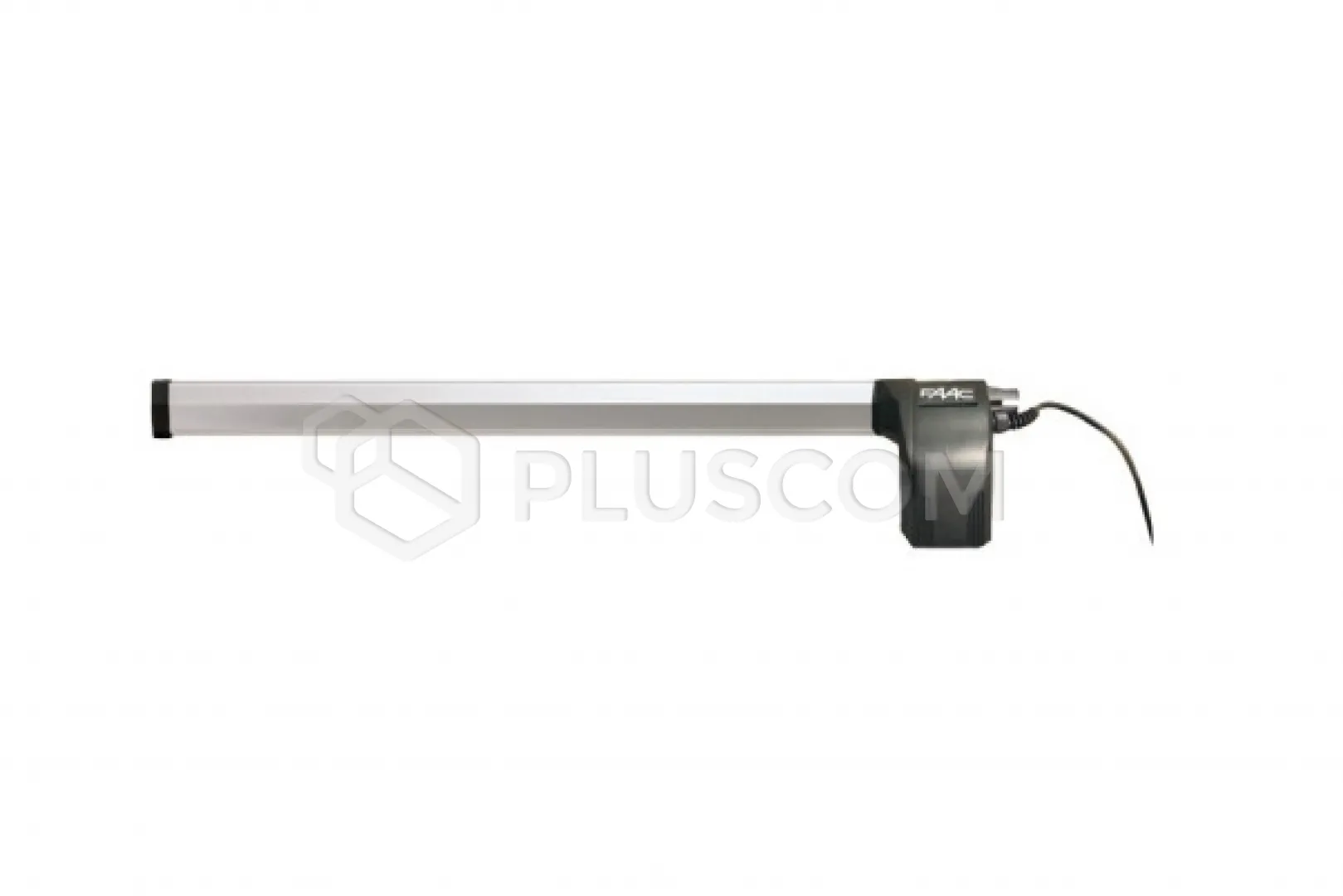

Faac 104470 Electromechanical actuator 412 230V DX (right)

491,35 EUR including 23.00% VAT
Product code: #26752
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf length: 1.8 m
  • Max. sash opening angle: 110°
  • Usage frequency: 18 cycles/hour
  • Max. pulling force: 3500N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac Mounting base for embedding Faac 713009 Release key 412-eurobat Faac Encoder for 414 actuator Faac 104471 Electromechanical actuator 412 230V SX (left) Faac E045S control unit Faac E145S control unit

Faac 104470 Electromechanical actuator 412 230V DX (right)


Right electromechanical drive 230V for swing gates with a leaf length of up to 1.8m. Simple, minimalist design. Increased aesthetics thanks to the use of an aluminum arm cover. Self-locking drive. No need to use electric locks.

Easy installation and maintenance of the device. In the event of, for example, a power failure, a simple gear release mechanism located at the rear of the drive allows manual operation of the gate. Possibility of using optional absolute magnetic encoders (SAFEcoder) as additional anti-crushing protection.

FEATURES:

  • Simple, minimalist design. Increased aesthetics thanks to the use of an aluminum arm cover
  • Self-locking drive. No need to use electric locks
  • Easy installation and maintenance of the device
  • In the event of, for example, a power failure, the simple gear release mechanism located at the rear of the drive allows for manual operation of the gate
  • Possibility of using optional absolute magnetic encoders (SAFEcoder) as additional anti-crush protection

Included: drive, mounting accessories, starting capacitor 8 μF/400 V, key to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 280 W
  • Max. thrust force - 3500 N (*)
  • Max. linear speed (piston) - 16 mm/sec. (*)
  • Usable working stroke - 290 mm
  • Max. leaf opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection class - IP44
  • Weight of the device - 6.5 kg
  • Use frequency - 18 cycles/hour
  • Max. wing width - 1.80 m

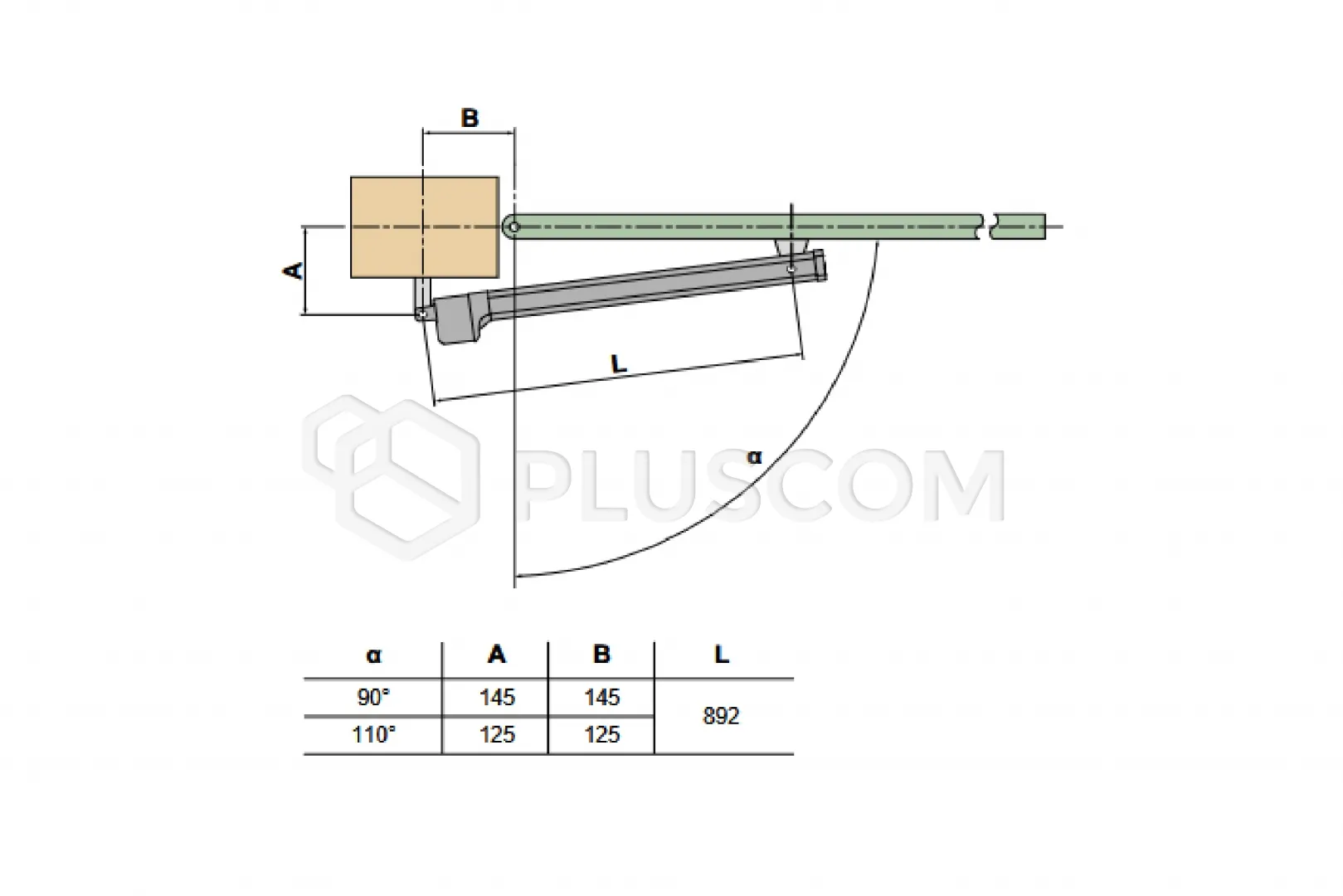

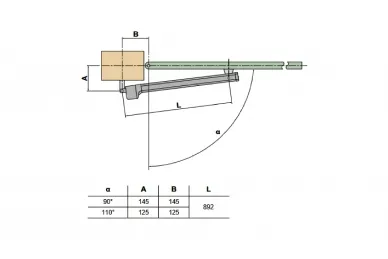

  • Mounting brackets: Rear bracket (to the post) for welding/screwing - front bracket (to the wing) for welding
  • Device dimensions (LxDxH) - 991x101x172 mm
  • Control unit - none
