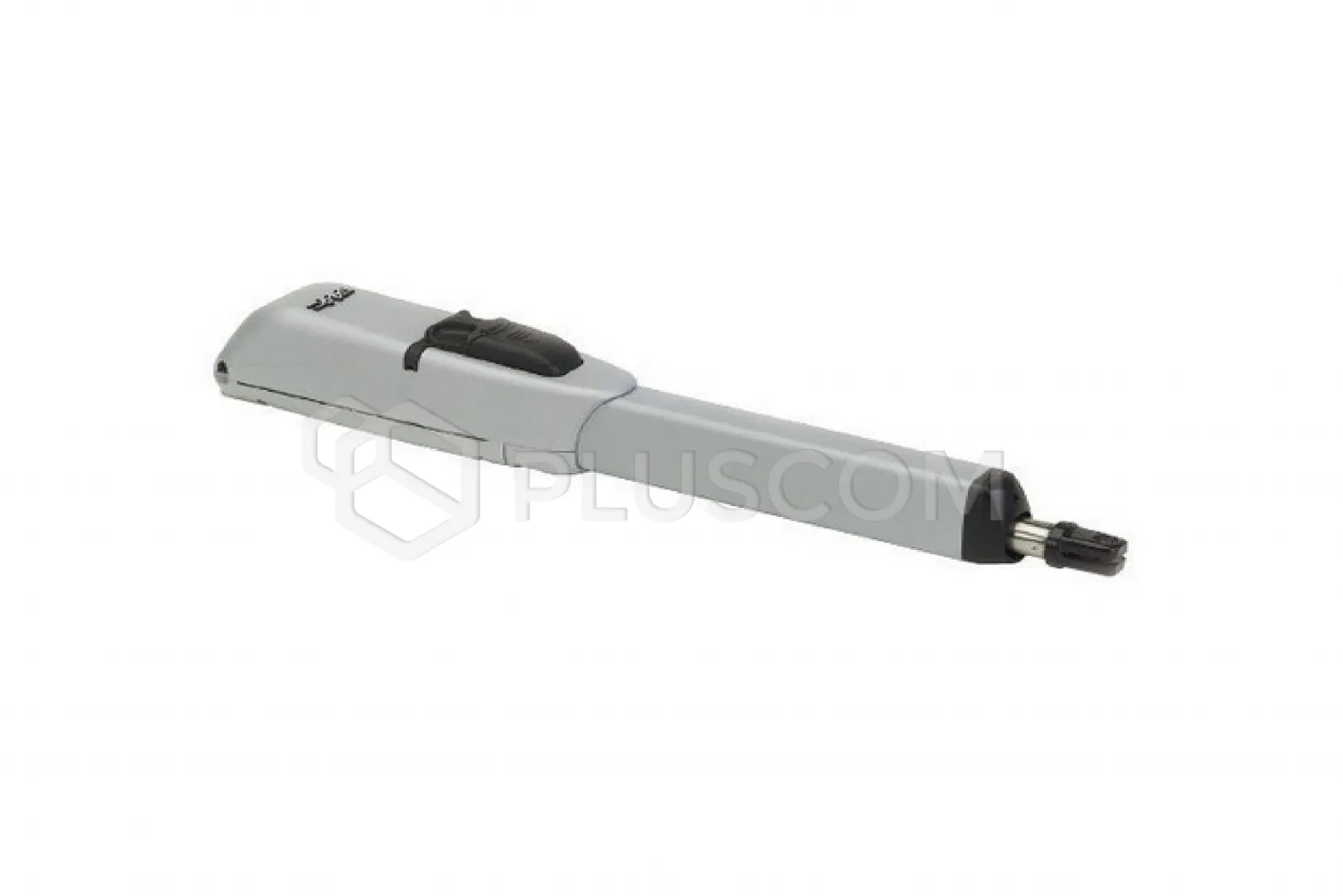

Faac 104417 Electromechanical drive with 415 L 230 V motor

649,80 EUR including 22.00% VAT
Product code: #32781
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf width: 3 m (4 m with electromagnetic lock)
  • Max. sash opening angle: 110°
  • Max. pulling force: 3000 N
  • Degree of protection: IP 54
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Mounting base for embedding Faac 727525 Aluminum Arm Cover Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit

Faac 104417 Electromechanical drive with 415 L 230 V motor


FAAC 415 L is an actuator designed for both domestic applications (230V models) and semi-industrial applications (24V models) - with high frequency of use, up to 100%. Models with limit switches allow elimination of mechanical gate movement limiters.

FEATURES:

  • Aluminum body secured with double protective coating, guaranteeing higher resistance to weather conditions
  • In the event of e.g. a power failure, a simple mechanism to unlock the gear (secured with a personalized key) allows for manual operation of the gate
  • Cables (with chokes) led out horizontally, which allows the drive to be mounted very close to the ground surface

Included: drive, mounting accessories, starting capacitor 8 μF/400 V, key to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 300 W
  • Max. thrust force - 3000 N (*)
  • Max. linear speed (piston) - 16 mm/sec. (*)
  • Usable working stroke - 400 mm
  • Max. leaf opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection class - IP54
  • Weight of the device - 8 kg
  • Use frequency - S3 - 30%
  • Max. wing width - 3 m (4 m with electromagnetic lock)

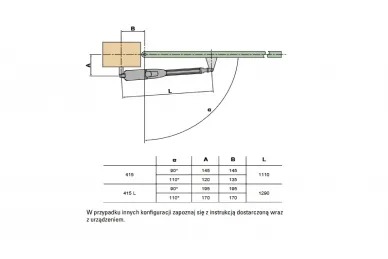

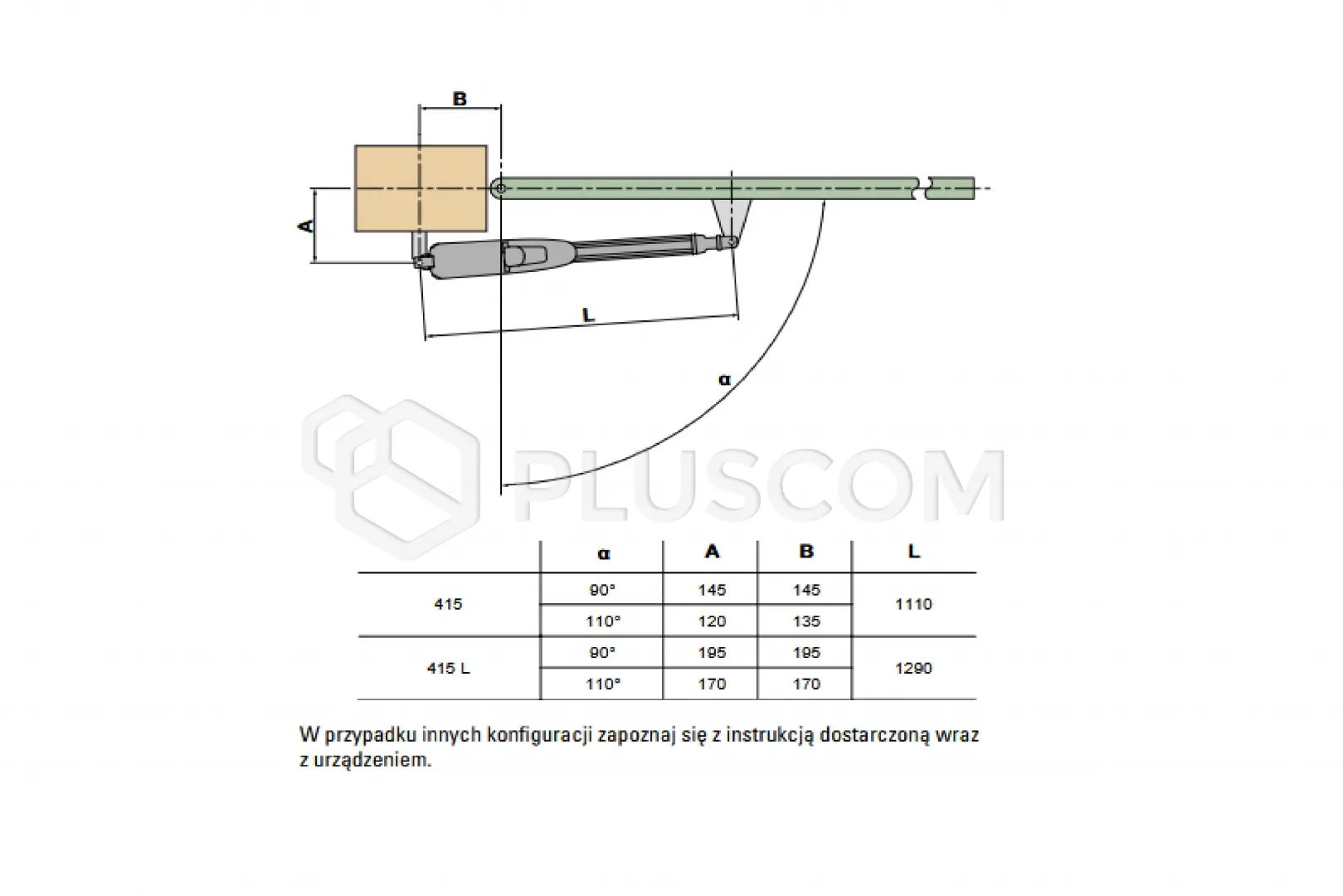

  • Mounting brackets - rear bracket (to the post) for welding/screwing - front bracket (to the wing) for welding
  • Device dimensions (LxDxH) - 924x101x148mm
  • Control unit - none
