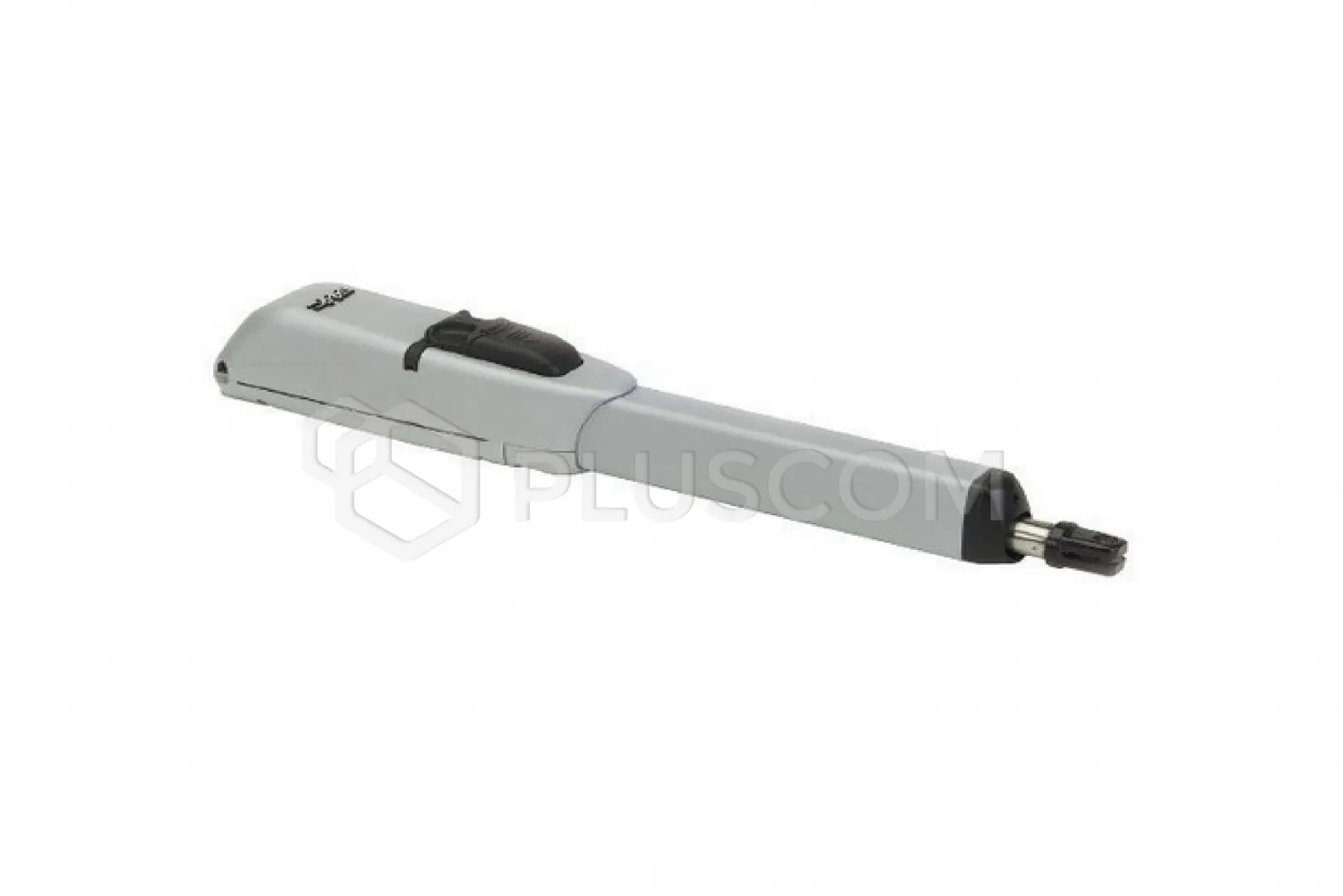

Faac 104415 Electromechanical drive with 415 230 V motor


FAAC 415 is an actuator designed for both domestic (230V models) and semi-industrial (24V models) applications - with high frequency of use, up to 100%. Models with limit switches allow the elimination of mechanical gate movement limiters.

FEATURES:

  • Aluminum body secured with double protective coating, guaranteeing higher resistance to weather conditions
  • In the event of e.g. a power failure, a simple mechanism to unlock the gear (secured with a personalized key) allows for manual operation of the gate
  • Cables (with chokes) led out horizontally, which allows the drive to be mounted very close to the ground surface

Included: drive, mounting accessories, starting capacitor 8 μF/400 V, key to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 300 W
  • Max. thrust force - 3000 N (*)
  • Max. linear speed (piston) - 16 mm/sec. (*)
  • Usable working stroke - 300 mm
  • Max. leaf opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection class - IP54
  • Weight of the device - 7.8 kg
  • Use frequency - S3 - 30%
  • Max. wing width - 2.5 m (3 m with electromagnetic lock)

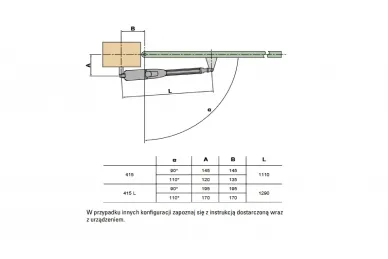

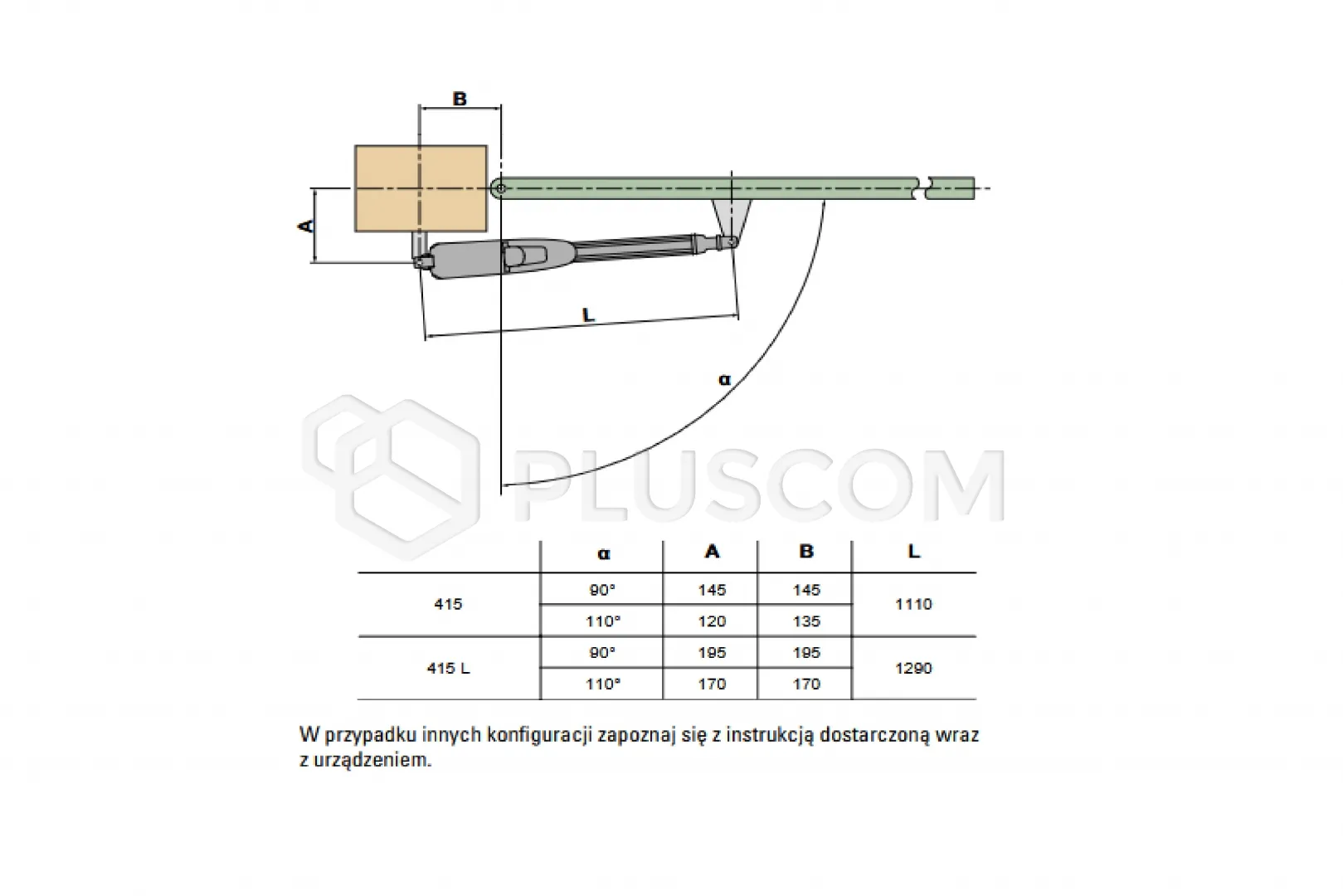

  • Mounting brackets - rear bracket (to the post) for welding/screwing - front bracket (to the wing) for welding
  • Device dimensions (LxDxH) - 836x101x147 mm
  • Control unit - none
