Faac 104413 Electromechanical drive with 413 230 V motor

629,28 EUR including 23.00% VAT
Product code: #26751
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf length: 1.8 m
  • Max. sash opening angle: 110°
  • Max. pulling force: 2000 N
  • Degree of protection: IP 54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit

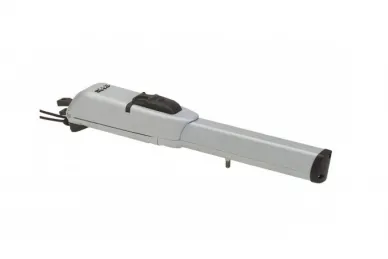

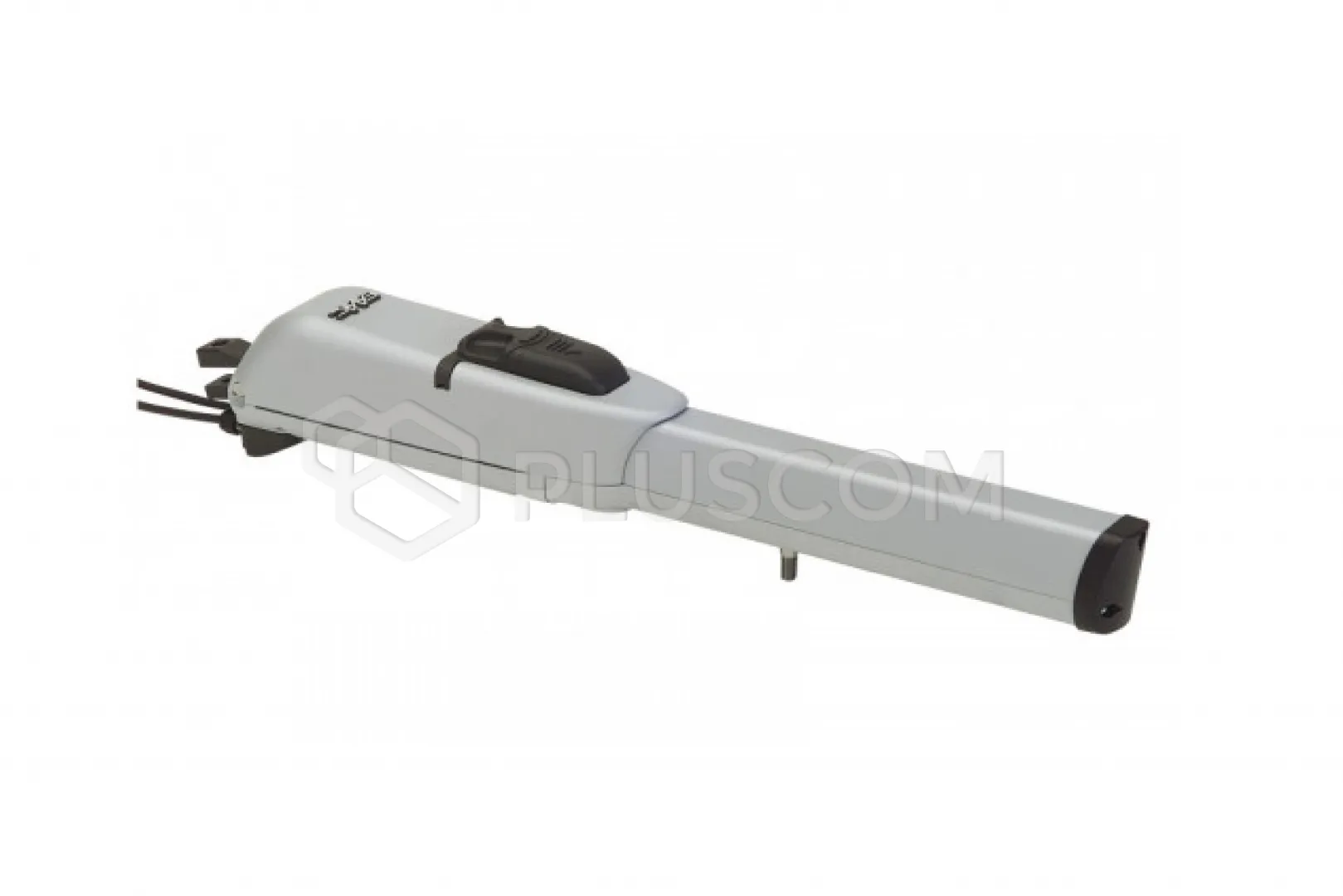

Faac 104413 Electromechanical drive with 413 230 V motor


Electromechanical drive 230V for swing gates for residential swing gates up to 1.8 m long (2.5 m with electromagnetic lock).

FEATURES:

  • Integrated mechanical movement limiters for the open and close positions
  • Aluminum body secured with a double protective coating, guaranteeing higher resistance to weather conditions
  • In the event of a power failure, for example, a simple gear release mechanism (secured with a personalized key) allows manual operation of the gate
  • Cables (with chokes) led out horizontally, which allows the drive to be mounted very close to the ground surface

Included: drive, mounting accessories, starting capacitor 6.3 μF/400 V, key to release the drive

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 250 W
  • Max. thrust - 2000 N (*)
  • Max. linear speed (of the pull nut) - 16 mm/sec. (*)
  • Usable working stroke - 300 mm (350 mm without mechanical travel limiters)
  • Max. leaf opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 140°C
  • Protection class - IP54
  • Weight of the device - 7.8 kg
  • Use frequency - S3 - 30%
  • Max. wing width - 1.8 m (2.5 with electromagnetic lock)

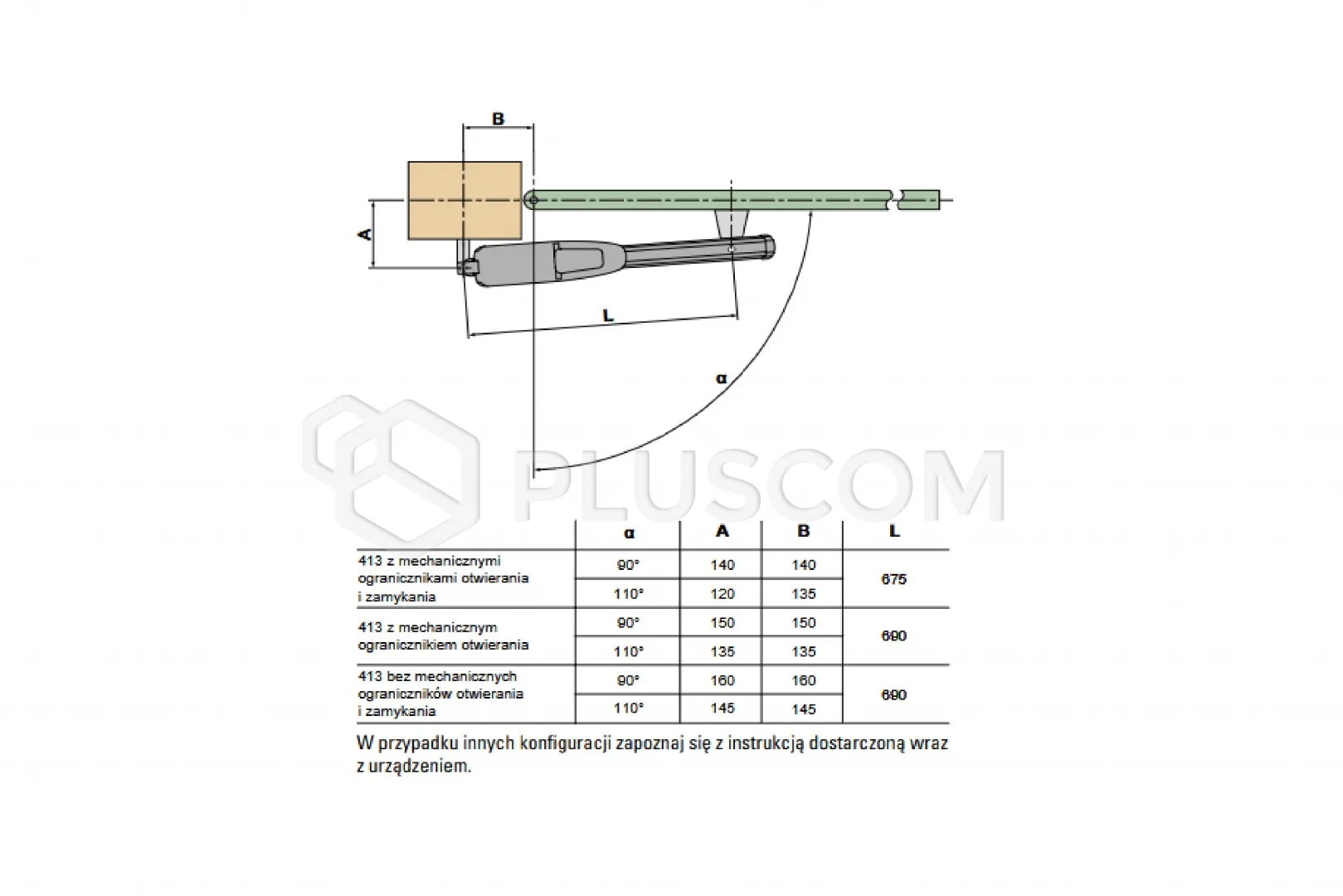

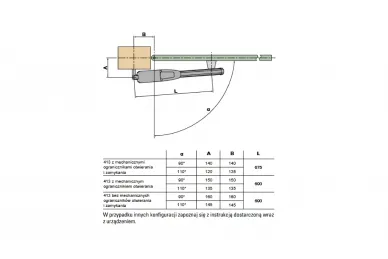

  • Mounting brackets - Rear bracket (to the post) for welding/screwing - front bracket (to the wing)
  • for welding
  • Device dimensions (LxDxH) - 777x101x152 mm
  • Control unit - none
