Faac 104205 Hydraulic drive 400 CBC 230 V

1352,89 EUR including 19.00% VAT
Product code: #26770
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. wing width: 2.20 m
  • Max. sash opening angle: 125°
  • Max. thrust force: 6200 N
  • Usage frequency: 70 cycles/hour
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac Lock for unlocking the drive with a key Faac 710010 RTA connector

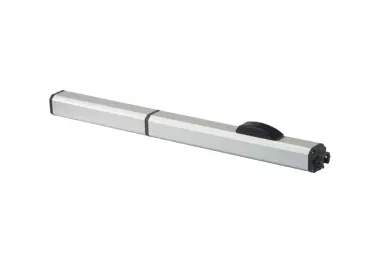

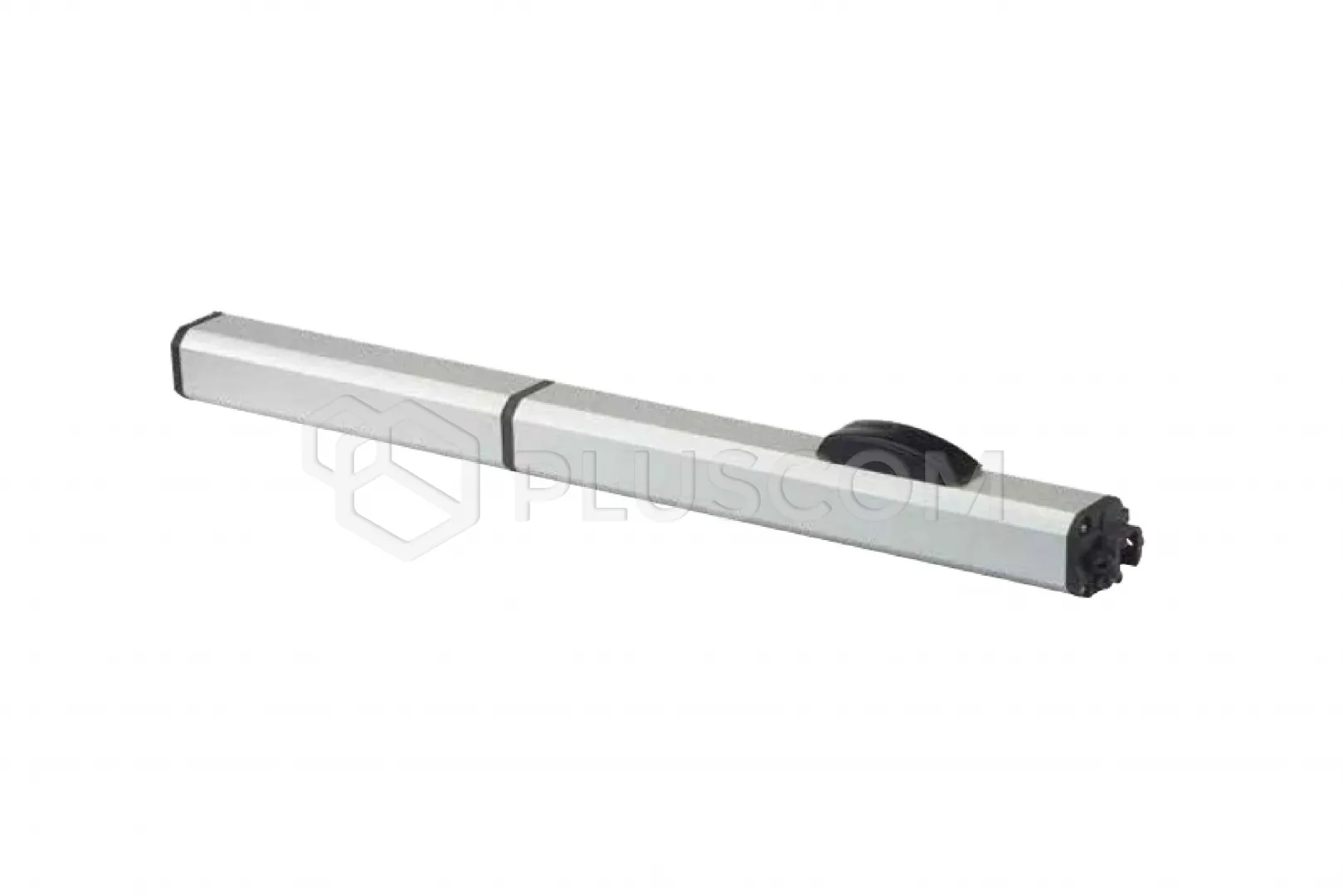

Faac 104205 Hydraulic drive 400 CBC 230 V


Hydraulic drive 230V for residential and industrial swing gates for a leaf length of up to 2.20 m.

FEATURES:

  • Wide and versatile range for heavy or intensively used gates
  • Hydraulic lock with anti-burglary protection (mod. CBC - CBAC)
  • Silent drive operation
  • Easily accessible drive release, secured with a personalized key

Included: drive with hydraulic lock, assembly accessories, 8 μF/400 V starting capacitor, key to release the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 220 W
  • Max. thrust - 6200 N (*)
  • Max. linear speed (piston) - 7.5 mm/sec. (*)
  • Pump capacity - 0.75 l/min (*)
  • Usable working stroke - 270 mm
  • Max. leaf opening angle - 125°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 120°C
  • Protection degree - IP55
  • Weight of the device - 8.6 kg
  • Use frequency - 70 cycles/hour
  • Max. leaf width - 2.20 m
  • Oil type - FAAC HP

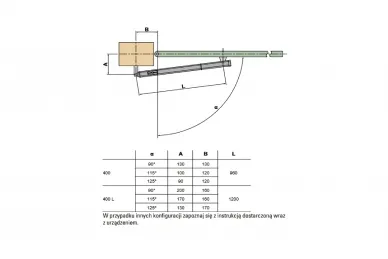

  • Mounting brackets - rear bracket (to the post) for welding/screwing - front bracket (to the leaf) for welding
  • Device dimensions (LxDxH) - 1034x85x119 mm
  • Control unit - none
