Faac 104202 Hydraulic drive 400 CBAC L 230 V

1600,20 EUR including 19.00% VAT
Product code: #26774
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. wing width: 2.20 m
  • Max. sash opening angle: 125°
  • Maximum thrust force: 4650 N
  • Usage frequency: 50 cycles/hour
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac 490043 Mechanical travel stop for the Long version Faac Lock for unlocking the drive with a key Faac 710010 RTA connector Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB

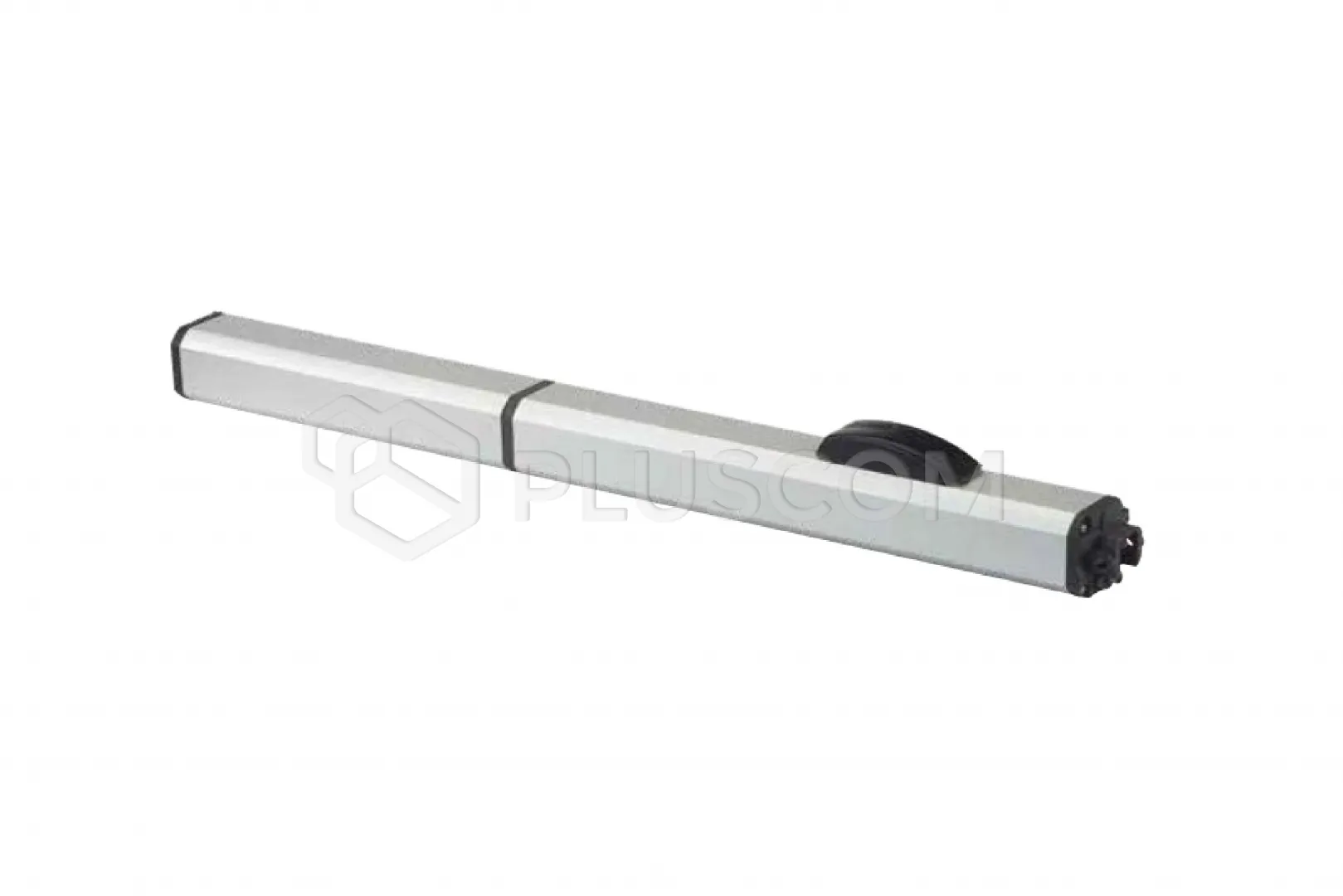

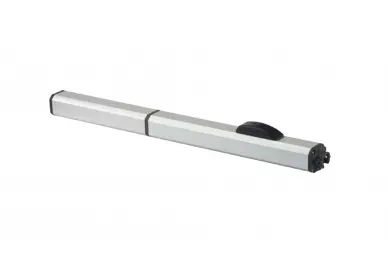

Faac 104202 Hydraulic drive 400 CBAC L 230 V


Hydraulic drive 230V for residential and industrial swing gates for a leaf length of up to 2.20 m.

FEATURES:

  • Wide and versatile range for heavy or intensively used gates
  • Hydraulic lock with anti-burglary protection
  • Silent drive operation
  • Unlocking device with key

Included: drive with hydraulic opening and closing lock, mounting accessories, starting capacitor 8 μF/400 V, key to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Maximum power consumption - 220 W
  • Maximum thrust - 4650 N
  • Maximum linear speed (piston) - 15 mm/sec.
  • Pump capacity - 1.5 l/min
  • Useful working stroke - 390 mm
  • Max. wing opening angle - 125°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 120°C
  • Degree of protection - 55 IP
  • Device weight - 10 kg
  • Frequency of use - 50 cycles/hour
  • Max. wing width - 2.20 m
  • Oil type - FAAC HP

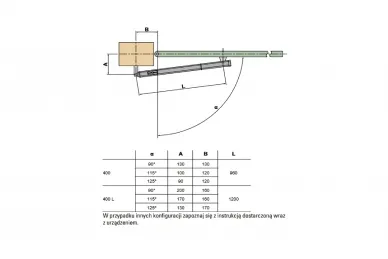

  • Mounting brackets - rear bracket (to the post) to be welded/screwed - front bracket (to the wing) to be welded
  • Device dimensions (LxDxH) - 1277 x 85 x 119 mm
  • Control unit - none
