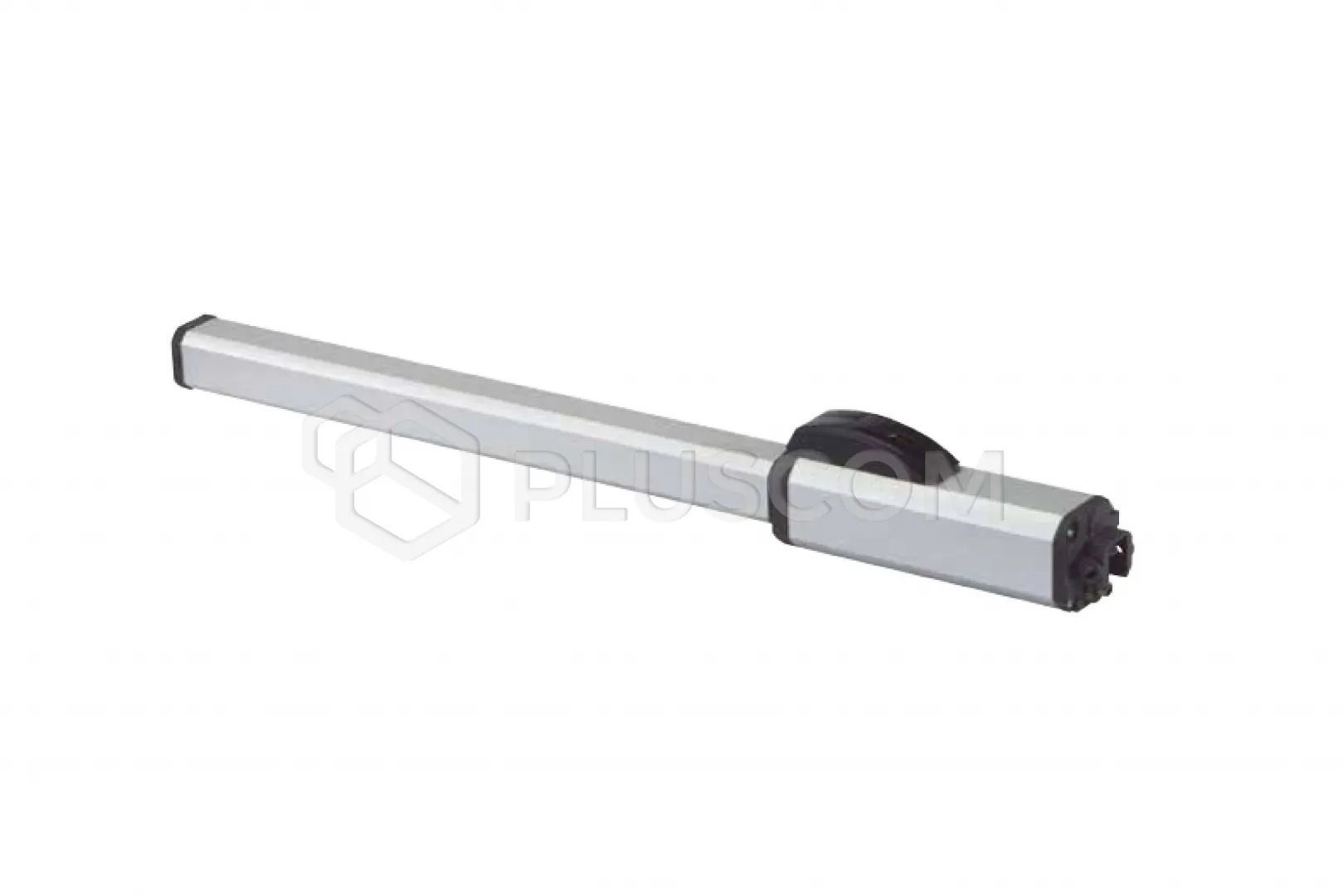

Faac 104200 Hydraulic drive 422 CBAC 230 V

1124,66 EUR including 23.00% VAT
Product code: #26768
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. wing width: 1.8 m
  • Max. sash opening angle: 110°
  • Maximum traction force: 5000 N
  • Usage frequency: 55 cycles/hour
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 720118 Model L housing for control unit Faac Lock for unlocking the drive with a key Faac 710010 RTA connector Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit

Faac 104200 Hydraulic drive 422 CBAC 230 V


Hydraulic drive 230V for residential and estate swing gates with a maximum length of 1.8 m.

FEATURES:

  • CBAC version (with opening and closing lock) and SB (without locks)
  • Anti-corrosion coating resistant to weather conditions
  • Easily accessible drive release, secured with a personalized key

Included: drive with hydraulic opening and closing lock, mounting accessories, starting capacitor 8 μF/400 V, key to release the drive.

Technical data:

  • Power supply voltage: 220-240 V AC 50/60 Hz
  • Motor type: Asynchronous, single-phase
  • Maximum power consumption: 220 W
  • Maximum thrust: 5000 N (*)
  • Maximum linear speed (piston): 13 mm/sec. (*)
  • Pump capacity: 1 l/min (*)
  • Useful working stroke: 250 mm
  • Max. leaf opening angle: 110°
  • Ambient temperature during operation: -20°C ÷ + 55°C
  • Thermal protection: 120°C
  • Degree of protection: 55 IP
  • Device weight: 7 kg
  • Frequency of use: 55 cycles/hour
  • Max. leaf width: 1.8 m
  • Oil type: FAAC HP

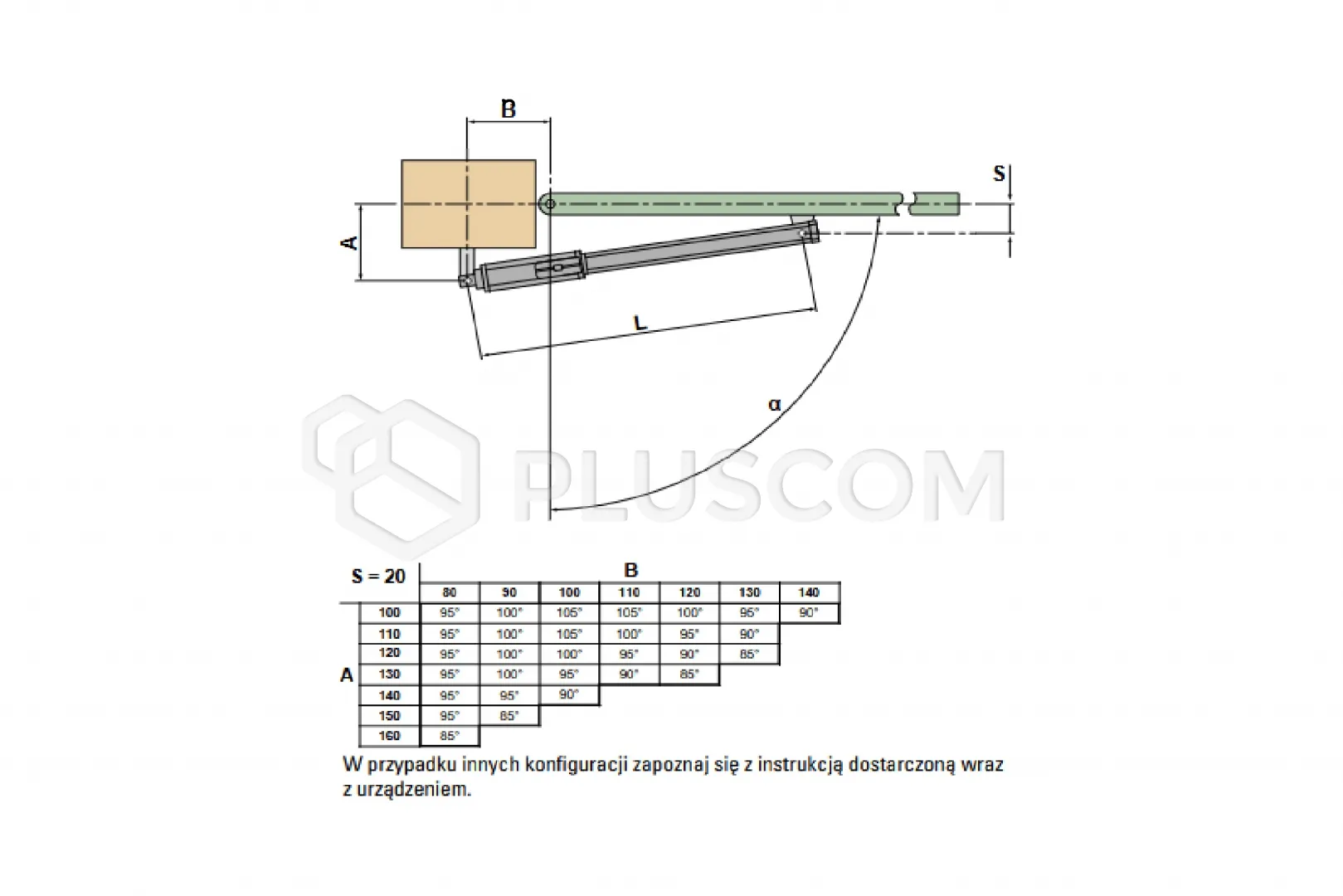

  • Mounting brackets: Rear bracket (to the post) to be welded/screwed - front bracket (to the leaf) to be welded
  • Device dimensions (LxDxH): 987 x 85 x 119 mm
  • Control unit: None
