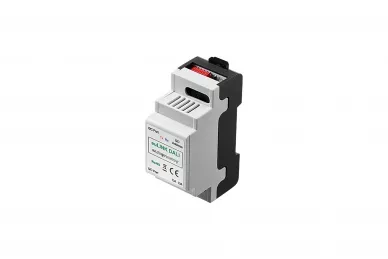

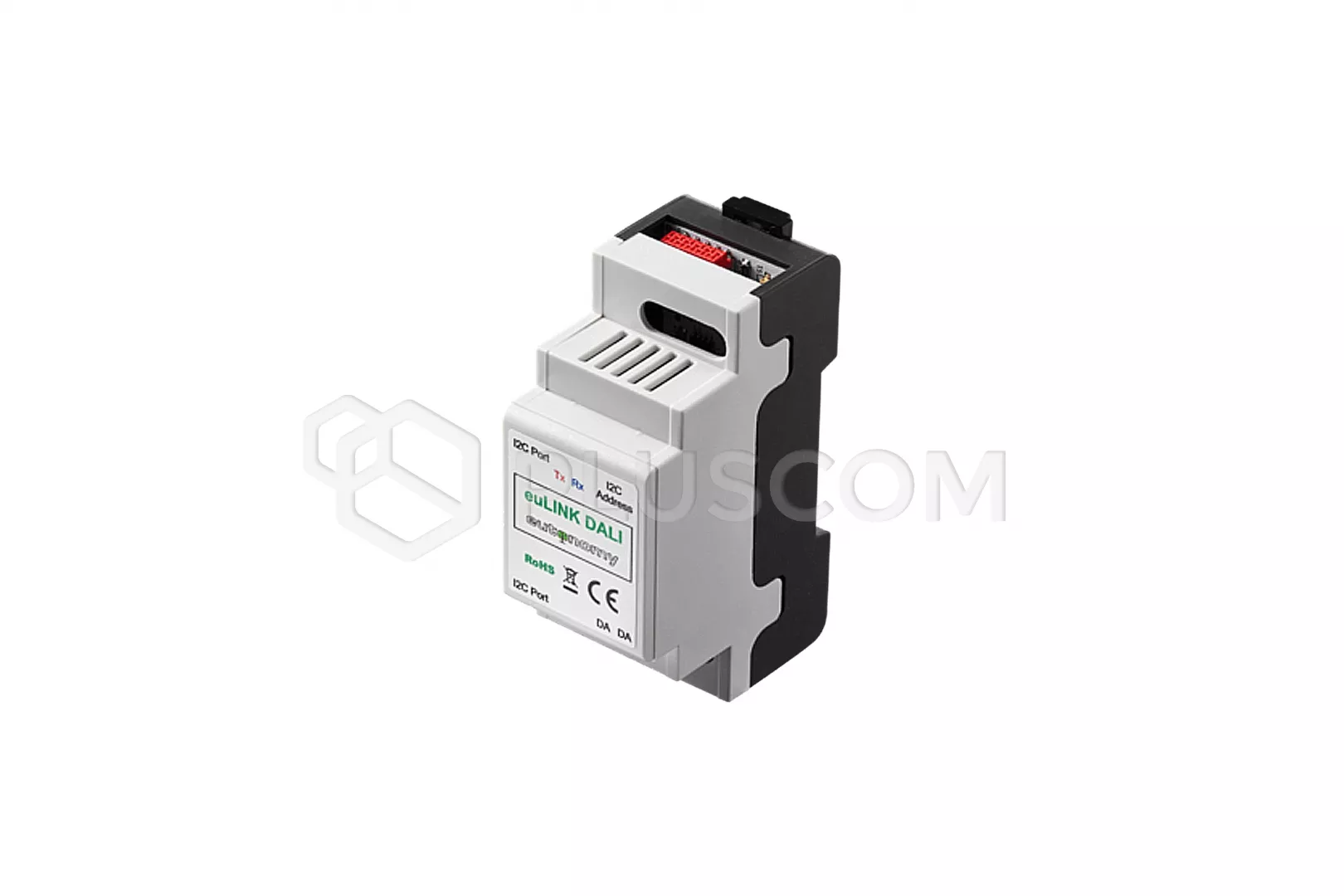

Eutonomy euLINK DALI Module

Eutonomy Port euLINK DALI

The euLINK DALI module enables the connection of euLINK and euLINK Lite gateways to DALI bus, thanks to which we can give commands to lighting fixtures and read their status.

The euLINK DALI port (in cooperation with euLINK) can handle up to 64 luminaires DALI lighting. Therefore, euLINK in combination with up to 4 euLINK ports DALI can control 256 DALI luminaires and euLINK Lite connected to a maximum of 2 euLINK DALI ports can control up to 128 DALI luminaires.

To connect the euLINK-DALI port to euLINK or euLINK Lite gateways, use 10-strand ribbon with a length of max. 15cm, terminated with MicroMatch plugs included in the set.

The main advantages of using euLINK-DALI are:

• luminaires (or groups of them) imported via euLINK gateway via euLINK-DALI for the Fibaro HC2 / HCL / HC3 / HC3L / YUBII control unit appear as virtual devices, and you can use them in an intelligent system just like typical Fibaro modules
• manual control with buttons can be realized with special DALI devices but also by means of FIBARO devices, through creating scenes
• managing DALI products with the FIBARO system enables creation a truly intelligent environment in which they cooperate with each other not only devices in the field of lighting, but also recuperators, gates, blinds, air conditioners, etc.

The device is intended for indoor operation (grade protection IP20) and requires an additional external power supply.
