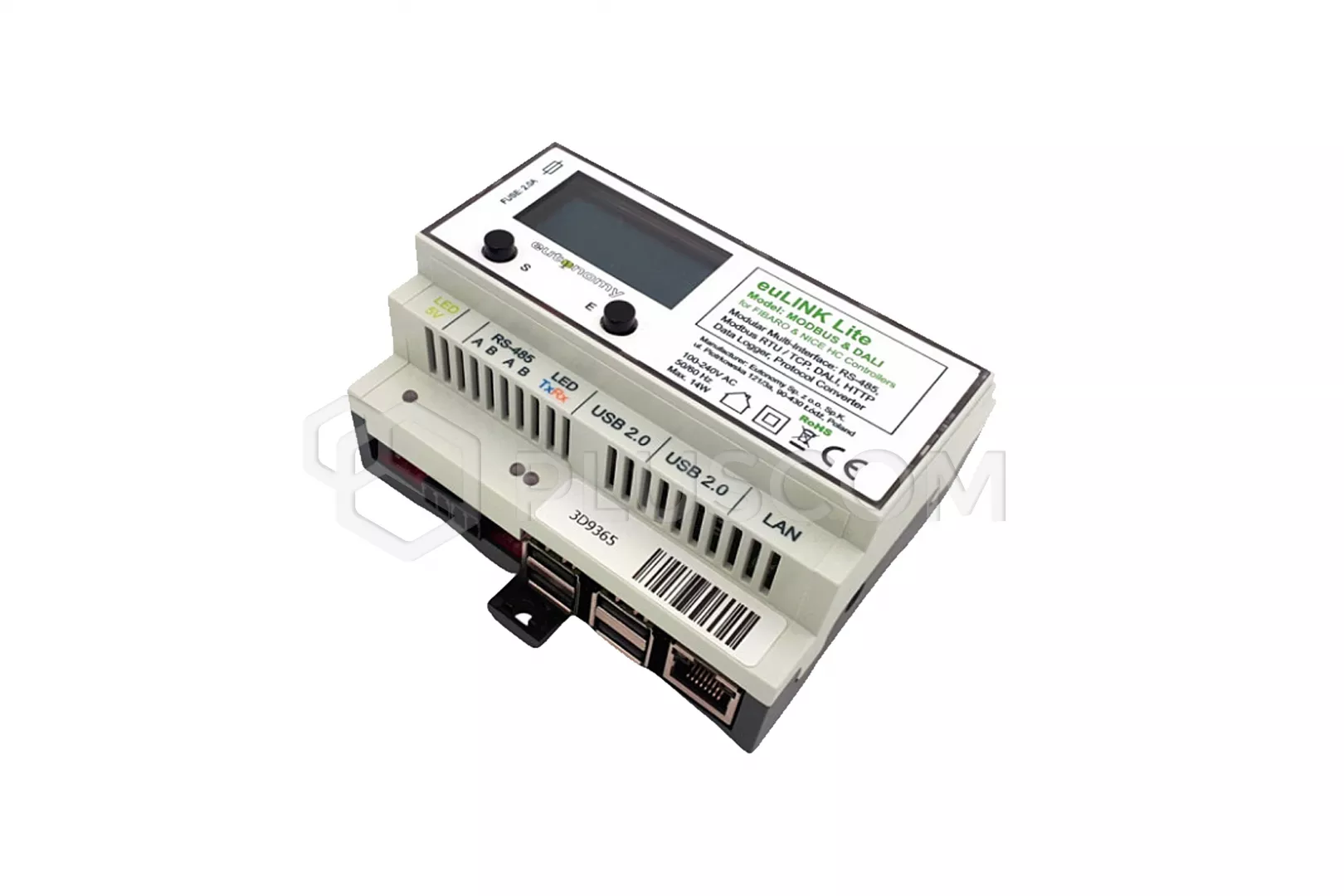

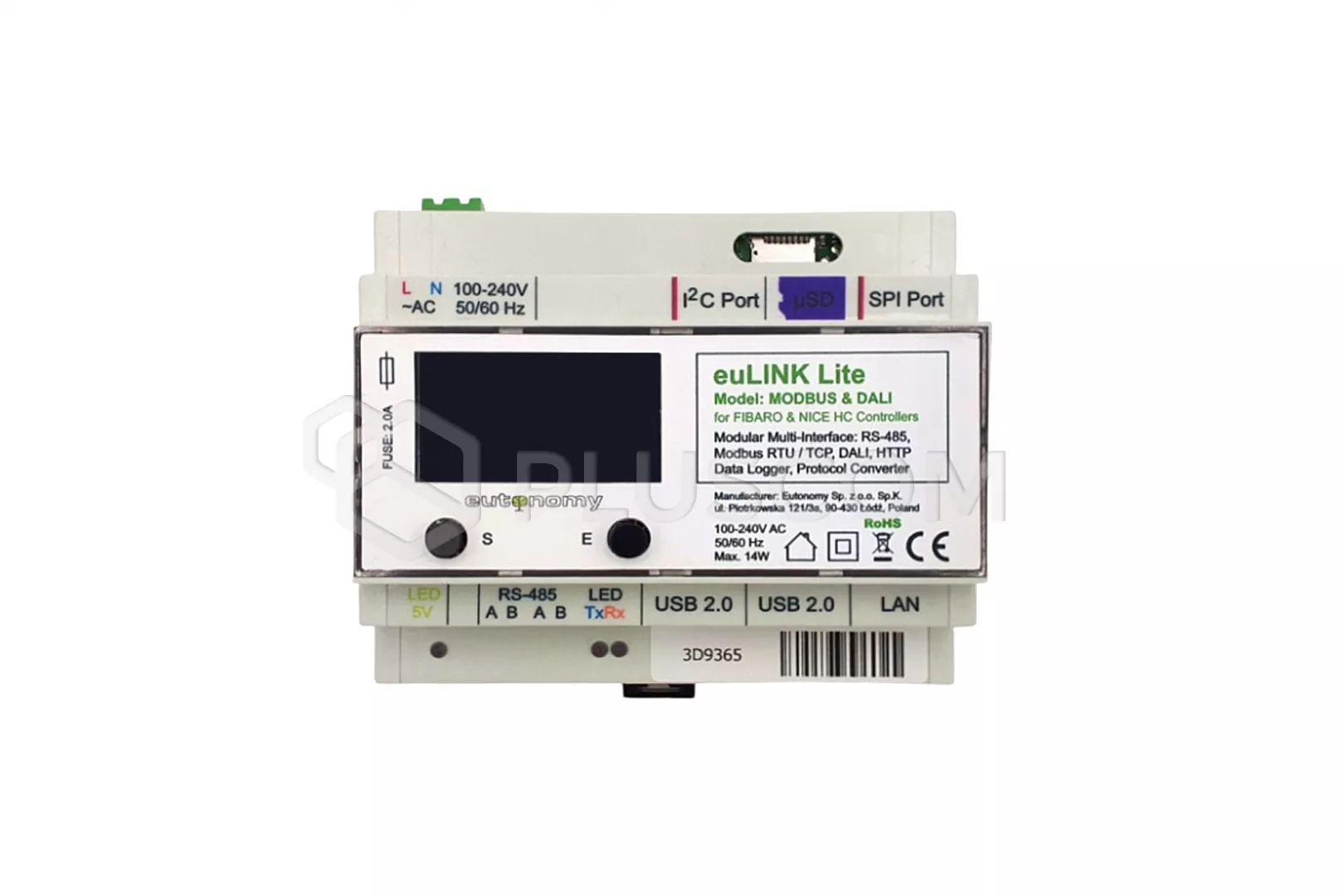

Eutonomy euLINK Lite Gateway (Raspberry Pi 3B +) Communication gateway
Hardware communication interface between the FIBARO System and the devices
infrastructure such as air conditioning, heating, ventilation, DALI lighting,
roller shutters or audio-video equipment.
Thanks to this device, we can design and run intelligent and fully functional
buildings, schools, hospitals, warehouses and not just apartments or
apartments.
With euLINK LiteLite, we have the ability to integrate devices infrastructure
in buildings and we are able to connect in an optimal way radio devices with
cable, by building hybrid solutions.
euLINK Lite can be connected to any FIBARO exchange . Is
backwards compatible, works with the "oldest" switchboards, thanks
why we are able to extend the solutions in the already existing intelligent
home.
Configuration and management of euLINK Lite are possible through any a web
browser, which is a great help, because it is a convenience the system can be
installed from anywhere - depending on your preferences and needs.
INTUITIVE INSTALLATION
After selecting and configuring the template for a specific infrastructure
device, euLINK Lite sends a sequence of API commands that automatically creates
a device virtual in the control panel and the FIBARO application. The virtual
appliance is in there ready for communication with euLINK and the appropriate
device infrastructure. New building infrastructure facilities are appearing in
FIBARO application (on a phone, tablet or computer) and are immediately
available for building scenes.
The most important functions of euLINK Lite gateway:
- support for RS-485 serial transmission (up to max. 5 independent ones
bus)
- support for RS-232 serial transmission (max. 4 independent ports)
- communication in the MODBUS RTU protocol (maximum 5 MODBUS segments, up
to 32 devices in each segment, up to 160 MODBUS RTU of all devices). That for
performance reasons, we recommend connecting no more than 2 segments
MODBUS
- communication in the MODBUS TCP protocol up to max. 32 devices
- cooperation with FIBARO HC2, HC Lite, HC3, HC3 Lite and Yubii controllers
via FIBARO REST API
- support up to 4 euLINK DALI ports, each capable of supporting 64 DALI
luminaires. For performance reasons, we recommend that you connect no more
than 2 euLINK DALI ports
- built-in TCP / IP ↔ RS-232 / RS-485 converter
- clock synchronized with NTP to issue defined commands to slave
devices
Eutonomy euLINK Lite Gateway (Raspberry Pi 3B ) Communication gateway
Technical Data
- supply voltage: 100‑240 V AC, 50-60 Hz
- power consumption: 14W maximum
- protections: 2A / 250V slow-blow fuse, polymer fuse PTC 2A / 5V
- memory: 1 GB RAM
- serial transmission: built-in RS-485 serial port with a 120Ω terminator
software switchable, galvanic separation up to 1kV
- wired LAN port: Ethernet 10/100/1000 Mbit / s
- wireless transmission: WiFi 802.11b / g / n / ac and Bluetooth 5.0
(euLINK Lite: 4.2 / BLE)
- USB ports: 4 x USB 2.0 ports
- communication with expansion modules: external ports SPI and I2C buses,
1-Wire port
- compatibility with DALI luminaires: IEC62386 type II master
- case dimensions: 107 x 90 x 58 mm
- width in modules: 6 TE modules on DIN rail
- protection class: IP20
- working temperature: 0 ° C to + 40 ° C
- Relative Humidity: ≤90%, non-condensing
