ELMES UMB100HS-het Remote control set

38,61 EUR including 23.00% VAT
Product code: #27224
Manufacturer: Elmes
  • 1 independent channel
  • Support for up to 112 key fobs
  • Operating range up to 100m open space
  • 2 UMB100HT remote controls
  • UMB100HRhet receiver
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ELMES UMB100HS-het Remote control set

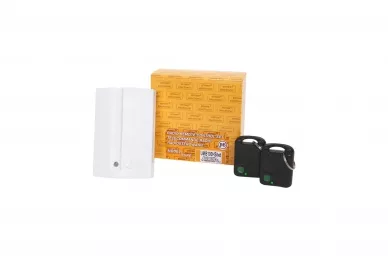

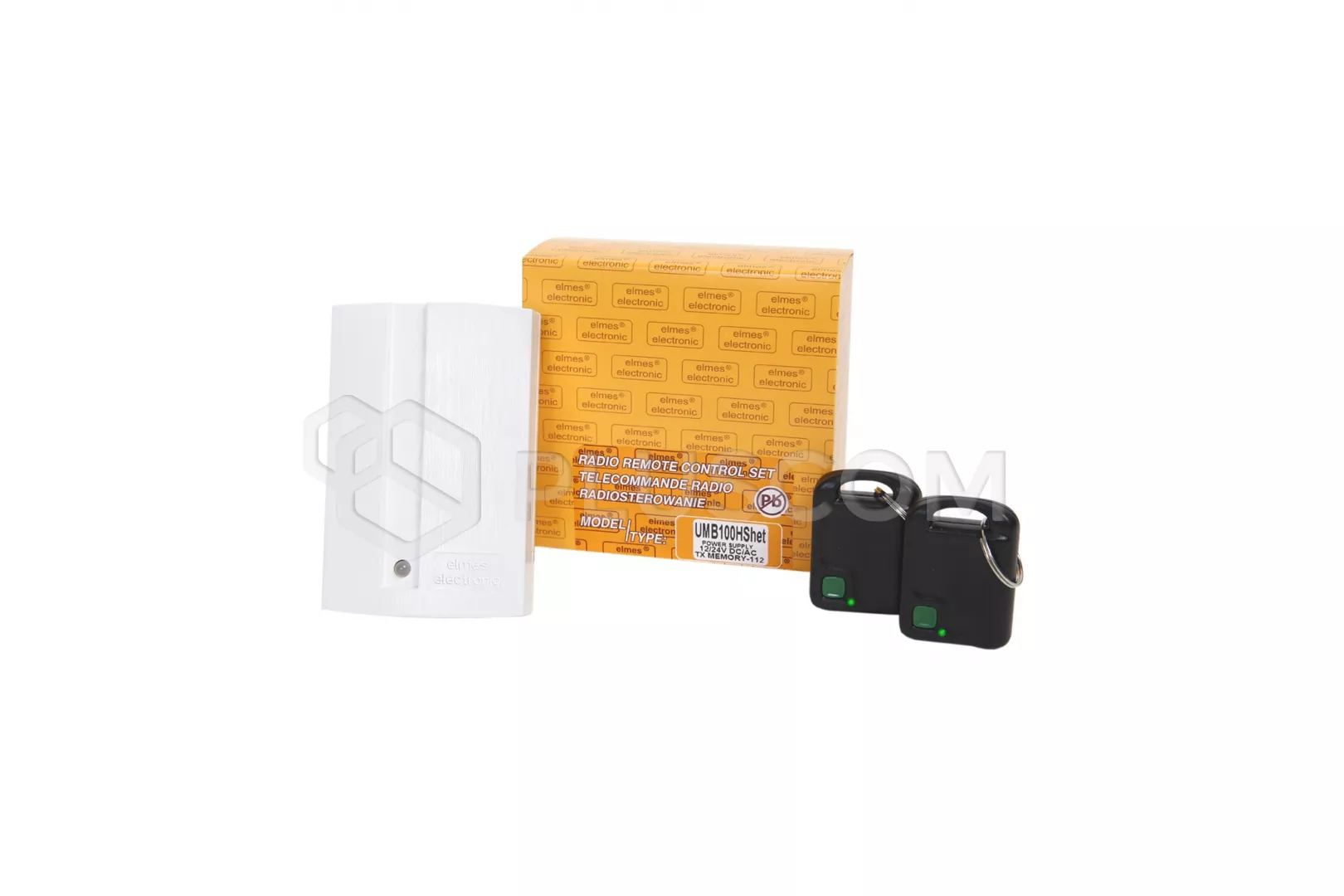

A universal set consisting of the UMB100HRhet receiver and two miniature UMB100HT transmitters.
The device uses the KEELOQ variable coding system. Every remote control has a transmitter a different code is programmed, and the receiver must "learn" and remember the code of each remote control individually. The receiver supports up to 112 remote controls (superheterodyne) and has an isolated NO/NC relay switching output (NO-normally open and NC-normally closed).
It can operate in two modes, in which after switching on the relay with the remote control, it will be turned off after a previously programmed time (monostable mode), or after pressing the remote control again (bistable mode: on/off).

The receiver's signaling output, which generates two pulses to turn the relay on and one to turn it off, is intended for connecting external acoustic or optical signaling. The receiver has a housing opening anti-sabotage switch (TAMPER) and an LED indicating output switching.

The most important features:
  • one galvanically separated relay output, NC/NO type
  • OC type transistor output (open collector) for acoustic signaling of relay output switching
  • two-color LED indicating the status of the relay output
  • DC or AC power supply in a wide voltage range
  • sensitive and selective superheterodyne radio
  • remote memory capacity: 112
  • KEELOQ variable coding system
