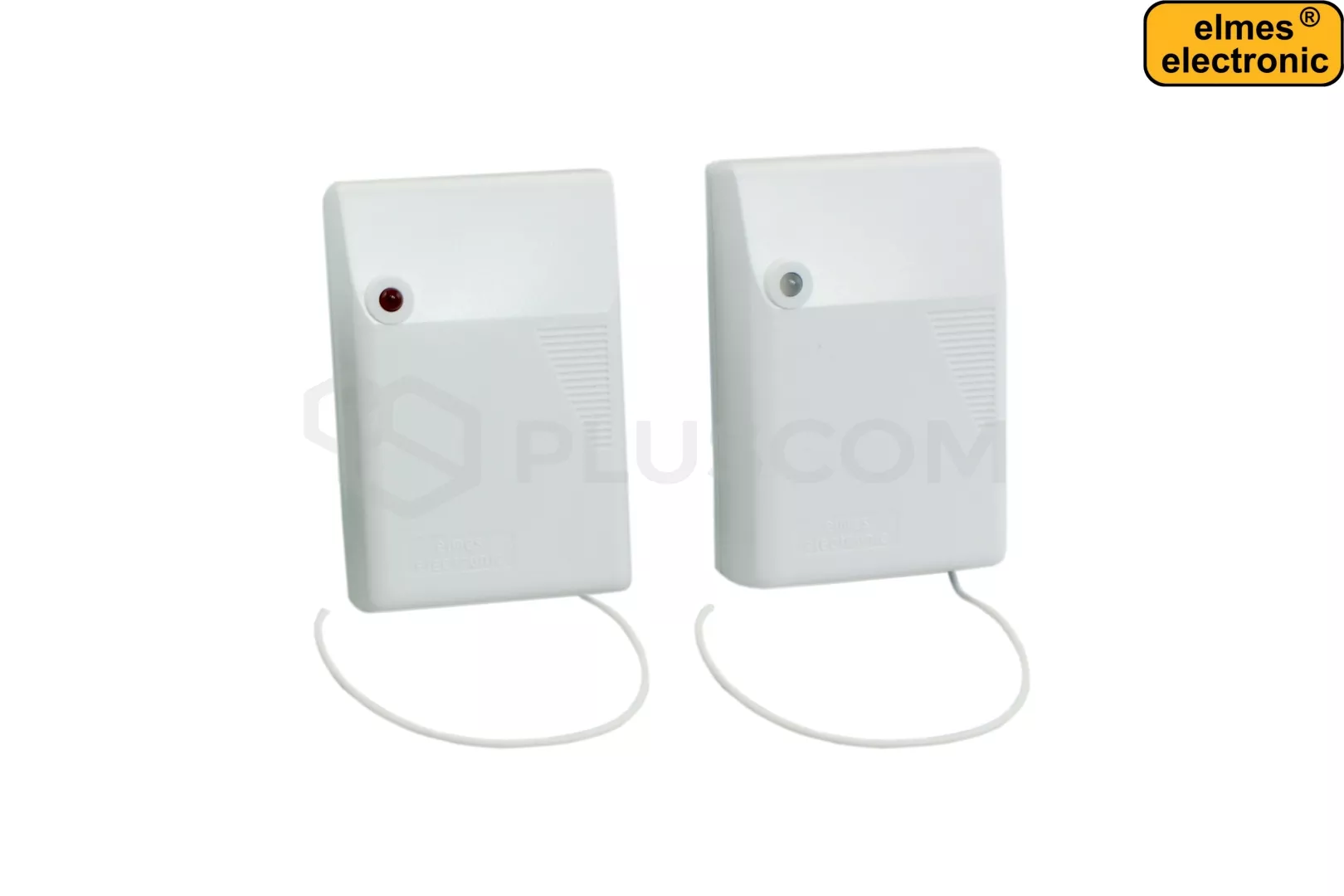

Elmes RP501S Four channel long range transmission set

47,64 EUR including 23.00% VAT
Product code: #13265
Manufacturer: Elmes
  • long transmission range: 500m
  • 4 transmitter inputs / 4 relay outputs
  • transmitter power 2xAA battery
  • tamper protection, battery check, radio link testing

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes RP501T Radio notification transmitter

Elmes RP501S Four channel long range transmission set

Elmes RP501S Four channel long range transmission set

Elmes RP501S Four channel long range transmission set


Technical specification
  • fixed code transmission
  • operating frequency: 433,92 MHz
  • power supply of receiver 12 VDC, transmitter 12VDC or battery 2xAA
  • output relay ratings:  1A, 120VAC/30VDC
  • number of channels/relay ourputs: 4
  • approximate range in open field: up to 500m
  • 4 working modes
  • operating temperature range of receiver: -20  to + 40C, transmitter: 0 to +40 C
  • signal output S (1A/60V max.)  OC type,
  • sabotage alarm terminal NC type (at box closed)
  • external dimmensions: (L/W/D) 96/63/28mm.
Transmitter RP501T:

Transmitter RP501T:

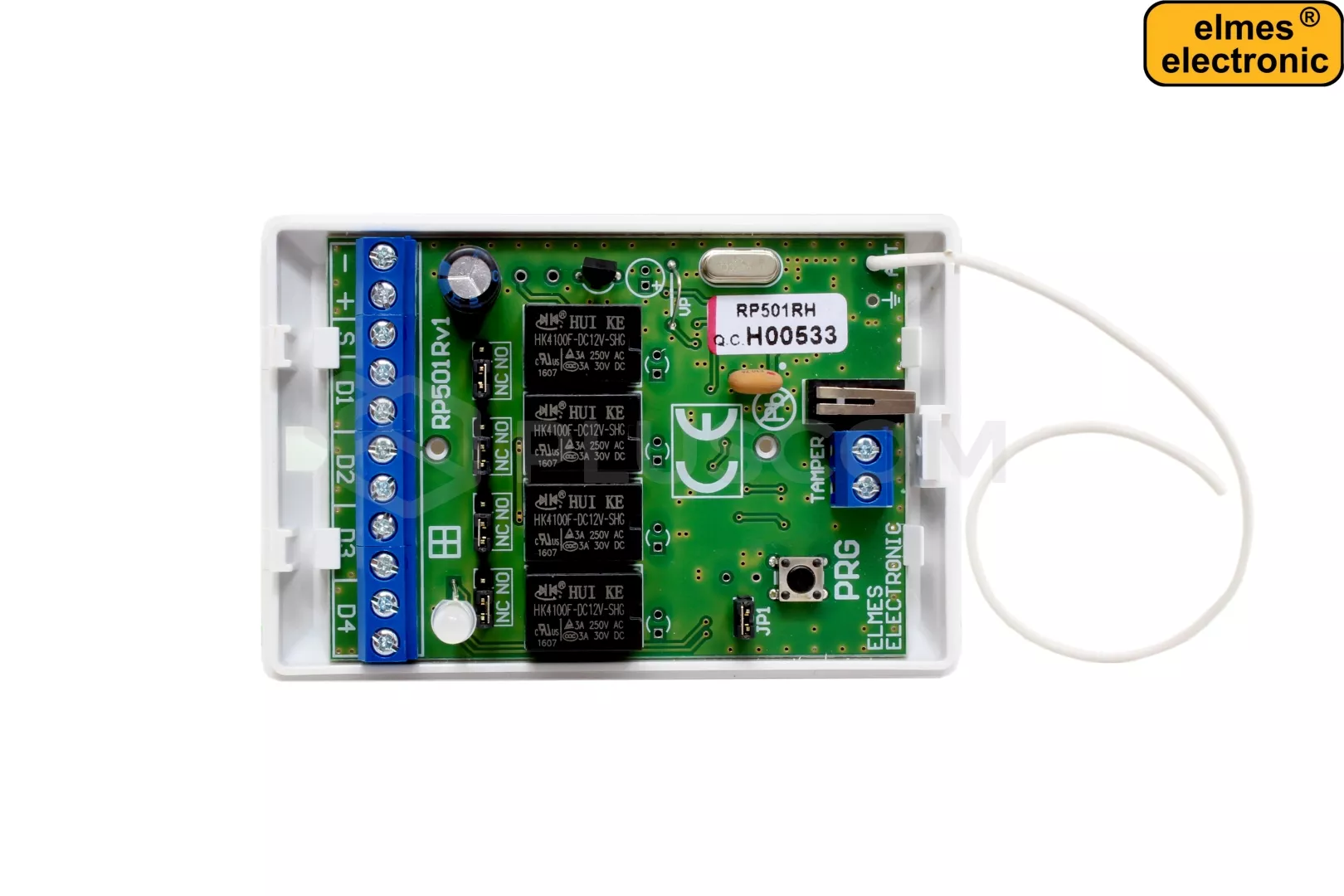

Receiver RP501R:

Receiver RP501R:


Download
Datasheet 0.06 MB
User Manual 0.23 MB
CE Declaration 0.22 MB
