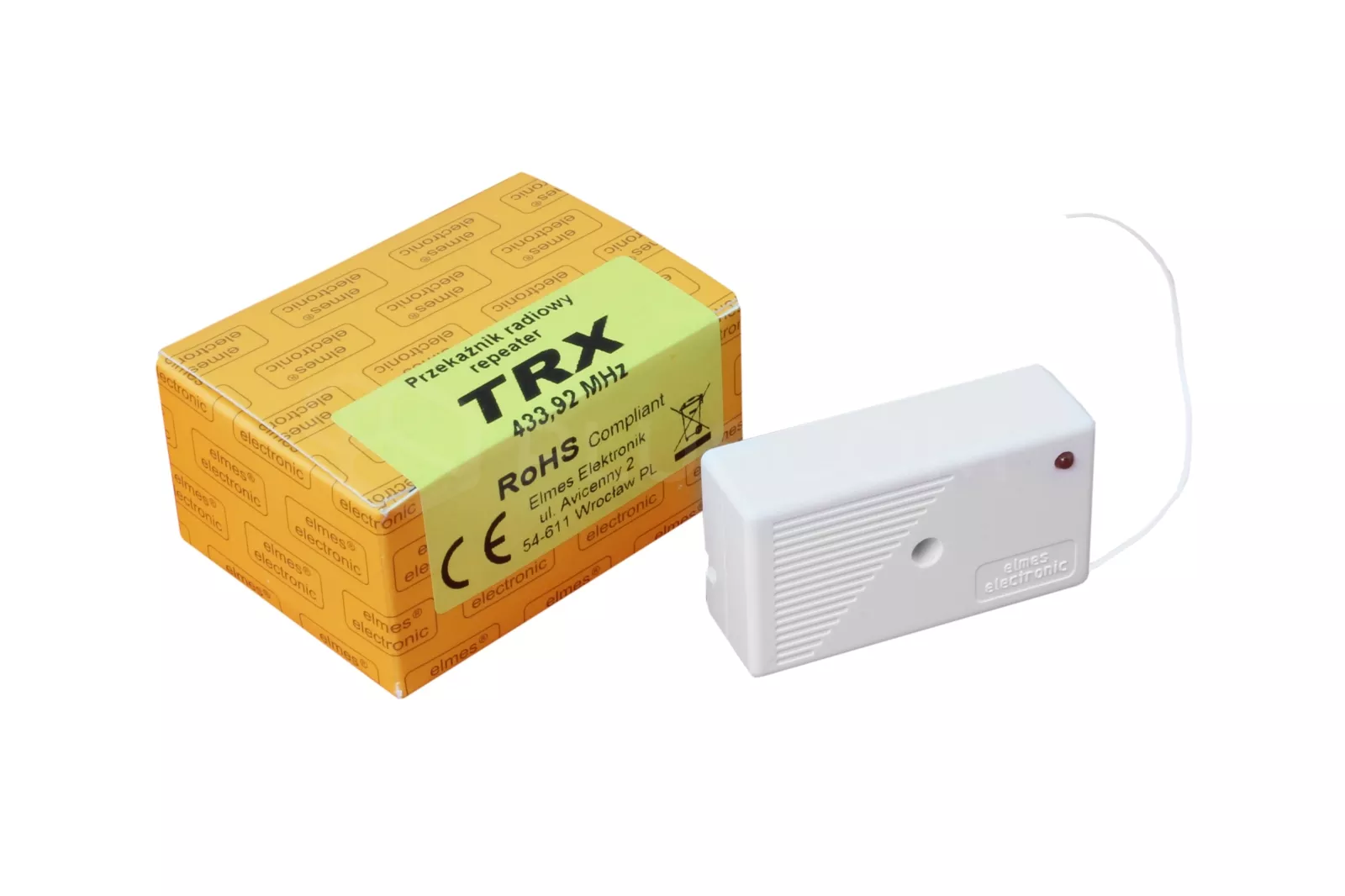

Elmes TRX Wireless repeater

The purpose of the relay Elmes TRX is extending operating range of broadcasting equipment production Elmes Electronic.

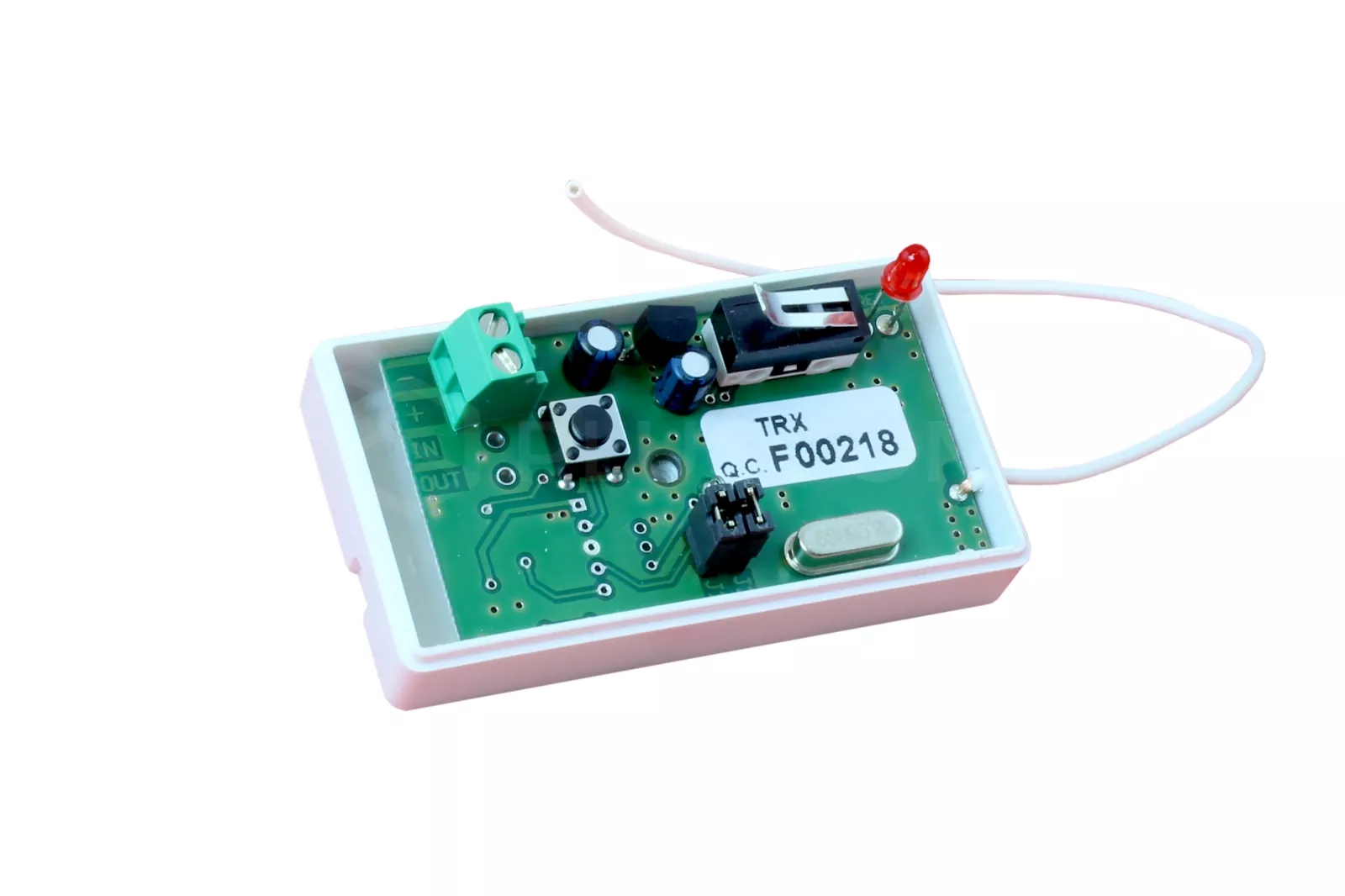

The device has an integrated transceiver module (transceiver) that both receives and transmits radio signals.

Elmes TRX can operate in two modes:

1. retransmits the relay transmitter code each received zmiennokodowego Elmes. In this case, there is no need to enter transmitters to his memory. Also retransmits codes became-code transmitter RP501, but only entered into memory.
2. relay detects and retransmits signals selectively, ie. only with transmitters previously entered into its memory.

APPLICATIONS

• in case of difficulties propagation of the so-called "dead zones" in places where the signal attenuation is very high
• the maximum distance between transmitter and receiver is greater than the maximum range
• between the transmitter and the receiver is a highly damping obstacle
• the terrain is vast and the receiver does not cover the whole area


It is possible to use many repeaters in the system in order to solve communication problems between transmitters and receivers over long distances. However, be aware of the relevant settings, time delay and inactivity after the retransmission if the system work fixed code RP501 transmitters.

Note: Relay Elmes TRX does not work with wireless siren WSS.

SPECIFICATIONS

• superheterodyne receiver and transmitter 433.92 MHz,
• radio transmission (433.92 MHz, <10mW), the maximum range of up to 200m in open area
• transmitters memory capacity: 112
• programmable delay time retransmission of the signal received: 0-8s
• programmable inactivity time range: 0-8s
• tamper switch housing
• operating temperature range: -20°C...+55°C
• dimensions: (l/w/h) 58x32x19mm
• power supply: DC 8-15V, current consumption to 20mA
