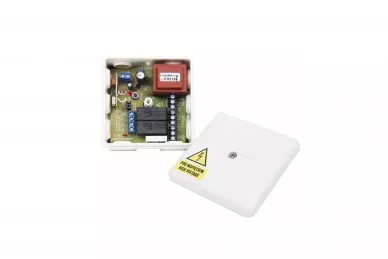

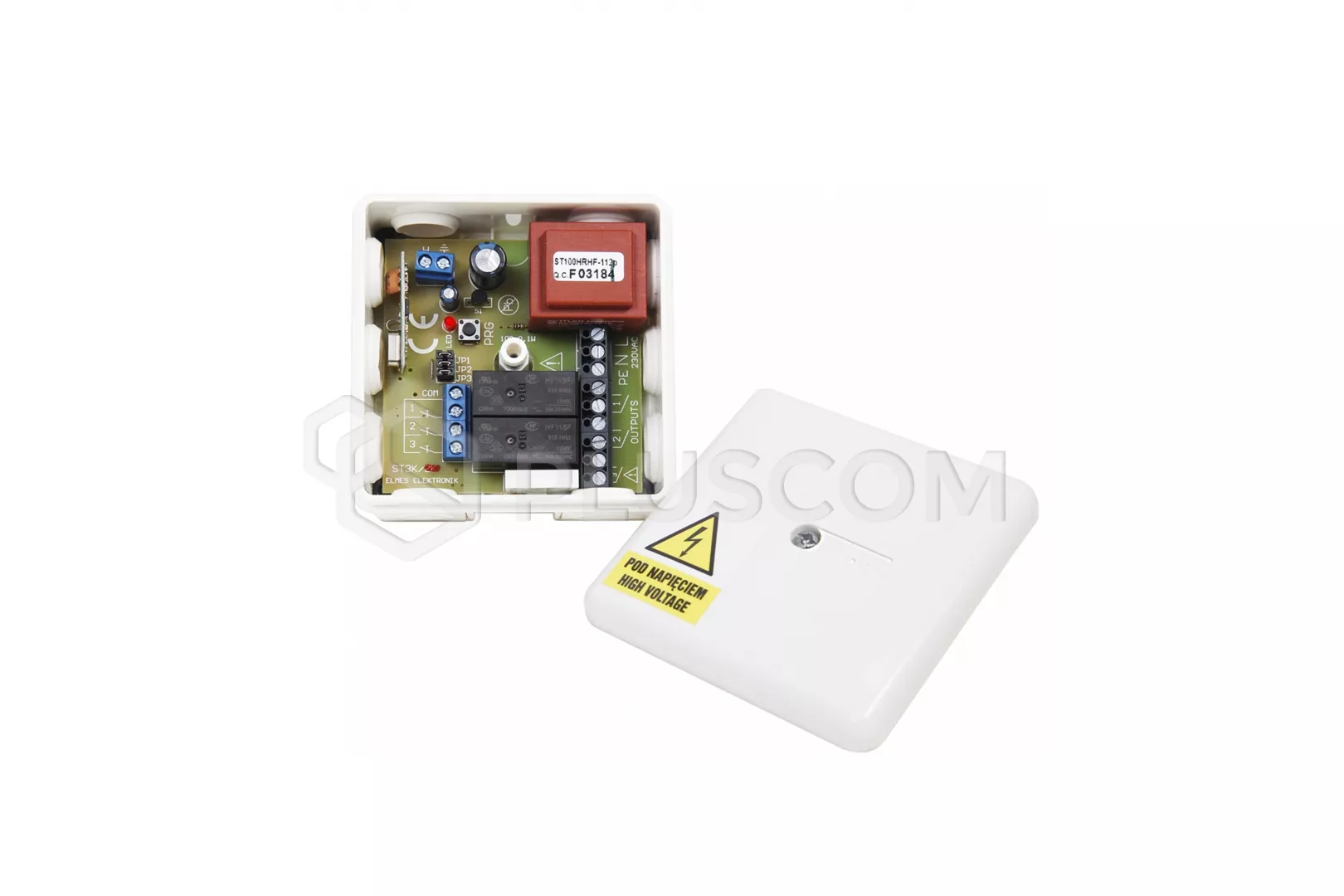

Elmes ST100AC and ST100ACG air conditioner controllers

36,11 EUR including 23.00% VAT
Product code: #33421
Manufacturer: Elmes
  • Controller power supply: 230VAC
  • Cooperation with CTX3H or CTX5H magnetic detectors
  • Cooperation with a maximum of 16 detectors
  • Frequency: 433.92MHz
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes CTX3H Wireless magnet detector

Elmes ST100AC and ST100ACG air conditioner controllers

Controllers are designed to control the air conditioner.
They work by turning off the air conditioning when you are in the room at least one window or door is open and the air conditioning is turned on when all windows and doors in the room will be closed. For this purpose at every window and door must be installed wireless magnetic opening and closing detectors type CTX3H or CTX5H.

The controllers differ in the type of air conditioning control output.
The ST100AC controller supplies 230VAC to the control output, so it can be connected directly to power the air conditioner. However, the ST100ACG controller has potential-free output, galvanically separated from the 230V network it supplies short circuit or open state. This output can be connected to a dedicated input air conditioner control unit, if it has one. Drivers work with up to 16 detectors. The device uses a code system variable KEELOQ.

TECHNICAL DATA:
  • controller power supply: 230VAC
  • power consumption 2VA
  • air conditioner control output: relay, max. 16A/250VAC
  • radio frequency: 433.92MHz
  • operating temperature range: -20 to + 55°C
  • housing with IP56 tightness class
  • dimensions: 87x87x39mm
