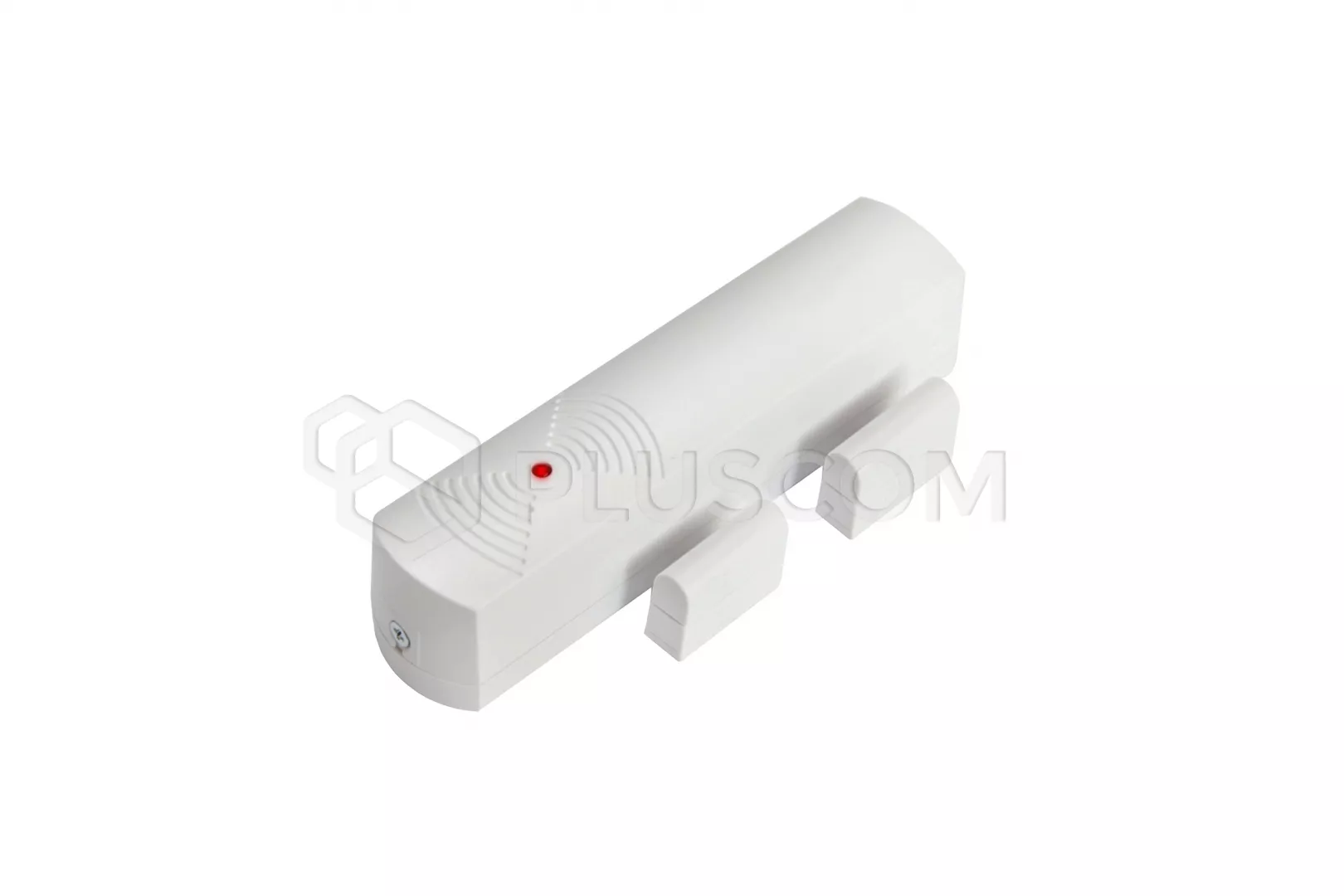

Elmes CTX5D magnetic opening and closing detector

23,22 EUR including 23.00% VAT
Product code: #27222
Manufacturer: Elmes
  • For securing both door or window leaves
  • 2x contraction and magnet
  • Operating frequency: 433.92MHz
  • Distance between the magnet and the detector: up to 10mm
  • 2 operating modes
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Wireless magnetic opening and closing detector with two contacts and magnets, battery-powered. 3V CR123A

The detector is designed to transmit information via radio about opening and closing doors, windows, etc.
The CTX5D is equipped with two reed switches and two magnets and is used to secure a double window or door.

Specification:
  • frequency: 433.92 MHz, <5mW
  • maximum range: up to 100m in open areas
  • current consumption: 2.5mA at rest, 10mA during transmission
  • power supply: 3V CR123A battery
  • maximum distance of the magnet from the detector housing: 10mm
  • tamper alarm time: approx. 20s
  • operating temperature range: from -25C to +55C
  • external dimensions of the detector: 105/24/27mm
