Elmes CTX4HB Wireless magnet detector

CTX4HB is a wireless magnetic detector opening and closing operates on 433MHz. The radio channel is protected KEELOQ Rolling code. It is characterized by a large range of action of up to 200m in open space.

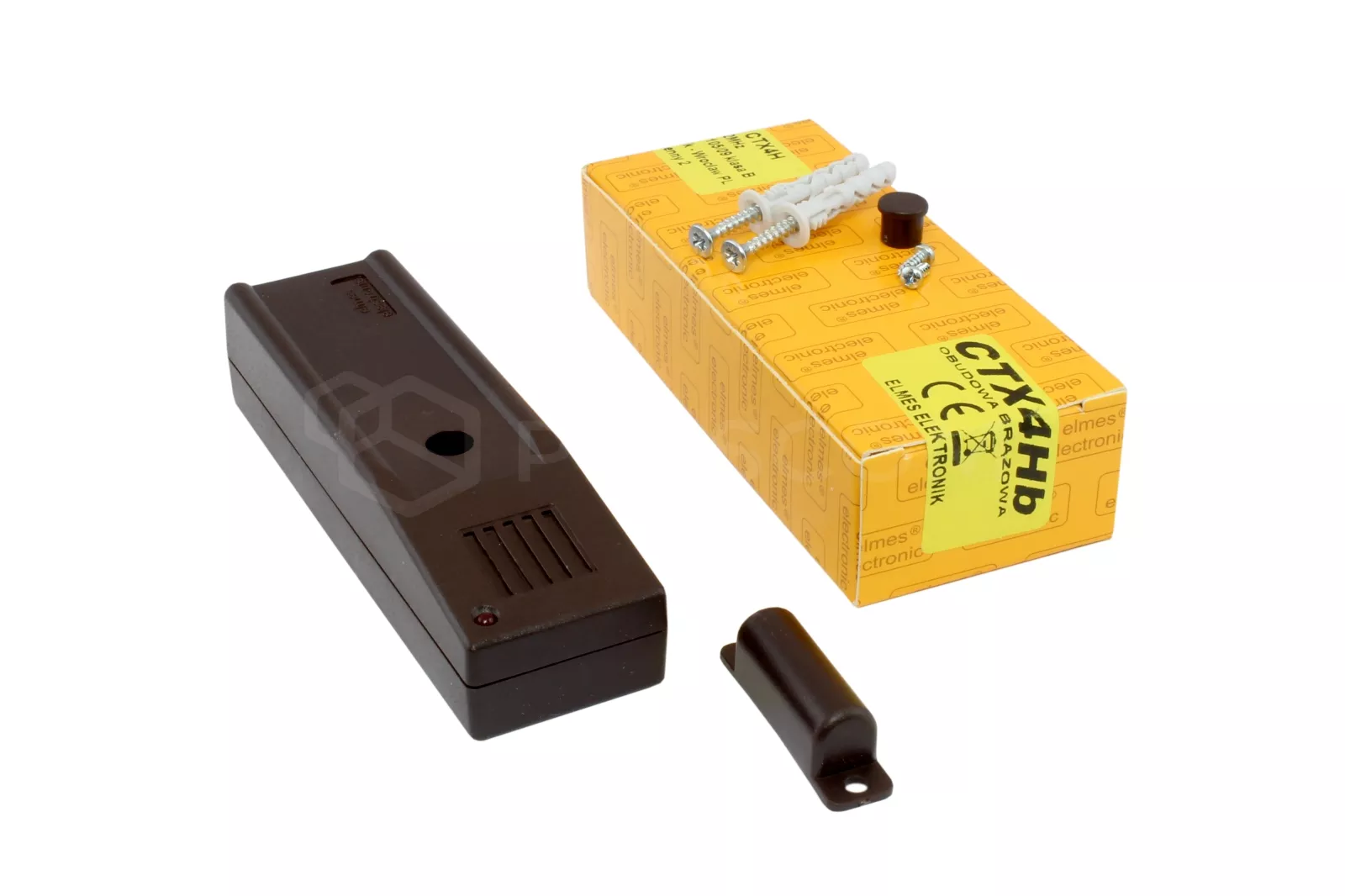

Housing detector in brown.

It can operate in two modes

• opening detector
• opening and closing detector


The detector signals the opening of the housing and battery.

APPLICATION:
Detector is used in alarm systems to wireless signaling door open / closed windows, etc. Working in the opening and closing mode will prevent arming if a door or window has not closed.

STRUCTURE:

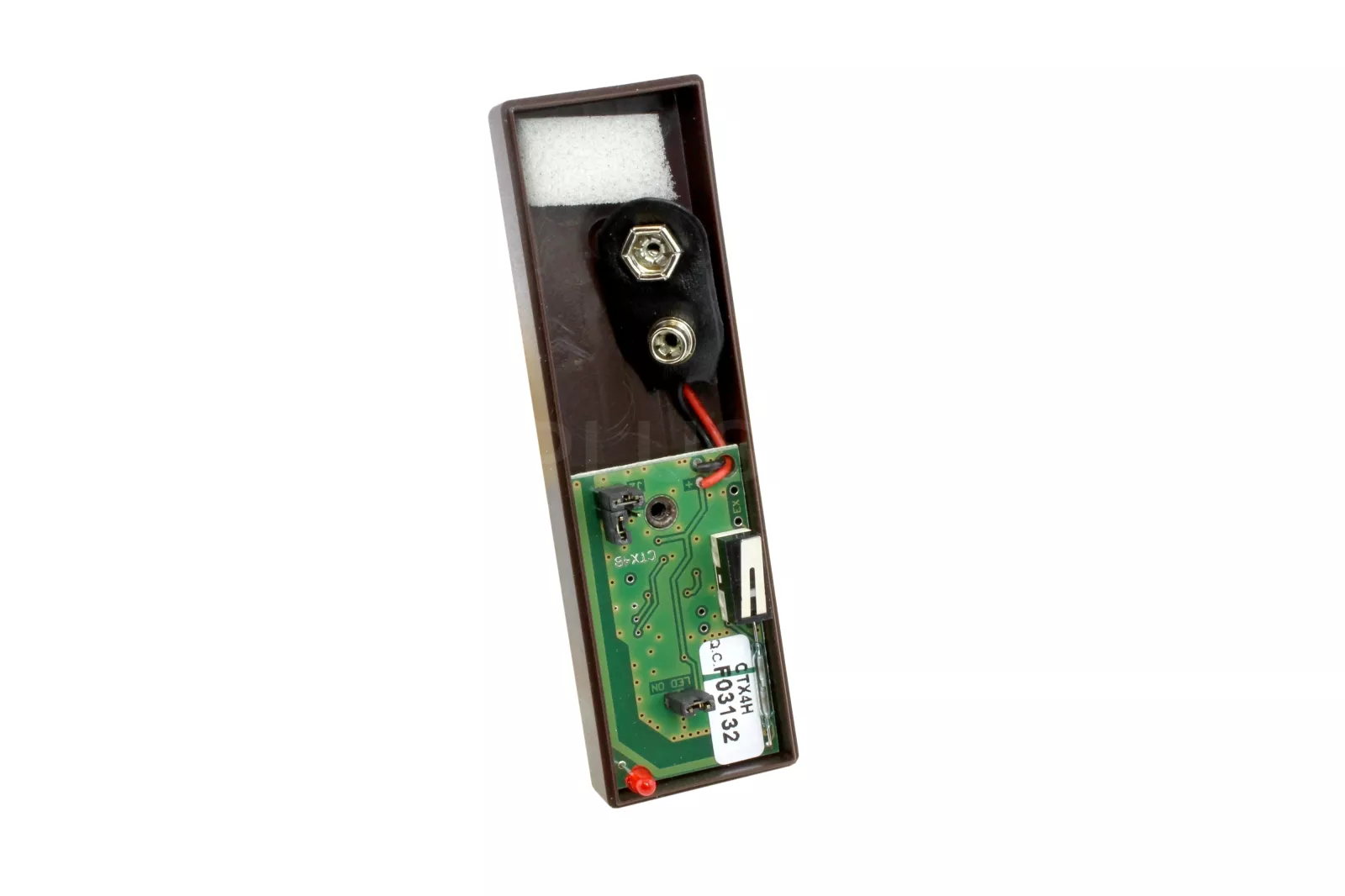

The device is characterized by small size and consists of a transmitter with a reed and external magnet. The magnet away from the reed must not exceed 10mm
Powered alkaline battery is 9V to the transmitter can be operated for one year.
It has tamper protection as a chassis intrusion detector.

SPECIFICATIONS:

• 433.92 MHz transmitter complies with the requirements of European standards CE,
• power supply: 9V alkaline battery (work for 3 year)
• current consumption in standby mode approx. 0,010mA, broadcasting approx. 15mA,
• the maximum distance of the magnet from the detector housing 10mm,
• tamper protection (Tamper)
• indoor use
• size: 104x30x24mm
