CAME ZT6 Control unit for three-phase actuators

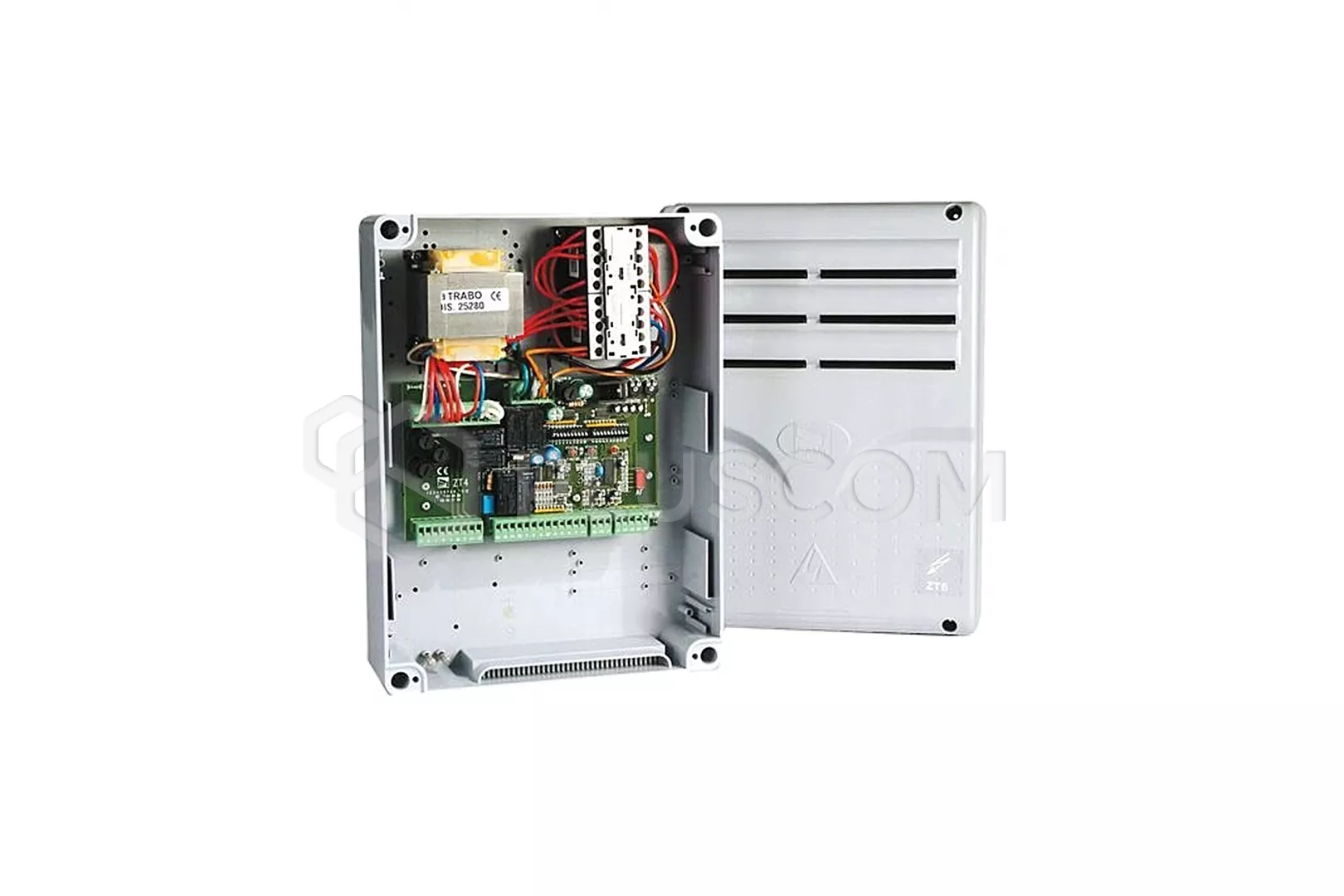

ZT6 control unit for industrial, sectional, sliding and sliding folding gates. It has a built-in two-channel radio decoder i it is powered by 230V AC or 400V AC (three-phase).
The entrance to the control panel is protected by an 8 A fuse while 2 A fuse is responsible for protecting low voltage controls (24 V).
The ZT6 control panel is equipped with a safety lock and 3 already wired buttons (stop, opening, closing) located on the housing cover.

You can connect to the control panel:

• a lamp that illuminates the gate movement area for a fixed, defined period time
• lamp illuminating the gate movement zone during the cycle open / close

The total power of the accessories must not exceed 20W.

ADVANCED CONTROL PANEL FUNCTIONS:

• automatic closing
• partial opening - pedestrian gate
• obstacle detection with gate stopped in any location
• TOTMAN function (current operator)
• warning light pre-flashing
• security test feature
• possible control functions:
• • open / close
  • opening / closing in TOTMAN mode (present operator)
  • open / stop / close / stop
  • partial opening (WICKET function)
  • STOP
• auto close time
• partial opening time

TECHNICAL DATA

• power supply: 230V / 400V
• maximum power: 780 W
• standby current consumption: 50 mA
• maximum total power of 24 V accessories: 45W
• maximum total power of 230V accessories: 85W
• Fuses:
• • Electronic board (mains powered): 8A
  • Control board: 630 A
  • Accessories: 2 -F
• housing material: ABS
• tightness class: IP54
• working temperature: -20 ° C ~ 55 ° C

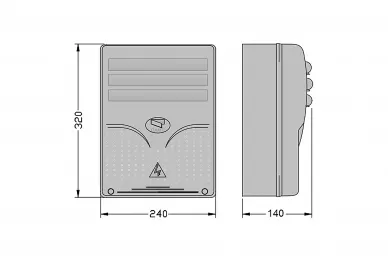

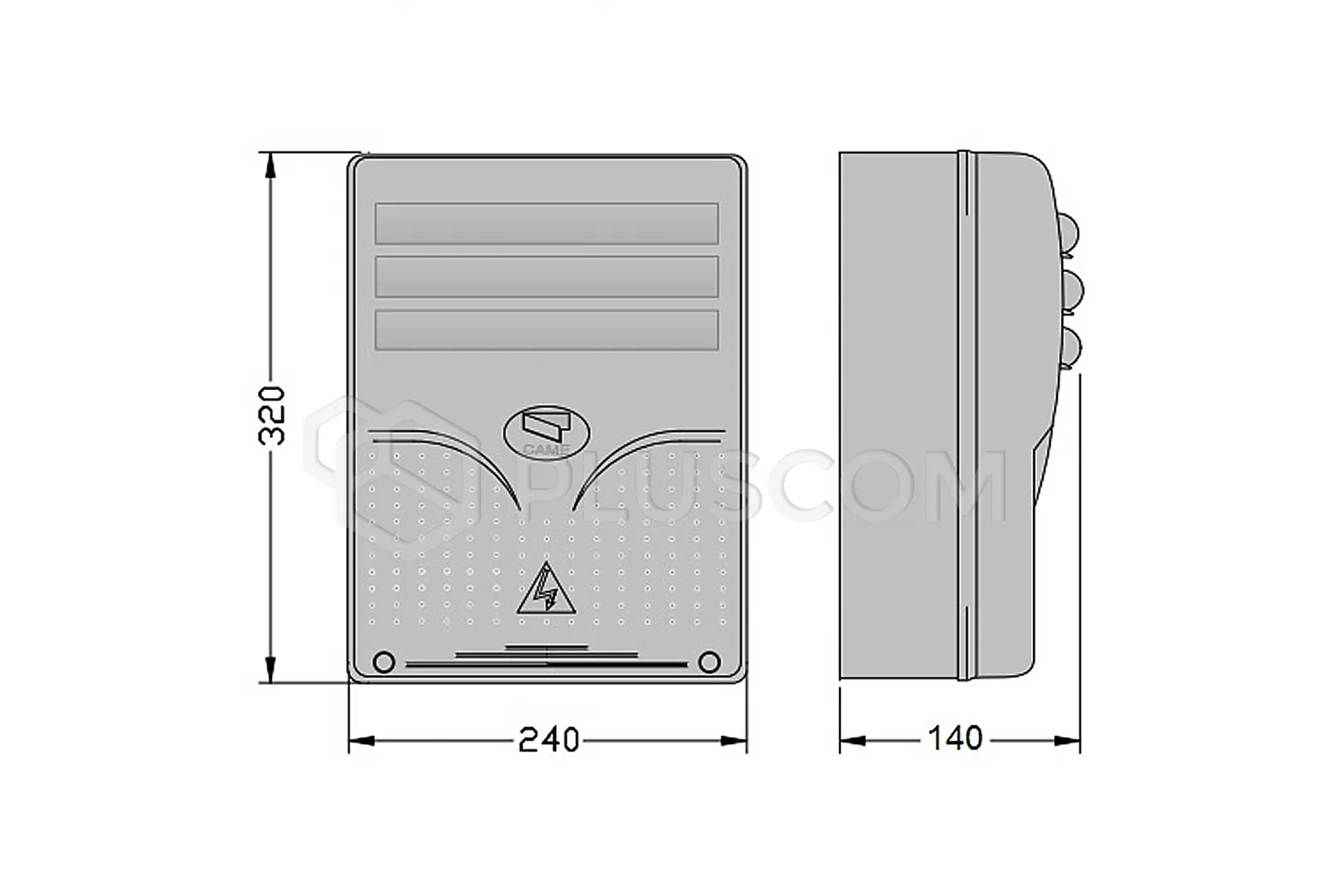

• dimensions: 320x240x140mm
