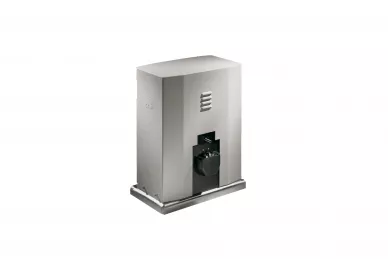

Came BY-3500T Three-phase actuator 230V/400V

2958,01 EUR including 23.00% VAT
Product code: #25991
Manufacturer: CAME
  • gate weight up to: 800kg, length up to 17m
  • three-phase motor 230V-400V
  • built-in ZT6 control panel with two-channel radio decoder
  • master/slave function
  • mechanical limit switches

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came CGZ6 Metal rack in 1m sections

CAME BY-3500T Three-phase actuator 230V/400V for sliding gates weighing 3500kg and length up to 17m

DRIVE PURPOSE:

BY-3500T The actuator enables the automation of sliding gates with:
  • weights up to 3500kg
  • maximum length 17m
  • maximum number of cycles per hour: 14
  • travel speeds: 10.5m/min

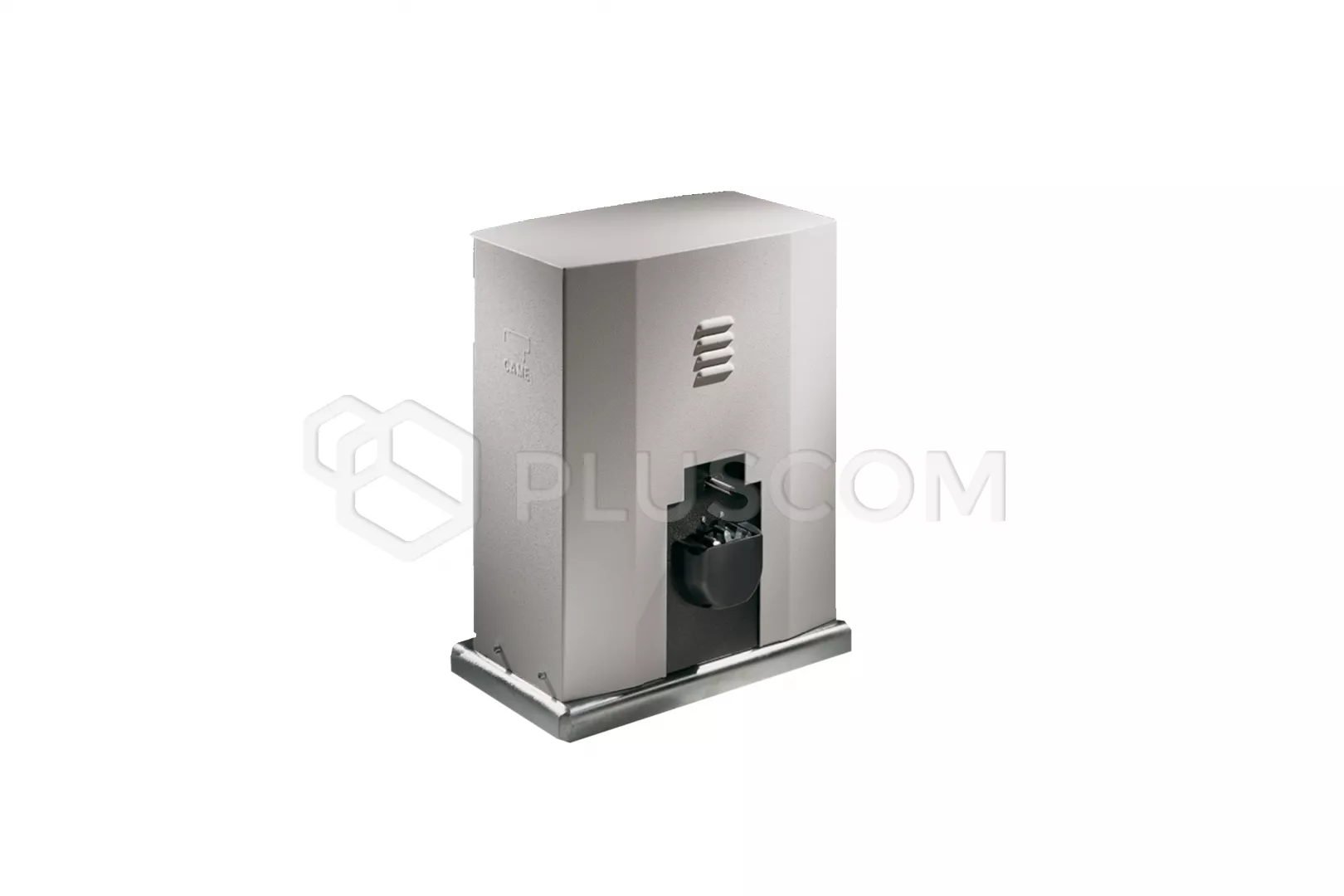

CAME BY-3500T Three-phase actuator 230V/400V

CAME BY-3500T Three-phase actuator 230V/400V

BY3500T is designed to automate gates weighing up to 3,500 kg.
The three-phase motor power supply allows operation in facilities with gates intensively used. Full self-diagnosis of all connected devices protection before the start of each work cycle. Self-locking electromechanical actuator. Sprocket Mod. 6. It has a built-in ZT6 control panel with two-channel radio decoder, stop function, gate function and self-diagnosis for all safety devices.

BY3500T is equipped with a new generation control panel supporting all available safety devices to increase user safety:
  • PARTIAL OPENING adapted to specific gate applications on site
  • SELF CODING between transmitter and receiver
  • LAMP PRE-FLASHING when opening and closing.
  • STOP THE GATE MOVEMENT using the remote control
  • SELF-DIAGNOSIS of all connected safety accessories before starting each work cycle
  • MASTER SLAVE FUNCTION: providing maximum simplification of connections on boards when synchronizing actuators

TECHNICAL DATA:
  • Power supply: 30/400 V AC THREE-PHASE
  • Motor power supply: 230/400 V AC THREE-PHASE
  • Board power supply: 24V AC
  • Power: 1000W
  • Absorbed current: 2A
  • Operating temperature: -20°C ÷ +55°C
  • Maximum pressure: 3500N
  • Maximum movement speed: 10.5m/min
  • Cycles/hour: 14
  • Motor thermal protection: 140°C
  • Protection rating: IP54
  • Insulation class: I
  • Ratio: 1/28
  • Dimensions: 480x578x300mm
  • Weight: 74kg
