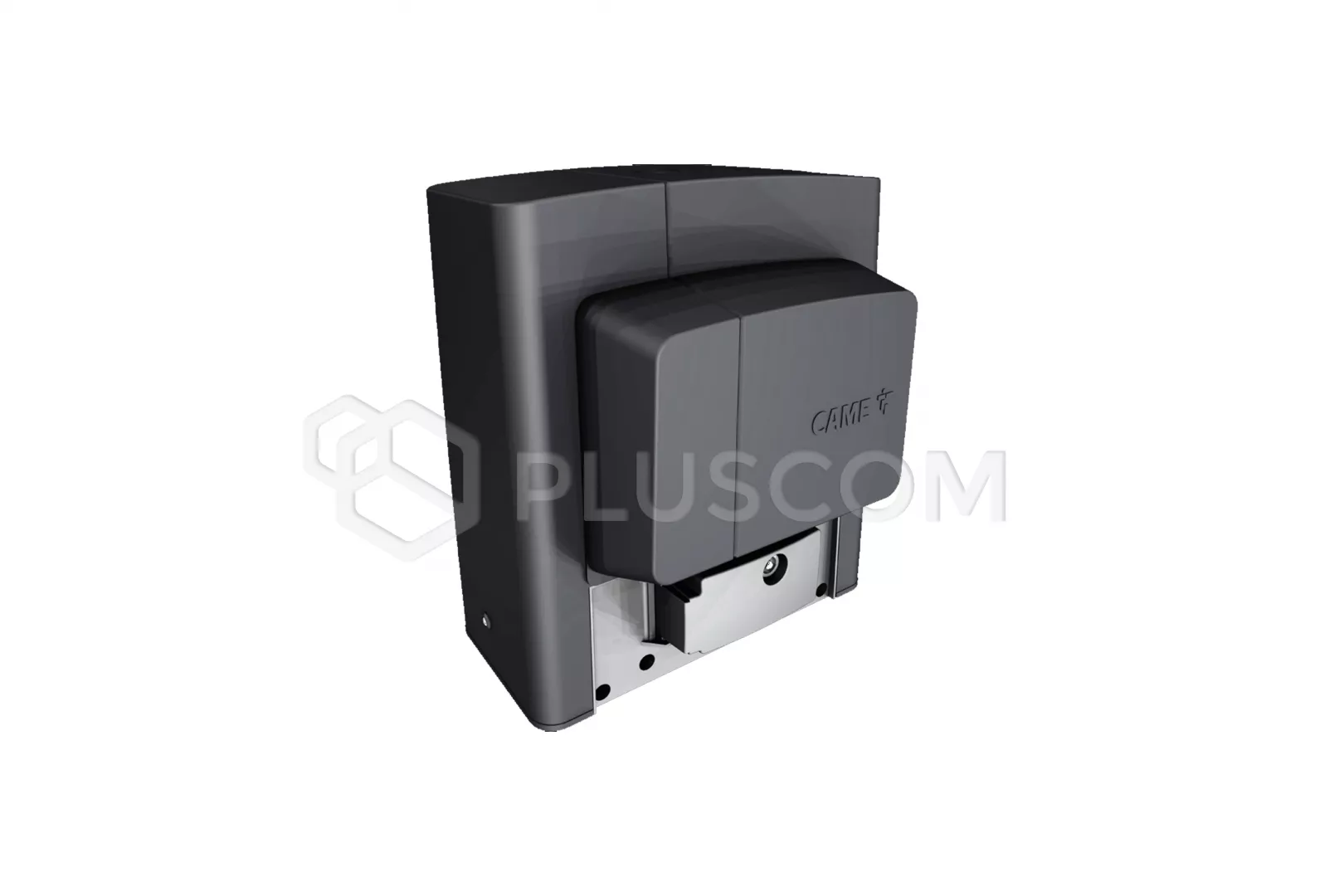

Came BKS22TGS Three-phase drive for sliding gates up to 2200 kg

934,11 EUR including 23.00% VAT
Product code: #25978
Manufacturer: CAME
  • gate weight up to: 2200kg, length up to 23m
  • three-phase motor 230-400V
  • an external ZT6 control unit is required
  • duty cycle: 50%
  • work speed: 10.5 m / min
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0031 CH8MM 8mm metal rack Came PL0027 C8MM 8mm metal rack with lock Came PL0026 C10MM metal rack with a 10m lock Came CGZ6 Metal rack in 1m sections Came ZT6 Control unit for three-phase actuators Came RGP1 Module limiting power consumption Came R001 Cylinder with personal key Came RSE RS485 communication card Came RSDN002 Set of magnetic limit switches Came R800 Interface

CAME BBKS22TGS Three-phase drive for sliding gates weighing 2200 kg and length up to 23m

DRIVE PURPOSE:

BKS22TGS The actuator enables the automation of sliding gates with:
  • weights up to 2200kg
  • maximum length 23m
  • travel speeds: 10.5m/min
CAME BKS22TGS Three-phase drive for sliding gates up to 2200 kg

CAME BKS22TGS Three-phase drive for sliding gates up to 2200 kg
The BK series drive is a reliable solution for group operations crossings in housing estates, factories and utility buildings public, etc., as well as intensive use.
To control the gearmotor, you need an external ZT6 control unit with a built-in two-channel radio decoder and three-phase power supply 230V AC or 400V AC.
The input to the control panel is protected by an 8 A fuse, while a 2 A fuse is responsible for protecting the low voltage controls (24 V). The ZT6 control panel is equipped with a security lock and 3 pre-wired buttons (stop, open, close) located on the housing cover.

ADVANCED PANEL FUNCTIONS:
  • automatic closing
  • partial opening - pedestrian gate
  • obstacle detection when the gate is stopped at any point location
  • TOTMAN function (operator present)
  • pre-flashing of warning lamp
  • security test function
  • possible control functions:
    • open/close
    • open/close in TOTMAN mode (operator present)
    • open/stop/close/stop
    • partial opening (GATE function)
    • STOP
  • automatic closing time
  • partial opening time
The most important advantages of the drive and the set include:
  • possible connection to the cloud using CAME CONNECT technology
  • self-diagnosis of safety devices
  • possibility to install magnetic limit switches
  • direct control of CAME keyboards and readers using cards R700 and R800
  • possibility to connect the RIO system
  • control panel with a clear display and easy menu
  • ability to remember 250 different users
  • gear module for rack - 4
  • possibility to connect an 8k2Ω resistive safety strip

TECHNICAL DATA:
  • Maximum gate weight: 2200 kg
  • Maximum gate length: 23 m
  • Power supply for the control board: 230-400V AC three-phase
  • Motor power supply: 230-400V AC three-phase
  • Current consumption: 1.5 A
  • Maximum power: 520 W
  • Travel speed: 10.5 m/min
  • Efficiency: 50%
  • Thrust force: 1650 N
  • Gear: Module 4
  • Housing: IP54
  • Operating temperature: -20 ~ 55°C
  • Weight: 21 kg
  • Dimensions: 360×325×255 mm
