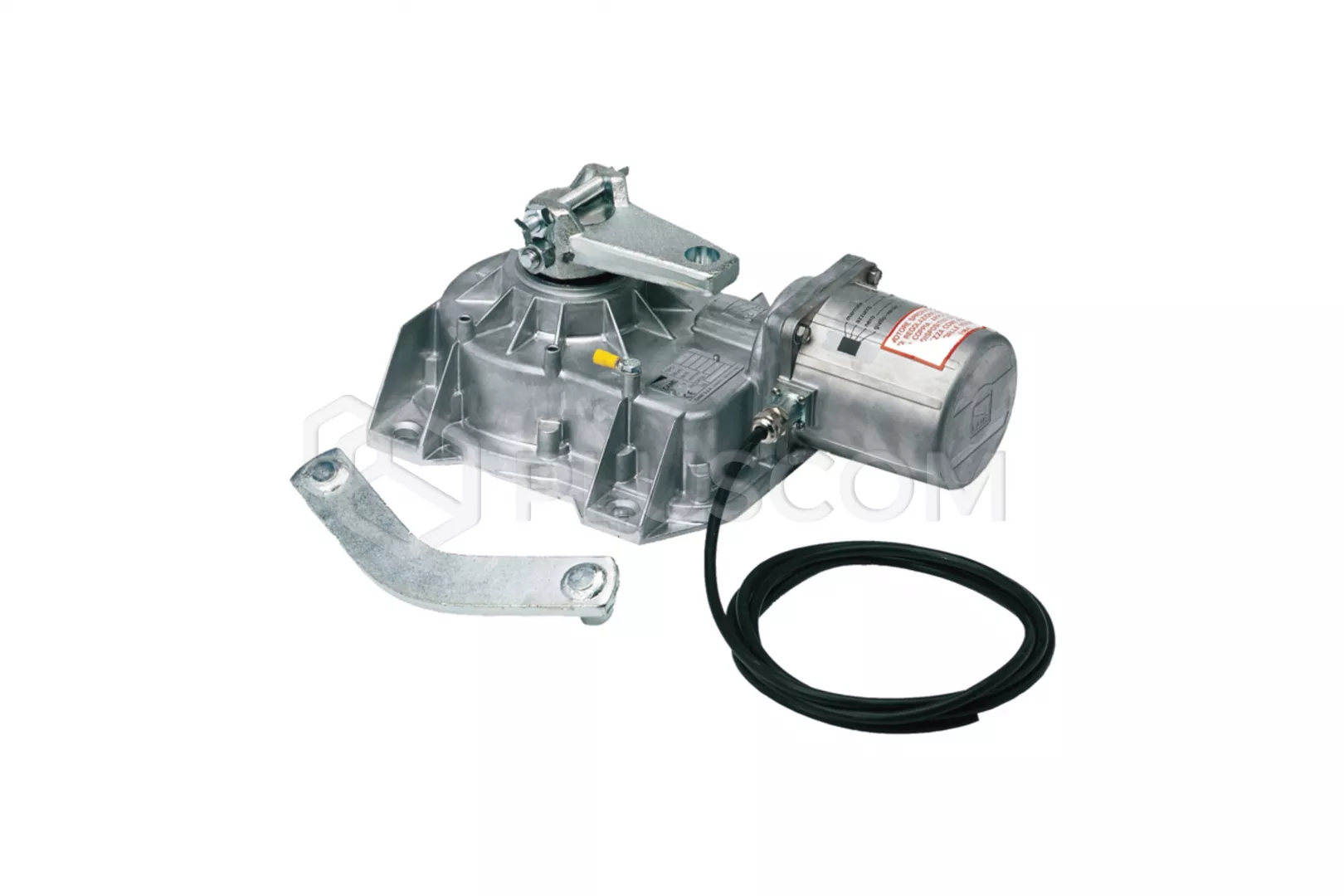

Came FROG-A underground actuator 230V

CAME FROG-A underground irreversible actuator for gates with leaves up to 3.5 m long

GATE PARAMETERS

• 3.5m/400kg
• 2.5m/600kg
• 2m/800kg

FROG-A is a self-locking underground electromechanical actuator for swing gates with a max. leaf length up to 3.5 m. New 230 V electronics provide special commands and safety functions in the standard version. Additional control boards are also available, allowing for greater adjustment options and more features that make operation easier.

A simple, patented release which, in the event of a power failure, will enable the actuator to be unlocked.
The release mechanism is available in three versions:

• basic system based on release lever
• Two extended versions, in which the clutch is released by using a special three-walled clamp key or personalized DIN cylindrical key

For self-locking drives with a leaf over 2.5 m, the installation of an electric lock is mandatory.

The biggest advantage of underground actuators is the aesthetics and discretion of the drive it is invisible and does not spoil the image of the gate
The second important advantage of underground drives is the possibility of installation in place where because of

• narrow entrance
• very narrow posts where dimension A is less than 100mm


There is no room for installing screw drives or drives with a folding arm

TECHNICAL DATA:

• Power supply: 230V
• Motor power supply: 230V
• Max. power consumption: 200 W
• Current: 1.9 A
• Thrust force: 320 Nm
• Opening time (up to 90°): 18 s
• Duty cycle: 30%
• Protection level: IP 67
• Motor thermal protection: 150 °C
• Operating temperature: -20 °C to +55 °C
• Dimensions: 405 x 220 x 330 mm (with housing)
• Weight: 11 kg
