Came GARD G6500 - MCBF 1M CYCLES Set with 6.5m arm with

2618,62 EUR including 23.00% VAT
Product code: #26661
Manufacturer: CAME

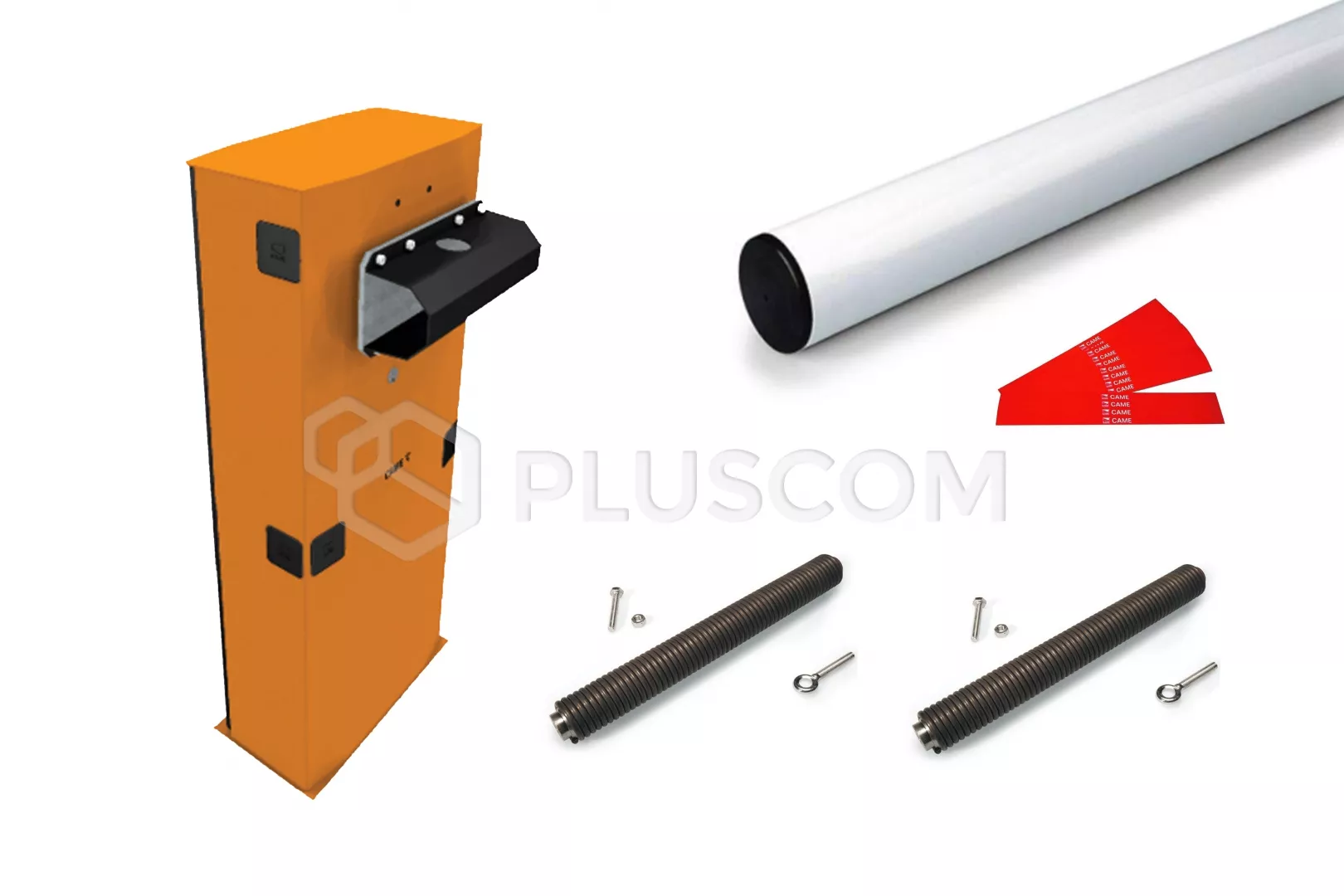

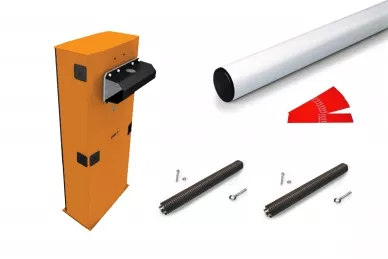

  • THE KIT:
  • G6500 - central unit with a mounting plate
  • G0602 - Tubular aluminum arm 6850mm
  • G04060/G06080 - balancing spring green / red
  • G02809 - arm mounting bracket
Delivery and tax:
Poland VAT: 23.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came G028401 LED lighting strip Came G02808 Movable arm support Came G02807 Fixed arm support Came PL0066 Closing system after crossing the line of photocells Came PL0064 Traffic light control system Came LB39 Card for supplying the system with batteries Came KLED24 LED warning light 24V Came G04601 Adapter for mounting a KIARO series lamp Came AT04EV 4-channel remote control ATOMO series Came PL0033 12V 7Ah battery

CAME GARD G6500 - MCBF 1M CYCLES Set with 6.5m tube arm


PACKAGE CONTAINS
CAME GARD G6500 - MCBF 1M CYCLES Set with 6.5m arm with

CAME GARD G6500 - MCBF 1M CYCLES Set with 6.5m arm with
The G6500 electromechanical barrier is perfect for longer passages in parking lots. Is irreplaceable at crossings where fast and reliable work is necessary. The solid structure makes the barrier suitable for intensive work.
It has a built-in ZL38 control unit with a single-channel radio decoder, arm balancing springs, built-in arm fixing handle and manual arm declutching system with a key, w in the event of a power failure. The control board powers the motor and all low voltage accessories (24 V) - making the system very safe.

BENEFITS OF G6500
  • EMERGENCY POWER - the emergency power card automatically detects the lack of 230 V power supply and activates battery backup
  • SPEED UNDER CONSTANT CONTROL - the control unit has the ability to adjust the opening speed and shutdown so that it can be adapted to the needs of the installation and user
  • INTENSIVE WORK - low voltage 24 V D.C. motor ensures maximum efficiency enabling continuous work, where it is required
  • OVERLOAD SENSOR - standard amperometric sensor, detects emerging obstacles and allows to immediately stop or reverse the movement of the arm


The oval frame G0602 with dimensions 100 × 6850 mm is made of aluminum which guarantees resistance to mechanical damage and wear and liquid work.
The arm can be equipped with additional accessories such as warning stickers, curtains and supports (fixed or movable) - they have a very important function shock absorption when stopping the arm.

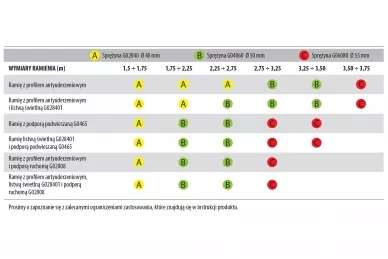

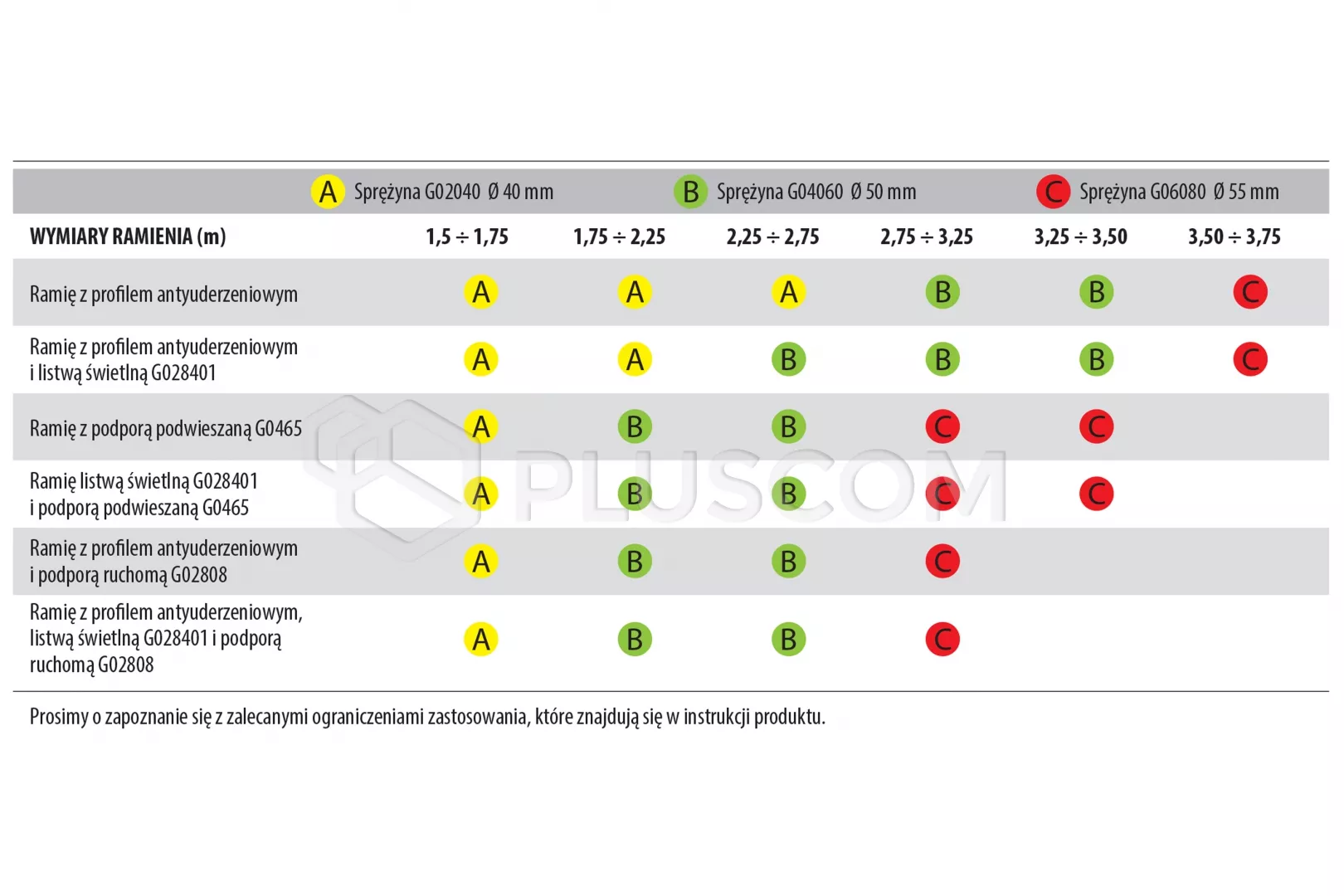

The set includes two balancing springs:
  • G04060 - balancing spring Ø 50 mm (green)
  • G06080 - balancing spring Ø 55 mm (red)
Warning stickers G0461 stuck to the white barrier of the barrier significantly improve the visibility of the arm. They are made of reflective foil.

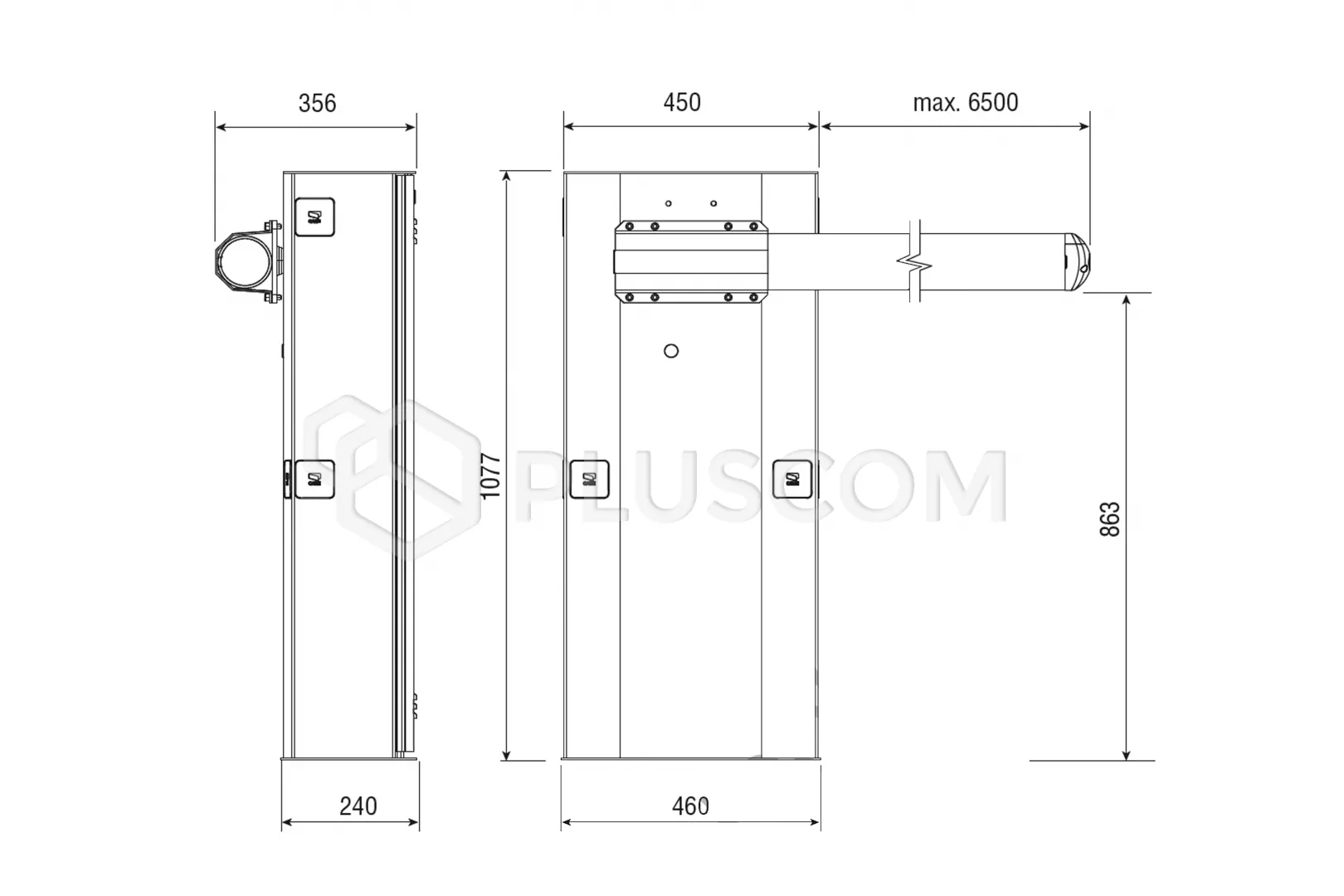

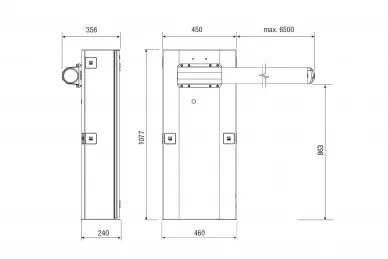

Dimensions:

Dimensions:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 15A
  • Motor power: 300 W
  • Work cycle: intensive work
  • Open time up to 90 °: 4-8 sec
  • Torque: 600 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1077x356x460mm
Download
Manual 9.14 MB
