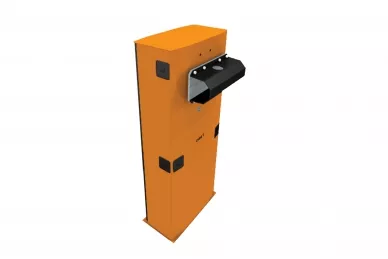

Came G6500 Electromechanical barrier up to 6.5m

2055,05 EUR including 23.00% VAT
Product code: #26210
Manufacturer: CAME
  • Bar length up to 6.5m
  • Minimum opening time: 4s
  • Housing made of galvanized and painted steel
  • Intensive work
  • 24V DC motor power supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came G028401 LED lighting strip Came PL0033 12V 7Ah battery Came G02809 Set of 20 warning stickers Came G02808 Movable arm support Came G02807 Fixed arm support Came PL0066 Closing system after crossing the line of photocells Came PL0064 Traffic light control system Came LB39 Card for supplying the system with batteries Came G0602 Tubular aluminum arm 6850mm Came G0468 Photocell mounting bracket

BARRIER CAME GARD G6500 CENTRAL UNIT FOR ARMS UP TO 6.5m


The G6500 electromechanical barrier is perfect for longer passages in parking lots. Is irreplaceable at crossings where fast and reliable work is necessary. The solid structure makes the barrier suitable for intensive work.
The assembly of the barrier does not require any special preparations. It has a technological prepared openings in the housing for the installation of keyboards and key locks, photocells and a warning lamp. A very large number of additional accessories allows the GARD barrier to be uniquely adapted to a specific place installation.

It has a built-in ZL38 control unit with a single-channel radio decoder, arm balancing springs, built-in arm fixing handle and manual arm declutching system with a key, w in the event of a power failure. The control board powers the motor and all low voltage accessories (24 V) - making the system very safe.

BENEFITS OF G6500
  • EMERGENCY POWER - the emergency power card automatically detects the lack of 230 V power supply and activates battery backup
  • SPEED UNDER CONSTANT CONTROL - the control unit has the ability to adjust the opening speed and shutdown so that it can be adapted to the needs of the installation and user
  • INTENSIVE WORK - low voltage 24 V D.C. motor ensures maximum efficiency enabling continuous work, where it is required
  • OVERLOAD SENSOR - standard amperometric sensor, detects emerging obstacles and allows to immediately stop or reverse the movement of the arm
The maximum arm length is 6.5m.

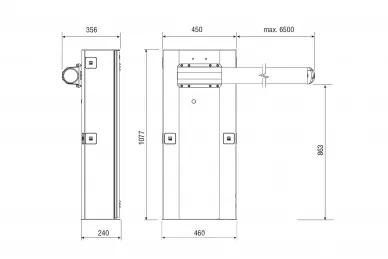

Dimensions:

Dimensions:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 15A
  • Motor power: 300 W
  • Work cycle: intensive work
  • Open time up to 90 °: 4-8 sec
  • Torque: 600 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1077x356x460mm
Download
Manual 9.14 MB
