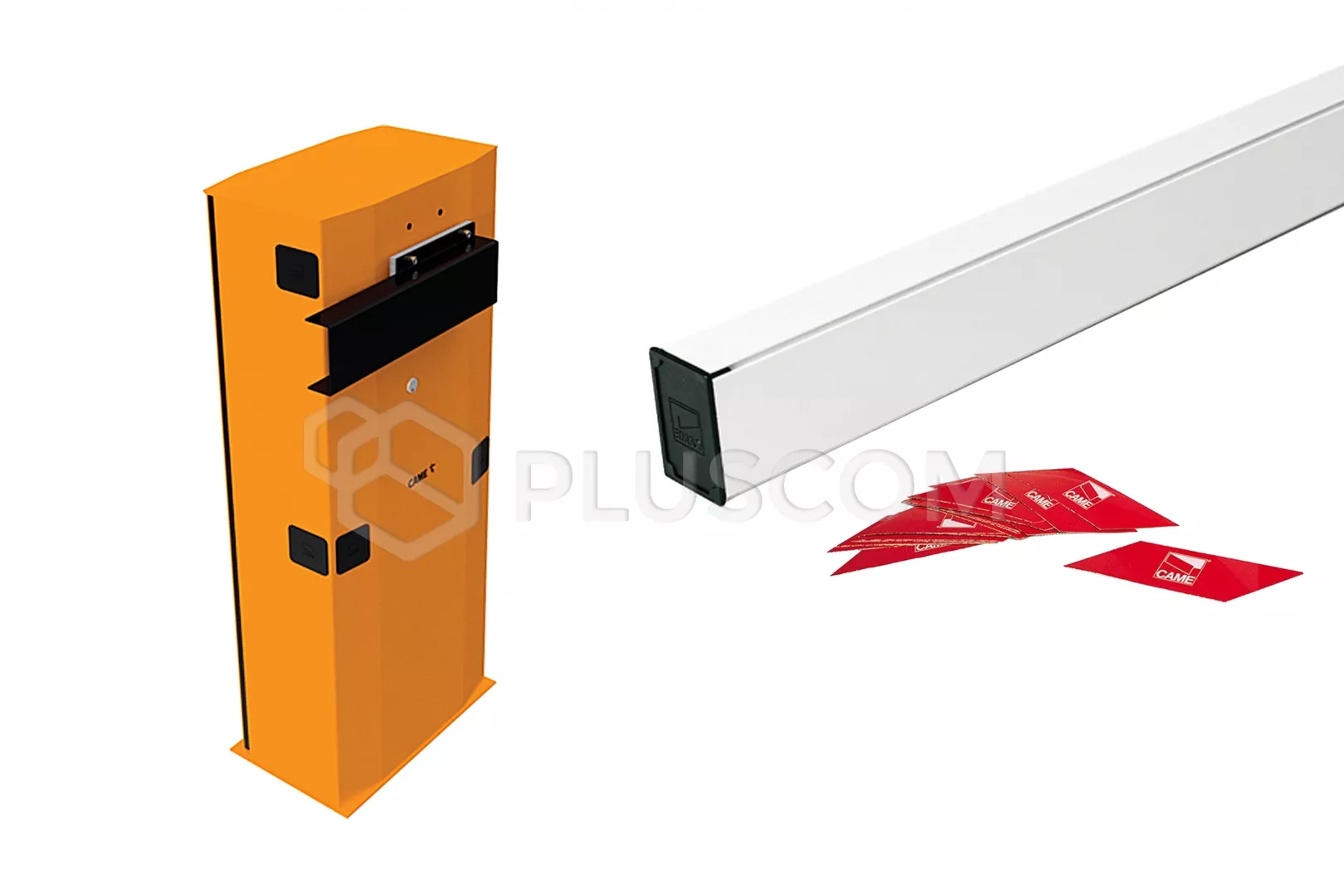

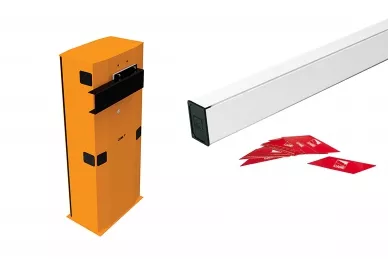

Came GARD G6000 - MCBF 1M CYCLES Set with 6.5m arm

2393,39 EUR including 19.00% VAT
Product code: #26662
Manufacturer: CAME
  • THE KIT:
  • G6000 - central unit with a mounting plate
  • G0601 - Flat aluminum arm 6850mm
  • G0461 - warning stickers
  • Intensive work
Delivery and tax:
Germany VAT: 19.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came G0463 Movable arm support Came G04601 Adapter for mounting a KIARO series lamp Came KLED24 LED warning light 24V Came PSSRV1 Two-color traffic light Came AT04EV 4-channel remote control ATOMO series Came PL0033 12V 7Ah battery Came TOP-434EE Two-channel remote control Came TOP-432EE Two-channel remote control Came PL0066 Closing system after crossing the line of photocells Came PL0064 Traffic light control system

CAME GARD G6000 - MCBF 1M CYCLES Set with 6.5m flat arm


PACKAGE CONTAINS
SATEL APD-100 Wireless PIR detector

SATEL APD-100 Wireless PIR detector
The barrier is suitable for both left and right hand side assembly. It has a built-in ZL 38 control unit with a single-channel decoder radio, arm balance springs, amperometric detection system obstacles during opening and closing and a manual release system arm with a key, in the event of a power failure. The control board supplies power to the motor and all accessories with low voltage (24V) - making the system very much safe.
Radio control is realized via the frequency card.
Came AF43S 433.92 MHz frequency card
Came AF43S 433.92 MHz frequency card
16.56 EUR
 Add to cart

Housing made of galvanized and painted steel RAL 2004.

BENEFITS OF G6000
  • SELF-CODING between transmitter and receiver
  • AUTOMATIC CLOSING - time adjustable with trimmer
  • AMPEROMETRIC OBSTACLE DETECTION - adjustable
  • TOTMAN - movement of the barrier only when the
  • button is pressed
  • ADJUST ARM SPEED
  • IMMEDIATE CLOSURE after vehicle detection
  • "MASTER-SLAVE" FUNCTION for coupling two barriers
The maximum length of a round boom for a G6000 barrier is 6.5m.

The flat arm G0602 with dimensions 100 × 40 x 6850 mm is made of aluminum which guarantees resistance to mechanical damage and wear and liquid work.
The arm can be equipped with additional accessories such as warning stickers, curtains and supports (fixed or movable) - they have a very important function shock absorption when stopping the arm.

Warning stickers G0461 stuck to the white barrier of the barrier significantly improve the visibility of the arm. They are made of reflective foil.
Dimensions:

Dimensions:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 15A
  • Motor power: 300 W
  • Work cycle: intensive work
  • Open time to 90 °: 2-6 sec
  • Torque: 200 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1007x265x270mm
  • Weight: 47 kg
Download
Manual 10.02 MB
