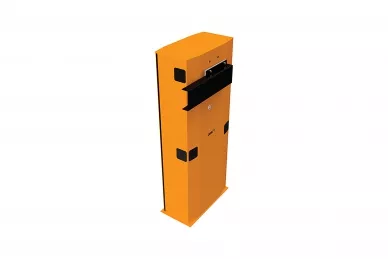

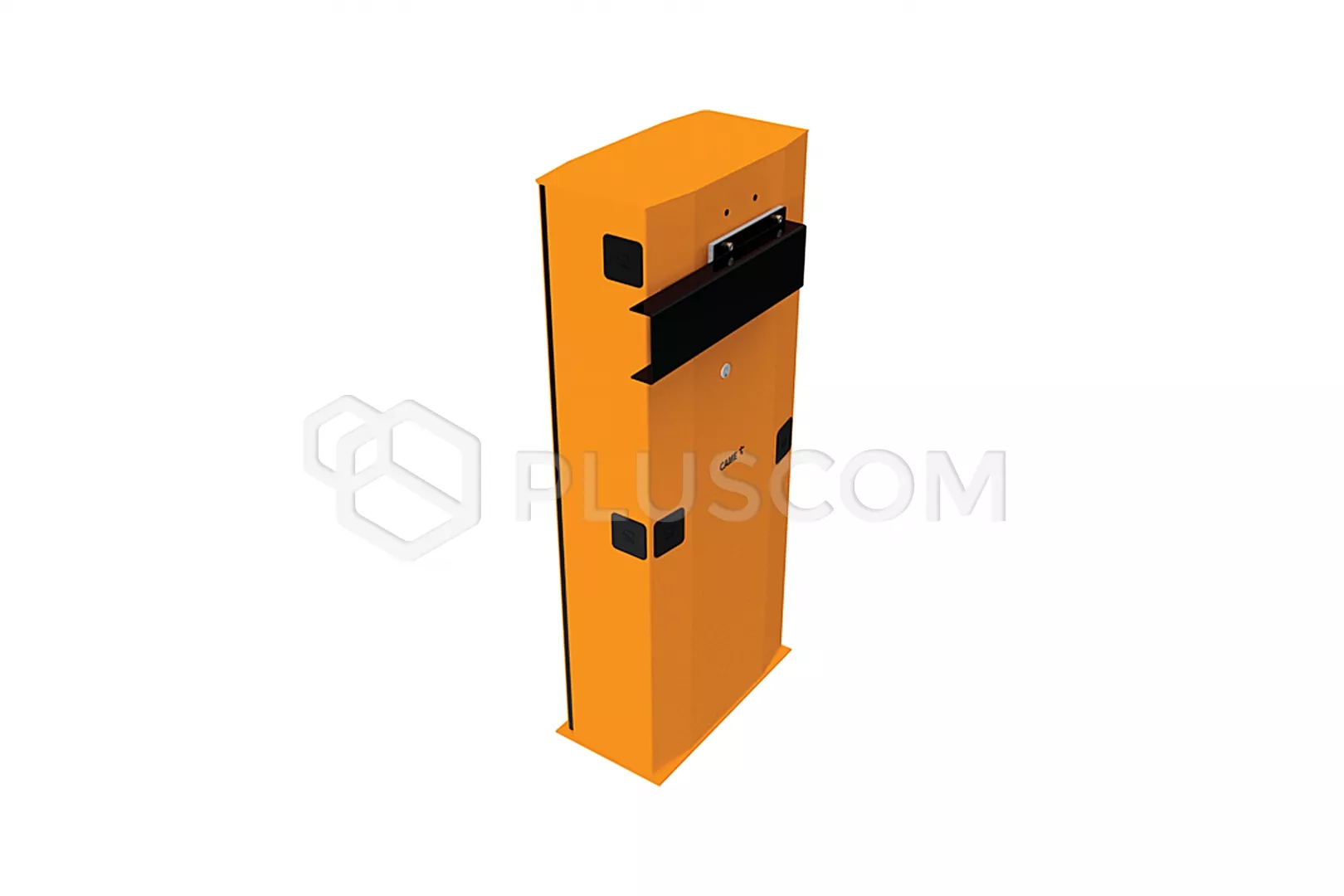

Came G6000 Electromechanical road barrier up to 6.5m

BARRIER CAME GARD G6000 CENTRAL UNIT FOR ARMS UP TO 6.5m

The G6000 electromechanical barrier is perfect for access control industrial facilities and high-traffic crossings. Is irreplaceable at crossings where fast and reliable work is necessary. The solid structure makes the barrier suitable for intensive work.
The assembly of the barrier does not require any special preparations. It has a technological prepared openings in the housing for the installation of keyboards and key locks, photocells and a warning lamp. A very large number of additional accessories allows the GARD barrier to be uniquely adapted to a specific place installation.

The barrier is suitable for both left and right side installation. It has a built-in ZL 38 control unit with a single-channel radio decoder, arm balance springs, amperometric obstacle detection system during opening and closing and a manual arm release system with a key, w in the event of a power failure. The control board powers the motor and all low voltage accessories (24 V) - making the system very safe.
Radio control is realized via the frequency card. {rel_23491}
Housing made of galvanized and painted steel RAL 2004.

BENEFITS OF G6000

• SELF-CODING between transmitter and receiver
• AUTOMATIC CLOSING - time adjustable with trimmer
• AMPEROMETRIC OBSTACLE DETECTION - adjustable
• TOTMAN - movement of the barrier only when the
• button is pressed
• ADJUST ARM SPEED
• IMMEDIATE CLOSURE after vehicle detection
• "MASTER-SLAVE" FUNCTION for coupling two barriers

Maximum length of a rectangular or round boom for a barrier G6000 is 6.5m (without accessories).

TECHNICAL DATA:

• Powered: 230V AC
• Motor power: 24V DC
• Current consumption: 15A
• Motor power: 300 W
• Work cycle: intensive work
• Open time up to 90 °: 4-8 sec
• Torque: 600 Nm
• Grade of protection: IP 54
• Working temperature: -20 ° C ~ 55 ° C

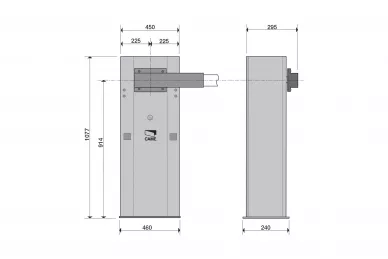

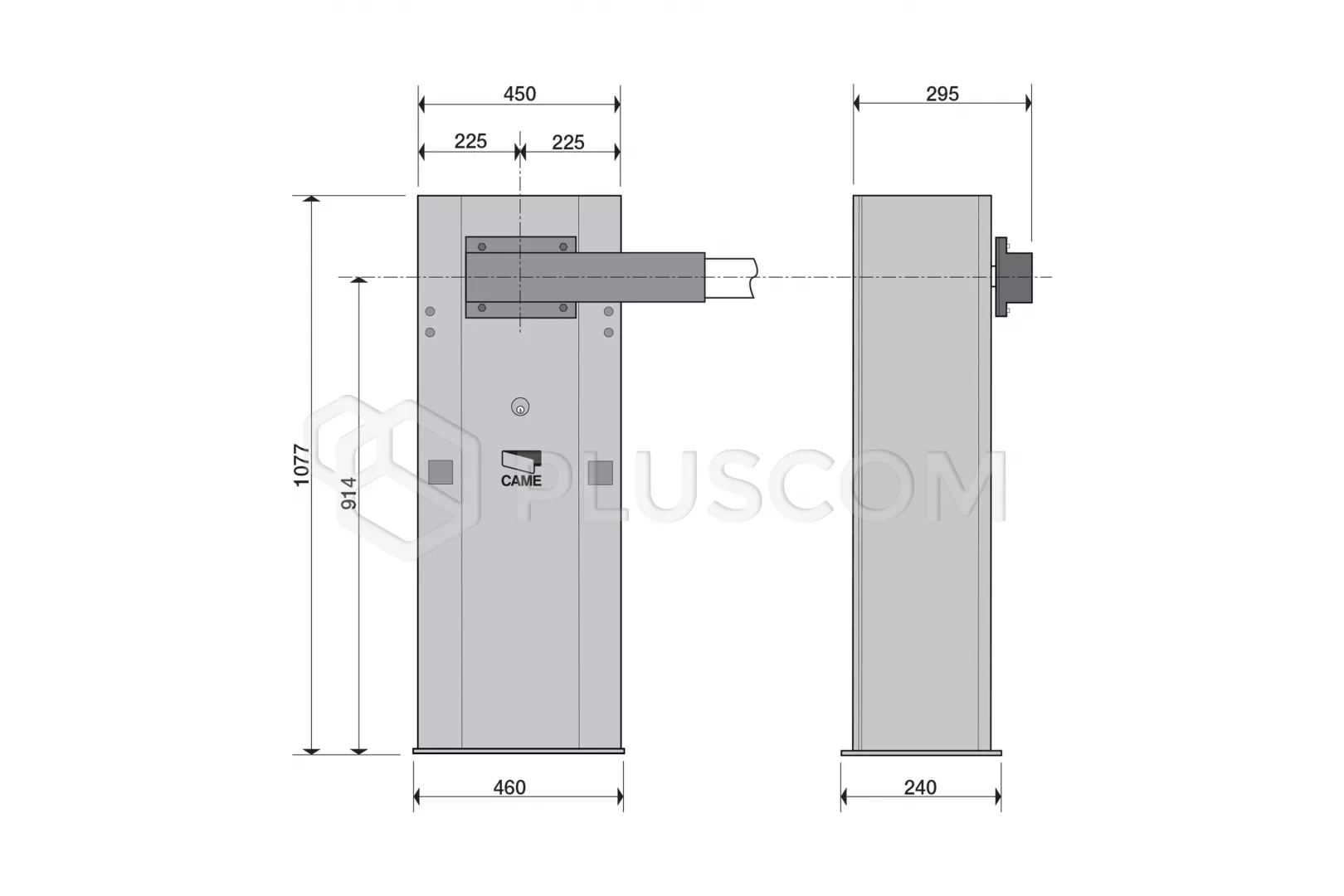

• Dimensions: 1077x295x460mm
• Weight: 72 kg
