Came FROG Set

CAME FROG Heavy-duty underground gate kit for gates weighing up to 800 kg

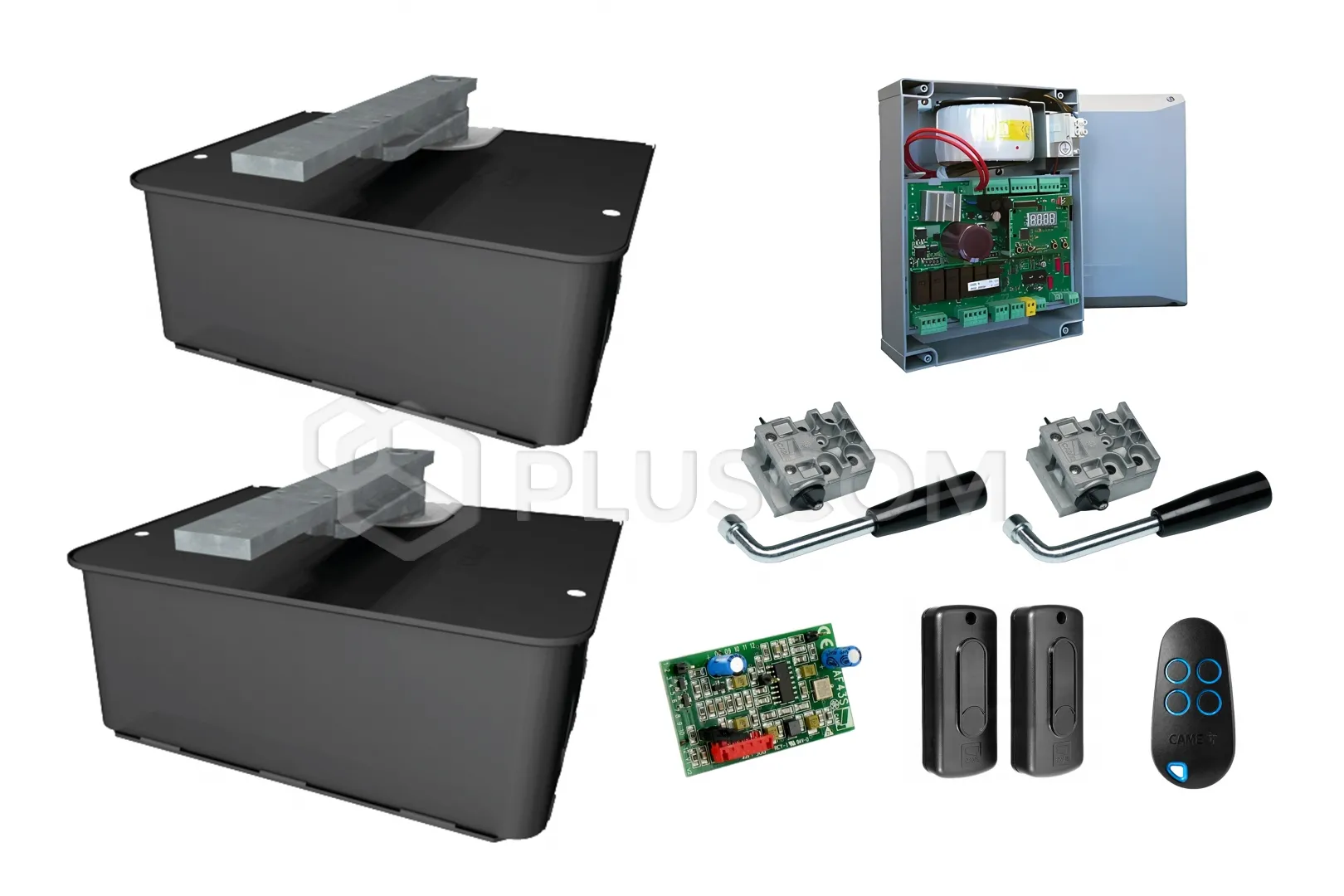

SET CONTAINS: Came FROG-A24E underground actuator 24V x 2 pcs Came FROG-CFN Housing with galvanized cover x 2 pcs Came ZLX24MA Control panel for a 2-leaf gate Came DIR10 photocells synchronized up to 10m Came TOP44RBN 4-channel remote control Came AF43S 433.92 MHz frequency card Came A4364 Release system, lever ''Standard'' x 2 pcs

Came FROG Set

TheFROG-A24E is a self-locking underground electromechanical actuatorfor gates wingers with max. leaf length up to 3.5 m. Thanks to the use of an engine electromechanical, the gate movement is smooth, precise and safe even in... extreme conditions.

A simple, patented release that will enable you in the event of a power outage unlocking the actuator.
TheFROG-A24E complies with European strength standards impacts.

The TOP44RBN remote control provides radio control of the dynamically variable code o frequency 433.92 MHz, which gives a high level of safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent billions of possible code combinations according to the complex algorithm that only the receiver can decode. This technique prevents cloning the code to be sent.

DIR Photocells are distinguished by their modern and very modern appearance small sizes. Thanks to the use of the IP54 tightness class and appropriate mounting accessories, DIR photocells can be mounted both indoors and outdoors and outside.
They have a modular structure, so they can be installed at different heights.

The principle of operation of the DIR photocell is based on synchronization between the transmitter and the receiver - this event takes place after connecting the power supply. Means, that each receiver works only with the appropriate transmitter, eliminating thus, there is the possibility of signal interference from external sources.

The AF43S frequency card, included in the set, works in frequency 433.92MHz and supports TOP and TAM fixed code control and ATOMO variable code.

TECHNICAL DATA:

• Power supply: 230V 50/60Hz
• Motor power supply: 36V DC
• Control board power supply: 26V DC
• Power consumption in standby mode: 14W
• Maximum power: 300W
• Thrust force: 1000N
• Travel speed: 12m/min
• Gear module: 6
• Duty cycle: continuous operation
• Protection rating: IP54
• Operating temperature: -20°C ~ +55°C
• Sound pressure level: ≤70dB (A)
• Working time: 180s
• Weight: 21kg
