CAME FROG Kit for swing gates up to 3.5 m

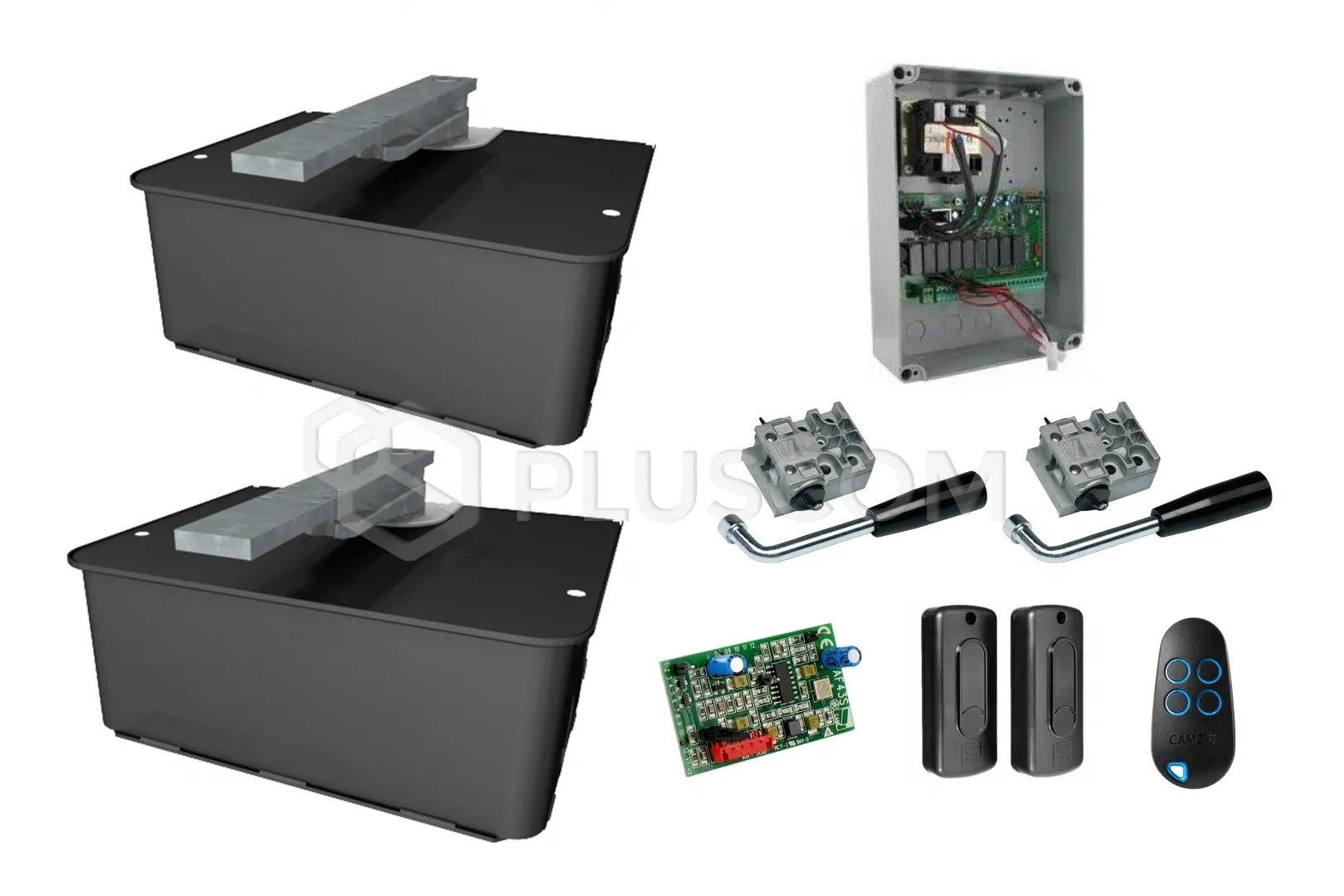

SET CONTAINS:
|

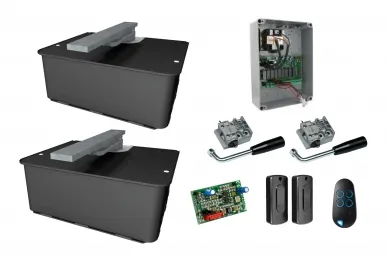

CAME FROG Kit for 3.5m leaf
|
FROG-A is a self-locking underground electromechanical
actuator for swing gates with a max. leaf length up to 3.5 m. New 230
V electronics provide special commands and safety functions in the standard
version. Additional control boards are also available, allowing for greater
adjustment options and more features that make operation easier.
A simple, patented release which, in the event of a power failure, will enable
the actuator to be unlocked.
The TOP44RBN remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR Photocells are distinguished by their modern and very
modern appearance small sizes. Thanks to the use of the IP54 tightness class
and appropriate mounting accessories, DIR photocells can be mounted both
indoors and outdoors and outside.
They have a modular structure, so they can be installed at different heights.
The principle of operation of the DIR photocell is based on synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver works only with the
appropriate transmitter, eliminating thus, there is the possibility of signal
interference from external sources.
The AF43S frequency card, included in the set, works in
frequency 433.92MHz and supports TOP and TAM fixed code control and ATOMO
variable code.
TECHNICAL DATA:
- Power supply: 230V
- Motor power supply: 230V
- Max. power consumption: 200 W
- Current: 1.9 A
- Thrust force: 320 Nm
- Opening time (up to 90°): 18 s
- Duty cycle: 30%
- Protection level: IP 67
- Motor thermal protection: 150 °C
- Operating temperature: -20 °C to +55 °C
- Dimensions: 405 x 220 x 330 mm (with housing)
- Weight: 11 kg
