CAME ATI set for gates leafs with a maximum leaf
weight of 400 kg and max. 5m long
PACK CONTAINS:
|

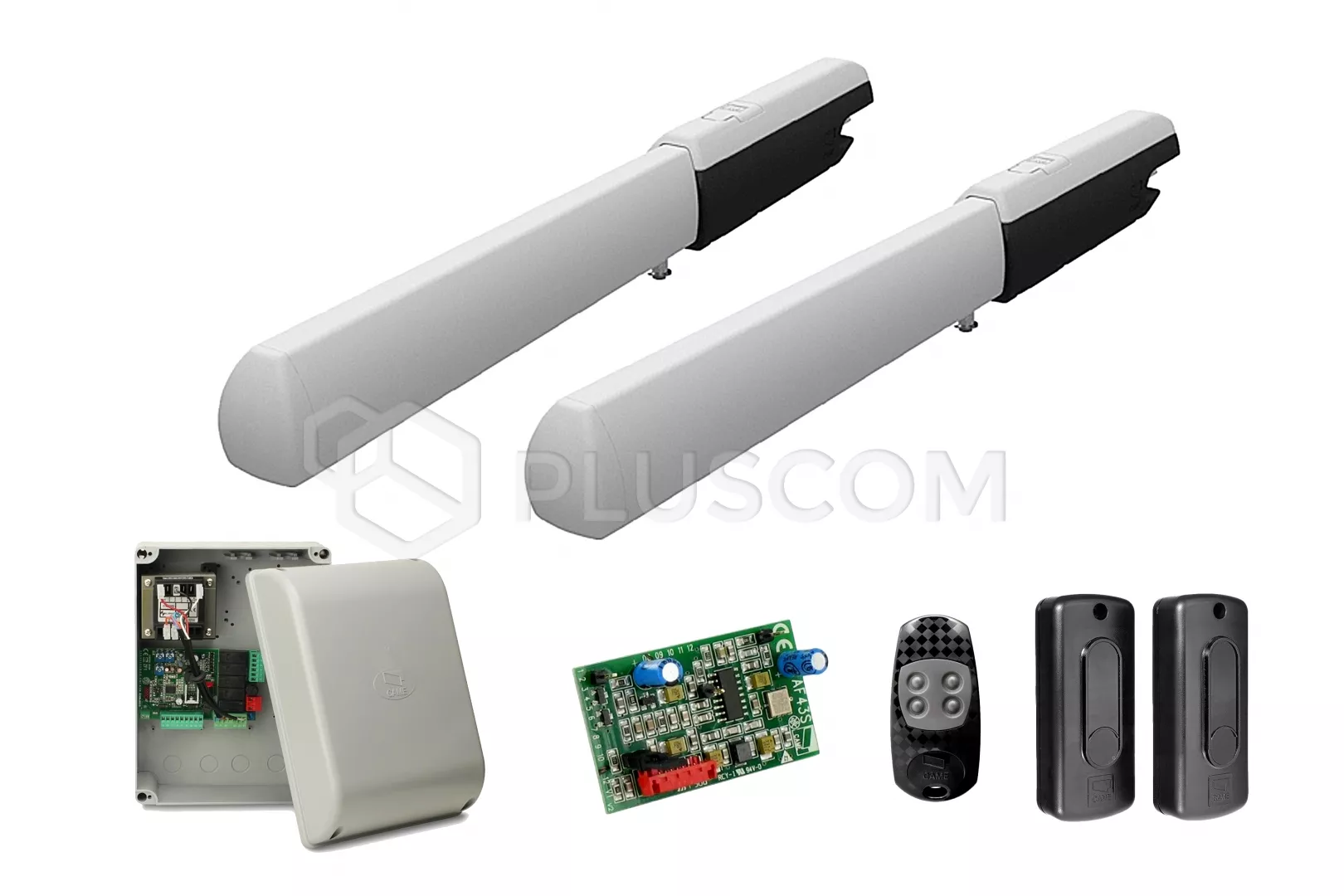

CAME ATI Set for double-leaf gates up to 5m
|

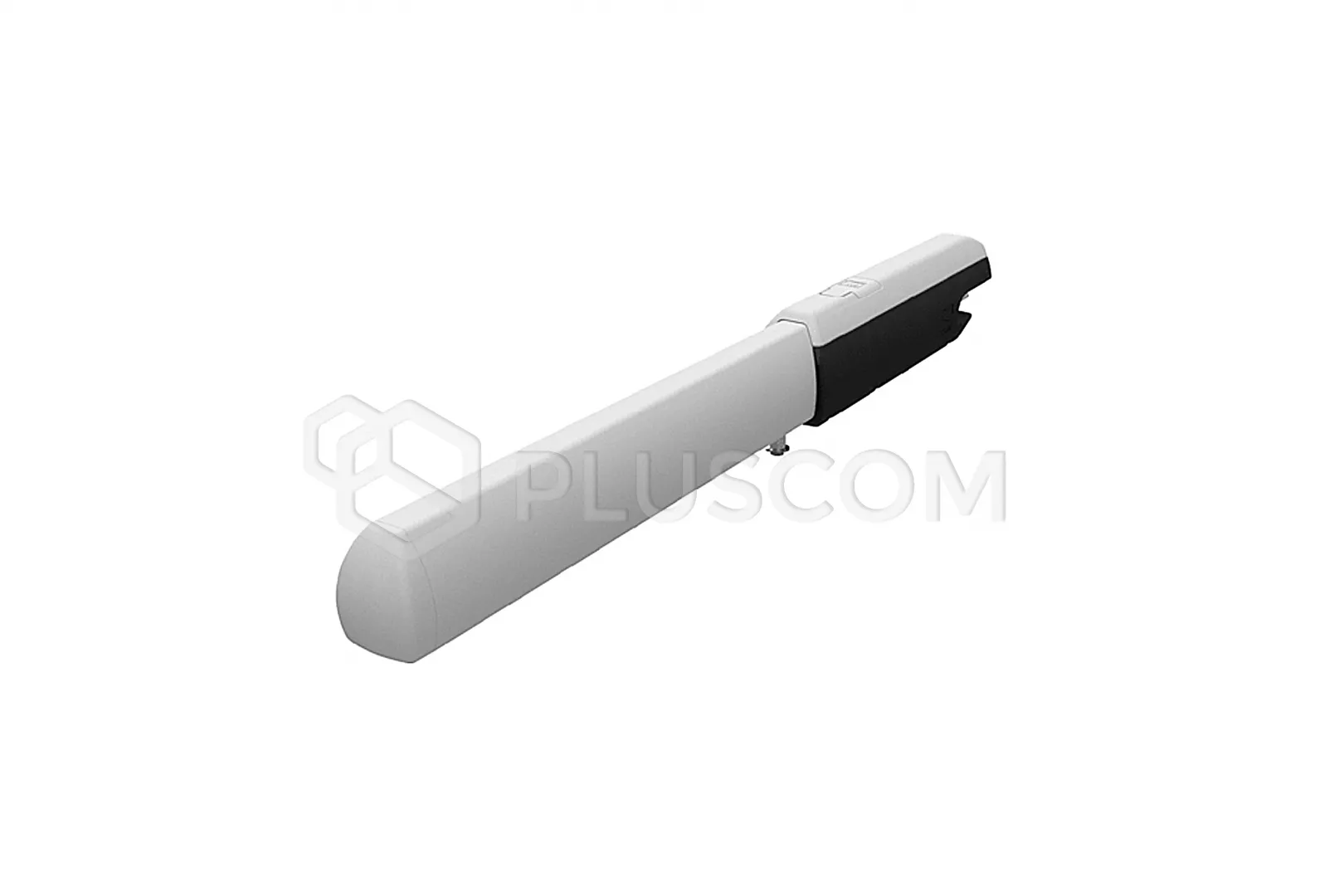

A5000 self-locking electromechanical actuator ,
connects durability, compact shapes and reliable operation. It is made for
gates with wings up to 5m wide.
In addition to the usual control and safety functions, the A5000 offers the
practical function of partially opening the sash. Control board performs a test
of safety devices against each movement of the gate, both when opening, as when
closing (self-diagnosis).
The actuator has one built-in FA limit switch.
The

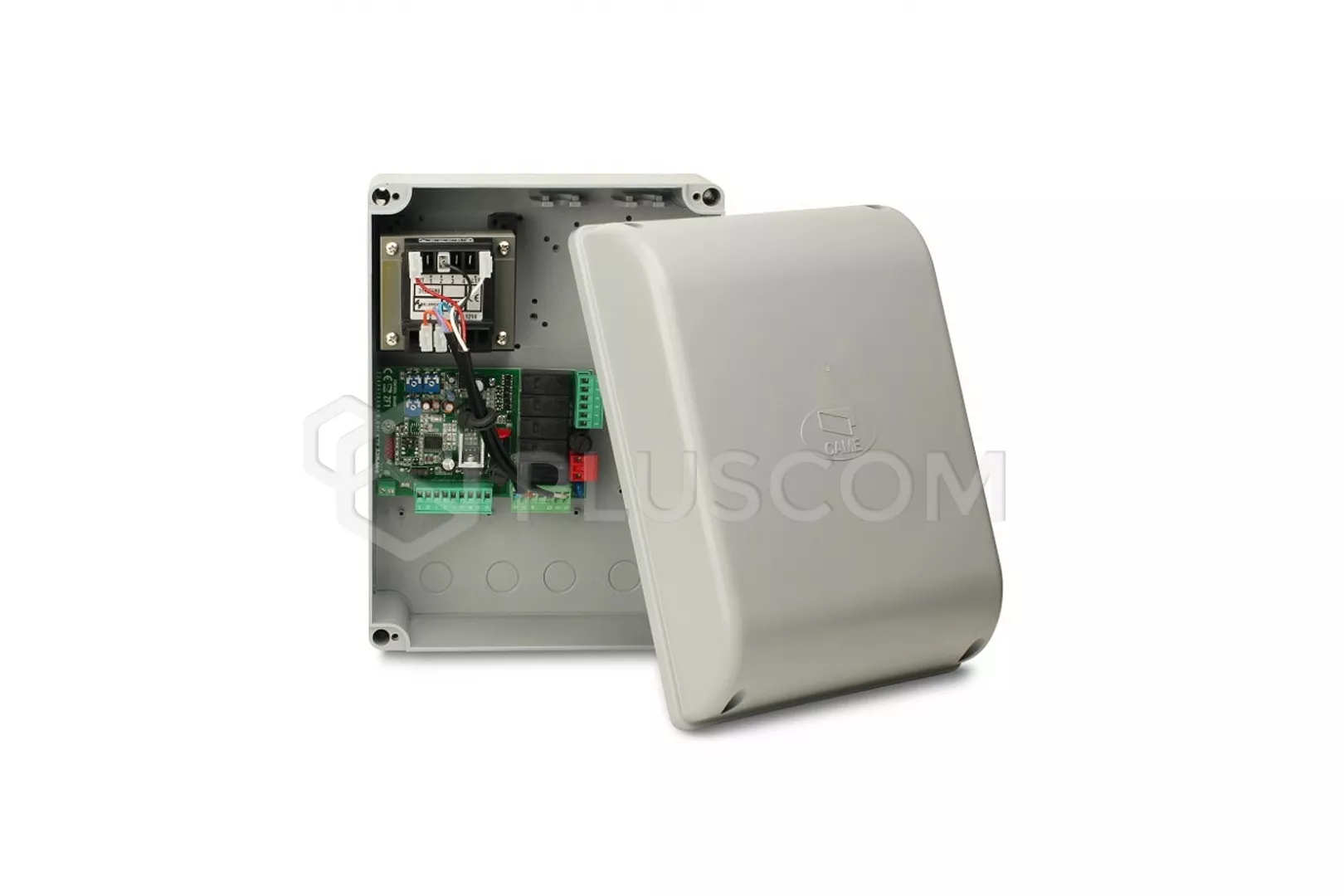

ZF1N control panel for double-leaf gates provides a number
of solutions and functions tailored to the specific requirements of the user.
It is equipped with two-channel radio decoder and is powered by 230V AC.
The total power of the accessories must not exceed 20 W.
The ZF1N has an input for one line of photocells and an output for an electric
lock. All connections are protected by fuses.

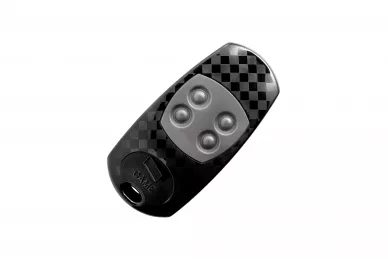

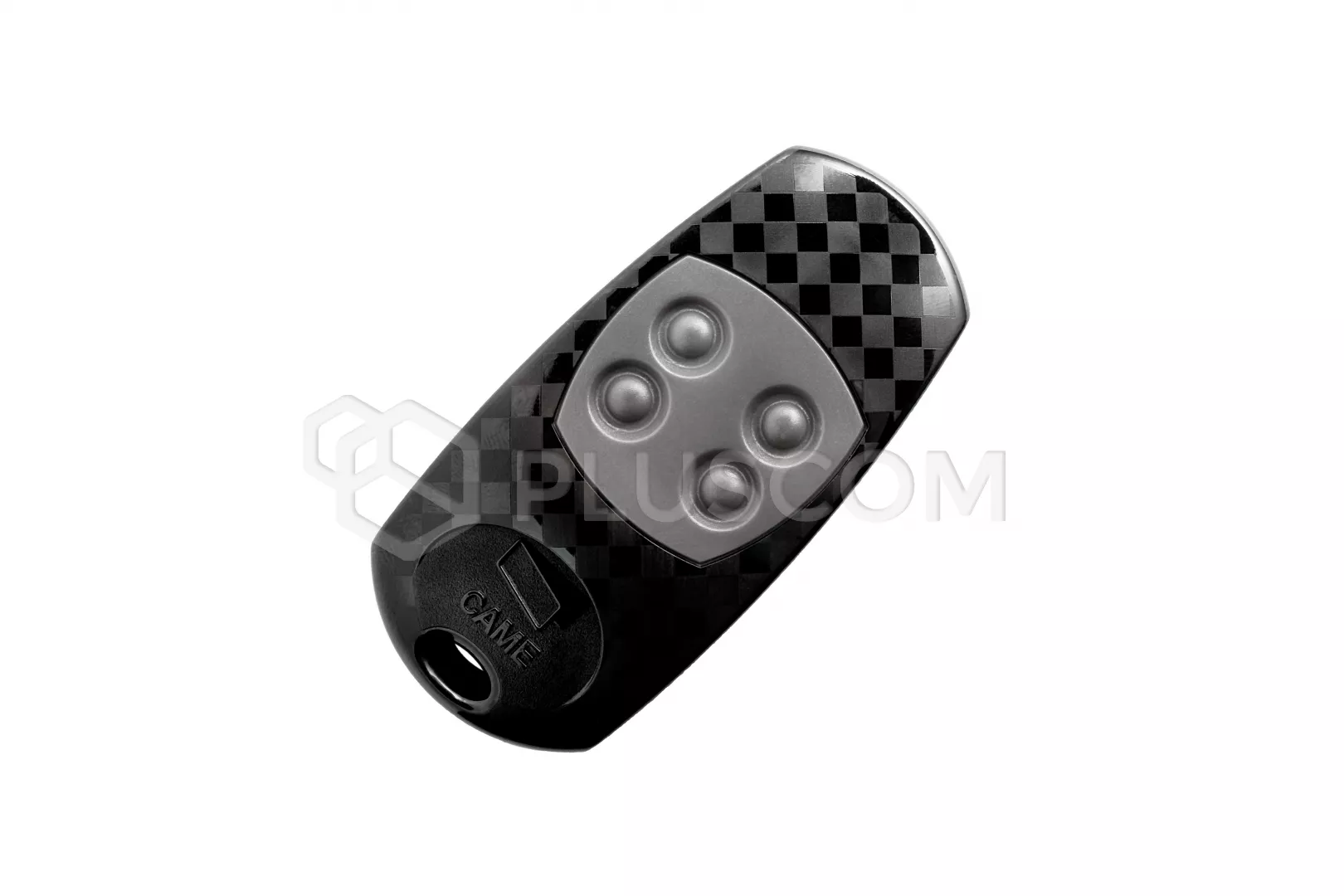

AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

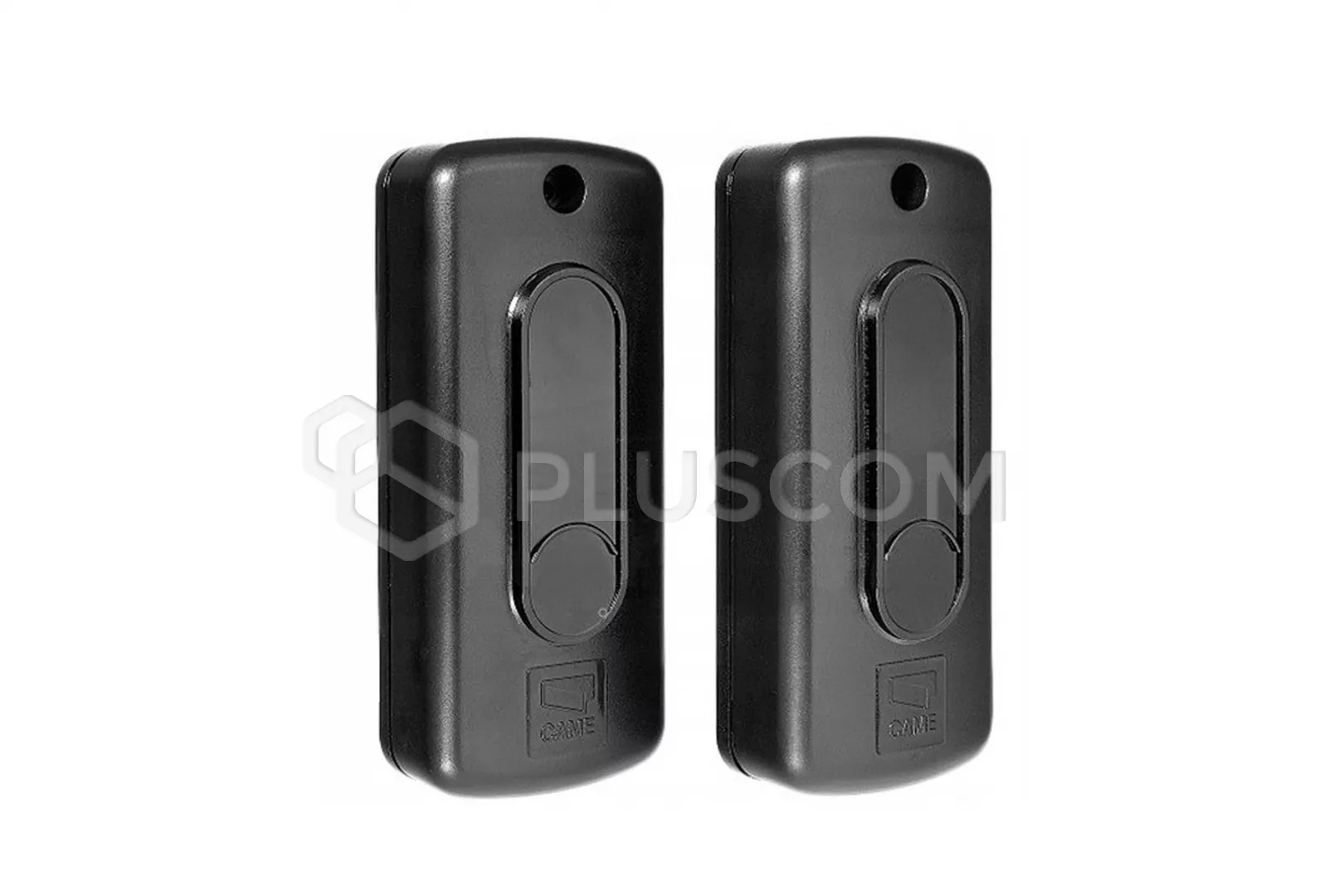

DIR photocells are distinguished by a modern design and very
small dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

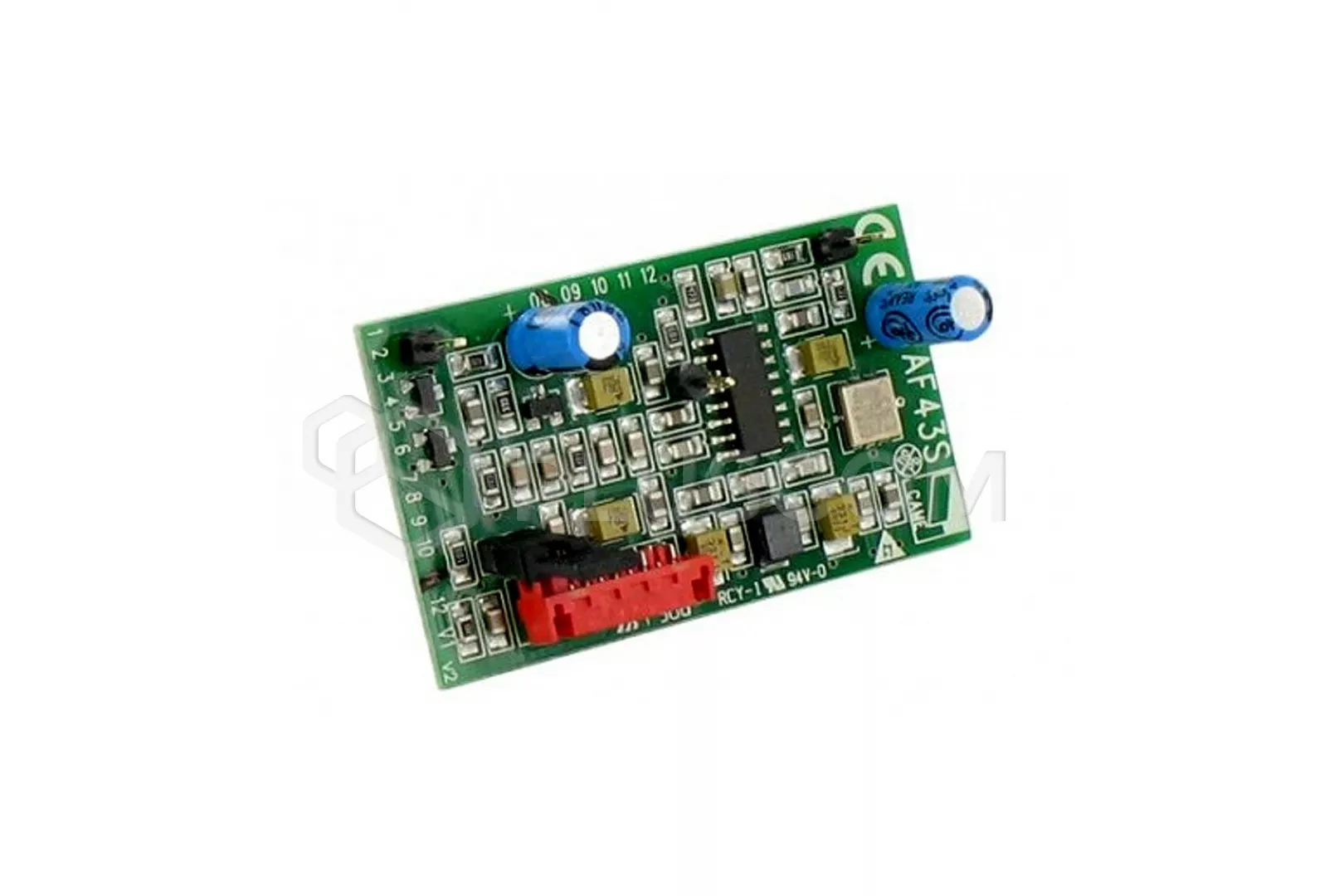

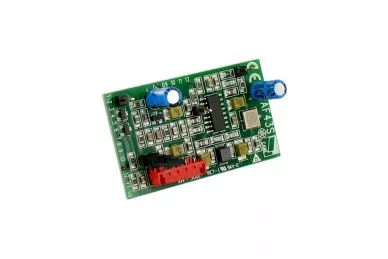

The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.

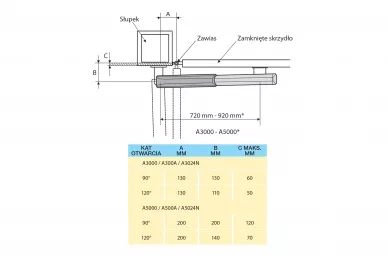

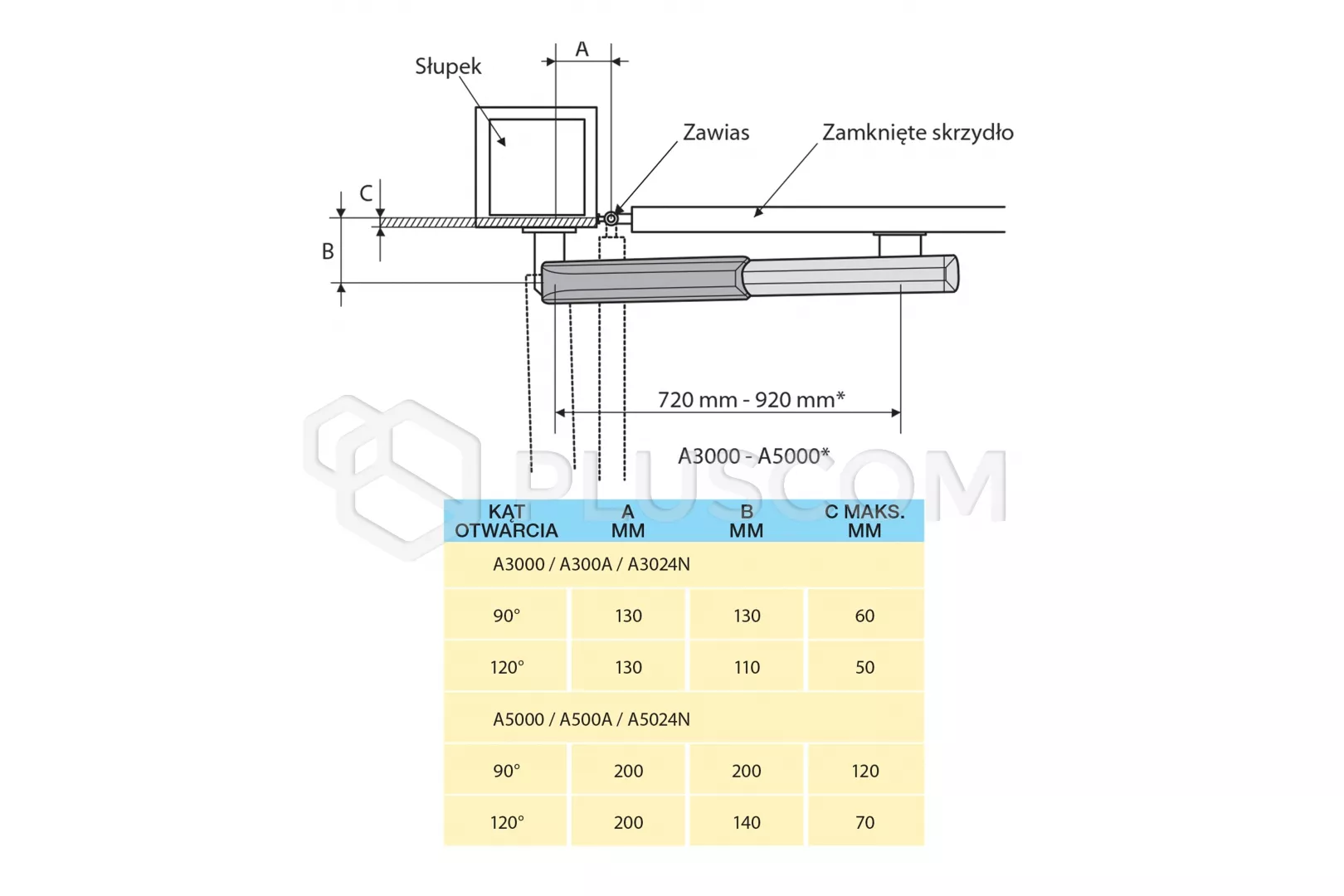

Installation Specification:
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power supply: 230V
- motor current consumption: 1.2A
- maximum engine power: 150W
- duty cycle: 50%
- thrust: 400 ÷ 3000 N
- opening time (up to 90 °): 32s
- degree of protection: IP44
- dimensions: 126x88x933mm

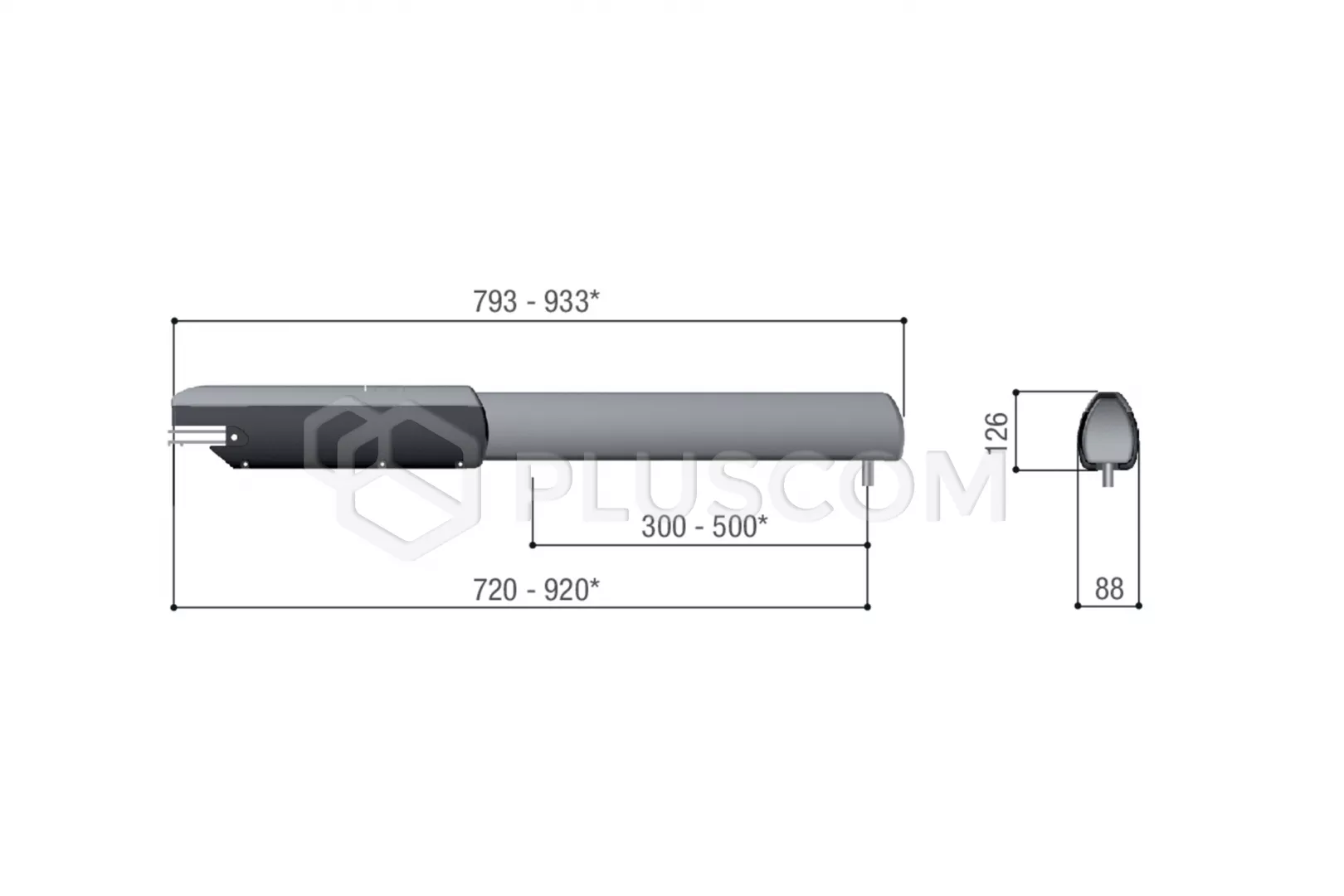

Dimensions:
To ensure effective and reliable closing and to protect the gears drives, it is
recommended to install an electric lock. If the wings are more than 3m, an
electric lock is compulsory.
,
