CAME ATI set INTENSIVE WORK for swing gates with
max. sash weight 400 kg and max. 5m length

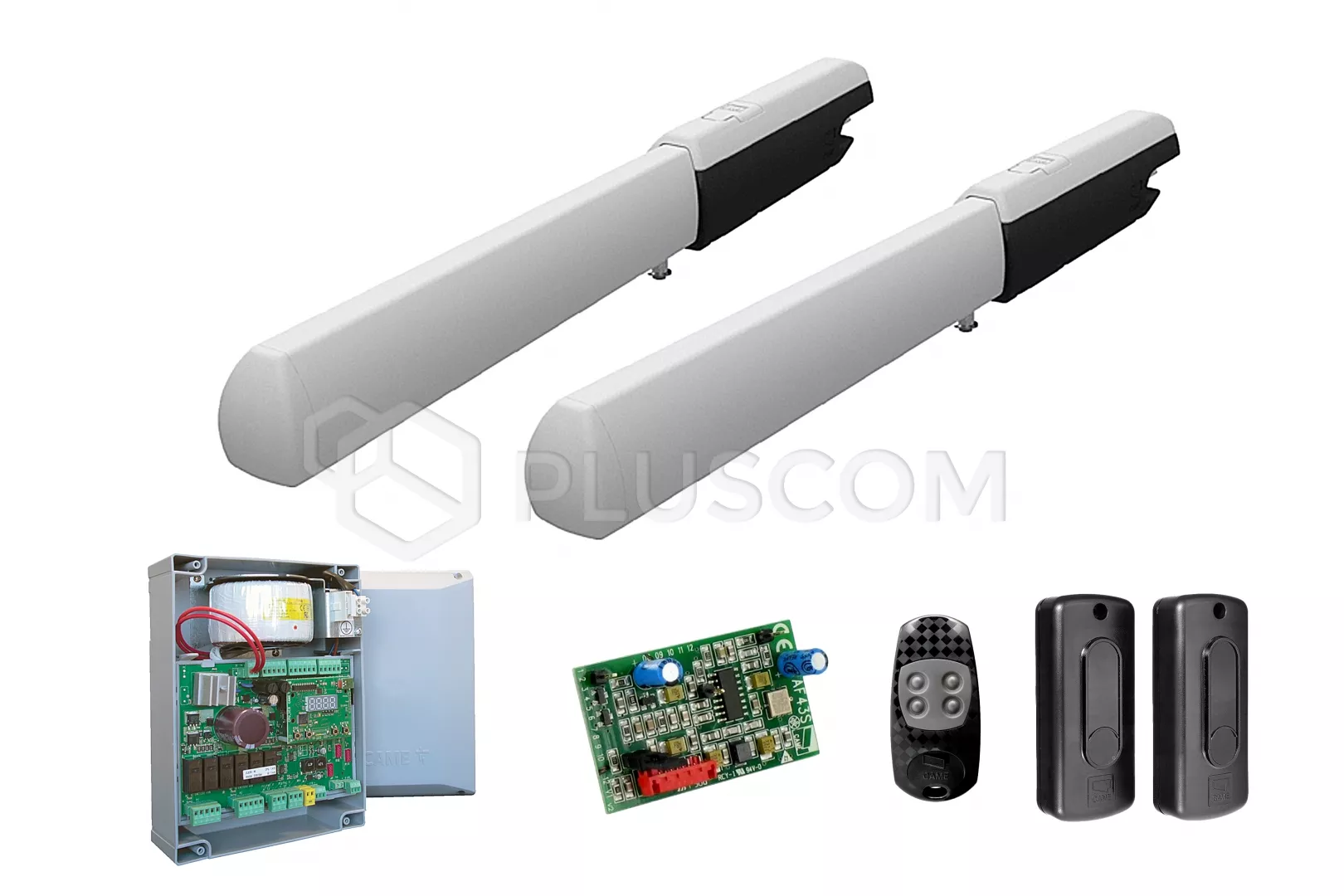

PACK CONTAINS:
|
CAME ATI INTENSIVE WORK Set for double-leaf gates up to 3m
|

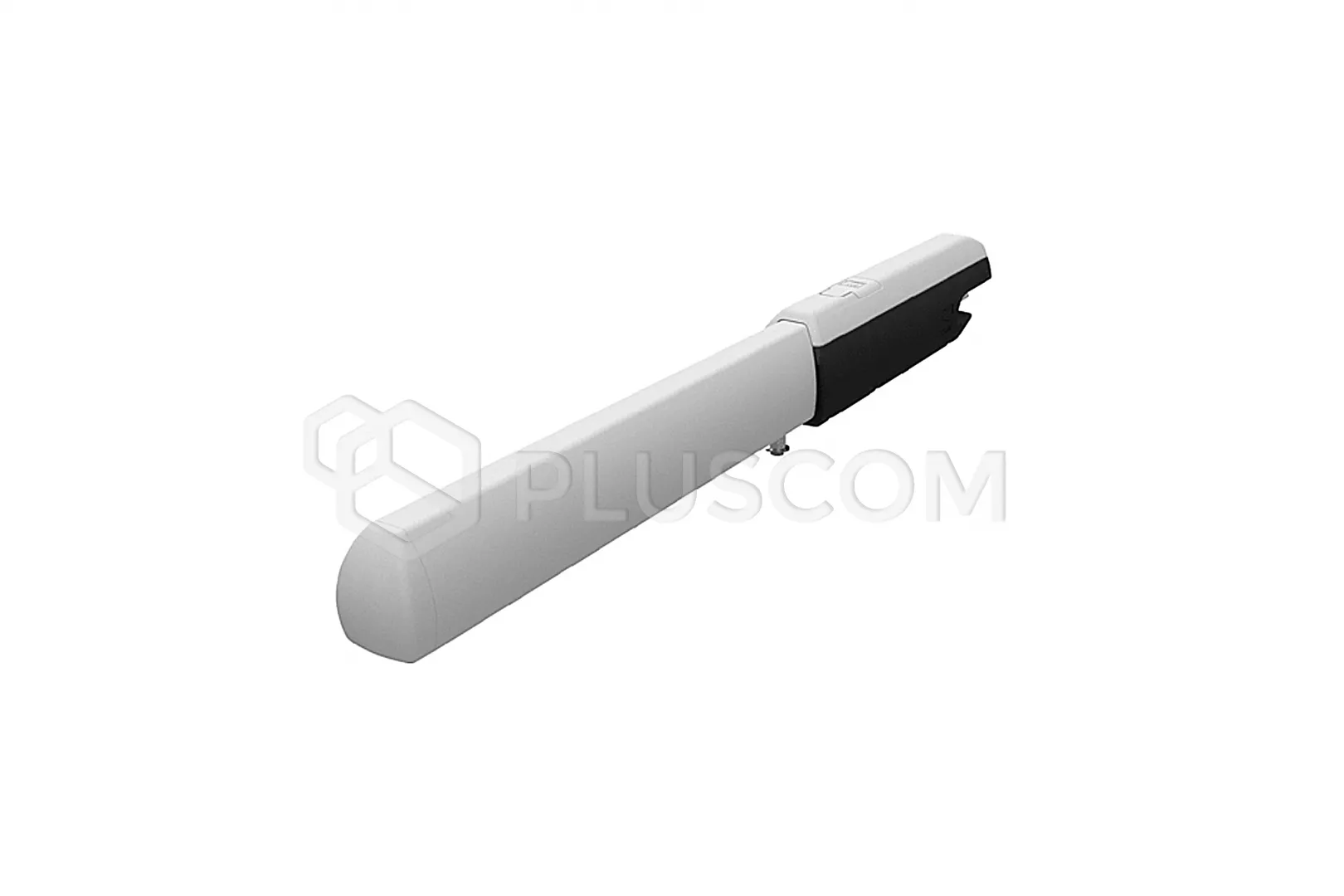

Self-locking electromechanical actuator A5024N ,
connects durability, compact shapes and reliable operation. It is made for
gates with wings up to 5m wide.
In addition to the usual control and safety functions, the A3024N is equipped
with an "amperometric obstacle detection system" which immediately
blocks or changes the direction of movement after hitting an obstacle.
It can operate in emergency mode in the event of power failure as well has a
simplified connection due to the presence of only one three-wire cable that
allows you to control the motor and encoder.
The telescopic steel arm is protected by an aluminum housing that provides
resistance to weather conditions.
The actuator has a built-in two speed limiting switches and is adapted to
intensive work in multi-family buildings or in industrial facilities.

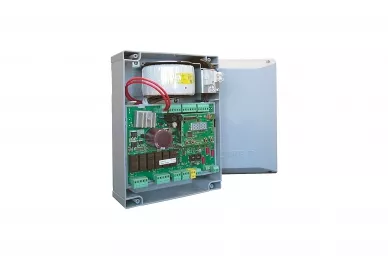

The
ZLX24MA switchboard provides the series solutions and
functions tailored to the specific requirements of the user. It has a socket
for connecting a CAME KEY and a BUS input that supports the technology CAME CXN
BUS for bus connection of control accessories and security.
The control panel enables the extension of the installation with the necessary
control accessories and safety devices such as photocells, flashing light,
electric lock, card frequencies, antenna or remote controls, also wireless
thanks to the RIO SYSTEM. The total power of the accessories must not exceed 35
W.
The ZLX24MA is equipped with a 7-segment display.
The

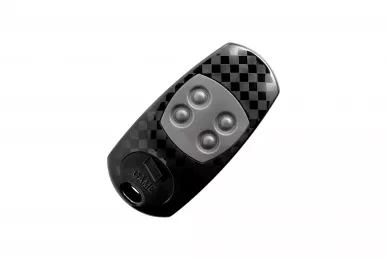

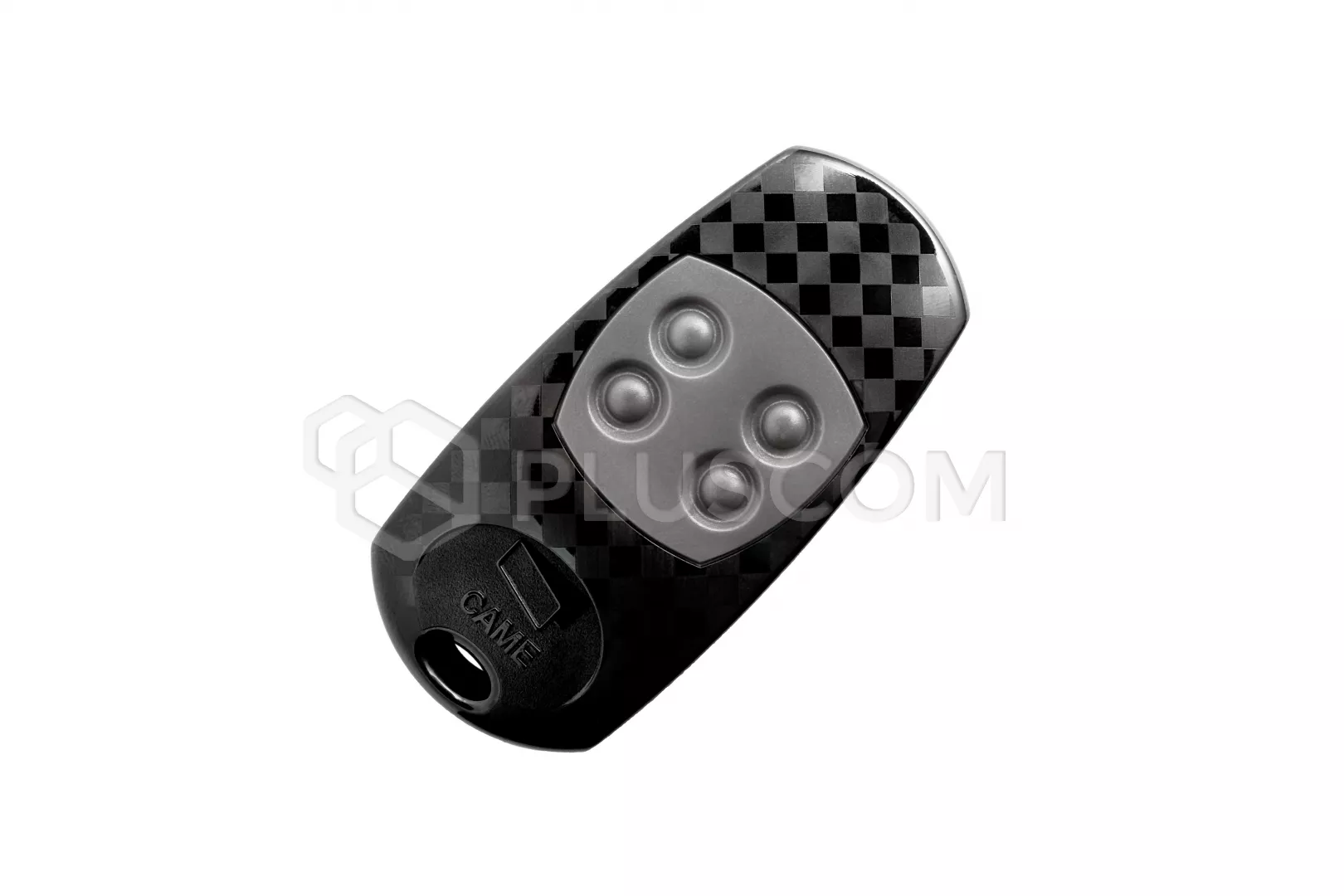

AT04EV remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

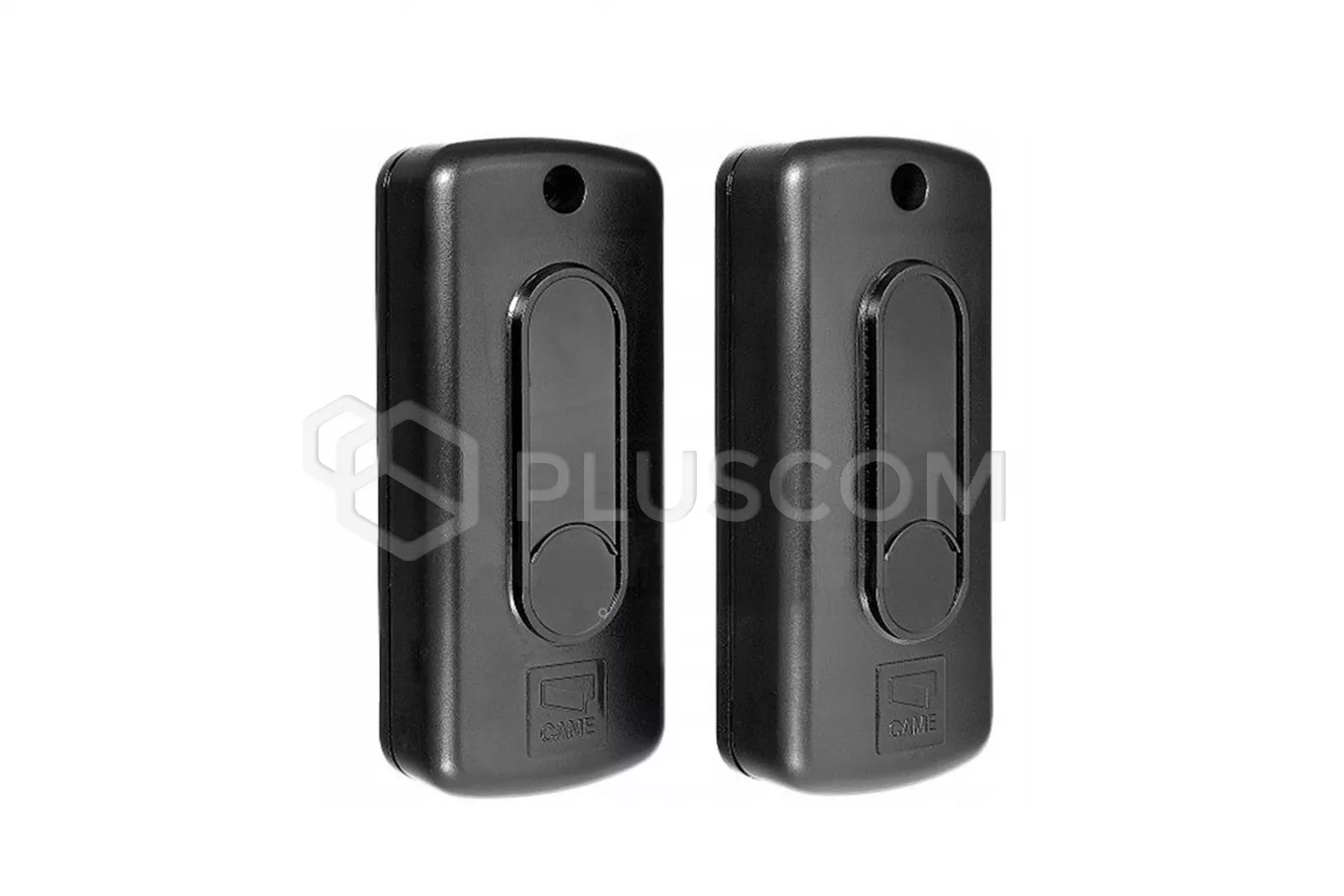

DIR photocells are distinguished by a modern look and very
small sizes. Thanks to the use of IP54 tightness class and appropriate mounting
accessories, DIR photocells can be mounted both inside and outside and out.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

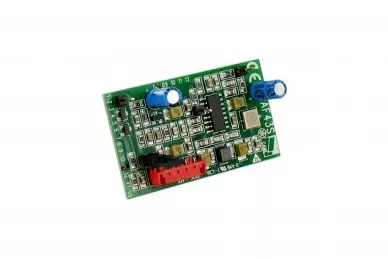

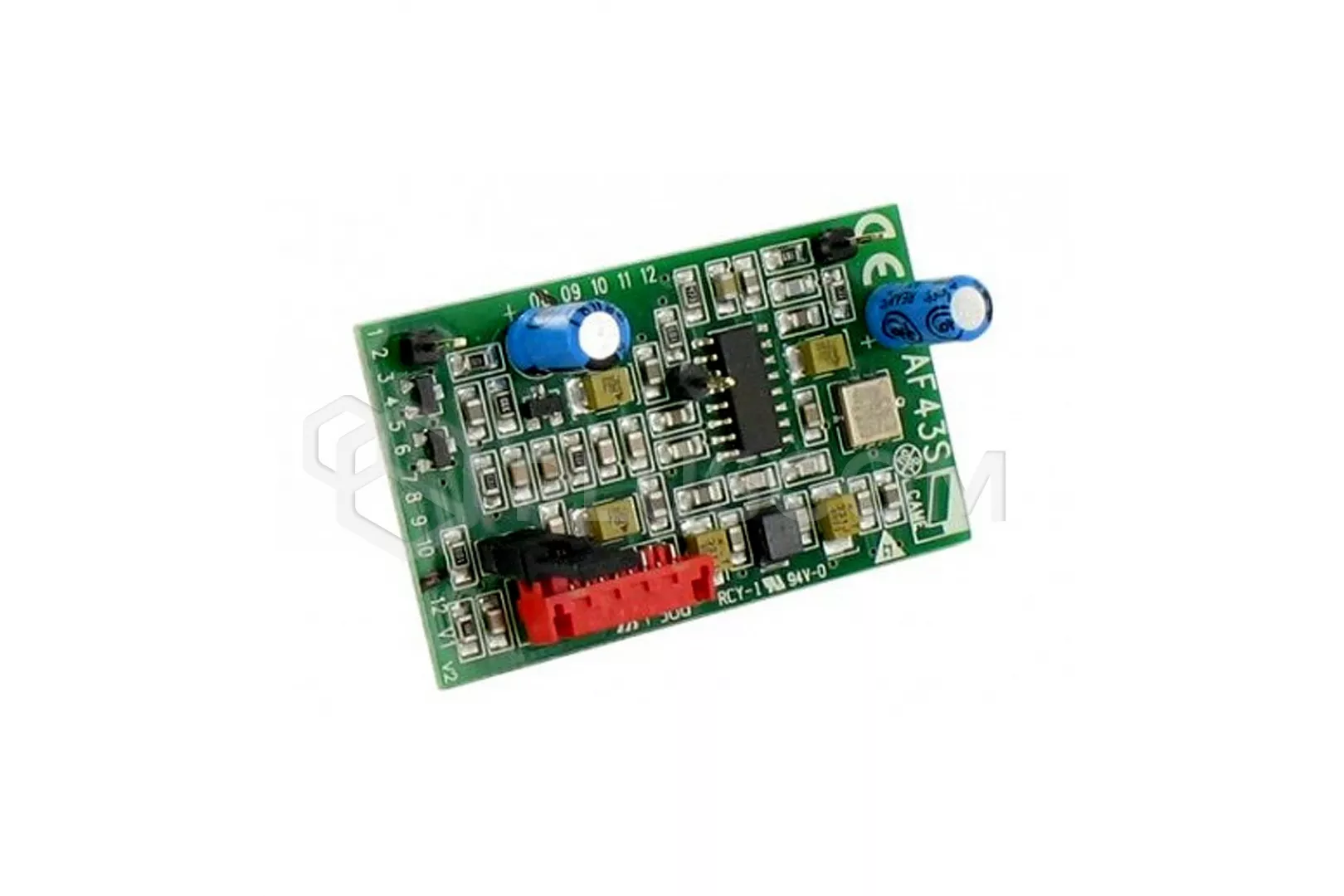

The
AF43S frequency card , included in the kit, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control as well with
the ATOMO rolling code.

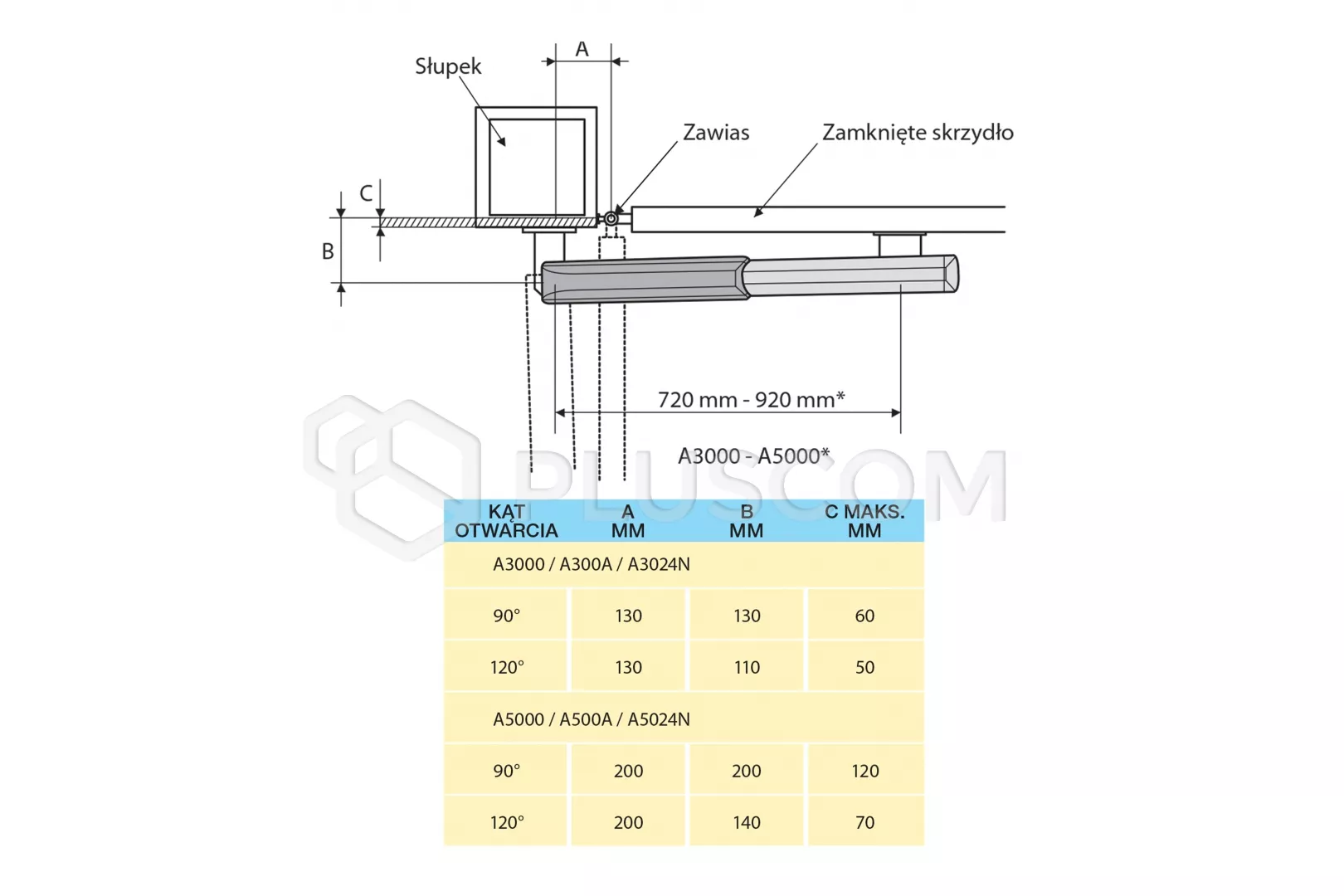

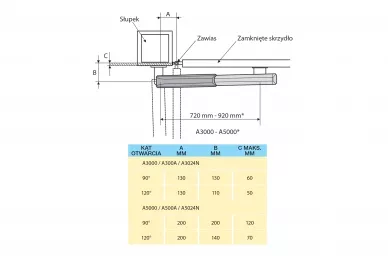

Installation Specification:
TECHNICAL PARAMETERS:
- motor power: 24V
- motor current consumption: 10A
- maximum engine power: 120W
- work cycle: intensive work
- thrust: 400 ÷ 3000 N
- opening time (up to 90 °): adjustable
- degree of protection: IP44
- dimensions: 126x88x933mm

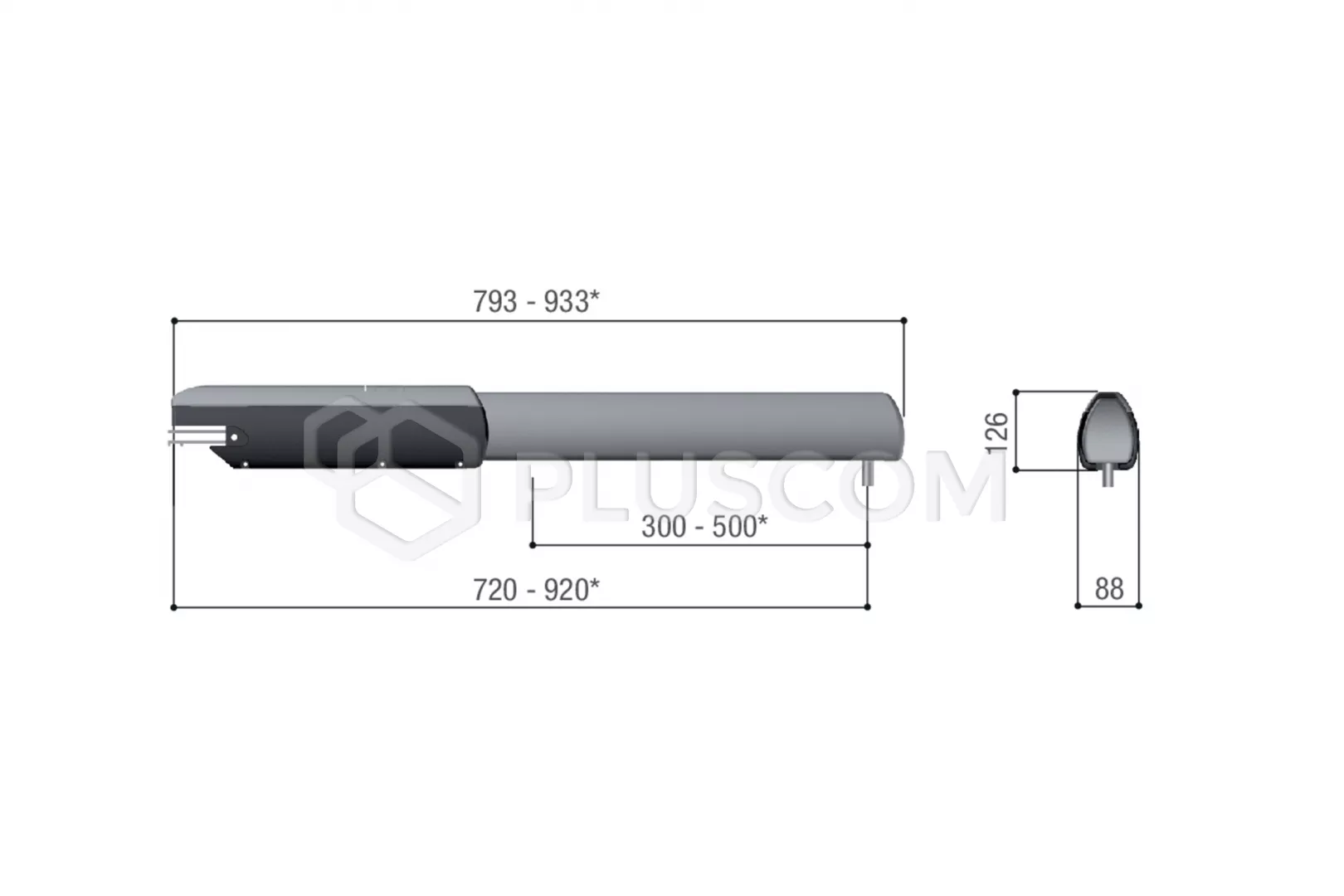

Dimensions:
To ensure effective and reliable closing and to protect the gears of the
drives, it is recommended to install an electric lock. If the wings are more
than 3m, an electric lock is compulsory.
,
