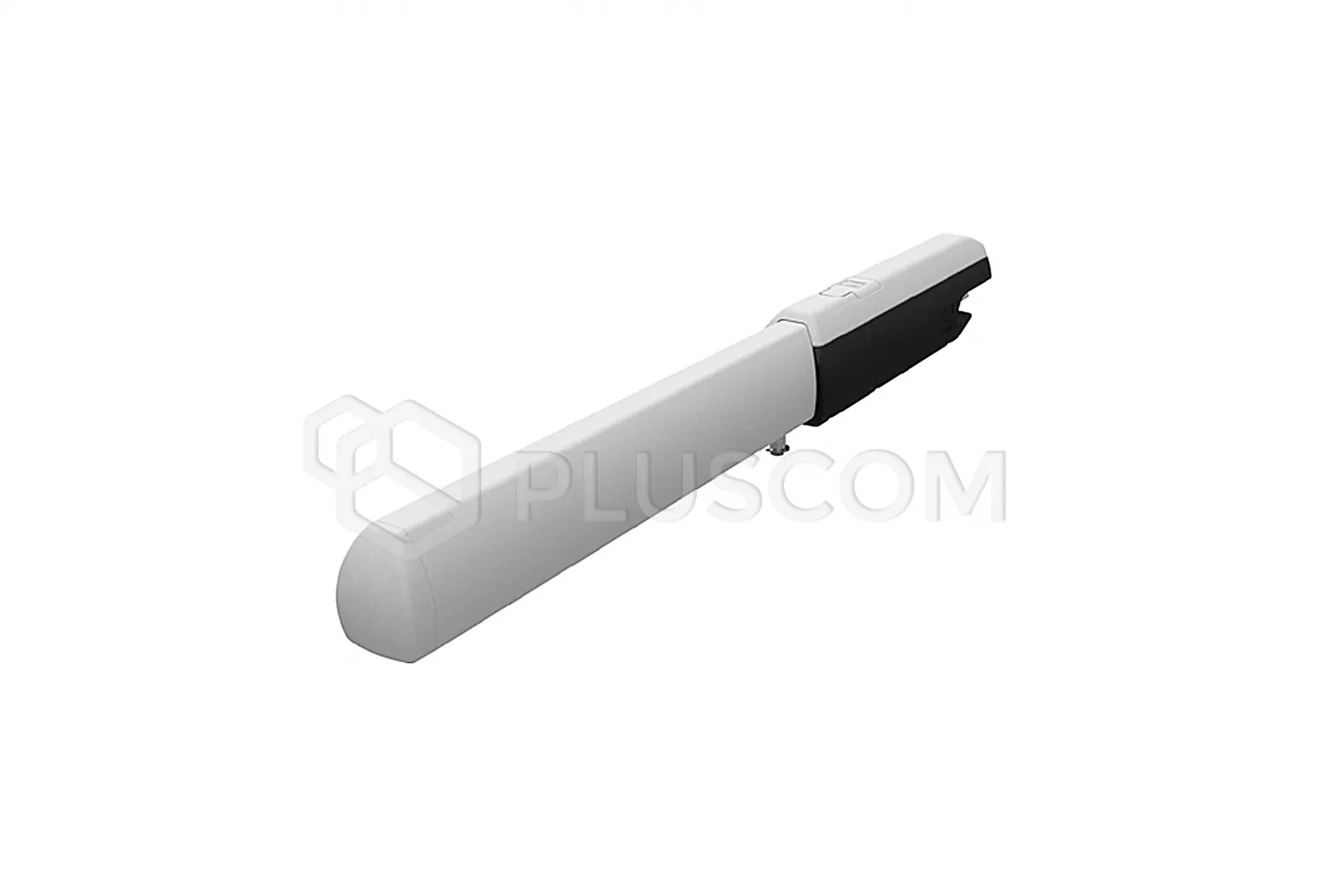

Came A5024N Actuator 24V, leaf up to 5m / 400kg with limit switches

CAME A5024N Gearmotor for single or double-leaf gates up to 5m with limit switches

Self-locking electromechanical cylinder that combines robustness, compact shapes and reliable operation. It is designed for gates with wings of Fr. 5m wide.
In addition to the usual control and safety functions, the A5024N is equipped with w "amperometric obstacle detection system", which immediately blocks or changes the direction of movement after hitting an obstacle.
It can operate in emergency mode in the event of power failure as well has a simplified connection due to the presence of only one three-wire cable that allows you to control the motor and encoder.

Application range:

• 5m/400kg
• 4m/500kg
• 3m/600kg
• 2.5m/800kg
• 2m/1000kg

The telescopic steel arm is protected by an aluminum housing that provides resistance to weather conditions.
The actuator has two built-in limit switches slowing down and is suitable for intensive work in multi-family buildings or in industrial facilities.

TECHNICAL PARAMETERS:

• motor power: 24V
• motor current consumption: 10A
• maximum engine power: 120W
• work cycle: intensive work
• thrust: 400 ÷ 3000 N
• opening time (up to 90 °): adjustable
• degree of protection: IP44

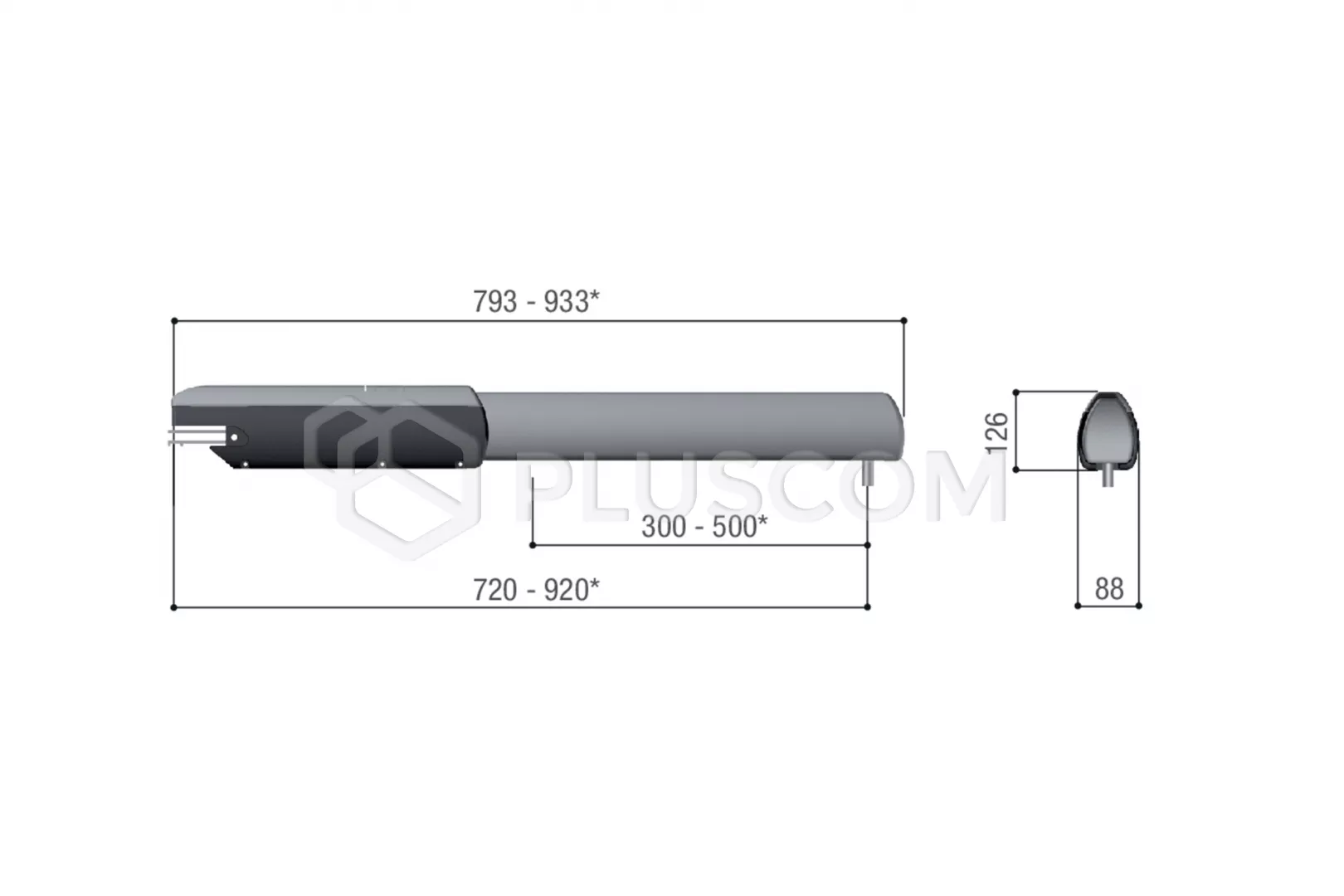

• dimensions: 126x88x933mm

To ensure effective and reliable closing and to protect the gears of the drives, it is recommended to install an electric lock. If the wings are more than 3m, an electric lock is compulsory.
,
