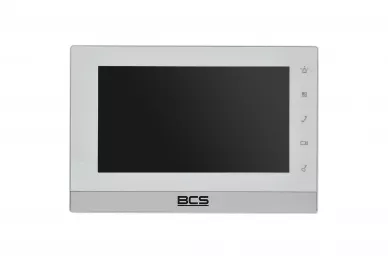

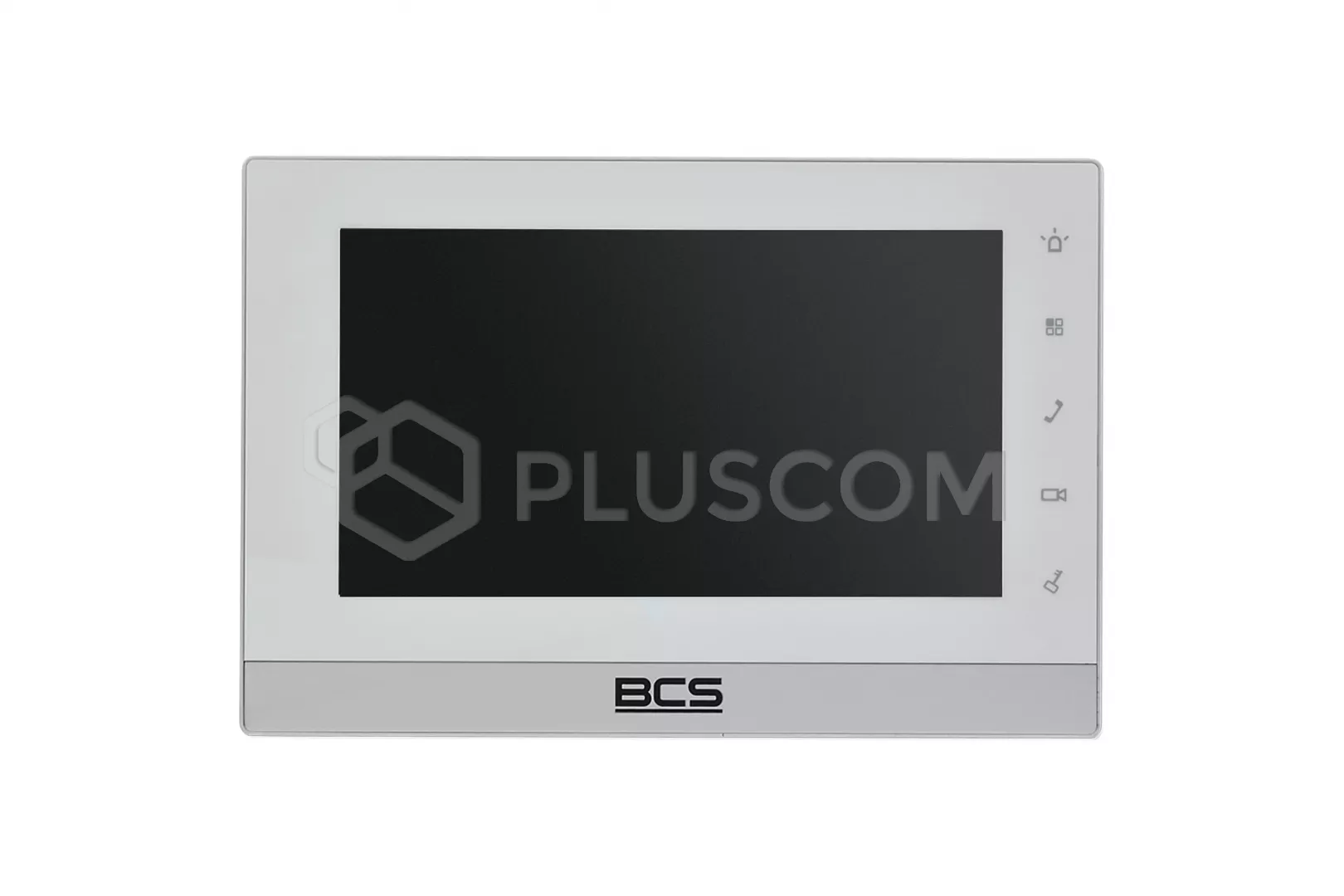

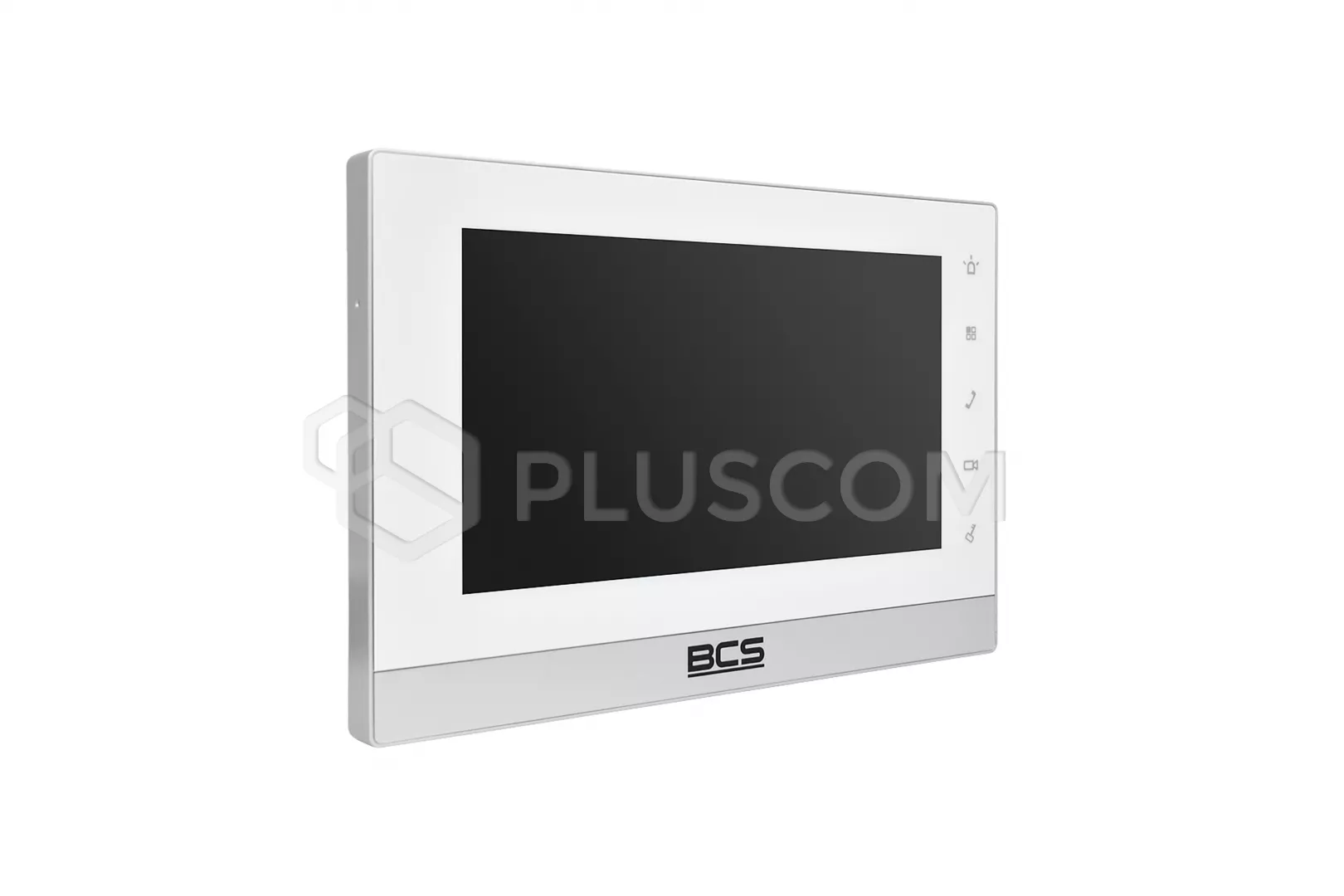

BCS-MON7200W-S video intercom monitor, white
monitor model for the BCS IP video door station system. 7 "capacitive
touchscreen, 800x480 resolution Local management with a graphical interface and
5 sensory quick access buttons Local 12VDC or 24V PoE power supply (BCS-SP06
switch and BCS-ZA2425 adapter required) BCS monitors are not compatible with
switches PoE from other manufacturers, it is possible to extend the system to
10 monitors in one place. Support for up to 10 entries.
New functionalities include: smaller dimensions, nosing installation (access to
ports on the side of the device), built-in NO relay output for any application,
the ability to independently control two relays in the external panel (applies
to the panel with the BCS-MODKD2 relay module), up to 32 cameras preview IP
(support for BCS LINE cameras, POINT cameras and cameras and other
manufacturers of the ONVIF), access to the memory card from the outside (the
card is not supplied with the device kit). Noteworthy is the fact that both
relays of the main panel can be activated from the monitor also from the
preview level of any IP camera, so the user can, for example, monitor the entry
or the entrance gate and open it at any time.
Additionally, for non-standard systems: with a low fence or where the
specificity of the installation requires the panel to be located further away
from the controlled entrance, the risk is that the camera does not completely
cover the caller, we have a special function that allows the monitor to
manually switch the video channel to the indicated camera IP when calling the
monitor or during the conversation itself. At any time, it is possible to
return to the intercom camera. In case there are many IP cameras in the system,
the user can choose which camera the image wants to view.
SPECIFICATION
- White housing with silver finish
- Menu language: Polish, English
- Operating mode - hands-free
- TCP / IP / SIP protocol
- Touch capacitive screen with 7 " diagonal
- Resolution 800x480
- The monitor is managed via a graphical interface and 5 sensory quick
selection buttons
- Built-in relay output C, NO for any application, maximum load: 12VDC
50mA
- The possibility of independent control of two relays in the external
panel (applies to the panel with an additional relay module BCS-MODKD2)
- Diagnostics - icons on the screen
- Smooth adjustment of the conversation volume settings and the volume of
the call signal
- Time adjustment: conversation, preview, ringing, recording of AV
messages, video recordings from the external panel camera
- Access to the memory card slot from the outside (no card included a set,
supported micro SD card, max 4GB)
- Built-in list of tenants and a log of connections
- Ability to save photos and recordings from external panel cameras
- Possibility to save audio-video messages left by guests in the event of
not answering the call / absence of the tenant (the function can be turned
off)
- The ability to automatically take pictures of callers
- Alarm function enabling connection of up to 6 NO / NC sensors, division
into zones, history of events
- The DND function that allows you to mute the monitor for a set time
- Screen cleaning function for 45s.
- The ability to display the image from IP cameras (support for BCS LINE
and POINT cameras and other manufacturers on Onvif, up to 32 cameras for each
monitor)
- Support for up to 10 zones (external panels)
- Identification of external panels - an individual verbal description for
each entry
- Up to 10 monitors can be expanded in one building
- Audio intercom function between all monitors in the same building

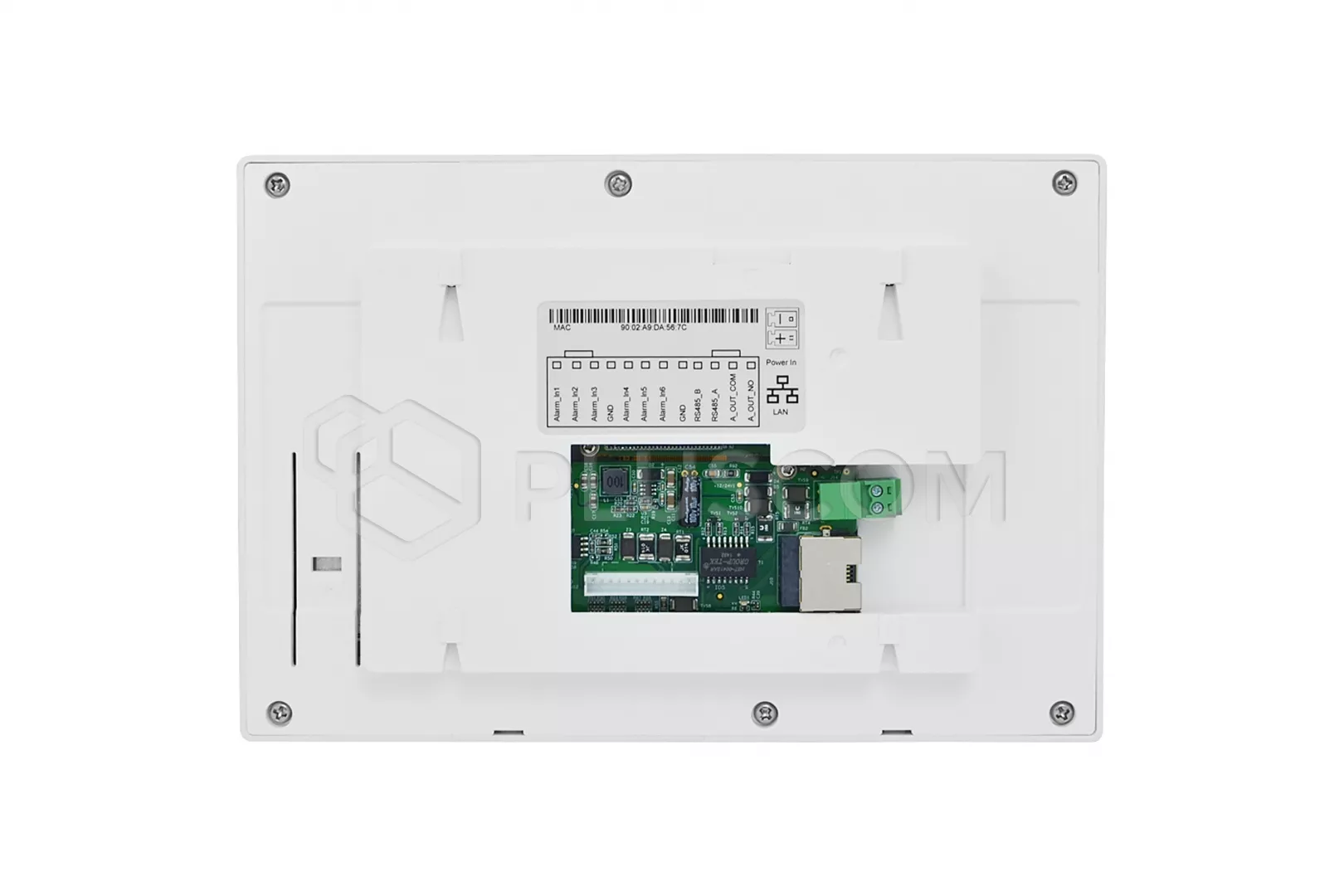

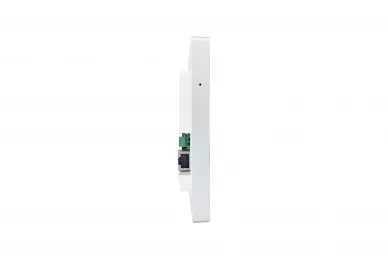

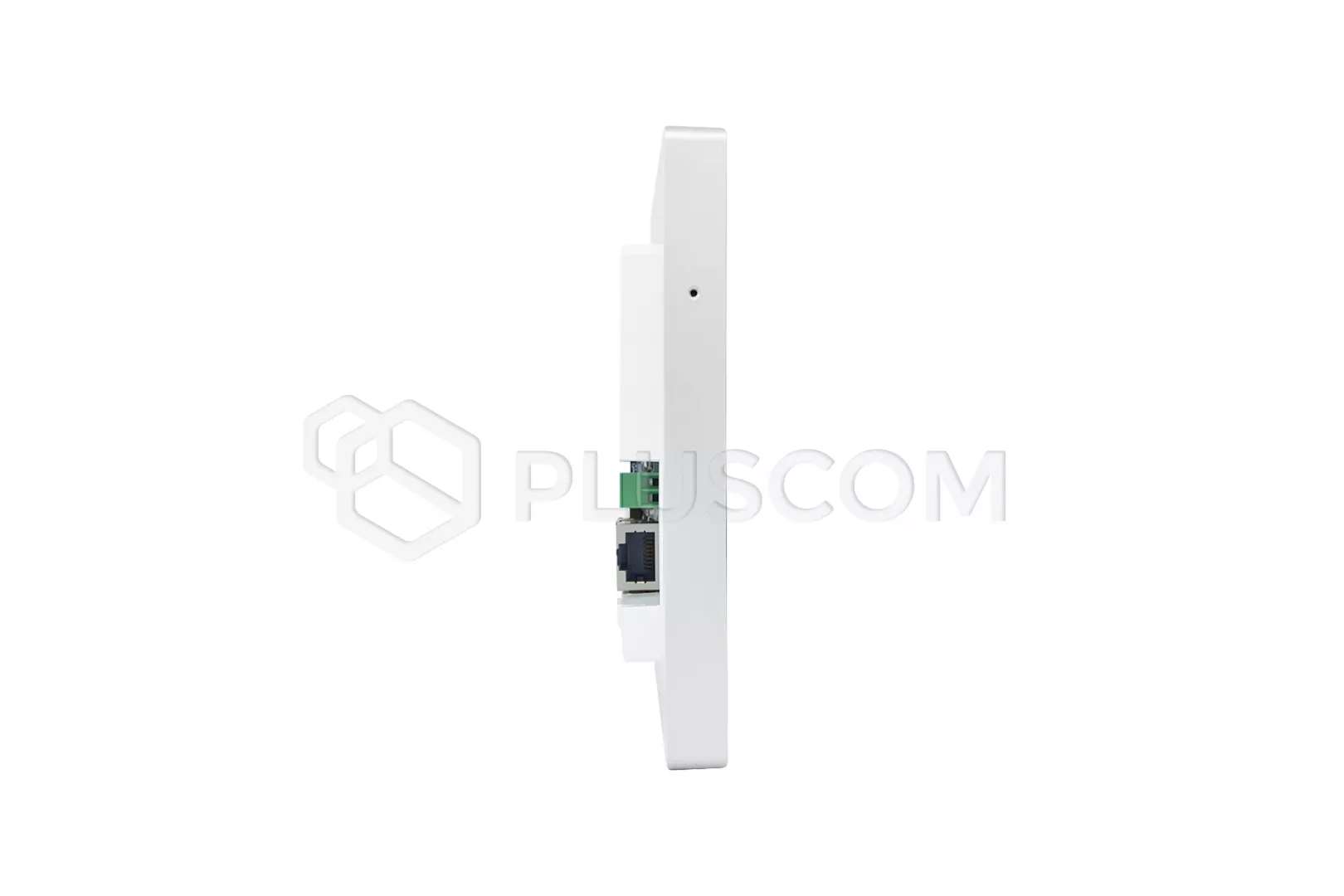

- Surface mounting, Ethernet port and power input on the side of the
device
- Local 12VDC or 24V PoE power supply (requires BCS-SP06 switch and
BCS-ZA2425 power supply)
- Bus connection - 1 x 10/100 Mbps Ethernet (UTP Cat.5 cable, standard
B)
- Dimensions 200x136x22mm
- Weight: 0.8kg
