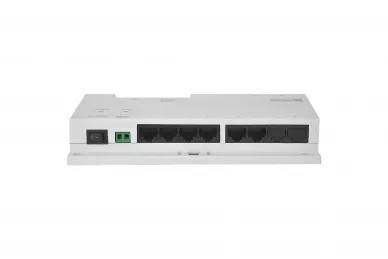

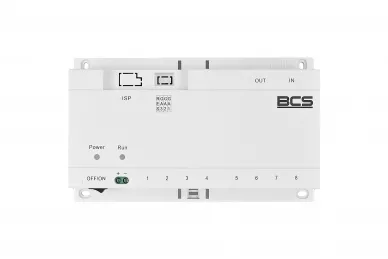

BCS-SP06 Switch PoE switch for IP BCS video intercoms

72,55 EUR including 23.00% VAT
Product code: #22133
Manufacturer: BCS
  • The number of PoE ports: 6 + 2 UPLINK
  • PoE BCS 24V protocol
  • Compatibility: BCS-MON7000B, BCS-MON7000W, BCS-MON7200W
  • LED indication
  • DIN rail housing
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-ZA2425 Power supply for a DIN rail

BCS-SP06 Switch PoE switch for IP BCS video intercoms

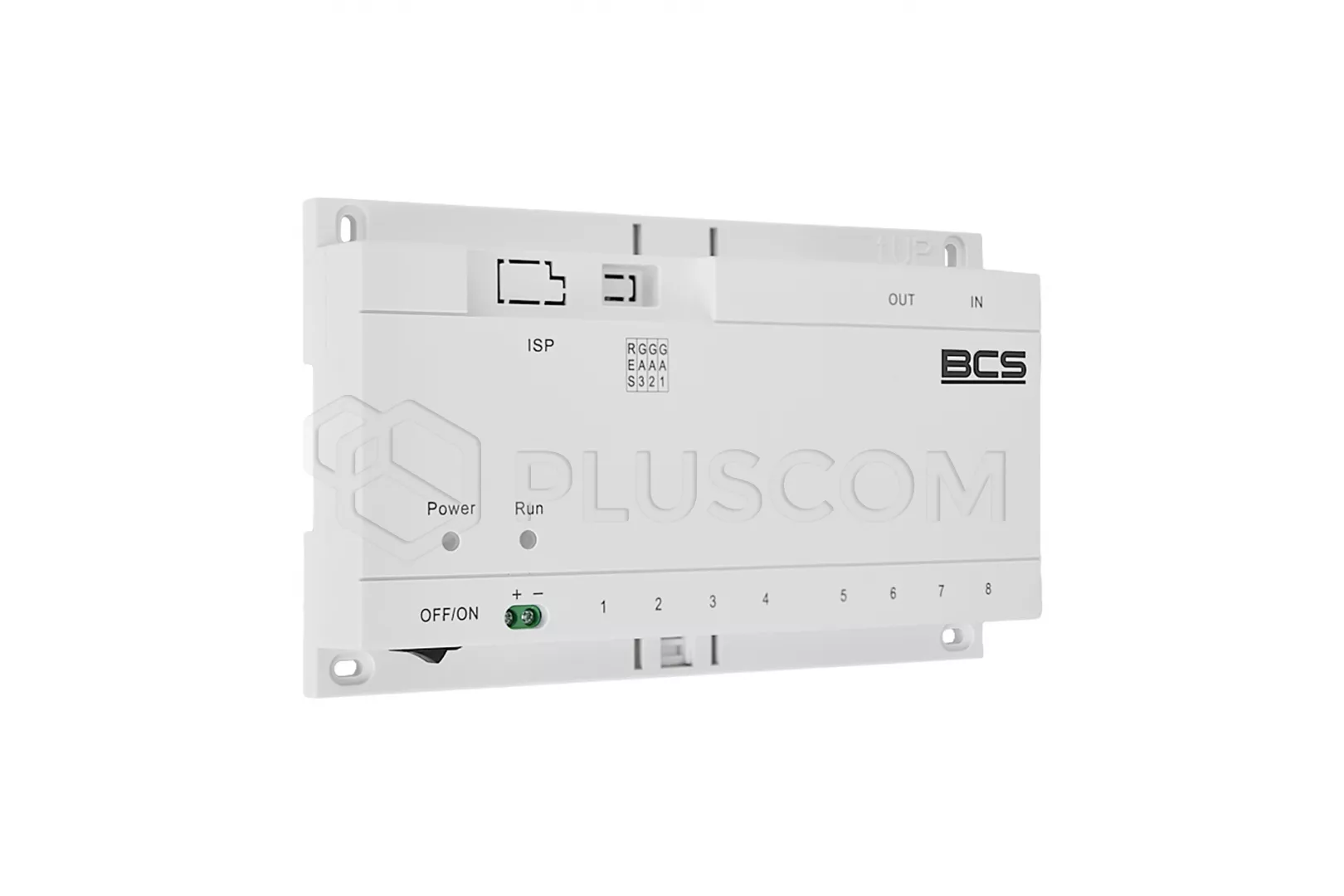

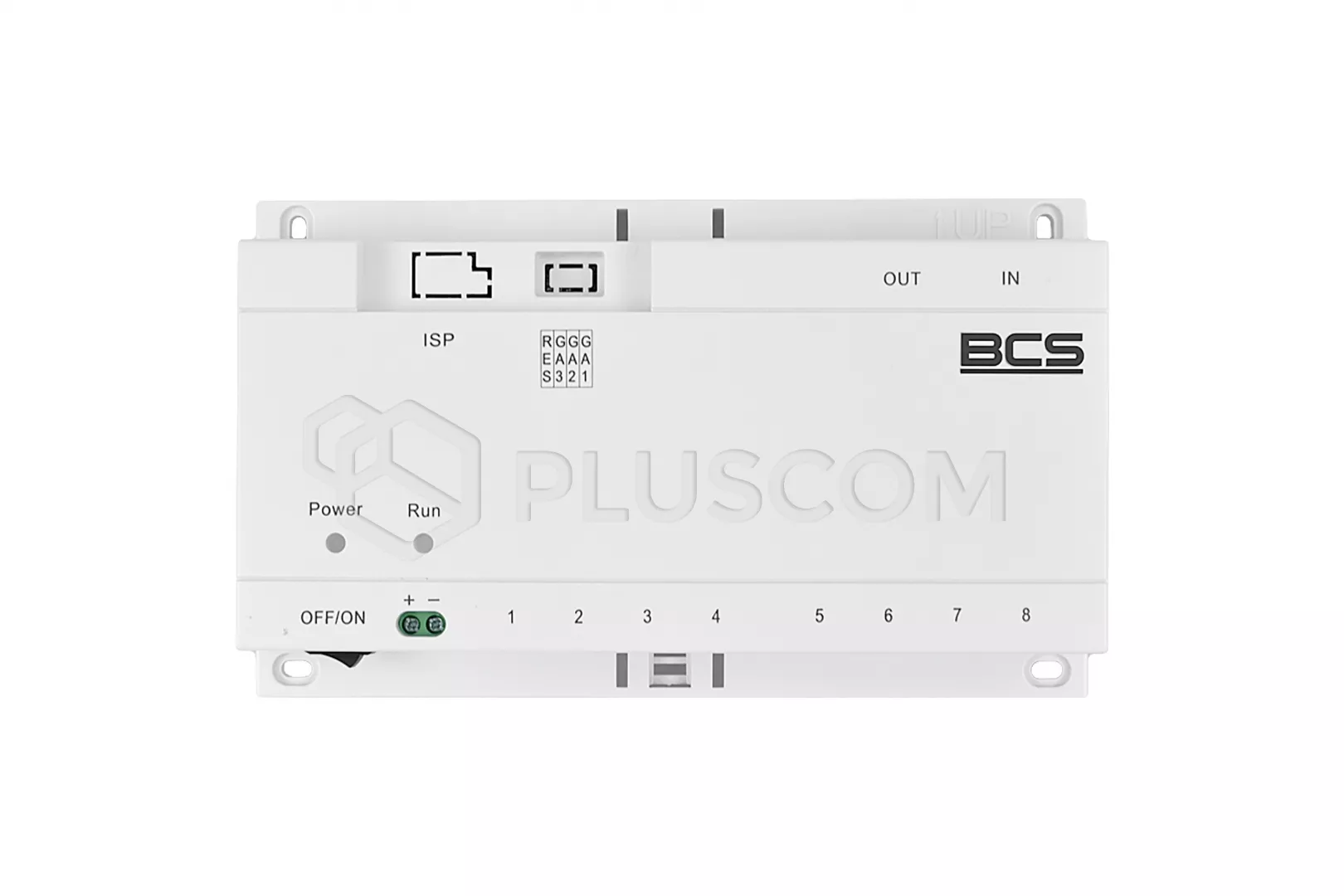

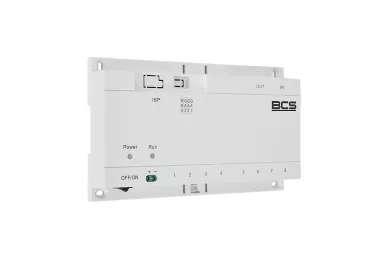

BCS-SP06 is an 8-port PoE switch in a DIN rail housing (DIN 10 width), designed to power IP video intercom monitors. The switch is powered through the BCS-ZA2425 switching power supply with an efficiency of 90%.
Signal and power transmission takes place via one UTP cable Cat. 5e (standard B).
The switch is dedicated to the BCS-MON7000B, BCS-MON7000W video monitors, BCS-MON7200W.

PoE is available on ports 1-6 and LAN ports allow connecting another device or recorder. Via input / output LAN, we can connect another switch, router or external panel.

The device has optical signaling and a built-in ON / OFF button.

TECHNICAL PARAMETERS:
  • PoE BCS 24V protocol

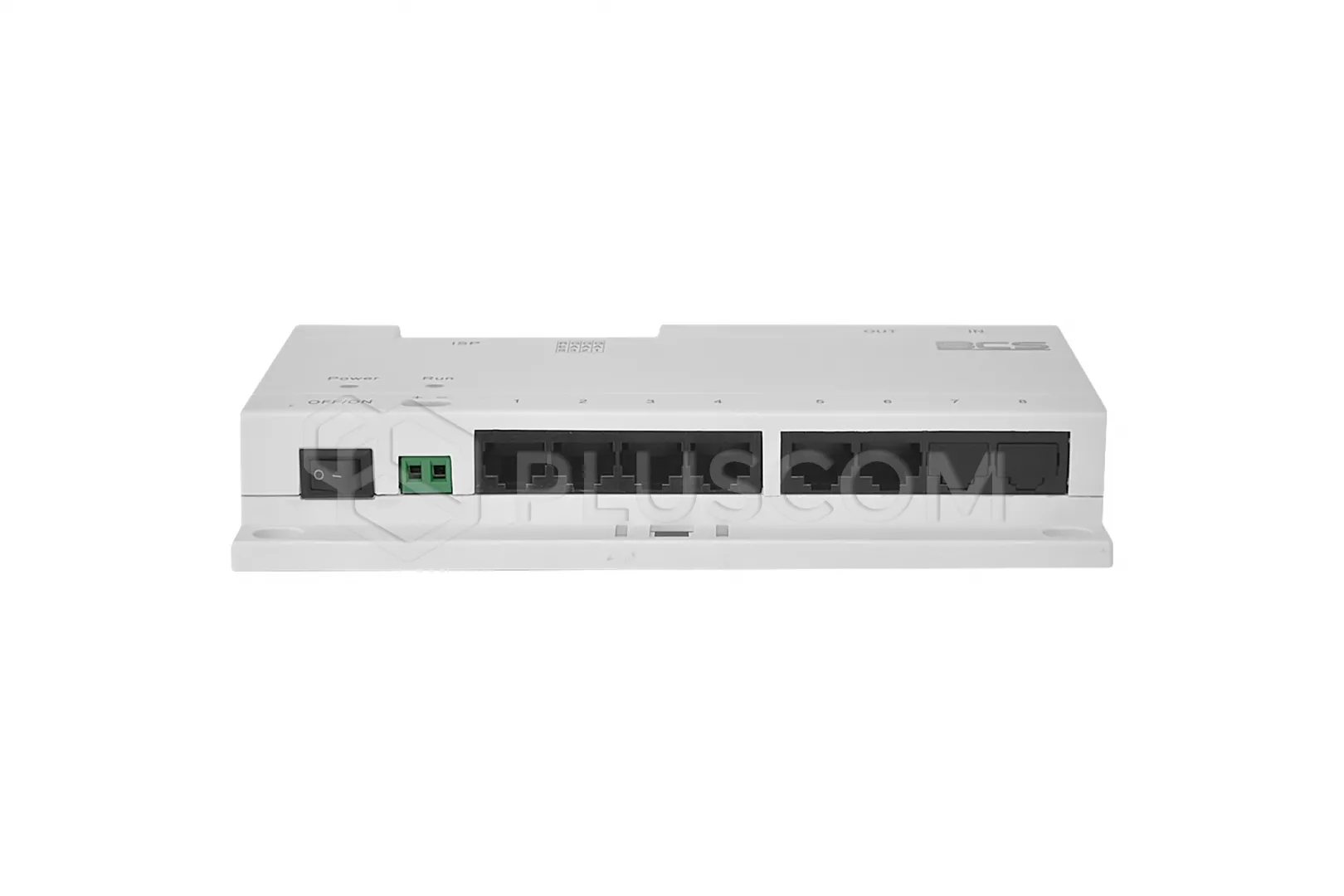

  • 6 PoE Ethernet outputs for connecting monitors (standard B)

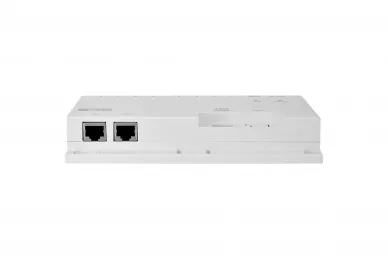

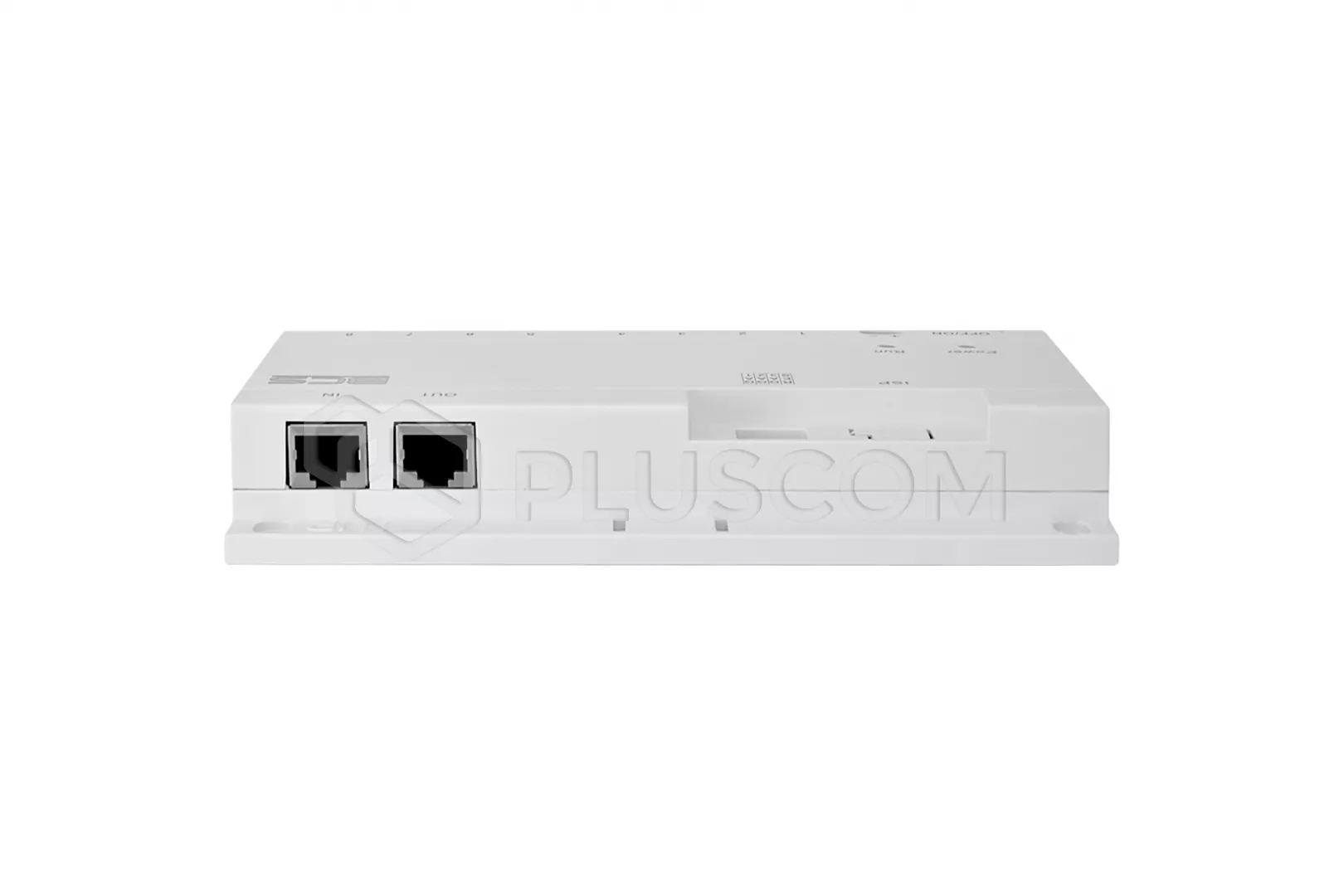

  • 1 Ethernet input for connecting the LAN switch / router / previous BCS-SP06 switch or external panel (standard B)
  • 1 Ethernet output for connecting another BCS-SP06 switch or an external panel (standard B)
  • signal and power transfer with one UTP Cat.5 cable (for monitors)
  • built-in ON / OFF button
  • 24 VDC power supply (requires BCS-ZA2425 power supply)

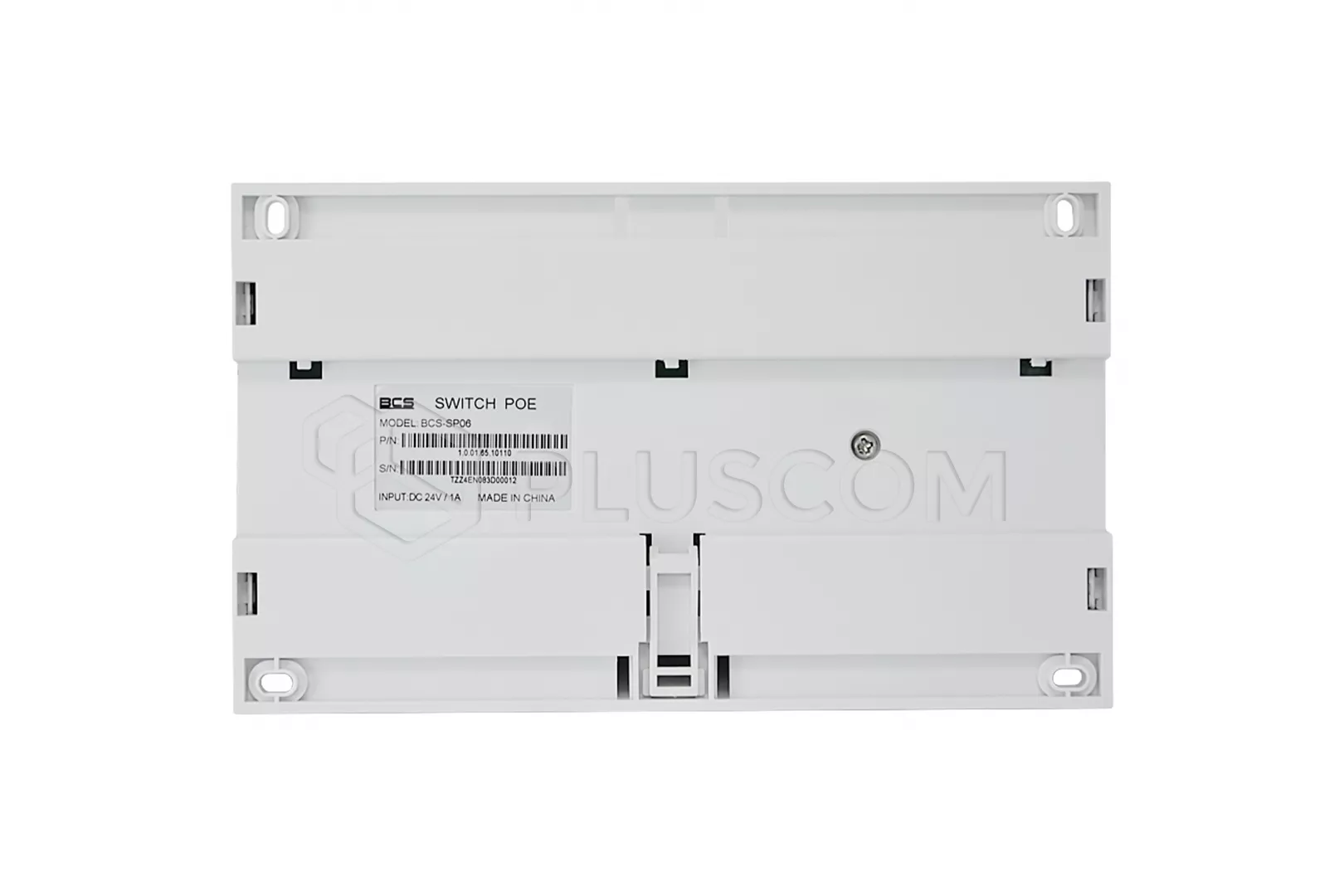

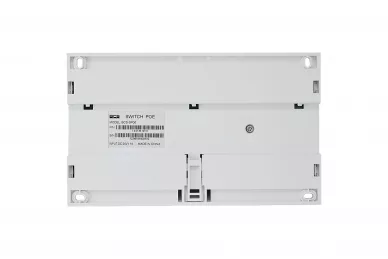

  • mounting on TS 35 or surface rail
  • power and Run controls, indicating the presence of power and communication with monitors
  • DIN 10 width
  • dimensions: 179 x 107 x 30 mm
  • power consumption:
    • standby 0.2W (without load)
    • work max 45W (full load)
