AVO APO 324 PRO Set of actuators for swing gates up to 3m with an interface
for control via an application
Electromechanical, self-locking 24V actuator for swing gates with a leaf length
of up to 4 m, with built-in LED lighting and a KUBE interface allowing control
of the drive using a smartphone.

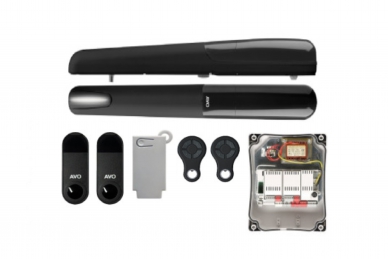

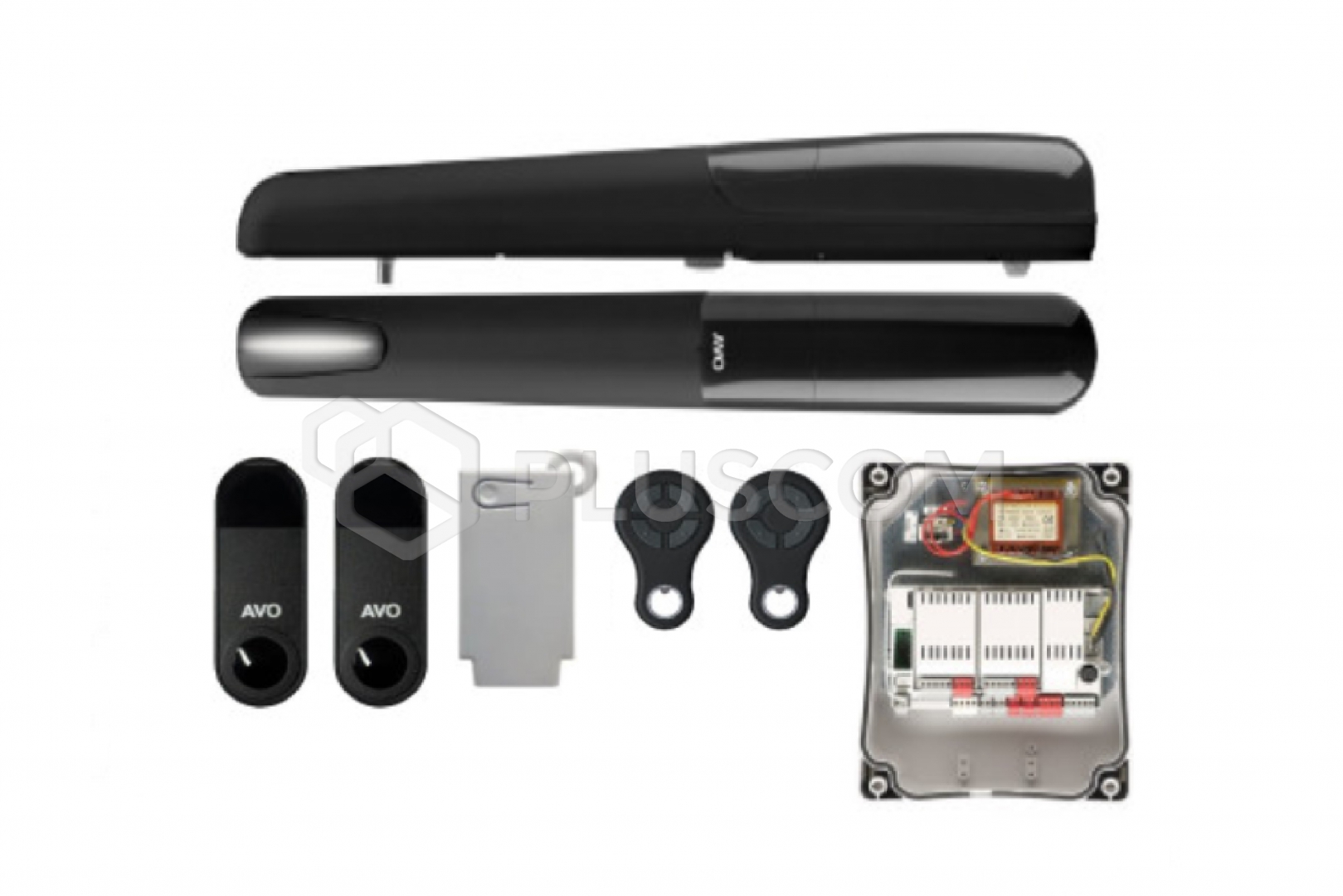

The set includes:

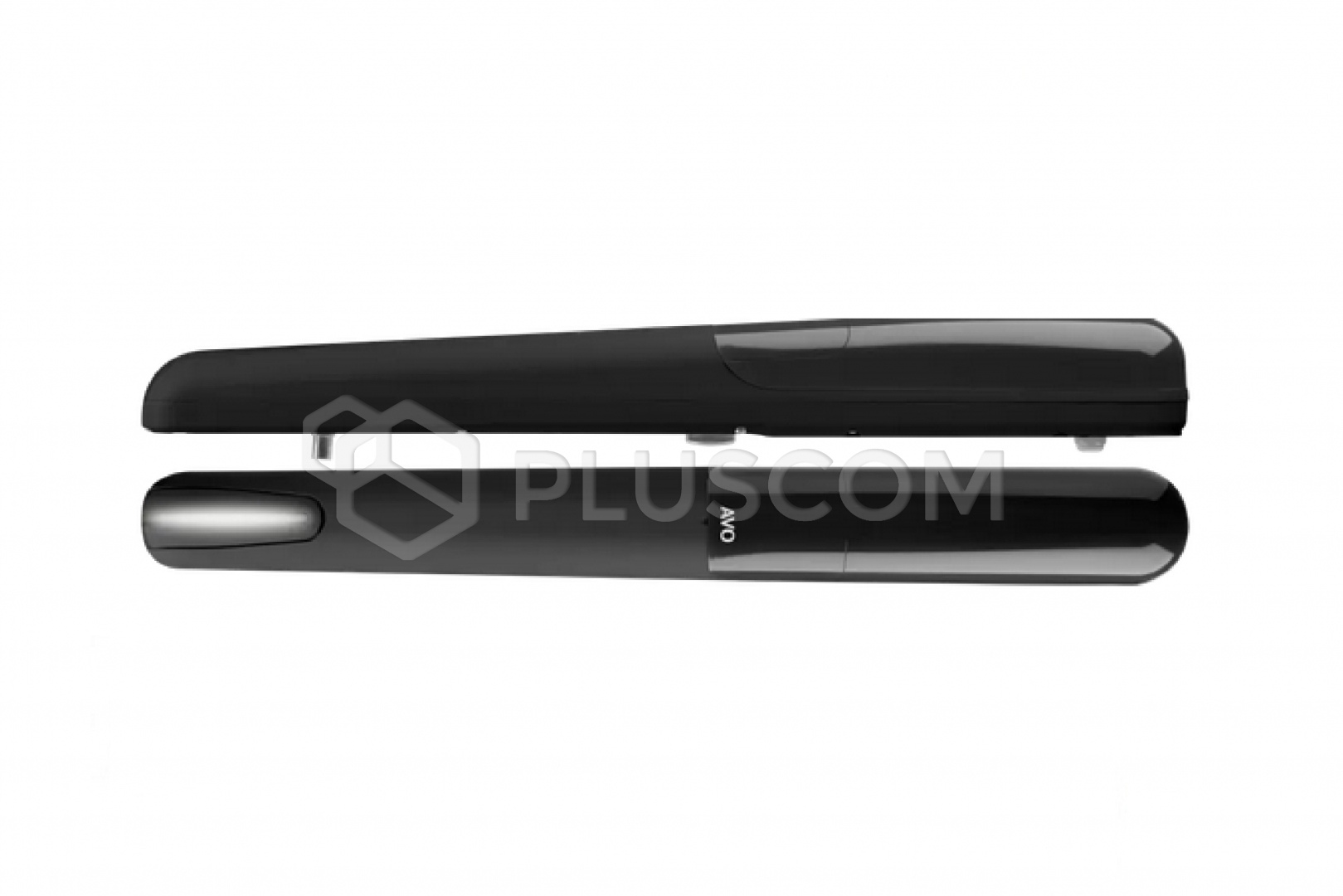

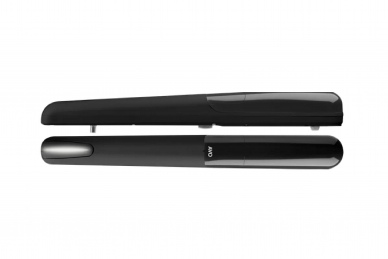

- 2 APO 324 PRO actuators

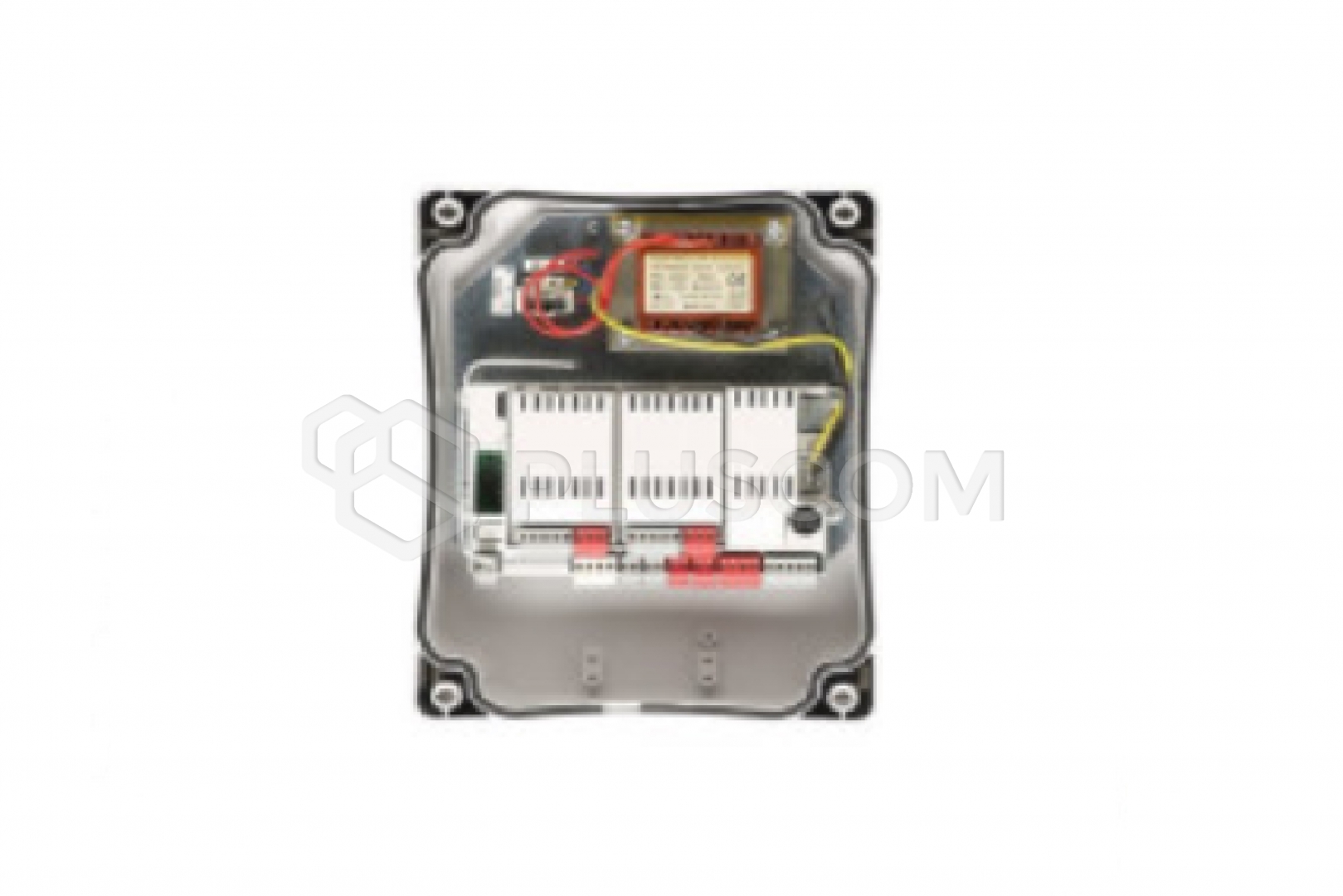

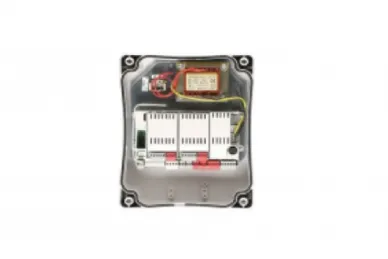

- A14AB150 control unit

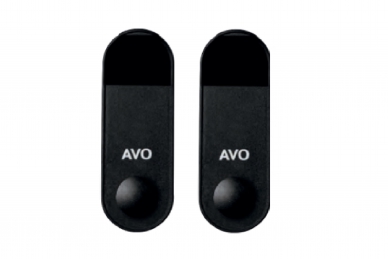

- AFT180 photocells

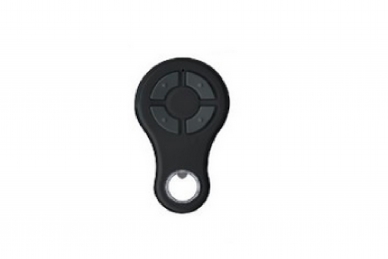

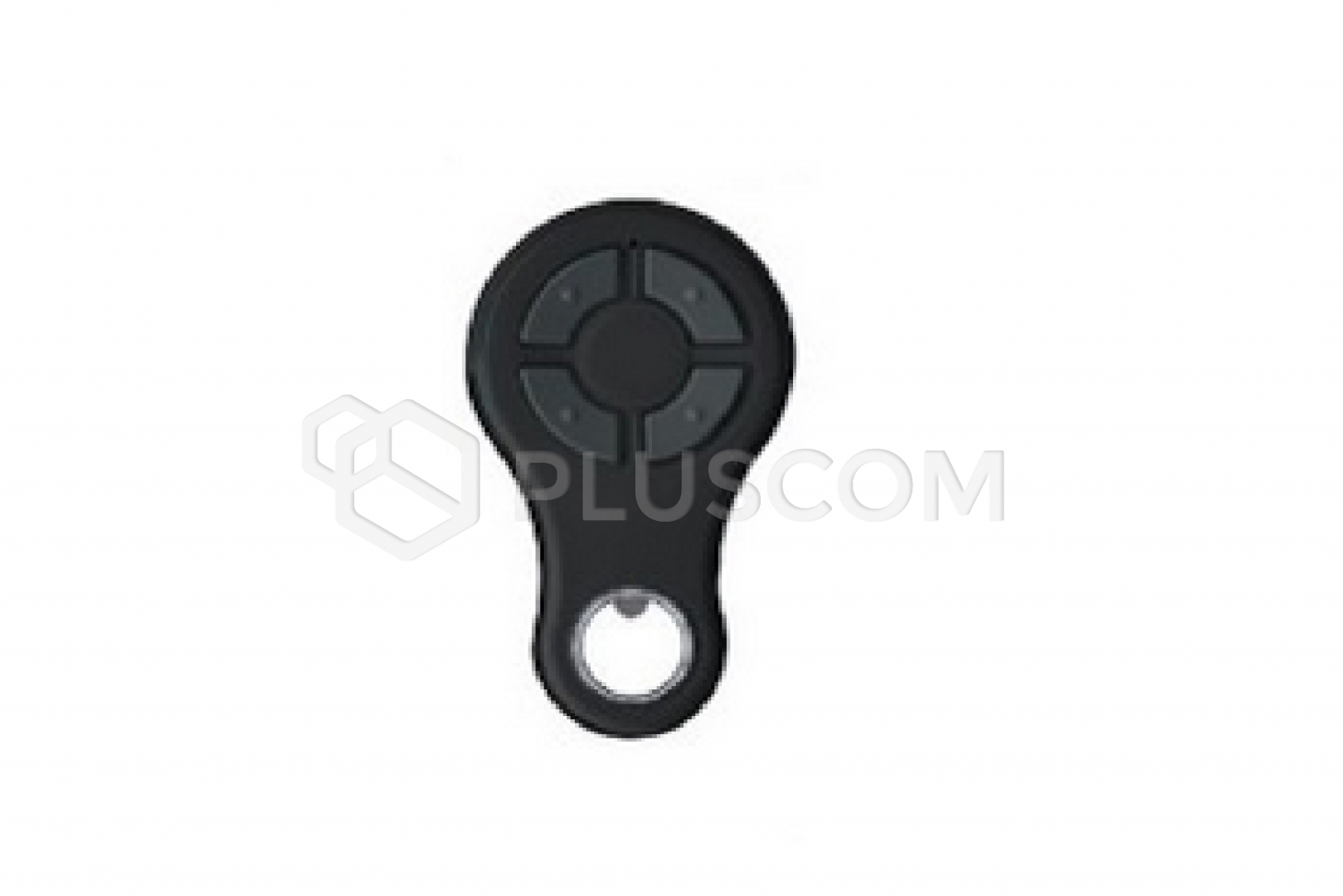

- 2 AVAK 4-channel remote controls

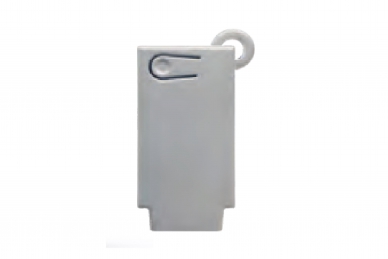

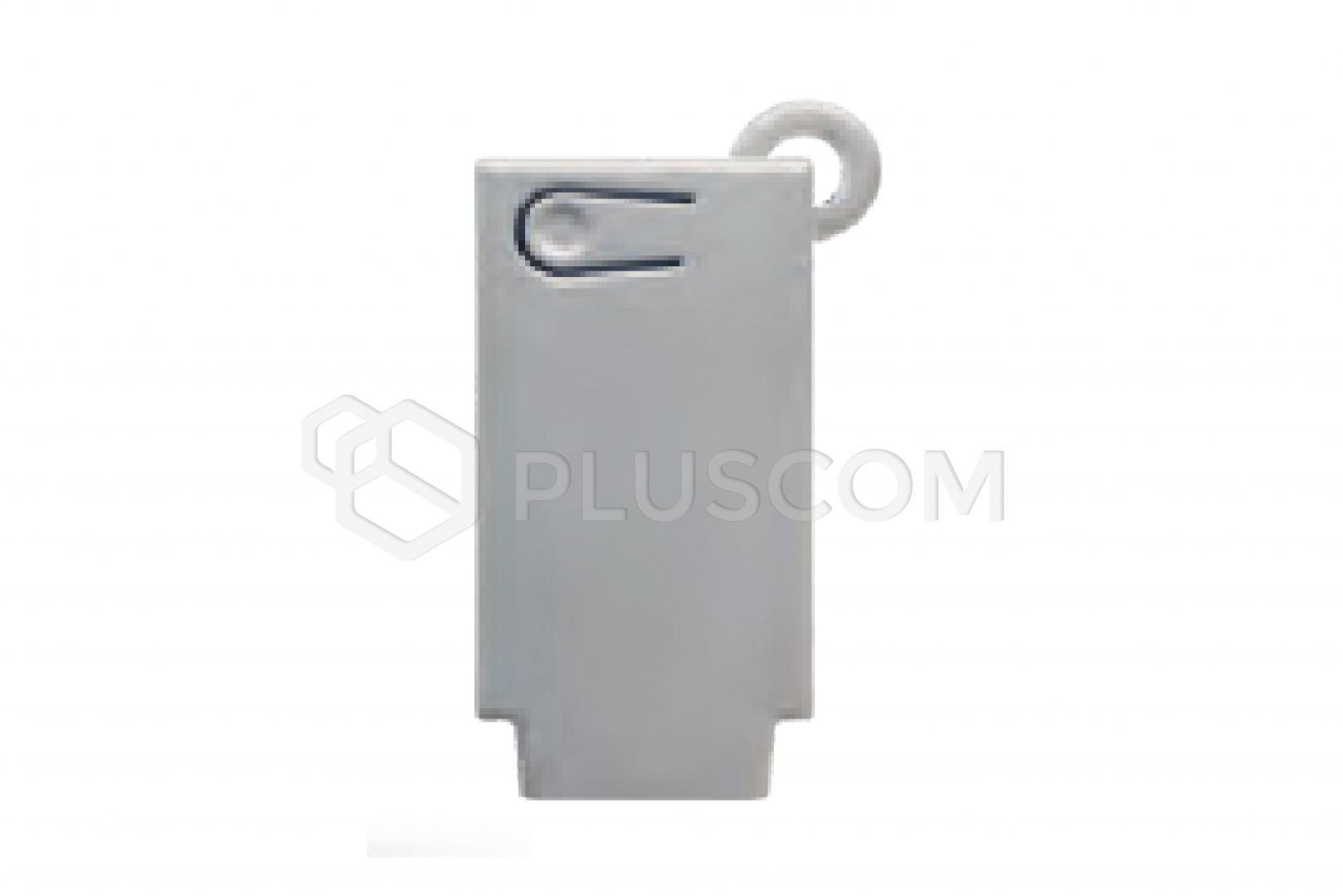

- KUBE interface
- Adjustable mounting brackets
Durable:
Mechanical components made of bronze, metal gear components
(APO424PRO, APO424), protected against weather conditions, UV-resistant
powder-coated cast aluminum housing – all this ensures long-lasting and
trouble-free operation.
Quiet:
The exceptionally quiet operation of the actuators guarantees
high user comfort.
Innovative:
LED lighting built into the actuator housing provides
excellent visibility when entering the property, especially at night and in
difficult weather conditions. It also serves as an attractive and effective
element of the garden infrastructure along with other lighting elements offered
by AVO.
In the event of a power outage, the actuator can be quickly and easily manually
released using a special handle on the AVAK remote control.

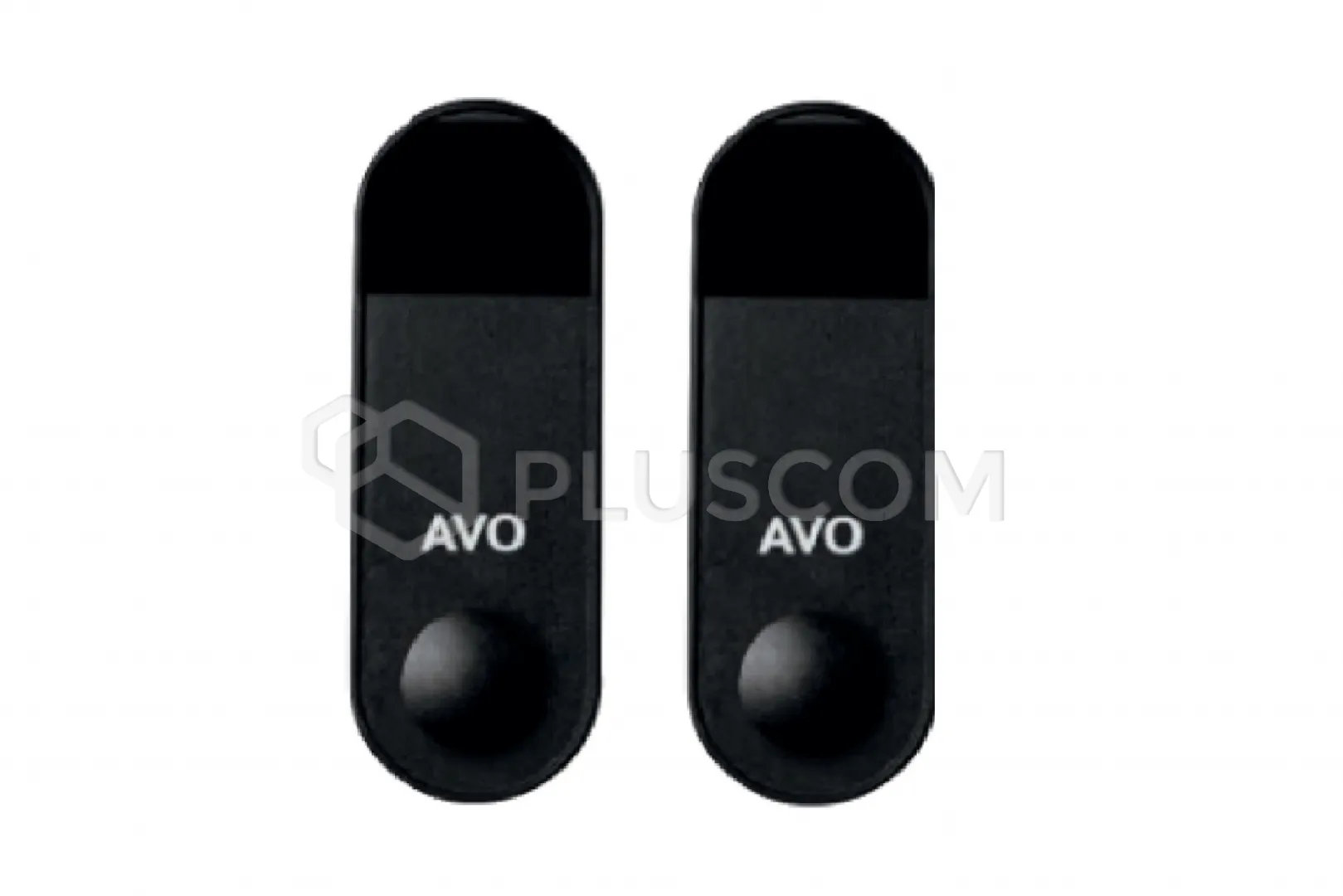

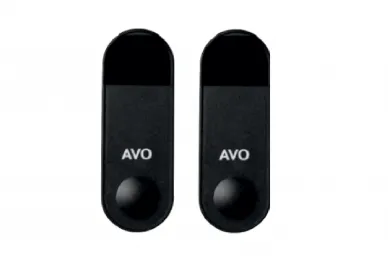

Photocells:
A pair of external photocells designed for mounting on
narrow posts, adjustable by 180 degrees, are standard equipment with each set.
Programming:
Exclusively via the KUBE PRO interface, which
significantly simplifies the entire process. Optional battery backup for
emergency opening (optional)
Emergency power supply:
The actuator will open and close the gate in
the event of a power outage.
KUBE AND KUBE PRO:
Innovative Bluetooth interface for configuring and
managing AVO automation using an app.
An effective tool enabling remote control of AVO automation and supporting
installation, ensuring optimal installer uptime and easy and quick programming
of control units and numerous actuator functions.
Compatible with Android and Apple smartphones.
Technical Specifications:
- Speed cm/s: 2.6
- Thrust force N: 1500
- Work intensity %: 50
- Open time to 90° s: 18-25*
- Control unit: A14AB150
- Power supply V DC: 24
- Consumption A: 3.5
- Motor power W: 85
- Built-in lighting: yes
- IP protection class: 44
- Dimensions (L-D-H) mm: 844 - 100 - 104
- Weight kg: 6
- Temperature Operating °C: -20 + 55
- Maximum gate leaf weight kg: 500
