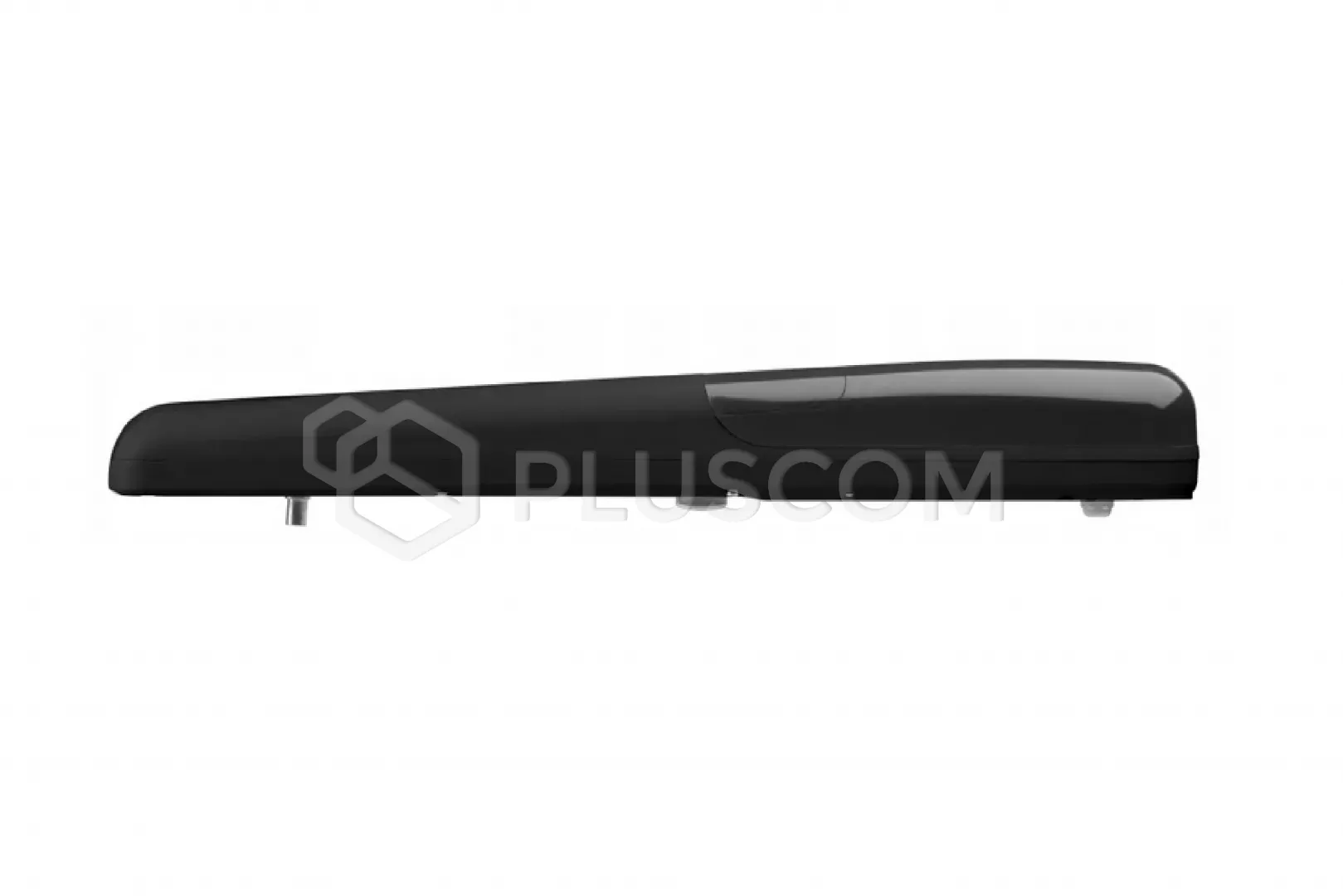

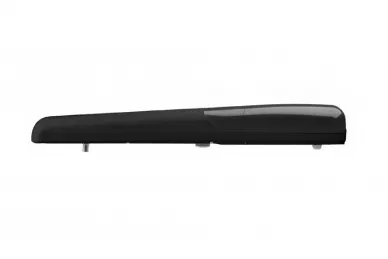

Avo APO324 PRO Actuator for swing gates, 3m long and weighing 500kg
Electromechanical, self-locking 24V actuator for swing gates with a leaf length
of up to 4 m.
Durable:
Mechanical components made of bronze, metal gear components
(APO424PRO, APO424), weather-resistant, UV-resistant powder-coated cast
aluminum housing – all this ensures long-lasting and trouble-free operation.
Quiet:
Exceptionally quiet operation of the actuators guarantees high
comfort of use.
Innovative:
LED lighting built into the actuator housing provides
excellent visibility when entering the property, especially at night and in
difficult weather conditions. It also constitutes an attractive and effective
element of garden infrastructure, together with other lighting elements offered
by AVO.
In the event of a power outage, the actuator can be quickly and easily manually
released using a special handle on the AVAK remote control.
Photocells:
A pair of external photocells designed for installation on
narrow posts, adjustable by 180 degrees, are standard equipment in each set.
Programming:
Exclusively via the KUBE PRO interface, which
significantly simplifies the entire process. Possibility of using a battery for
emergency opening (optional)
Emergency power supply:
The actuator will open and close the gate in
the event of a power outage.
Technical Specifications:
- Speed cm/s: 2.6
- Thrust force N: 1500
- Work intensity %: 50
- Open time to 90° s: 18-25*
- Control unit: A14AB150
- Power supply V DC: 24
- Consumption A: 3.5
- Motor power W: 85
- Built-in lighting: yes
- IP protection class: 44
- Dimensions (L-D-H) mm: 844 - 100 - 104
- Weight kg: 6
- Operating temperature °C: -20 + 55
- Maximum gate leaf weight kg: 500
