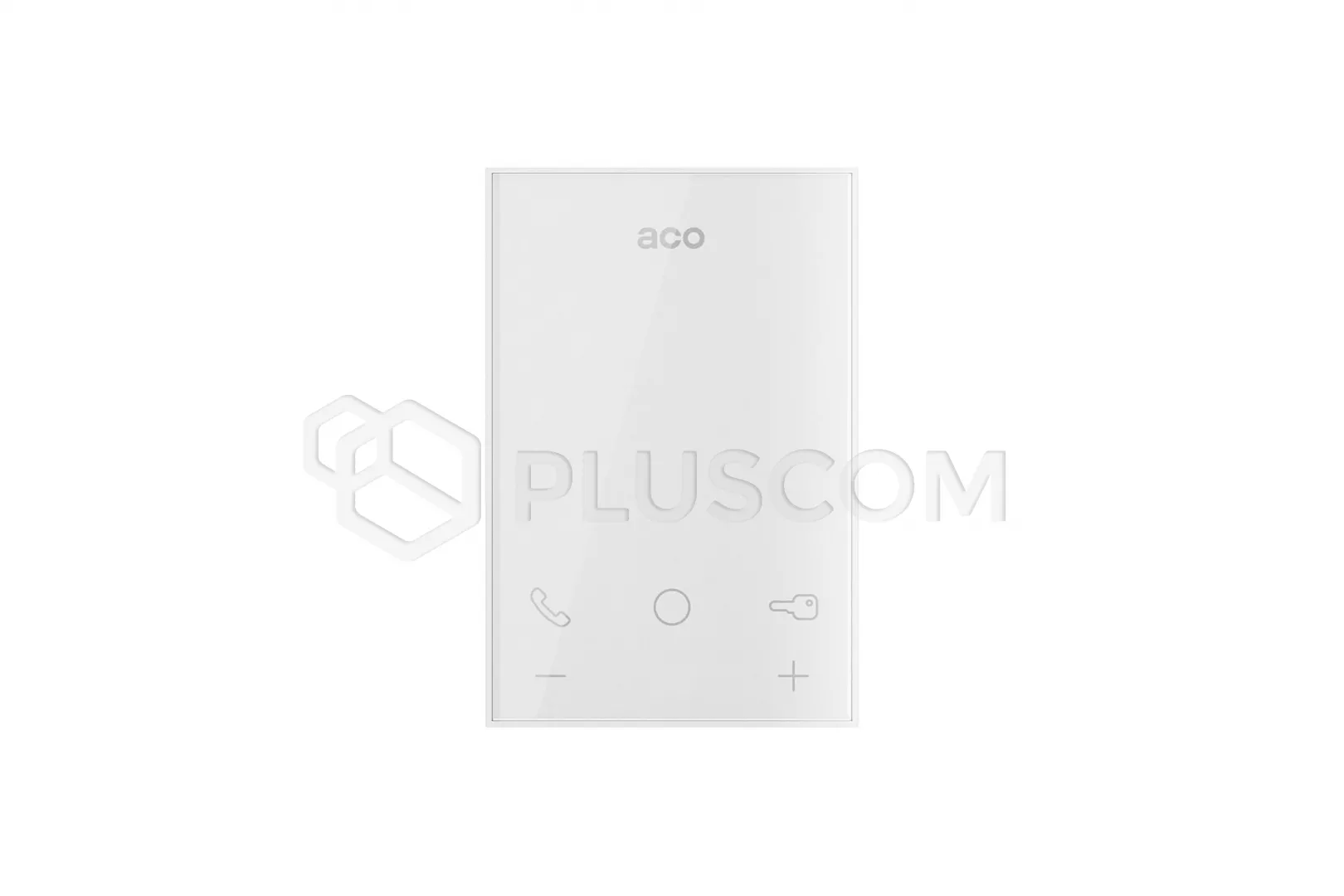

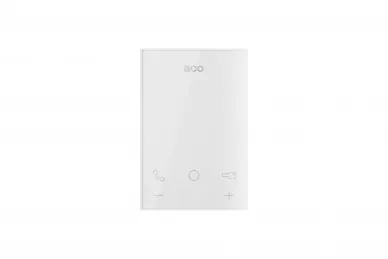

Aco UPRO800 Hands-free digital uniphone (G2)

74,42 EUR including 23.00% VAT
Product code: #25492
Manufacturer: ACO
  • Installation type: PRO digital system: Category 5e or 6 twisted pair
  • 1 button: functional
  • Illuminated touch icons
  • Cooperation with devices in the PRO and PRO-A systems
  • Housing color: white
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco PRO-USB 2.0 PRO-USB computer interface version 2.0 Aco COMO-PRO-CODE-A2 NT Digital entry unit with code lock, key ring reader and 2 key buttons Aco COMO-PRO-CODE-A2 Digital entry unit with code lock, key ring reader and 2 key buttons Aco COMO-PRO-CODE-A1 NT Digital entry unit with code lock, key ring reader and 1 key button Aco COMO-PRO-CODE-A1 Digital entry unit with code lock, key ring reader and 1 key button

UPRO800 Hands-free audio receiver with flat front and touch controls functional icons, to the PRO

system
A modern and intuitive uniphone designed to work with digital devices PRO and PRO-A systems. Intuitive, reliable and comfortable to use is an ideal solution as an intercom in single-family houses and blocks of flats residential.

The uniphone belongs to the group of PRO 3rd generation receivers, which means improved device design to ensure even greater reliability and possibilities: including support for larger (longer) installations, larger numbers subscribers, remote device management (from anywhere in the system) and software update.

UPRO800 is the first hands-free uniphone from ACO available on the market. That due to its modern, minimalist form, functionality and ease service, it is a very convenient, long-awaited solution. Flat touch front with illuminated function icons makes the UPRO800 uniphone elegant, and at the same time easy to keep clean.

The receiver is equipped with:

Exits
  • Circle button (F2 function button):
    • via the system bus (optional PRO I/O-60 module required)
    • 2 x ARK screw connectors: NO contact: 2A/24VDC (potential-free, separated from the system) – after holding down the 3s
    • button
Entry
  • 1 x RJ45 socket (PRO system bus connection)
  • 5 x screw connectors (PRO system bus connection):
    • audio signal connection: "LINE"
    • power connection: "+DC" and "-DC"
  • 1 x "RING" screw connection: connection of a normally open contact (NO), e.g. a button “bell” – doorbell function (activated after short circuit to GND system)
UPRO800 FEATURES
  • intuitive and comfortable operation and simple installation
  • hands-free
  • illuminated touch icons
  • 7-level sound adjustment (independently of calls and conversations)
  • 4 melodious ringtones
  • optical ringing mute signaling
  • clear, distortion-free sound
  • full privacy of the connection (no possibility of overhearing the conversation)
  • possibility of several receivers working at one address
  • the receiver can receive any call address (after setting the address "0")
  • home automation (function button F2): control of external devices, e.g. gate, barrier, roller blinds, lighting also no connection required (optional PRO I/O-60 relay module connected to the system bus required)
  • built-in universal relay outputs activated independently for 1s, e.g. for home automation (potential-free, separated from the system, switched on via a touch icon, operating time and mode: mono or bistable can be adjusted from the computer)
  • doorbell function (RING) – activated via the built-in input or via the system bus (optional module required PRO I/O-60)
  • Office function - automatic door opening - activation at any time (after detecting a ringing, the door will be opened)
  • Intercom function: possibility of calling inside the building between receivers (possibility to set the address from the computer intercom to which the receiver is to call - by default it calls all 3 addresses simultaneously)
  • possibility of making intercom calls within the main calling address and outside the main calling address - return communication with other premises or e.g. porter
  • independent main address (0-1023) and intercom address (0-3) for each receiver
  • supports the calling address from the pool of addresses available in the system: 127 addresses (programmed with switches in the receiver) or from 1023 addresses available in the system (programmed from the computer)
  • compatible with devices operating in the PRO and PRO-A systems (including COMO-PRO panels)
  • programming settings and updating software via the system bus (optional PRO-USB 2.0 computer interface required)
  • individual number of each device: DevID
  • search for all devices in the system
  • individual or group device management
  • ability to manage devices and updates in a running system
  • one software to operate all devices: PRO 3 MANAGER (free software available on the website

TECHNICAL DATA:
  • Type: hands-free
  • Installation type: digital PRO system: Cat twisted pair. 5e or 6
  • Power supply: 15VDC / 140 mA
  • Power consumption in standby mode: ~0.6W

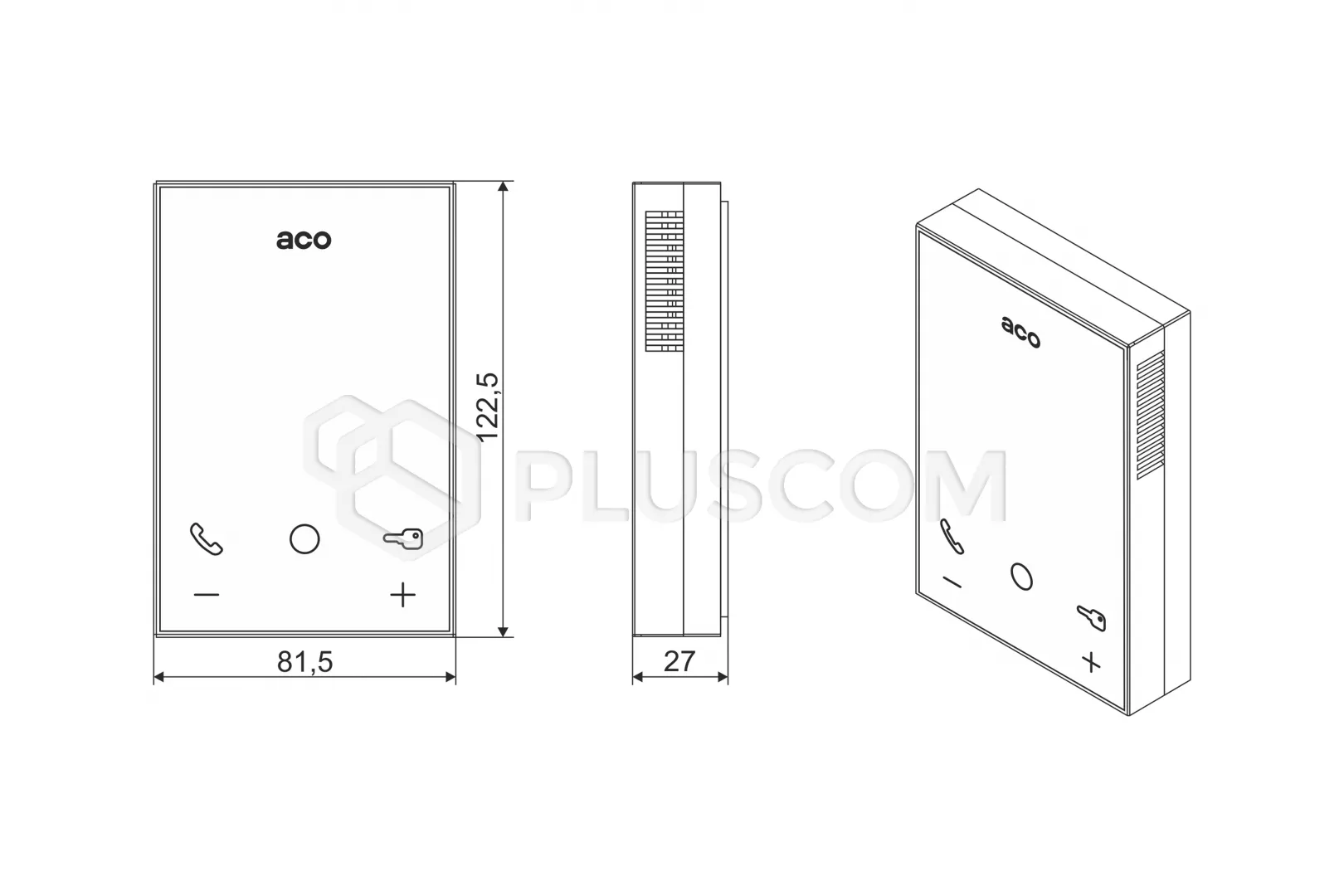

  • Dimensions: 122.5x81.5x267mm
  • Additional function button
  • Color: white
Download
Product card 0.48 MB
CE Declaration 0.11 MB
Manual 2.08 MB
