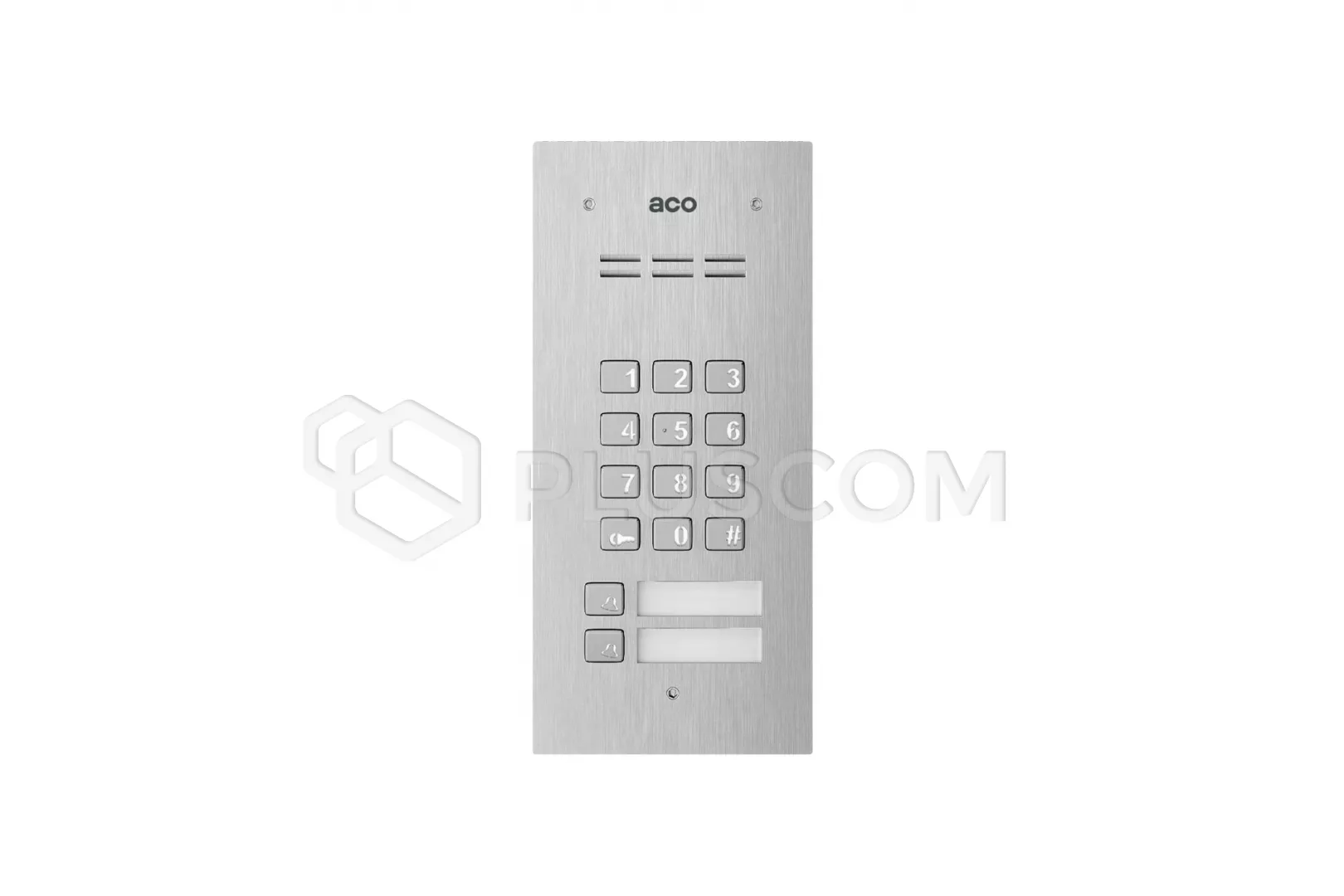

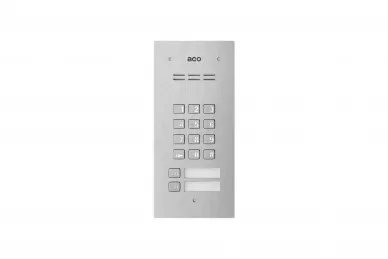

Aco COMO-PRO-CODE-A2 Digital entry unit with code lock, key ring reader and 2 key buttons

ACO COMO-PRO-CODE-A2 Digital intercom with code lock, key fob reader and 2 buttons

The COMO-PRO-CODE-A2 digital intercom panel (3rd generation) is dedicated to single and multi-family houses. It enables internal communication (intercom) between receivers. Has a backlit keypad of a combination lock that allows you to open the gate / door with individual 4-digit code and up to two independent illuminated call buttons that can be used assigned to specific locations. In addition, next to the buttons there are illuminated descriptive fields in which you can easily put the apartment number or other information. Integrated with the lower description field proximity tag reader that allows you to easily open the gate/door directly from the panel.

New features of 3rd generation COMO-PRO-CODE panels:

• connection of up to 4 panels in one system (no additional module is required)
• adding and removing proximity tags using the "master" tag (separately for each apartment) and using the "super master" tag (in all apartments)
• programming settings and updating software via the system bus (PRO-USB 2.0 computer interface required)
• search for all devices on the system
• individual or group device management
• the ability to manage devices and updates on a live system
• one software for all your devices: PRO 3 Manager

The ACO panel has many facilities for people with disabilities who use it:

• acoustic and optical indication of panel functions
• auto-opening function: automatically opening the door when someone rings (function activated in receivers GLASS-PRO-7/MPRO7 or using an optional PRO-I/O module connected to the system bus)
• opening the door without answering the call: using an additional button or e.g. a remote control (requires connection to panel terminals or to optional PRO-I/O module connected to system bus)
• possibility of connecting an additional acoustic or light device signaling ringing (optional PRO-I/O module connected to system bus required)

The operation of the panel itself is easy and intuitive, and programming is done with panel and computer using CDN-USB cable.

FEATURES

• intuitive and comfortable operation and configuration
• resistant to vandalism and weather conditions (from -20 to 50ºC)
• individually illuminated call buttons with illuminated, easily replaceable descriptive places
• access control - built-in proximity tag reader, integrated with the lower description field and support for 1020 individual opening codes and 1 administrative code (available using a computer program)
• codes can be changed by the user, 1 code is factory active, others can be activated via direct call button or via PC
• support for 10 proximity tags (10 per premises)
• two keyrings included (including one "Master") assigned to the first apartment
• possibility to use up to 10240 proximity tags despite fewer physical call buttons, including 10 administrative buttons (accessible from a computer)
• acoustic information in the apartment about opening the door (ringing) - only for key fobs and codes assigned to a given apartment (for UPRO, MPRO, xPRO800, GLASS-PRO-7 receivers; the function can be turned off from the computer)
• support for multiple expansion modules to increase system functionality
• optional dialing number using the numeric keypad (disabled by default)
• home automation: control of external devices, e.g. entrance gate, barrier, lighting, roller blinds (optional PRO-I/O module connected to the system bus required), both by means of an access code and a proximity tag
• possibility to connect multiple receivers ringing at the same time
• receiver presence detection (panel will not ring when receiver is missing)
• the option of secured door opening control: the electric strike is connected to the optional PRO-I/O module (relay contacts), and the panel activates the opening via the system bus
• compatible with all digital devices operating in PRO, PRO-A systems

TECHNICAL PARAMETERS:

• Supply voltage: 15VDC ±5%
• Standby power consumption: ~2.5W
• Maximum current consumption: 400mA
• Electric door strike supply voltage: 12VDC – 15VDC
• Permissible electric strike output load: 1.5A
• Output type normal or reverse (default: normal)
• Lock active time: 0.6 to 25s (default: 4s)
• Type of output control pulse to electric strike (default) or constant to relay
• Standard of supported proximity cards (RFID): Unique 125 kHz
• Maximum number of proximity cards supported: 10 for each address/call button (or 10210 available from desktop application)
• Maximum codes supported: 1 for each address/call button (or 1024 available from desktop application)
• Housing material Stainless steel
• Flush mounting

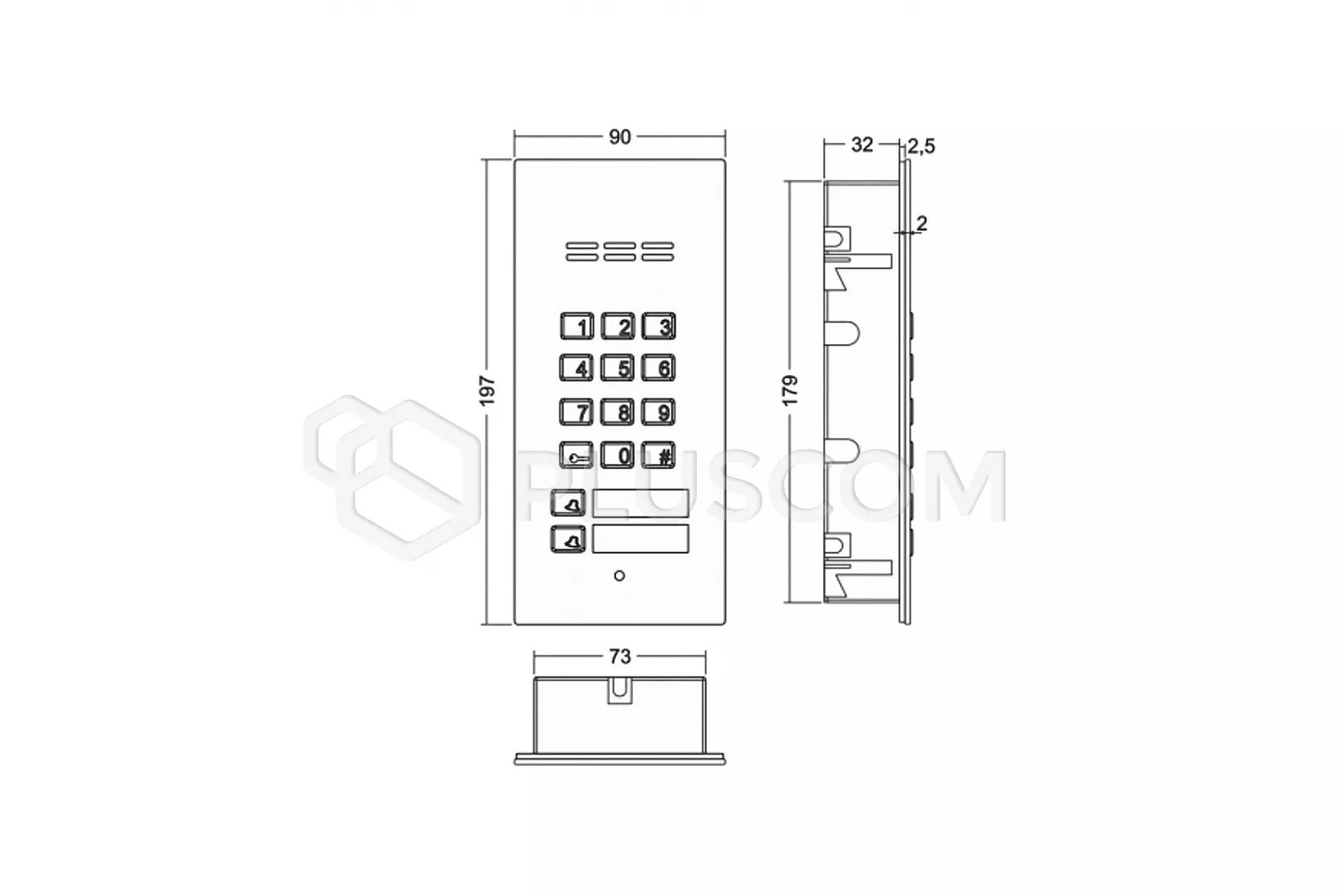

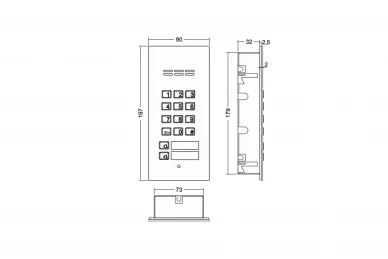

• Front dimensions: 197 x 90 mm
