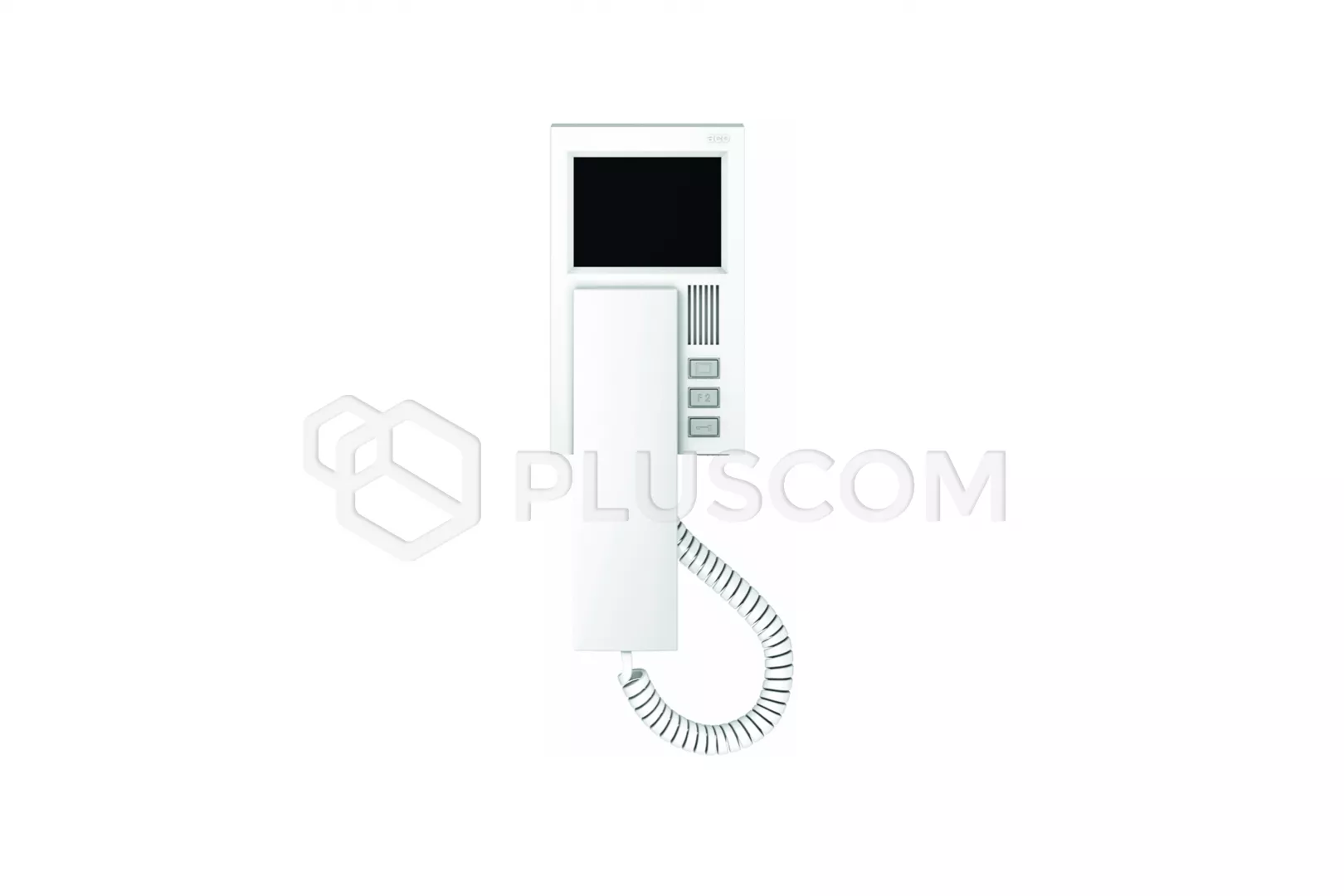

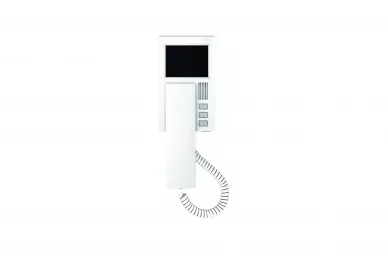

Aco MPRO 4 (G3) Digital video intercom with 4” color display

MPRO 4 (G3) Digital video intercom with a 4" color magnetic display hang-up and doorbell function for PRO

systems
The MPRO video intercom is compatible with all devices from the group Familio/COMO (PRO and PRO-A). Made of high-quality, colored ABS plastic white. It is equipped with a 4" color LCD display. and three buttons:

• opening the door, unlocking the electric strike
• activating independent video preview
• additional function button F2 (control of additional devices, gate, lighting, etc.)


The transparent volume slider has an integrated LED indicating mute or an incoming call.

PRODUCT FEATURES:

• supports the calling address from the pool of 127 addresses available in the system (programmed with switches) or from 1023 addresses available in the system (programmed from a computer using the optional PRO-USB interface)
• programming settings and updating software via bus system (PRO-USB computer interface required)
• compatible with earlier generations of the PRO system
• individual number of each device: DevID
• search for all devices in the system
• individual or group device management
• ability to manage devices and update them in a working one system
• one software to support all devices: PRO 3 Manager
• auto-opening function: automatically opening the door when someone calls (function activated in the video monitor)
• magnetic hang-up mechanism
• doorbell function
• possibility of opening without the need for an active connection
• clear, distortion-free sound
• adjusting color saturation and image brightness
• 3-step ringing volume adjustment
• transparent volume slider with a ringing diode, mute and other functions
• full connection privacy
• ability to receive intercom calls
• The monitor can respond to any calling address (after setting the address ”0”)
• home automation (function button): device control external, e.g. gate, barrier, roller blinds, lighting also without active connection (optional PRO-I/O relay module required connected to the system bus)
• Possibility to connect up to 4 additional cameras (optional module required PRO-VIDEO-SW2-60 (G3) (connected to the system bus)
• Compatible with all digital devices from the Familio/COMO group (PRO and PRO-A)
• facilities for people with disabilities:
• • acoustic and optical signaling of monitor functions
  • Auto opening function: automatically opens the door when someone will ring (function activated in the monitor or using an optional PRO-I/O module connected to the system bus)
  • opening the door without having to answer the call: using additional button or e.g. remote control (required optional PRO-I/O module connected to the system bus)
  • possibility to connect an additional acoustic device or light signaling calling (optional PRO-I/O module required connected to the system bus)

TECHNICAL SPECIFICATIONS:

• power supply: 15 VDC
• power consumption in standby mode: ~ 0,3W
• mounting method: surface mounting
• Installation type: cat. 5e lub 6
• Input:
• • 1x RJ45 socket
  • 5 x screw terminals ARK
  • 1x NO contact for the door bell
• Output (F2 button):
• • through the main bus line (PRO-I/O)
  • 1x NO contact (NO) seperated from the customs

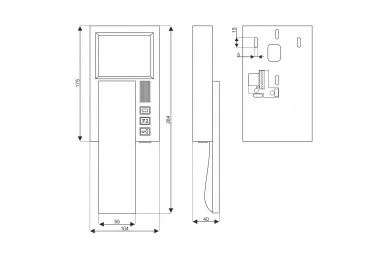

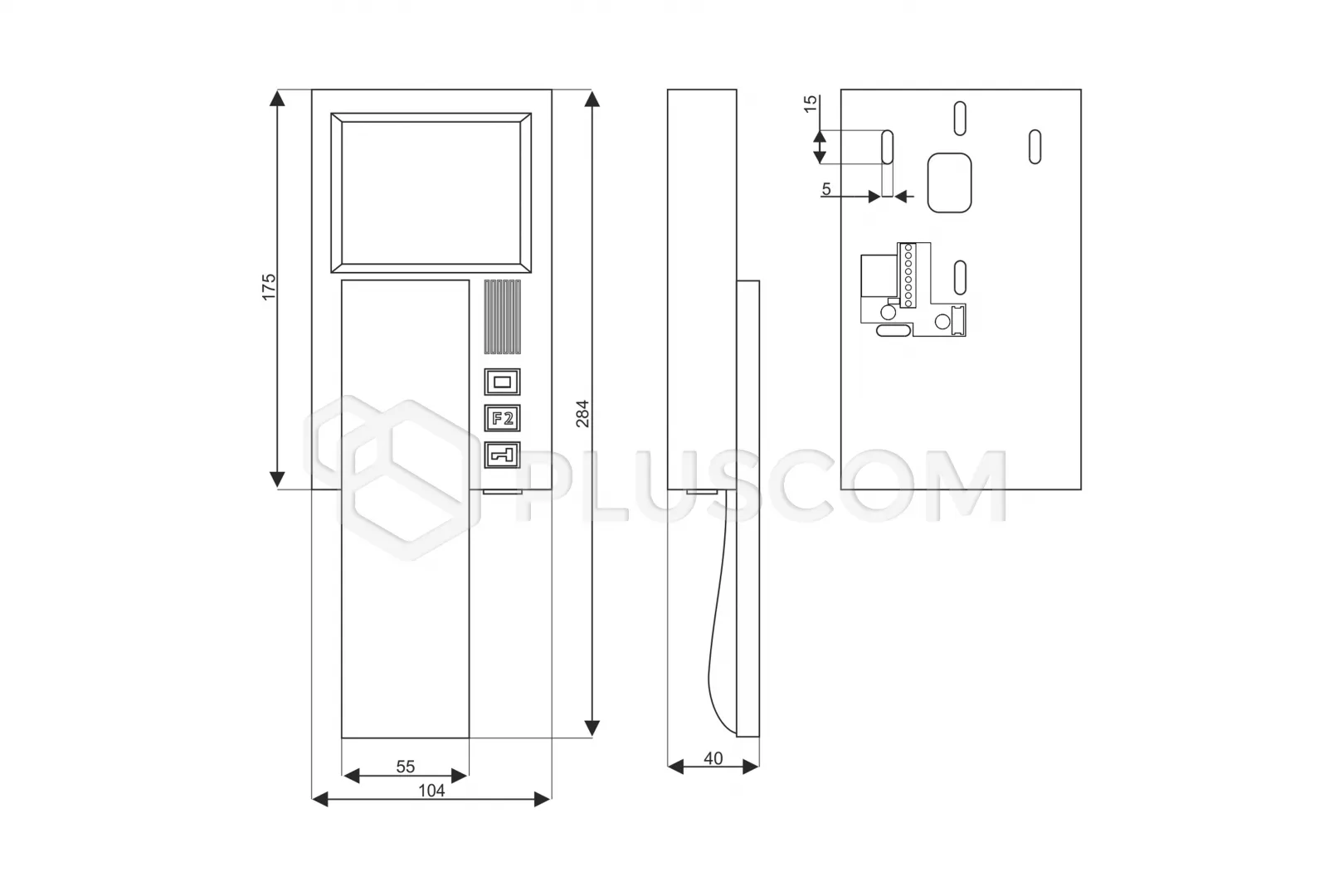

  • dimensions: 284x104x40mm
