Aco PRO-VIDEO-SW2-60(G3) Additional camera switch

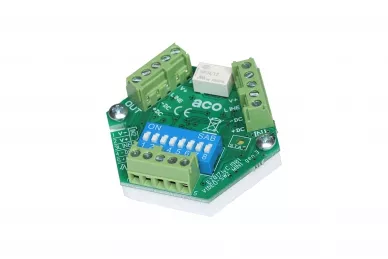

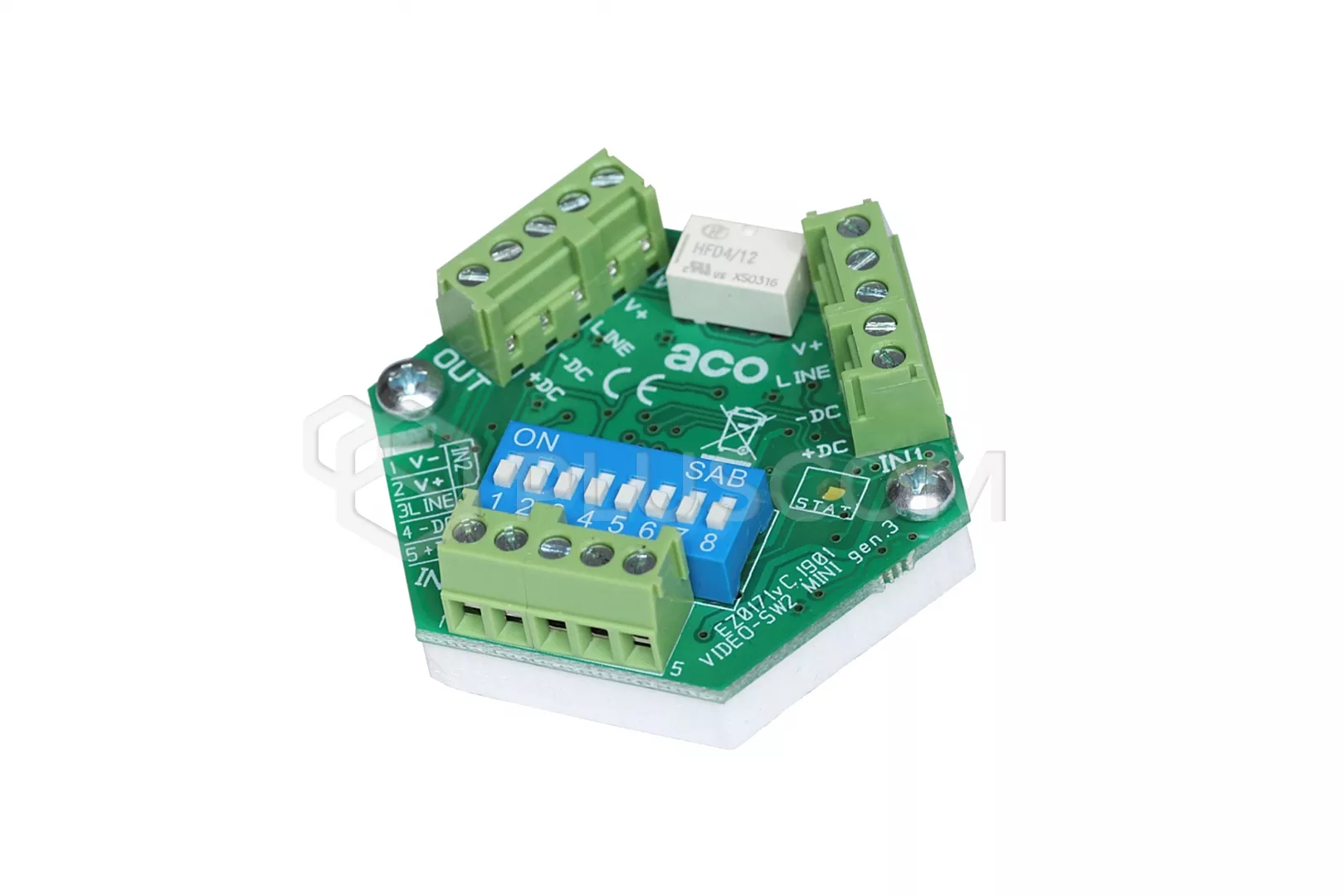

ACO PRO-VIDEO-SW2-60(G3) Additional camera switch module (without enclosure)

The PRO-VIDEO-SW2-60(G3) module allows you to connect an additional camera to the system. We can use more switches in the system, thereby increasing the number connected cameras. However, we must remember that the sum of all supported cameras for each address cannot be greater than 4

The switch is compatible with all devices from the COMO/ Familio PRO, PRO-A.

THE MOST IMPORTANT FEATURES:

• possibility of connecting an additional camera in the PRO system
• more switches can be used to connect up to 4 additional cameras in the system
• up to 4 switches can be connected to all monitors in the system, which are supported globally
• Up to 4 switches can be connected for each address individually (only operated by a monitor with the same address)
• addressing the module in the same way as PRO system receivers
• supports the addresses of the receivers: 31 addresses (programmed with switches on the module) or 1023 addresses (programmed from a computer using the optional PRO-USB interface)
• for address 0 the module is supported by all receivers in the system
• the monitors detect the number of switches connected
• compatible with the entire PRO system
• is located in an installation box with a diameter of 60mm
• module supported by monitors from software version: v1.3 for MPRO7; v1.6 for MPRO; GLASS-PRO (regardless of version)
• the module works as a switch for cameras in COMO series panels when two Master/Slave panels are in operation
• programming of settings and software update on the system bus (PRO-USB computer interface required)
• compatible with previous generations of the PRO system
• the individual number of each device: DevID
• searching for all devices in the system
• individual or group management of equipment
• possibility to manage devices and updates in a working system
• one software to handle all devices: PRO 3 Manager

TECHNICAL PARAMETERS:

• power supply: 15 VDC
• power consumption in standby: ~ 0.3W
• installation type: cat. 5e or 6
• outputs 5 x screw connectors (PRO system bus connection):
• • audio connection: "LINE"
  • power connection: "+ DC" and "-DC"
  • Video signal connection: "V +" and "V-"
• inputs:
• • 5 x screw connectors (PRO system bus connection):
  • • audio connection: "LINE"
    • power connection: "+ DC" and "-DC"
    • Video signal connection: "V +" and "V-"
  • 5 x screw connectors
  • • audio connection: "LINE"
    • power connection: "+ DC" and "-DC"
    • connection of an external Video signal from an additional camera: "V +" and "V-" (differential signal)
  • domensions: Ø: 60mm
