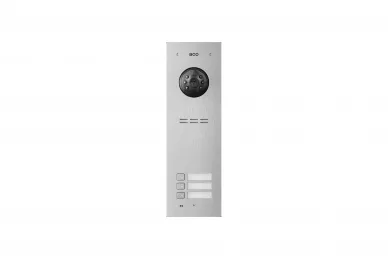

Aco COMO-PRO-V3 Digital video door entry system

ACO COMO-PRO-V3 Digital video door entry system for PRO system, with proximity key fob reader and 3 call buttons

The COMO-PRO series is a continuation and at the same time the next generation of the well-known panels of the FAMILIO-PRO series. It is not only a name change, but also a completely new construction of the intercom control electronics to ensure even greater reliability and capabilities of the device. The third generation of these door entry systems includes: support for larger (longer) installations, a greater number of subscribers, remote management of devices (from any place in the system), software updates and full management of proximity tags using the "master" and "super master" key fobs. The panel will be constantly developed, and thanks to software updates, all new functionalities and capabilities of the panel will also be available for people who have already bought the product before. The video panel is equipped with a color camera with an adjustable position of the direction of observation and LED lighting, a reader of proximity key fobs for access control and 6 backlit buttons and description fields. COMO panels are dedicated for single and multi-family houses. The combination of modern technology with brushed stainless steel creates timeless solutions addressed to individual customers who value design and functionality.

Features for disabled:

• acoustic and optical signaling of panel functions
• autoopen function: automatically open the door when someone rings (function activated on GLASS-PRO-7/MPRO7 receivers or via the optional PRO-I/O module connected to the system bus)
• opening the door without answering the call: with an additional button or e.g. remote control (connection to the panel terminals or to an optional PRO-I/O module connected to the system bus required)
• possibility of connecting an additional acoustic or light device to indicate a ringing tone (optional PRO-I/O module connected to the system bus required)

Attributes

• individually illuminated call buttons with illuminated, easily interchangeable descriptive fields
• support for 70 contactless key chains (10 assigned to each of the premises + 10 administrative key chains).
• Home automation: control of external devices, e.g. entrance gate, barrier, lighting, roller shutters (optional PRO-I/O module connected to the system bus required)
• programming from the panel and computer using the CDN-USB cable
• connection of two panels in one system: 1 x master and 1 x slave (optional VIDEO-SW2 MINI-60 module required)
• adding and removing proximity tags using the "master" key fob (for each property separately) and the "super master" key fob (for all premises)
• Programming the settings and updating the software on the system bus (PRO-USB computer interface required)
• compatible with previous generations of the PRO system
• individual number of each device: DevID
• search for all devices in the system
• individual or group facility management
• possibility to manage devices and update them in a working system
• one software for all devices: PRO 3 Manager

TECHNICAL SPECIFICATIONS:

• Mounting: flush-mounted

• dimensions:
• • panel: 286x90mm
  • flush-mounted box: 268x73x32mm
• Installation type: Digital PRO system: cat. 5e or 6
• Line lenght: max 1000m
• Power supply: 15V DC
• Stand-by power consumption: ok 2,5W
• output: for connection:
• • traditional electric door strike (max. 1.5A)
  • reversible door strike (max. 1.5A)
  • CDN-PK relay module (max. 5A contact load)
  • audio signal connection: "LINE".
  • power supply connection: "+DC" and "-DC"
  • Video signal: "V+" and "V-"
  • PRO system bus connection
• cinput: to be connected:

• • NO push-button connection
  • separate power supply for the door strike output
