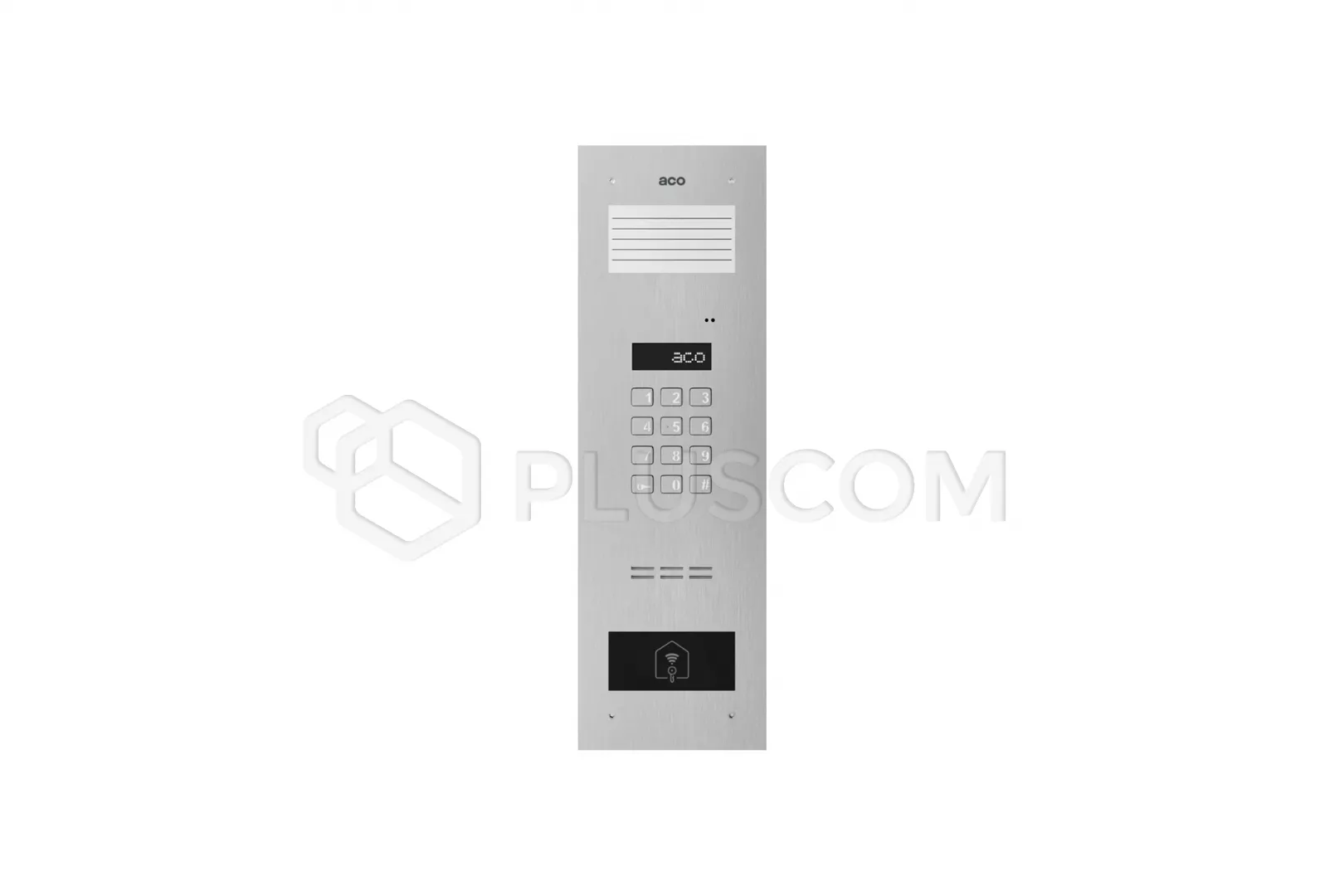

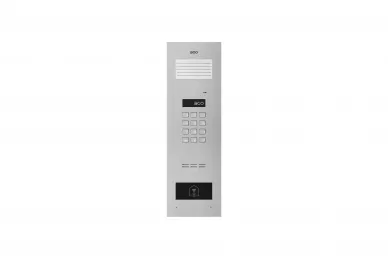

Aco INSPIRO 12S+ Digital outside unit Slave with code lock, small description list and RFID reade

INSPIRO 12S+ Digital intercom with combination lock, small description list and proximity reader

INSPIRO 12S+ is very elegant and resistant to weather conditions and acts intercom vandalism. The housing and buttons are made of brushed 2mm thick stainless steel. Modern design, high quality used materials ensure failure-free operation for many years.
The device is compatible with all digital devices from the following groups: CDN, Inspiro and Familio P/PV and programming is done using a USB cable, via switchboard or computer.

To facilitate operation for disabled people, the panel is illuminated keys with Braille, optical signaling and sound. Additionally, without having to answer the call, we can remotely or automatically open the door and using the CDN-U module, we can connect the an additional acoustic or light device in the premises, signaling that someone is calling.
INSPIRO 12S+ supports 1,020 premises for which a 4-digit code is available tenant (different for everyone). It is equipped with a small illuminated list module descriptive, which allows for approximately 5 entries. It has wide possibilities individual configuration of settings for each premises and the service itself is easy and comfortable. The device supports many expansion modules, which is why system functionality increases.

MOST IMPORTANT FEATURES:

• support for multi-input Slave systems
• possibility to set a 6-digit apartment number
• 4 different code tables
• available codes: 1020 tenant codes (4-digit), 5 administrator (4 or 6 digits), 1 installer (8 digits)
• programmed entry on the main display (max. 30 characters)
• support for up to 6144 proximity elements
• any number of proximity elements assigned to each apartment from the pool of 6144
• any number of proximity elements for administrator and installer access
• adjustable max. talk time (40-120 seconds)
• support for many expansion modules increasing the functionality of the system
• Optional SW4S-DIN module required
• to support 1020 premises
• opening the electric strike or additional relay output without talking (CDN-I/O)
• home automation: controlling external devices, e.g. gate, barrier, lighting, roller blinds, using a combination lock, key fob, receiver. Also without an active connection
• opening the gate - triple key or - controlling external devices (CDN-I/O module) - triple key
• enabling or disabling access to controlling external devices separately for each apartment
• possibility to connect multiple receivers under the same number using active receivers
• wide possibilities of individual configuration of settings for each premises
• intuitive and comfortable operation and configuration
• option to change the range of calling numbers in groups
• option to change calling numbers in groups
• possibility to set up to 8 numbers for which there is an option to call without a conversation
• auto-opening function for each premises
• hallway opening function
• porter function
• possibility to enter any max. 6-character text on the display during porter redirection
• adjustable number of openings during a conversation (1-3)
• operating electric strikes and electromagnetic locks various types
• 8 priority additional numbers with individual settings of calling parameters
• Call forwarding for additional numbers
• programming from a computer without external power supply
• programming from the control panel and computer via USB cable

TECHNICAL PARAMETERS:

• installation method: flush-mounted

• dimensions:
• • panel: 111x351mm
  • can: 92x332x31.5mm
  • description field: 73x39mm
• installation type: twisted pair
• line length: max 1000m
• power supply: 15V DC
• power consumption in standby mode: 1.35W
• outputs:
• • 2 x "ELOCK" screw connectors: connection of a traditional electric strike (max. 1A) or a reversible electric strike (max. 0.5A) or a CDN-PK relay module (max. 5A)
  • 2 x screw connectors: audio signal connection: "LINE+" and "LINE- (GND)"
  • 2 x screw connectors: connection of the second relay output (OUTPUT): "N" and "NO" (max. 2A,30VDC) - Master only,/li>
• inputs:
• • 4 x screw connectors: power supply connection: constant "+DC" and "GND"
  • 1 x "INPUT" screw connector: connection of a normally open button (NO) - activated after shorting to GND of the system. E.g. external open button
  • 2 x "EXTMOD" socket for connecting optional modules
