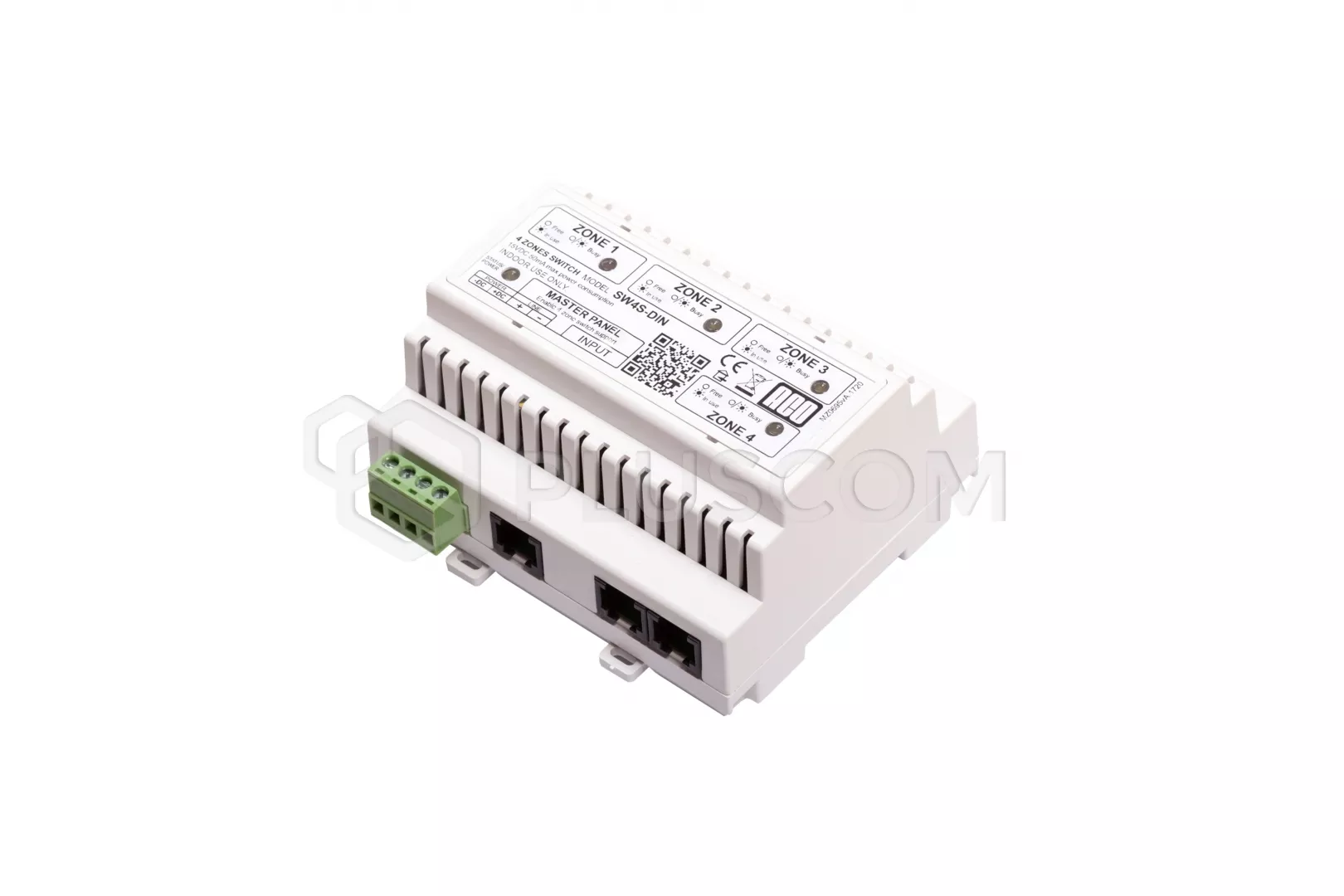

Aco SW4S-DIN 4 zone switch for INSPIRO + panels

123,23 EUR including 22.00% VAT
Product code: #15619
Manufacturer: ACO
  • enables servicing up to 1020 premises
  • DIN rail or surface mounted
  • powr suplly: 15V DC / 50mA
  • Power consumption in standby mode: ~ 0,07W
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco INSPIRO PMR 2S+ Slave Inspiro outside unit with code lock, module for the disabled, electronic list and RFID reader Aco INSPIRO PMR 2+ Master Inspiro Outside unit with code lock, module for the disabled, electronic list and RFID reader Aco INSPIRO PMR 1S+ Slave Inspiro digital panel with combination lock and braille keyboard Aco INSPIRO PMR 1+ Inspiro digital panel with combination lock and braille keyboard Aco INSPIRO 12S+ Digital outside unit Slave with code lock, small description list and RFID reade

ACO SW4S-DIN 4 zone switch for INSPIRO + panels, rail mounted DIN



SW4S-DIN module for cooperation with INSPIRO + Master panels It separates 4 zones, each containing 255 addresses of receivers with individual parameters ringing and opening codes table, thus enabling service for up to 1020 premises in one system.
Using SW4S-DIN, we can conduct 4 conversations simultaneously - one conversation with Master panel with one zone and unlimited number of conversations from Slave panels.

The module has a housing adapted for mounting on a DIN rail and takes up the width 6 modules and is compatible with selected digital devices from the groups: CDNP, INSPIRO and COMO P, PV / Familio.

TECHNICAL SPECIFICATIONS:
  • power suplly: 15V DC / 50mA
  • power consumption in standby mode: ~ 0,07W
  • Mounting method: DIN rail or surface mounted
  • dimensions: 6 DIN modules (109x92x59)
  • installation type:
    • digital P system: 2-wire + power supply
    • digital PV system: twisted pair cat.
  • Made of: ABS plastic housing
OUTPUT:
  • 8 x RJ45 connector (2 for each zone):
    • for connecting a P or PV system bus with panels / exchanges Slave types
    • for connecting further SW4S-DIN modules
INPUT:
  • 4x detachable screw connectors (connecting the Master panel):
    • audio signal connection: „LINE+” i „LINE-”
    • power connection: „+DC” i „-DC”
  • 1 x RJ45 connector:
    • connecting the Master panel - P or PV system bus
