Aco INS-UP720M Digital uniphone with magnetic hang up

INS-UP720M Digital uniphone with magnetic hang up

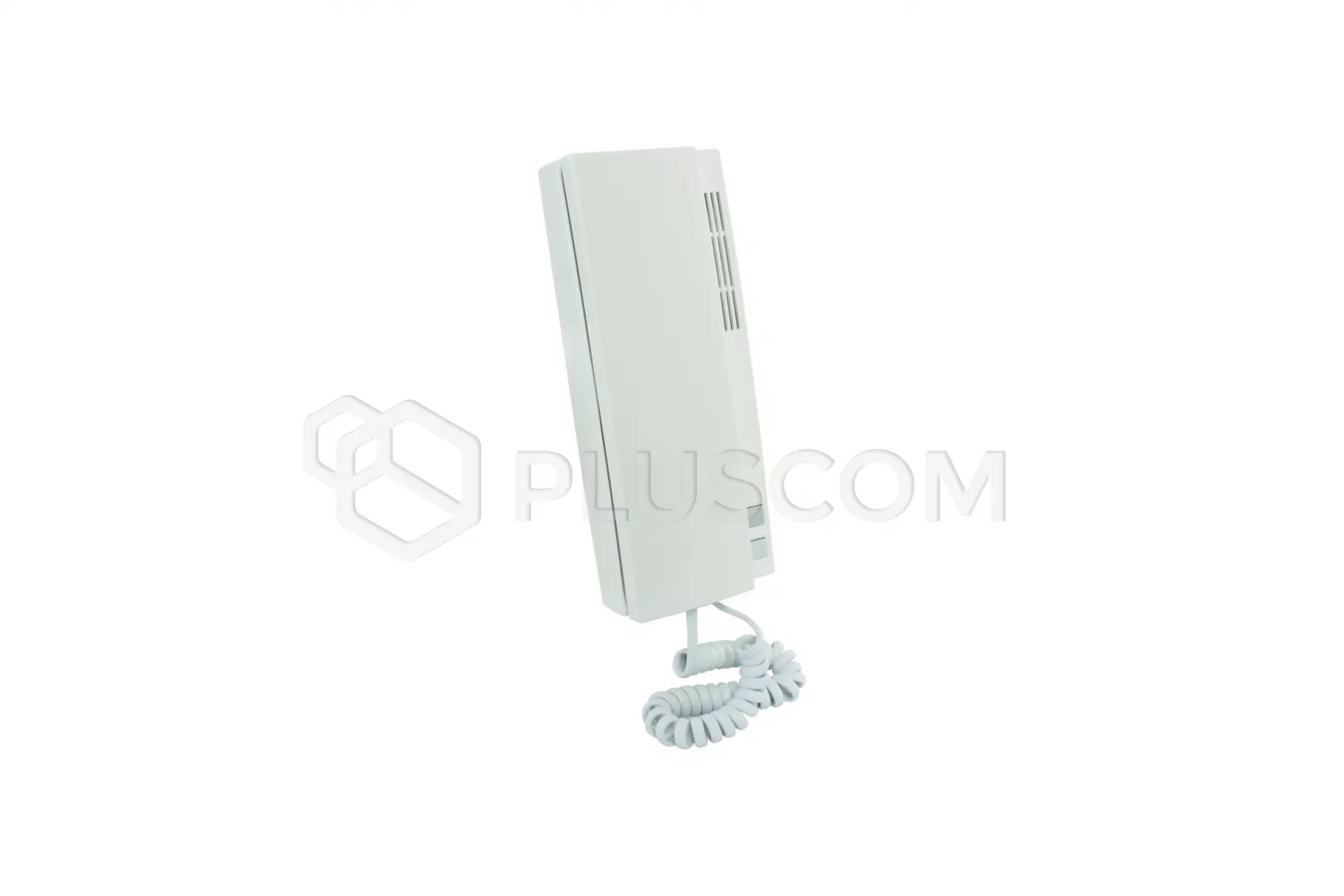

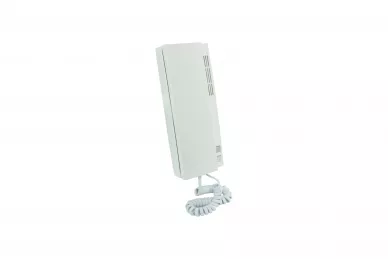

Modern, elegant uniphone cooperating with digital intercom systems CDN, Inspiro, and Familio P / PV by ACO.
Perfect for intercom installations for buildings multi-apartment.

White housing is made of high quality ABS plastic.

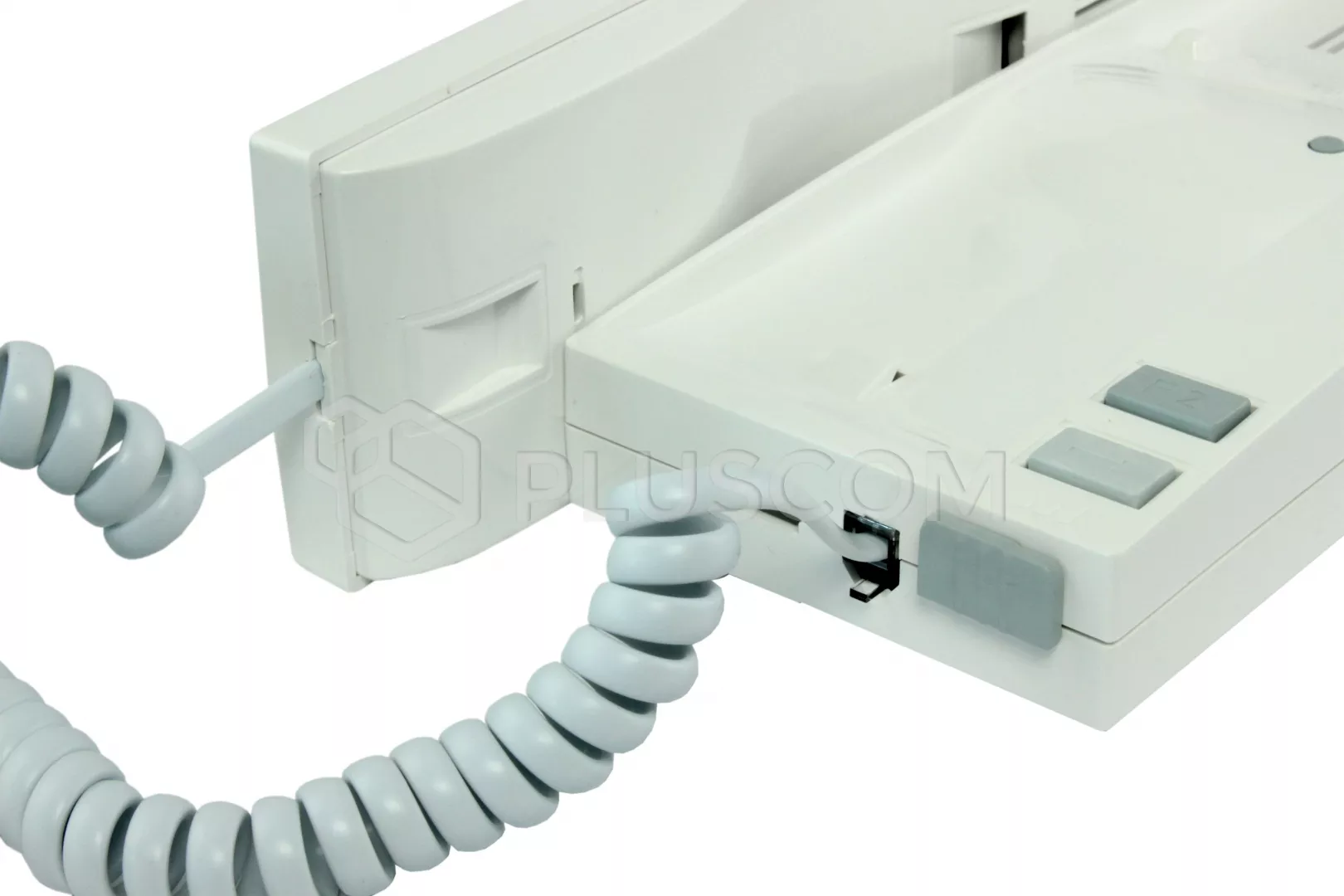

There are two buttons on the front of the housing:

• opening the door
• functional for controlling external devices
• and a 3-stage ring volume control switch.


The uniphone has been equipped with a magnetic hang up mechanism there are no traditional catches.
It has a hold function that allows us to hang up the handset without disconnecting the call.


TECHNICAL DATA

• 2-wire digital installation
• power supply: DC 12-18V from the bus
• power consumption: 0.09W in standby mode
• power consumption:

• • 7mA in standby mode
  • 50mA when calling

• ARK screw connectors
• surface mounting
• ABS plastic housing, white colour
• dimensions: 200x80x39mm
• working temperature: 10°C...50°C

INSTALLATION AND CONNECTION

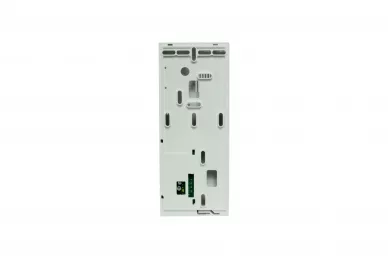

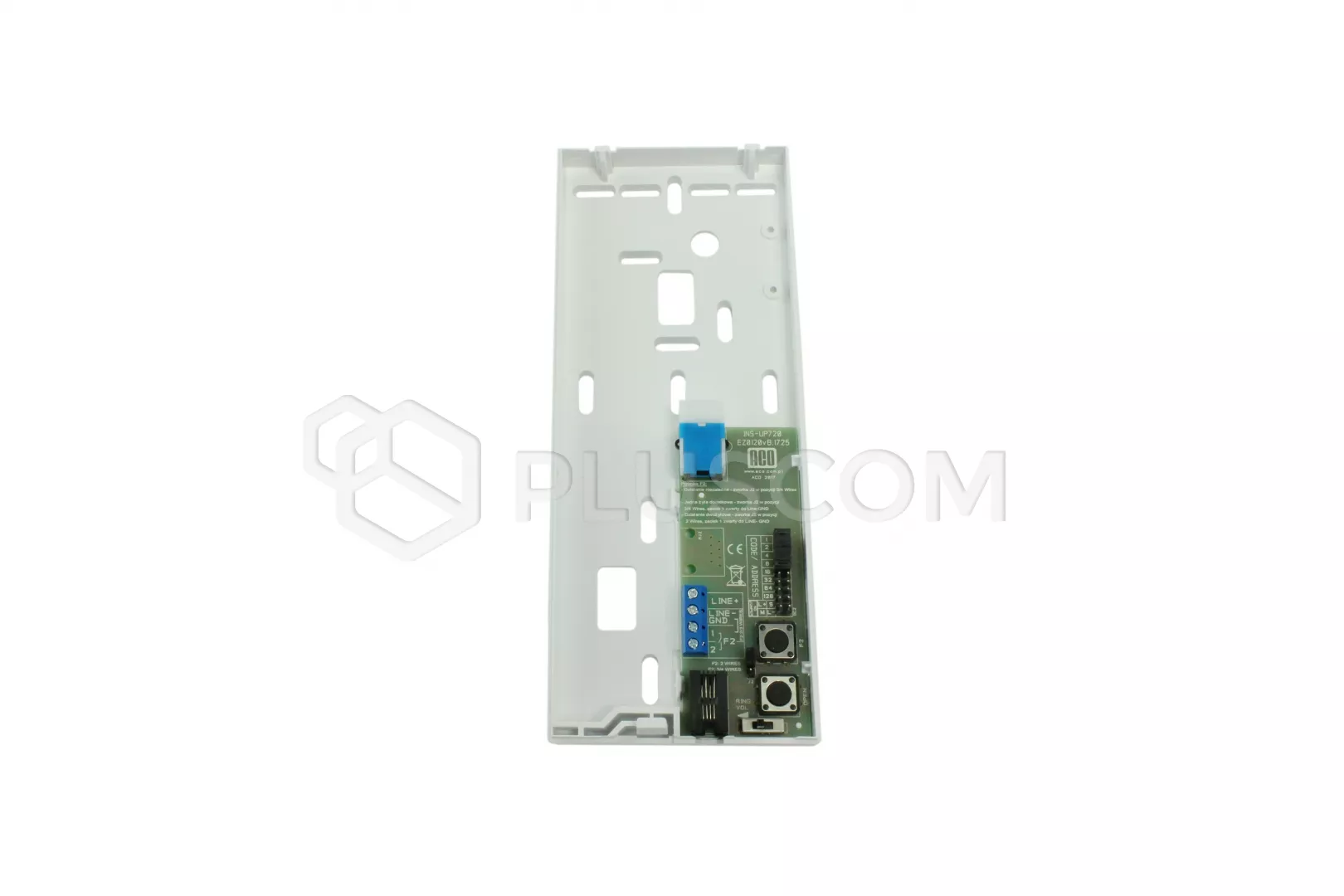

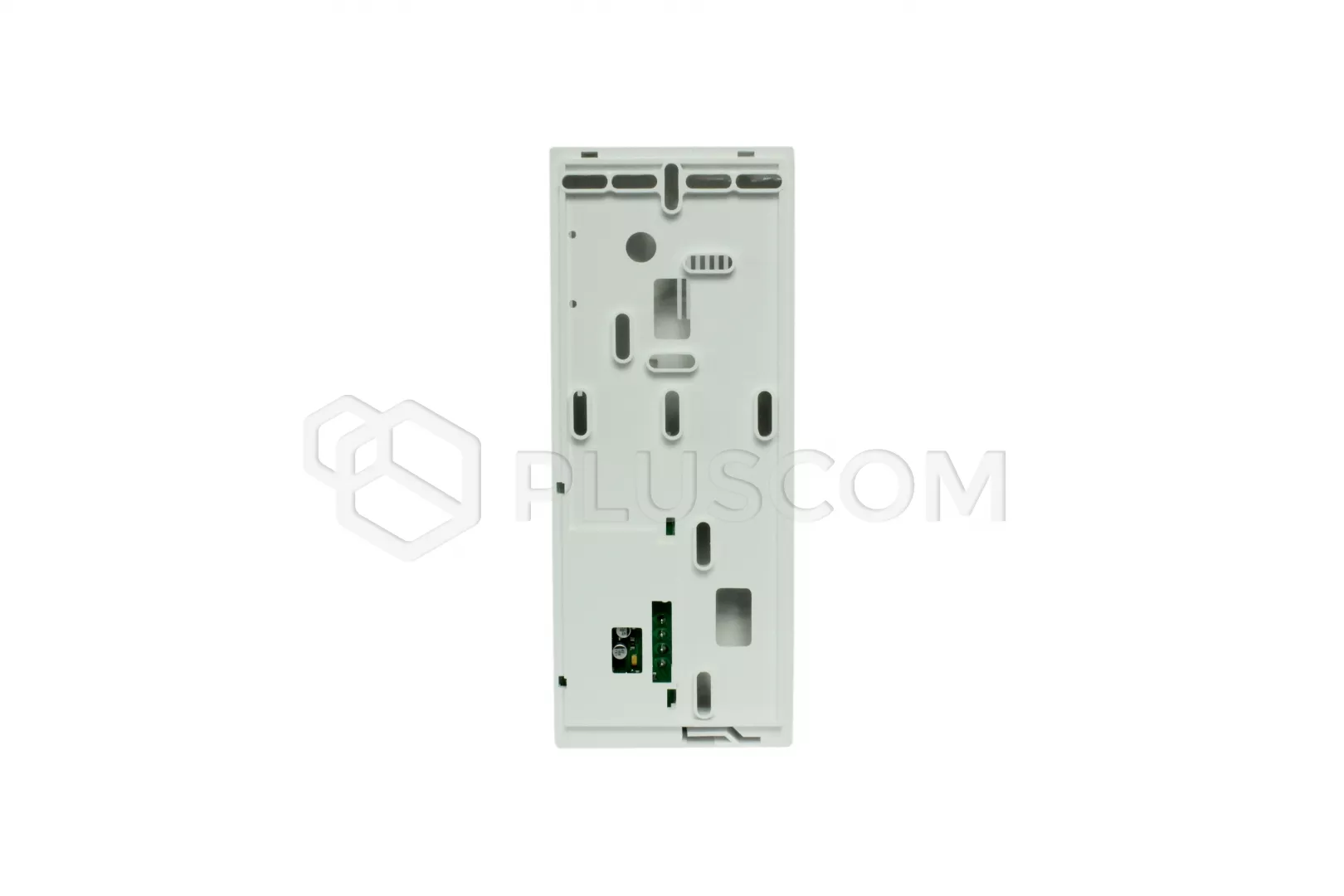

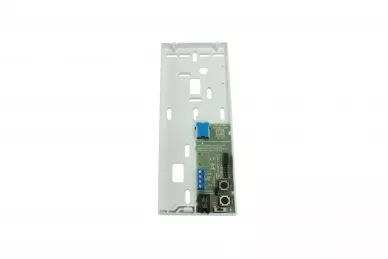

The uniphone is connected to a 2-wire digital bus, not required additional external power. The next step is setting required address / number at which the uniphone will be called. We do it for using jumpers on the uniphone electronics board.

The function key F2 can be controlled in two ways (configuration by means of a jumper):

• on the system bus
• after separating an additional line from the intercom system
