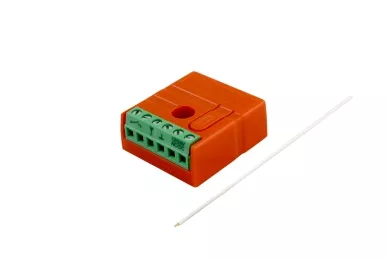

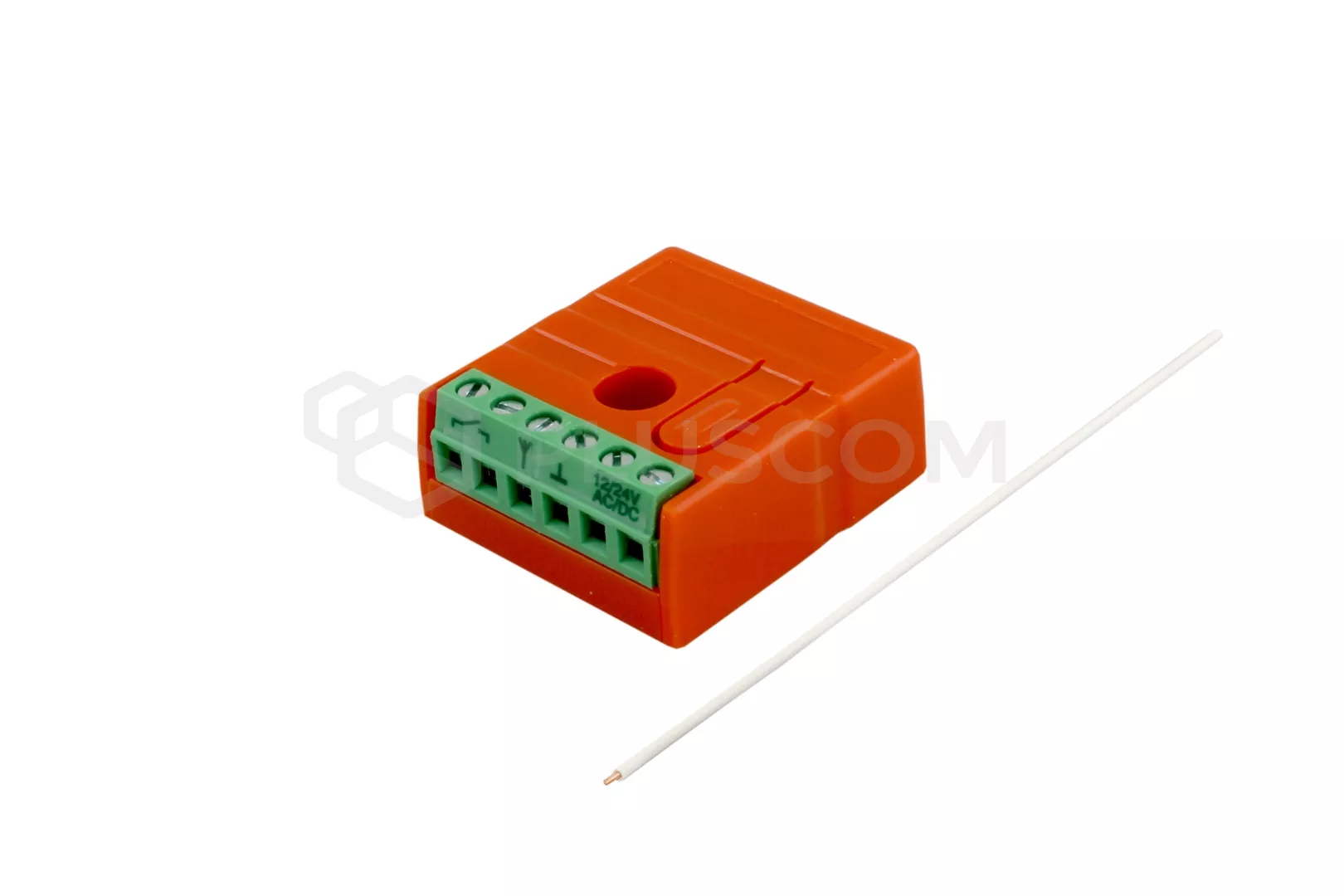

Proxima NM 1-channel universal receiver

PROXIMA NM universal external driver 1-channel

The biggest advantage of the NM receiver is the ability to memorize various remotes manufacturers.
This function can be used when we want to use different remotes systems for controlling the gate drive or barrier in the company. Employees who they already have automation from different manufacturers in their homes with the same remote control they open the gate or barrier in the company. This reduces the cost of additional purchases pilots and employees do not need to have more pilots with them.

One-channel universal driver, it is powered by direct or alternating current with a voltage of 12V or 24V.

The receiver can be programmed with up to 42 remote controls in the PROXIMA system (the whole variable code is analyzed) + additionally, other remotes can be programmed manufacturers with the HCS system (analyzed constant part of the code)
The controller works with pilots of the following manufacturers:

• Nice Smilo
• FAAC Fix
• FAAC RC
• Beninca
• Came Space
• Wiśniowski
• Mhouse
• Normstahl
• Moovo
• Elmes
• Gorke
• DTM System
• BFT
• Key
• Inel
• Solo
• Tousek
• and many others based on HCS wrap

ATTENTION:
The Proxima NM controller does not work with Nice remote controls FLOR

TECHNICAL PARAMETERS ADDITIONAL FUNCTIONS

• receiver superheterodyne - range up to 200m
• hole mounting - effective mounting with one screw, even on the surface spherical - or clamp
• acoustic acknowledgment of keyfob receipt (programmable option) - otherwise for system remote differently for non-system remote
• can be selected (programmable option), whether only the registered button or all buttons of the registered pilot
• acoustic low battery indication for one minute
• with a registered PROXIMA remote you can:
• • read the quantity acoustically programmed remotes
  • register a new keyfob (option programmable)
  • delete a keyfob - a keyfob will be deleted must be available (programmable)
  • delete all remotes, except Therefore, a remote restart is possible registration of remote controls without access to the controller (option programmable)
