Aco FAM-PV-1NPZSACC Video door entry panel with code lock and 1 button and RFID reader

364,12 EUR including 22.00% VAT
Product code: #12901
Manufacturer: ACO
  • max. no. of phones: 11
  • built-in RFID reader
  • concealed installation
  • instalation type: CAT 5 or 6 cable
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco TR-Aco Proximity key ring - black Aco INS-MP7 WH Handsfree digital inside unit with glass front and 7'' colour display Aco PS-HDR-60-15MA 15V/4A DC power supply for DIN rail Aco INS-MP7 BK Handsfree digital inside unit with glass front and 7'' colour display Aco MP800 3,5'' (G2) Handsfree video inside unit Aco PS65-15 DIN DC power supply for DIN rail Aco PNT2-FAM-PRO/PV Surface mounting box Aco MONT-PPT-FAM Mounting kit

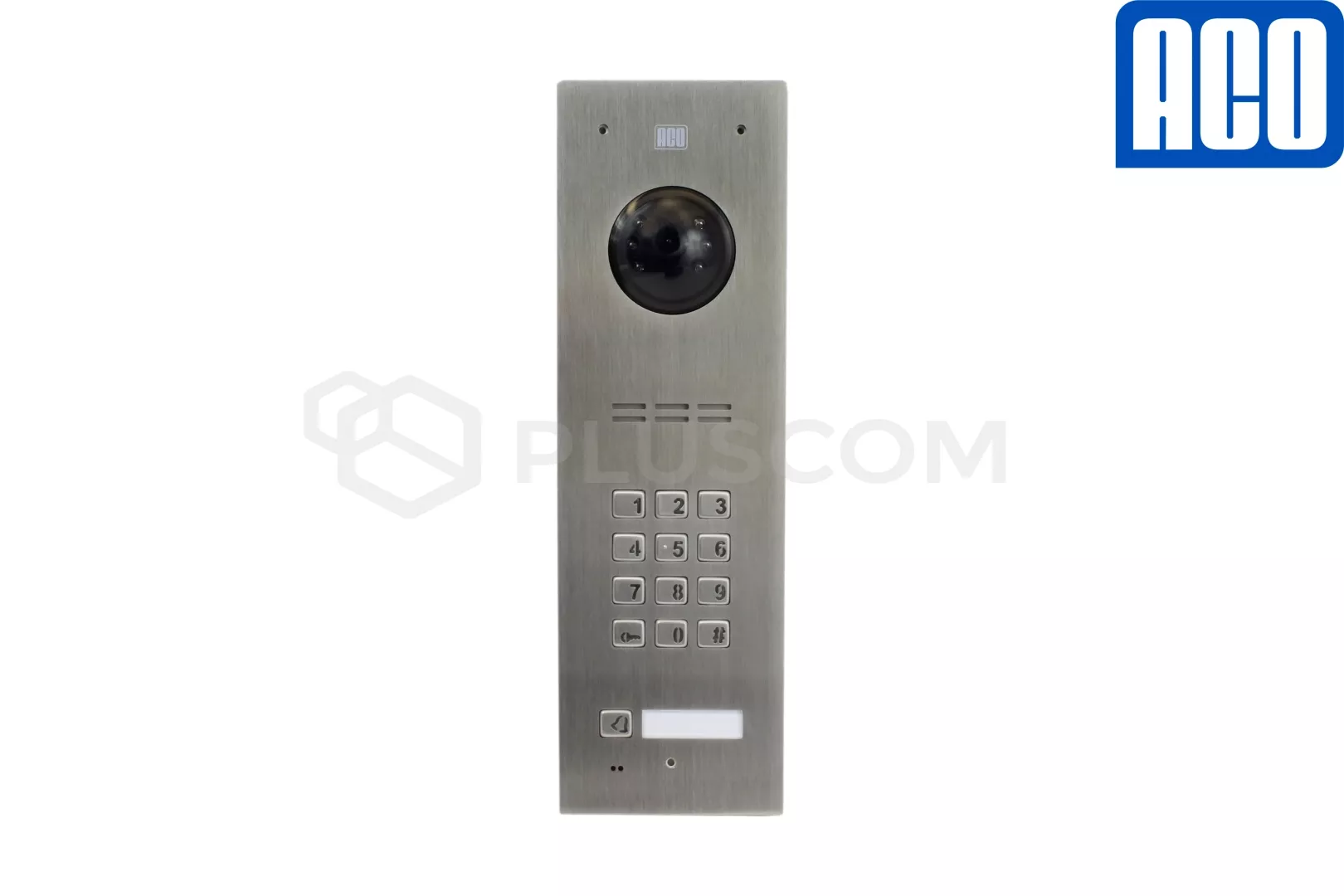

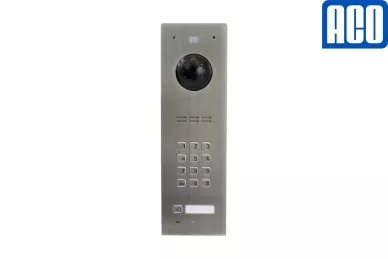

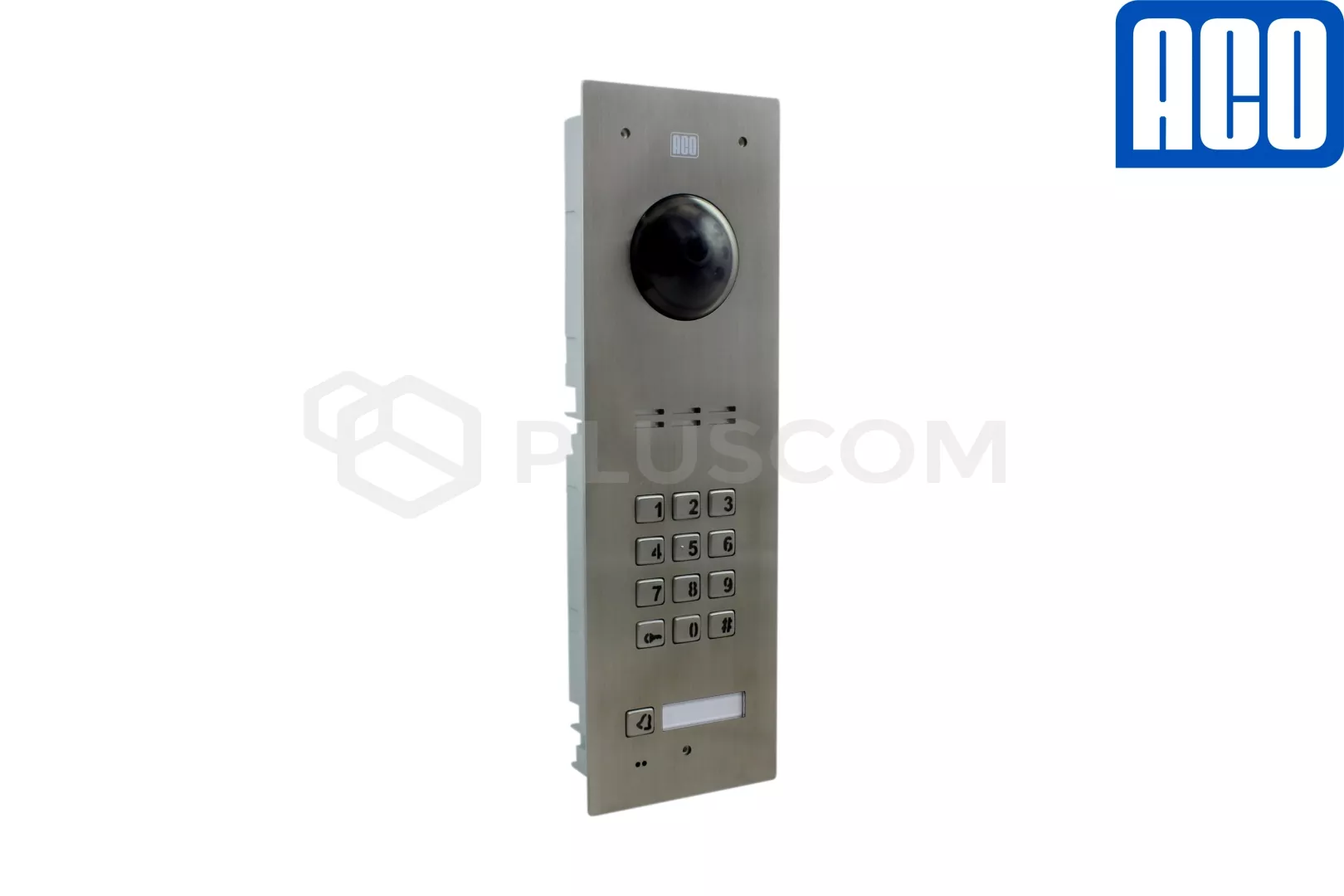

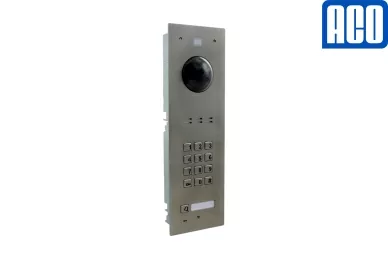

FAM-PV-1NPZSACC Video door entry panel with code lock and 1 button and RFID reader


Video door entry panel with proximity key fob reader, code lock and 1 button.
The panel casing and buttons are made of 2mm thick brushed stainless steel, which ensures high resistance to changing weather conditions and acts of vandalism. Flush mount

Features for disabled:
  • white backlit keyboard and descriptive field, optional facilities for disabled people (Braille marking)
  • acoustic and optical signal of working panel
  • automatic and remote (using a button) door opening without connection. Additional acoustic or light incoming call signal (CDN-U)

DISTINCTIVE FEATURES:

  • integrated proximity tag reader (Unique 125kHz)
  • operation of up to 192 proximity tags
  • corridor opening
  • doorman function
  • compatible with different e-lock types
  • compatible with magnetic keepers
  • controls external opening button
  • easily exchangable backlit description places
  • compatible with all digital devices from CDN, INSPIRO and FAMILIO range
  • programming possible directly on the panel or with the computer with USB cable
  • compatible with different modules that extend functionality
  • controls multi-entrance Master/Slave systems
  • home automation: control over external, devices like gates, lights or blind rollers
  • many handsets can be connected in the same apartment
  • wide configuration possibilities individually for every apartment
  • individual setting of sound parameters
  • intuitive and comfortable configuration and control
FAM-PV-1NPZSACC Video door entry panel:

FAM-PV-1NPZSACC Video door entry panel:
Specification
Max. no. of phones: 11
The number of call buttons: 1
Mounting: Flush
Camera: color, min. 600 lines<br>lens 2,8mm, adjustable<br>heated
Display: none
Installation type: Digital: twisted pair cable cat. 5e or 6
Line lenght: 1000m
Supply voltage: 15V DC
Stand-by power consumption: 2,75W
Inputs:
1 x NO
Outputs:
1 x outputs
Dimensions: 286 x 90mm
Download
Declaration 0.15 MB
