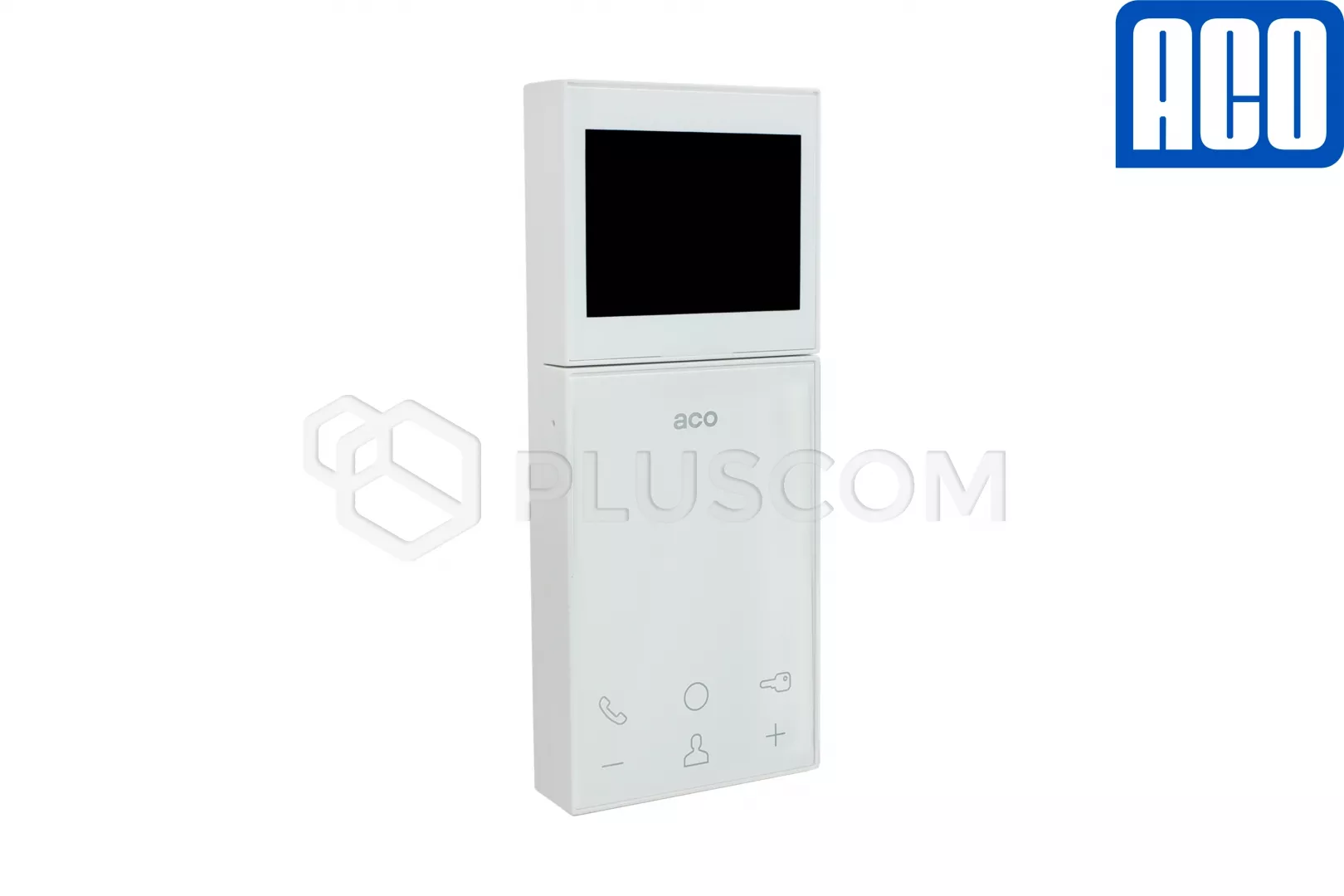

Aco MP800 3,5'' (G2) Handsfree video inside unit

MP800 3,5'' (G2) Handsfree video inside unit

Handset video intercom equipped with a 3.5 "color LCD display works with CDN, Inspiro and Familio digital video intercom systems P / PV from the ACO company.

The white housing is made of high quality ABS plastic. On The front of the housing in addition to the color LCD display have been placed tactile, backlit function icons enabling

• call pickup

• preview image for 20s

• control of the gate's electric lock

• 7 levels of volume control

The main advantages of the MP800 Video Doorphone (G2) are:

• clear, interference-free sound
• option to enable preview permanently
• auto-open function (when a call is detected, it will open) door)
• built-in relay outputs activated independently for 1s

The MP800 3.5 "(G2) has an available output: ARK screw connection - 1x NO contact: 2A / 24VDC (potential-free, separated from the system).

TECHNICAL DATA:

• c3.5 "color LCD monitor (320x240 resolution)
• digital installation: twisted pair cat. 5e or 6
• power: DC 15V 280mA (13,5-18V)
• power consumption: 0.2W in standby mode
• input:

  • 1x RJ45 socket
  • Screw terminals ARK
  • 1x NO contact for the door bell

• output:

  • F2 button - through the main bus line
  • Screw terminals ARK: 1x NO contact: 2A/24VDC

• Surface mounting
• white housing made of ABS
• dimensions: 198,3x81,5x26,4mm
